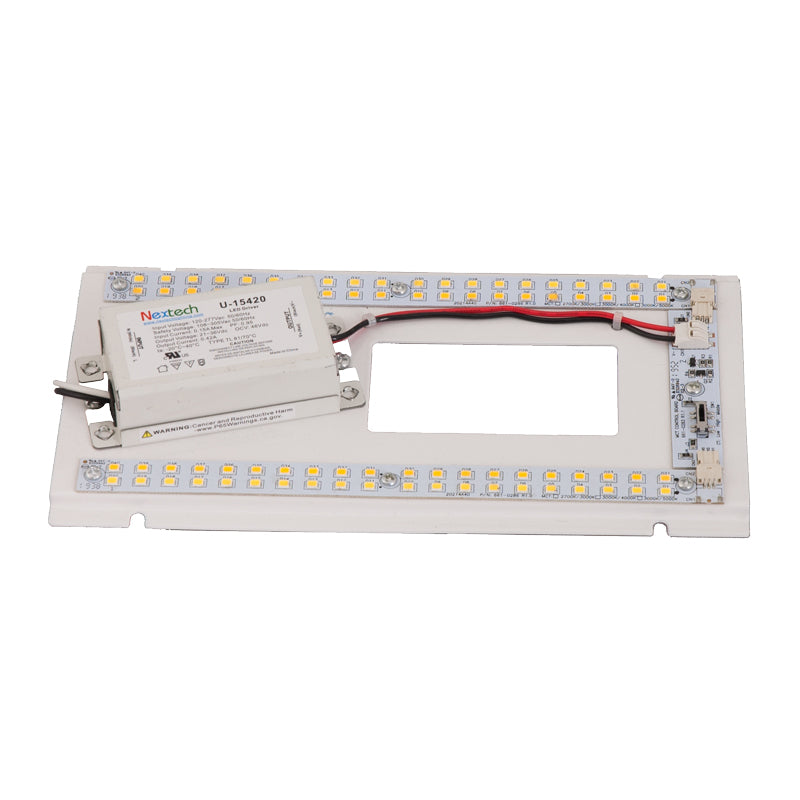

LED DC Light Engine (Rectangular) 21917

LED DC Light Engine (Rectangular) 21917

  • Suitable for  Most of Ceiling Fixtures or Wall Sconces

  • Easy Installation

  • Wattage: 12W – 36W

  • Class 2 Dimming Driver or None Dimming Driver

  • Dimming Option (-xx):

  • UN 120V – 277V None Dimming

  • SD 120V Triac Dimming

  • UD 120V -277V, 0-10V Dimming

  • Adjustable Multiple Color Temperature – 3000K/3500K/4000K

  • 5 Years Limited Warrant


  •



21917 DC Rectangular Light Engine for Sconce

Model Driver
Input Voltage
Wattage CCT Lumen
(nom)
Dimming
Option
(-xx)
Dimension
(L x W x H)
21917-12W 120V or 120V ~ 277V 12W 3000K, 3500K, 4000K 1500 UN, SD 8.6" x 4.5" x 1.2"
21917-15W 120V ~ 277V 15W 3000K, 3500K, 4000K 1800 UN, SD 8.6" x 4.5" x 1.2"
21917-18W 120V ~ 277V 18W 3000K, 3500K, 4000K 2100 UN, SD, UD 8.6" x 4.5" x 1.2"



2868649 DC Rectangular Light Engine for Sconce

Model Driver
Input Voltage
Wattage CCT Lumen
(nom)
Dimming
Option
(-xx)
Dimension
(L x W x H)
2868649-24W 120V ~ 277V 24W 3000K, 3500K, 4000K 3100 UN, UD 11.5" x 5.5" x 1.5"
2868649-28W 120V ~ 277V 28W 3000K, 3500K, 4000K 3600 UN, UD 11.5" x 5.5" x 1.5"
2868649-36W 120V ~ 277V 36W 3000K, 3500K, 4000K 4400 UN, UD 11.5" x 5.5" x 1.5"
