CL-1022

CL-1022


Architectural LED Wall Sconce

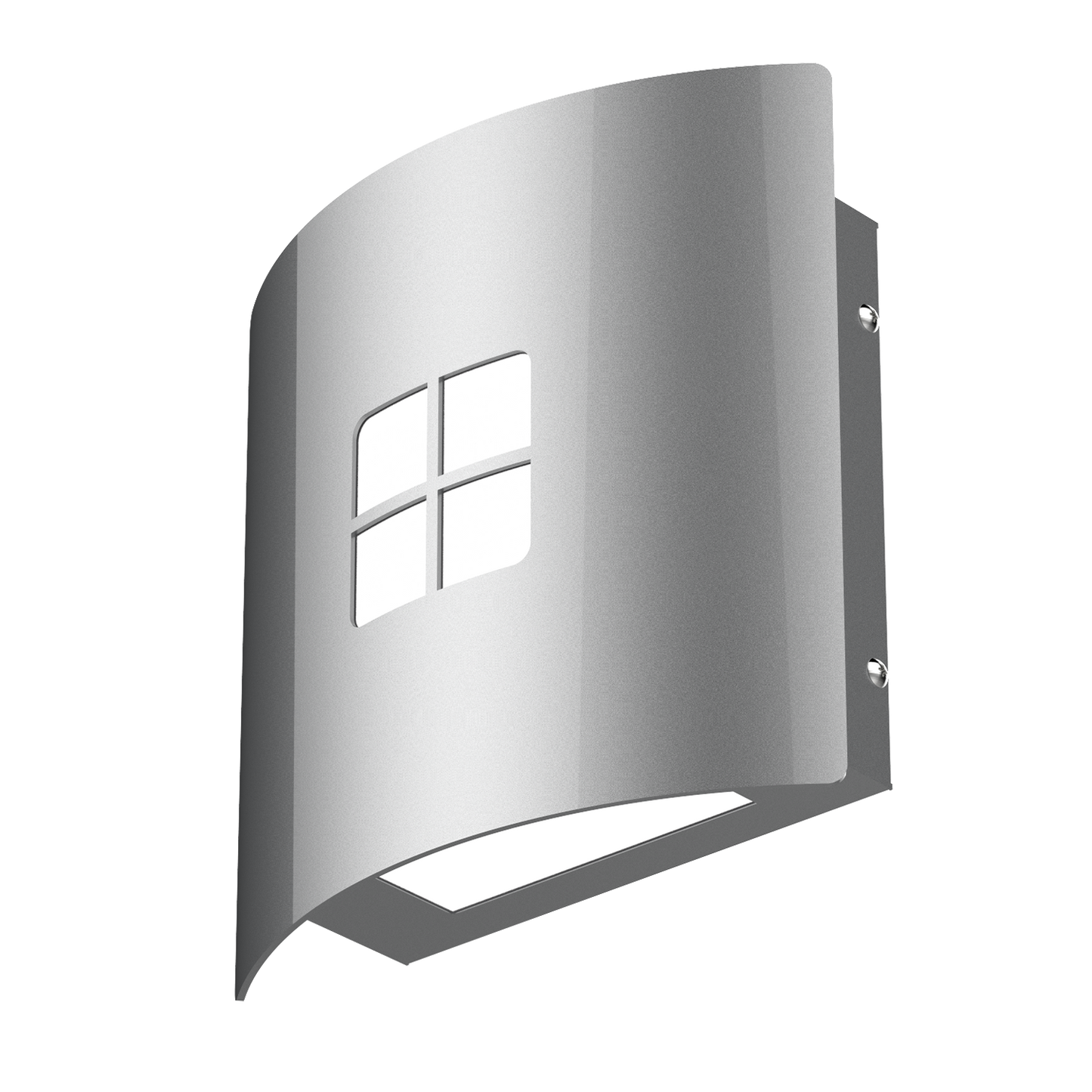

CL-1022 Architectural LED Wall Sconce, Front Panel with three optional Illuminated Design Patterns. Available in many Finishes. CL-1022 is designed to enhance Interior or Exterior applications, Hotels, Restaurants, Hallways, and other Architectural Buildings.

- 10 Year/100,000 hour limited warranty.


FEATURES :

  • Energy Savings: Over 66% compared to HID light sources.
  • Improved lumen maintenance.
  • Available in: Down light, UP/Down Light. Optional: Decorative Front Square or Decorative 4 Square Cutout Design.
  • Utilizes high efficient Lumiled LED’s.
  • Operating temperatures: -30°C ~ 60°C.
  • Driver: Constant current, 120~277v or 480v
  • 10Kv Surge Protector. (standard)
  • 0-10 Dimming Driver, Photo Cell or Wireless Controls. (Optional)


CONSTRUCTION :

  • Housing is Heavy-Gauge Aluminum.
  • 3 Mil Powder Coating finish. (standard).
  • Frosted Acrylic Lens. (FAL) (Standard)
  • Silicone Gasket to Prevent Leakage and provide Weather-Tight Protection.
  • Mounting: Wall Mount.



Cat # Front Pattern Wattage Light Dist. Color Temp. Voltage Lens Mounting Color Options
CL-1022 Solid Face (SF) 10W (10CLED) Type 3 (T3) 3000K (30K) 120-277V (MV) Frosted Acrylic Lens (FAL) Wall Mount (WM) Black (BLK) Photo Cell (PC)
  Square Design (SQD) 15W (15CLED) Type 4 (T4) 4000K (40K)   Opal Acrylic Lens (OAL)   White (WH) Wireless Controls (WC)
  4 Squares Design (4SQD) 20W (20CLED)   5000K (50K)       Bronze (BRZ) Emergency Battery Pack (EMR)
                Silver (SIL)
                Graphite (GPH)
                Marine Grade (MG)

Dimensions
Cat# : CL-1022

  • A : 10”
  • B : 10”
  • C : 4


Cat # : CL-1022-10CLED

  • Input Power : 15W
  • Lumen Output : 1,836
  • LPW : 183
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 35W MH


Cat # : CL-1022-15CLED

  • Input Power : 15W
  • Lumen Output : 2,481
  • LPW : 165
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 35W MH


Cat # : CL-1022-20CLED

  • Input Power : 25W
  • Lumen Output : 2,896
  • LPW : 144
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 50/60HZ
  • HID Equivalent : 50W HPS


SKU: HLCL-1022

Min Order Limit: 1
