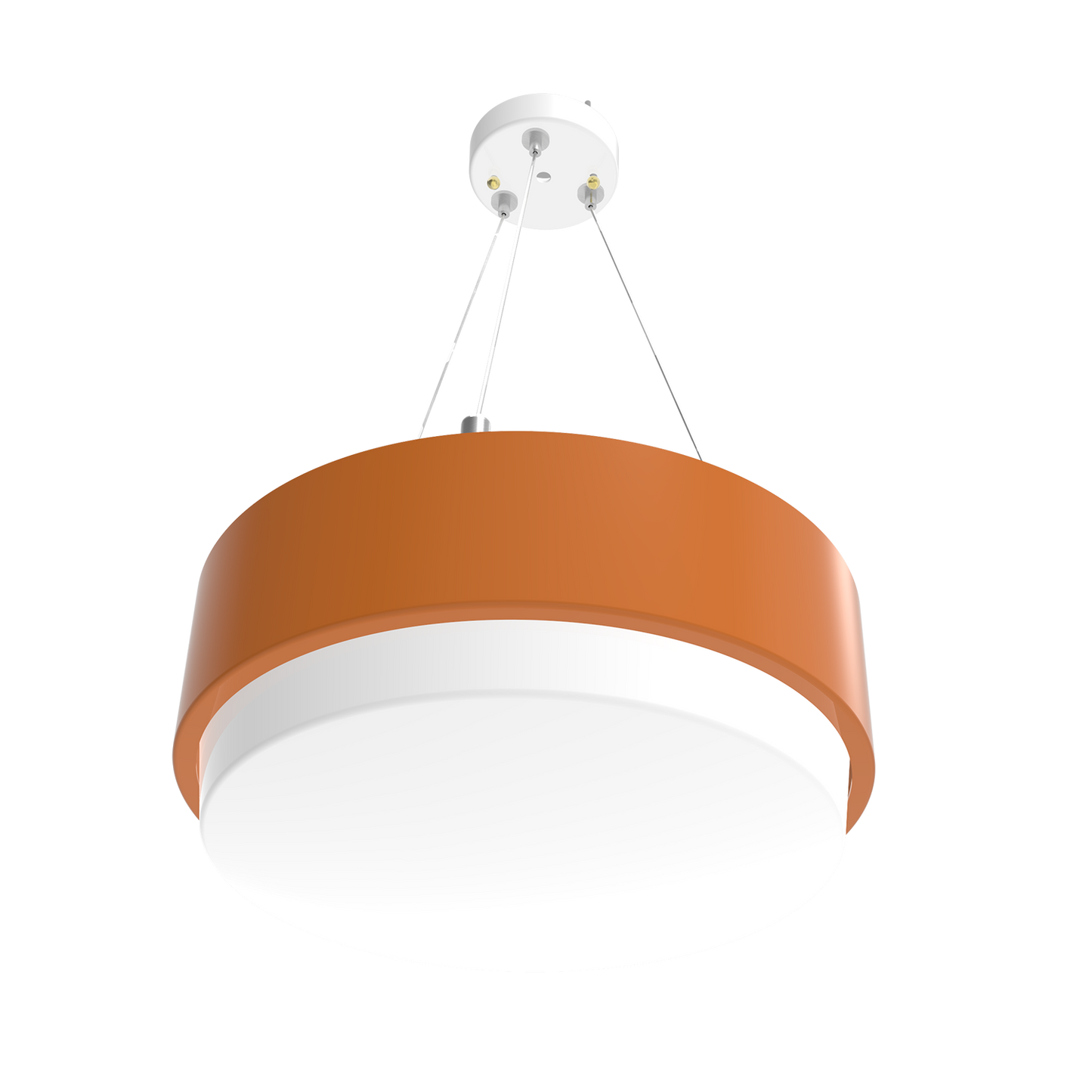

CL-3052 Series Interior Architectural LED Ceiling Light – Multiple Sizes & Finishes
CL-3052 Series Interior Architectural LED Ceiling Light – Multiple Sizes & Finishes
SKU:HLCL-3052
Quantity
Couldn't load pickup availability
Enhance your interiors with the CL-3052 Series Interior Architectural LED ceiling lights, designed for residential homes, offices, restaurants, and indoor shopping areas. This versatile LED fixture is available in two sizes and multiple finishes to match any décor. Equipped with an acrylic lens, it provides smooth, even illumination for comfortable, energy-efficient lighting.
The CL-3052 is built for performance and longevity, featuring a 0-10V dimming driver, optional emergency battery, and occupancy sensor capabilities. With a 10-year limited warranty, this fixture ensures reliable, high-quality illumination for both commercial and residential applications.
Key Features:
- Two sizes: Small/Medium (SM) and Large (LG)
- Heavy-gauge aluminum housing with 3-mil powder coating
- Opal acrylic lens for uniform light distribution
- UL listed for damp and wet locations
- 120/277V driver with 0-10V dimming
- Color temperatures: 3000K, 4000K, 5000K
- CRI options: 80 standard, 90 optional
- Optional occupancy sensor (OCC) and emergency battery (EMR)
- Pendant mount option for Large size with adjustable aircraft cable
- Rated life (L70) > 200,000 hours
- Multiple finish options: Flat Black, Glossy Black, White, Silver, Bronze, Red, Yellow, Orange
Specifications:
CL-3052-SM (Small/Medium)
- Wattage: 10W (10CLED)
- Lumen Output: 800 lm
- Color Temp: 3000K
- CRI: 80+
- Voltage: 120-277V
- Drop Lens: Flush (FSH)
- Finish: Flat Black
- Mounting: Ceiling Mount with optional occupancy sensor
- Dimensions: A: 6.5” | B: 13”
- Options: OCC
CL-3052-LG (Large)
- Wattage: 20W / 30W (20CLED / 30CLED)
- Lumen Output: 1,600 – 3,836 lm
- Color Temp: 4000K / 5000K
- CRI: 90+ (optional)
- Voltage: 120-277V
- Drop Lens: 1” or 2” Drop
- Finish Options: Glossy Black, White, Silver, Bronze, Red, Yellow, Orange
- Mounting: Aircraft cable with 1’ – 4’ adjustable lengths or custom
- Options: Emergency battery (EMR)
- Dimensions: A: 6.5” | B: 16”
Electrical Specs (All Models):
| Cat # | Input Power | Lumen Output | Color Temp | CRI | Rated Life | Voltage |
|---|---|---|---|---|---|---|
| CL-3052-10CLED-S/L | 15W | 800 lm | 3000K | 80+ | >200,000 L70 | 120-277V |
| CL-3052-20CLED-S/L | 25W | 1,600 lm | 3000K | 80+ | >200,000 L70 | 120-277V |
| CL-3052-30CLED-S/L | 35W | 3,836 lm | 3000K | 80+ | >200,000 L70 | 120-277V |
