CL-674

CL-674


Architectural LED Lighting

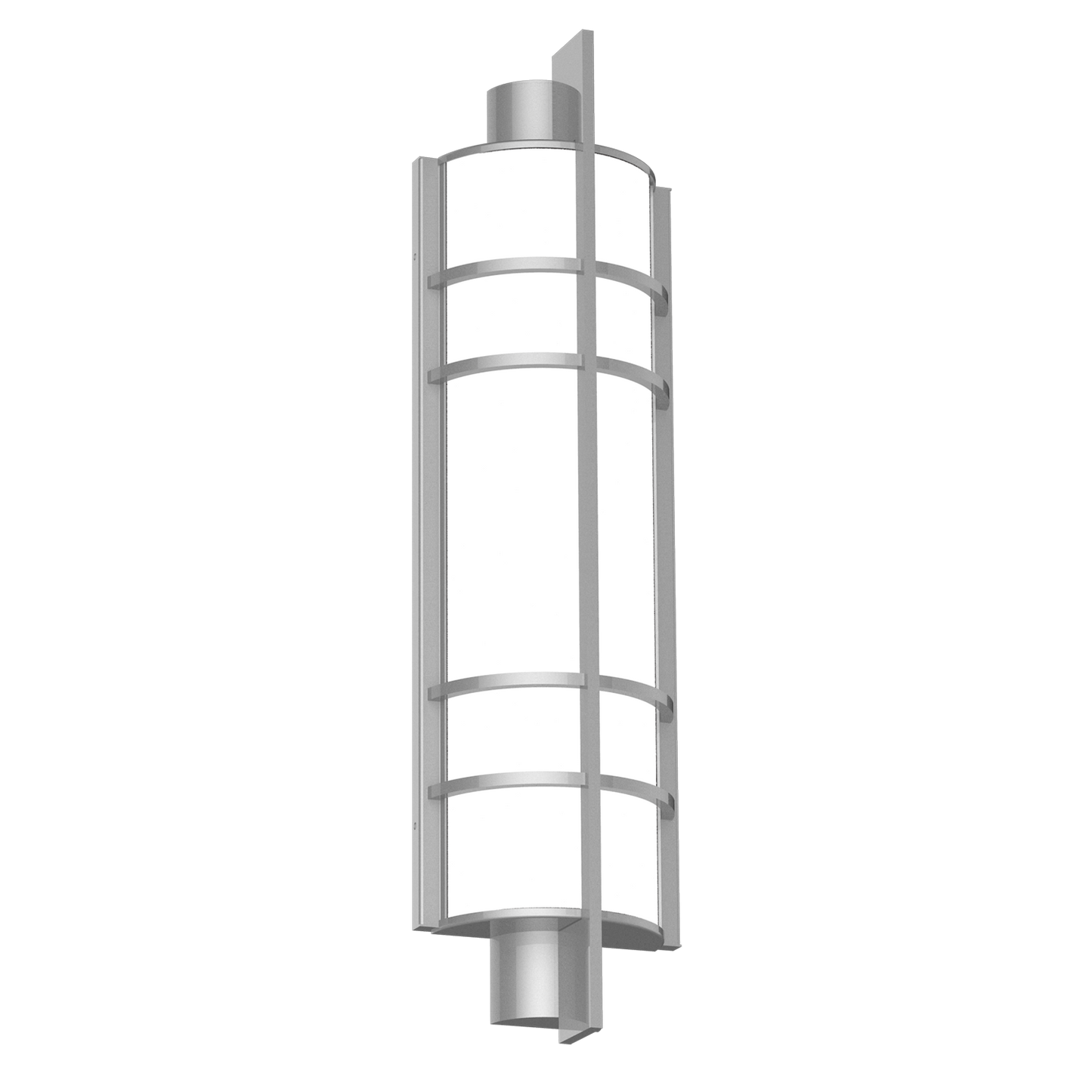

CL-674 Wall Sconce adds a touch of elegance to your Esteriors. alu-minum Housing and Opal Acrylic Lens, many Powder Coat finish-es to choose. CL-674 a Lighting Solution for Modern Archiectural Buildings, Offices, Restaurants, Exteriar Hallways and other Outdoor

  • Indoor Spaces. CL-674 is Available in 24”, 36” and 48” Long. -10 Year Limited Warranty.


FEATURES :

  • Driver 120/277, 0-10v Dimming Driver.
  • Available in 30K/80CRI Standard, 40K, 50k or 90CRI are optional
  • Lumileds Flex LED strip
  • 80 CRI
  • Suitable for damp locations
  • Micro Wave Sensor( Motion Sensor)



CONSTRUCTION :

  • Aluminum Housing
  • 3 Mils Powder Coating baked at 400º
  • Opal Acrylic Lens (Standard)



      Color
Cat # Length Wattage Temp. CRI Voltage Finish Mounting Options
CL-674 24”                      (2)                 --------- 10W (10CLED) 3000K (30K) 80CRI (80CRI) 120-277V (MV) Black (BLK) Wall Mount (WM) Micro Wave Sensor (MWS)
  36”              (3)                 --------- 20W (20CLED)  ---------- 4000K (40K) 90CRI (90CRI)   White (TWHT)
  48” (4) 30W (30CLED) 5000K (50K)     Silver (SLR)
    40W (40CLED)  ----------       Bronze (BRZ)
    50W (50CLED)       Graphite (GPH)
    60W (60CLED)       Custom (CST)
            Brushed Aluminum
            (BSH-A)



Dimensions :
Cat# :
CL-674-2

  • A : 24”
  • B : 31”
  • C : 8” 3/8
  • D : 4” 1/8

Cat# : CL-674-3

  • A : 36”
  • B : 43”
  • C : 8” 3/8
  • D : 4” 1/8

Cat# : CL-674-4

  • A : 48”
  • B : 55”
  • C : 8” 3/8
  • D : 4” 1/8


Cat# : CL-674-2-10CLED

  • Input Power : 15W
  • Lumen Output : 1,343
  • LPW : 134
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V


Cat# : CL-674-2-20CLED

  • Input Power : 25W
  • Lumen Output : 2,154
  • LPW : 107
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V


Cat# : CL-674-3-30CLED

  • Input Power : 35W
  • Lumen Output : 4,029
  • LPW : 134
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V


Cat# : CL-674-3-40CLED

  • Input Power : 45W
  • Lumen Output : 4,828
  • LPW : 120
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V


Cat# : CL-674-4-50CLED

  • Input Power : 55W
  • Lumen Output : 6,416
  • LPW : 128
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V


Cat# : CL-674-4-60CLED

  • Input Power : 65W
  • Lumen Output : 7,701
  • LPW : 128
  • Color Temp.(CCT) : 3000K
  • CRI : 80+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V


SKU: HLCL-674

Min Order Limit: 1
