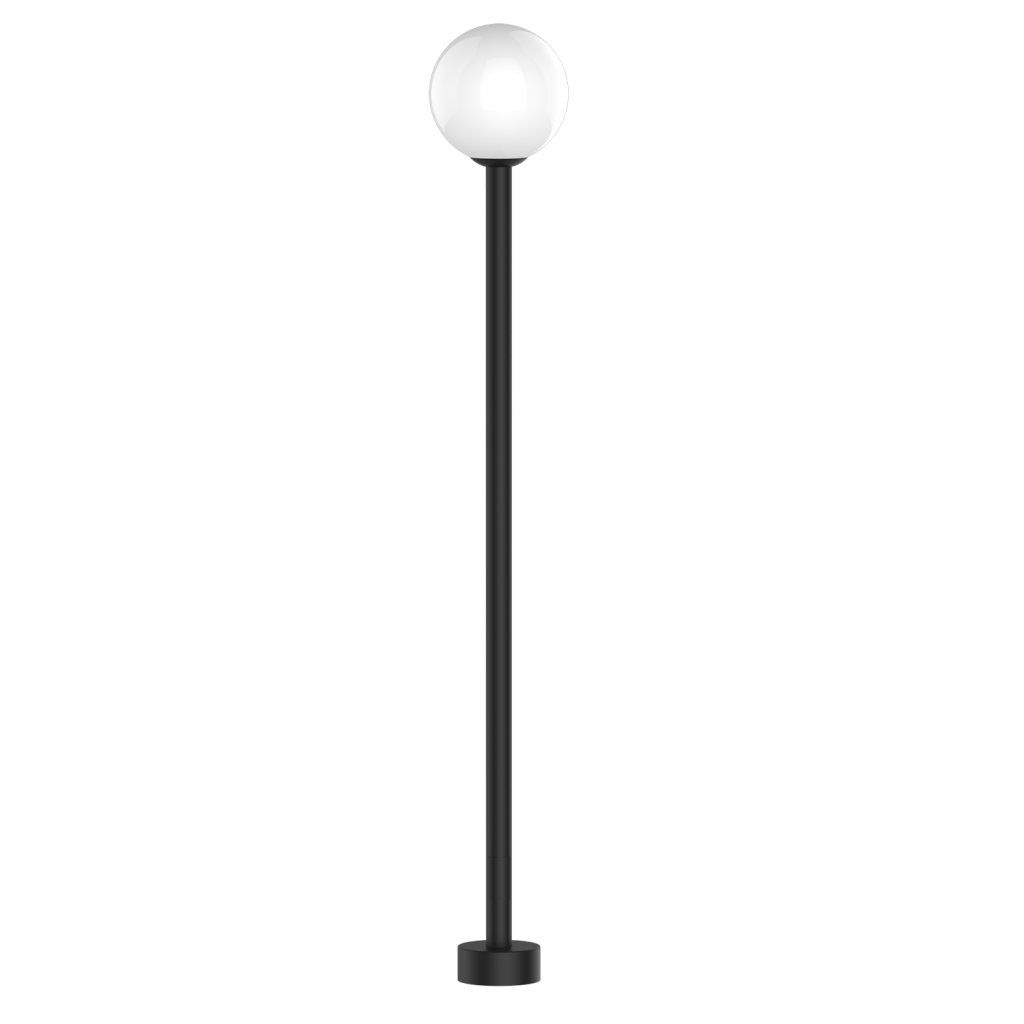

The CLP-3050 Traditional Globe Architectural LED Luminaire combines classic globe styling with modern LED efficiency. Designed for post top applications, this decorative outdoor fixture enhances public parks, shopping plazas, commercial facilities, business campuses, and residential communities with timeless appeal and dependable performance.
Available in three globe sizes and multiple finishes, the CLP-3050 delivers over 66% energy savings compared to HID fixtures while offering long operating life and durable weather-resistant construction.
Backed by a 10-Year / 50,000-Hour Limited Warranty.
Key Features
Traditional globe design with modern LED performance
Over 66% energy savings vs. HID light sources
Improved lumen maintenance
High-efficiency Philips Lumiled LEDs
Symmetric light distribution
Constant current driver
Voltage: 120–277V standard, 480V optional
0–10V dimming driver
Optional occupancy sensors, photocell, and wireless controls
Suitable for wet locations
Operating temperature: -30°C to 60°C
Rated life (L70): >200,000 hours
10-Year / 50,000-hour limited warranty
Construction & Durability
Durable acrylic globe
Die-cast aluminum base
3 Mil powder coat finish
Silicone gasket for weather-tight protection
Lens Options:
Opal Acrylic Lens (OAL)
Frosted Acrylic Lens (FAL)
Clear Acrylic Lens (CAL)
Available Finishes:
Black (BLK)
White (WHT)
Silver (SLR)
Bronze (BRZ)
Graphite (GPH)
Custom Finish (CST)
Mounting
Designed to mount over a 3” OD pole or tenon
Adapter required for alternative pole sizes or shapes
Globe Sizes & Dimensions
10” Globe (GL10)
Diameter (A): 10”
EPA: 0.6
14” Globe (GL14)
Diameter (A): 14”
EPA: 1.3
18” Globe (GL18)
Diameter (A): 18”
EPA: 1.6
Wattage & Performance Options
Available Wattages:
20W
40W
60W
Color Temperature Options:
3000K
4000K
5000K
Light Distribution:
Symmetric
Technical Specifications by Model
CLP-M56-20CLED (20W)
Input Power: 25W
Lumen Output: 3,120 lumens
Efficacy: 156 LPW
CCT: 5000K
CRI: 70+
Input Voltage: 120–277V
HID Equivalent: 100W Metal Halide
CLP-M56-40CLED (40W)
Input Power: 45W
Lumen Output: 5,475 lumens
Efficacy: 136 LPW
CCT: 5000K
CRI: 70+
Input Voltage: 120–277V
HID Equivalent: 150W Metal Halide
CLP-M56-60CLED (60W)
Input Power: 65W
Lumen Output: 8,784 lumens
Efficacy: 146 LPW
CCT: 5000K
CRI: 70+
Input Voltage: 120–277V
HID Equivalent: 175W Metal Halide
Product Specifications Summary
Product Type: Traditional Globe LED Post Top Luminaire
Model: CLP-3050
Globe Sizes: 10” / 14” / 18”
Wattage Options: 20W / 40W / 60W
Light Distribution: Symmetric
Color Temperatures: 3000K / 4000K / 5000K
Voltage: 120–277V (Standard) / 480V (Optional)
Dimming: 0–10V
Housing: Die-Cast Aluminum Base with Acrylic Globe
