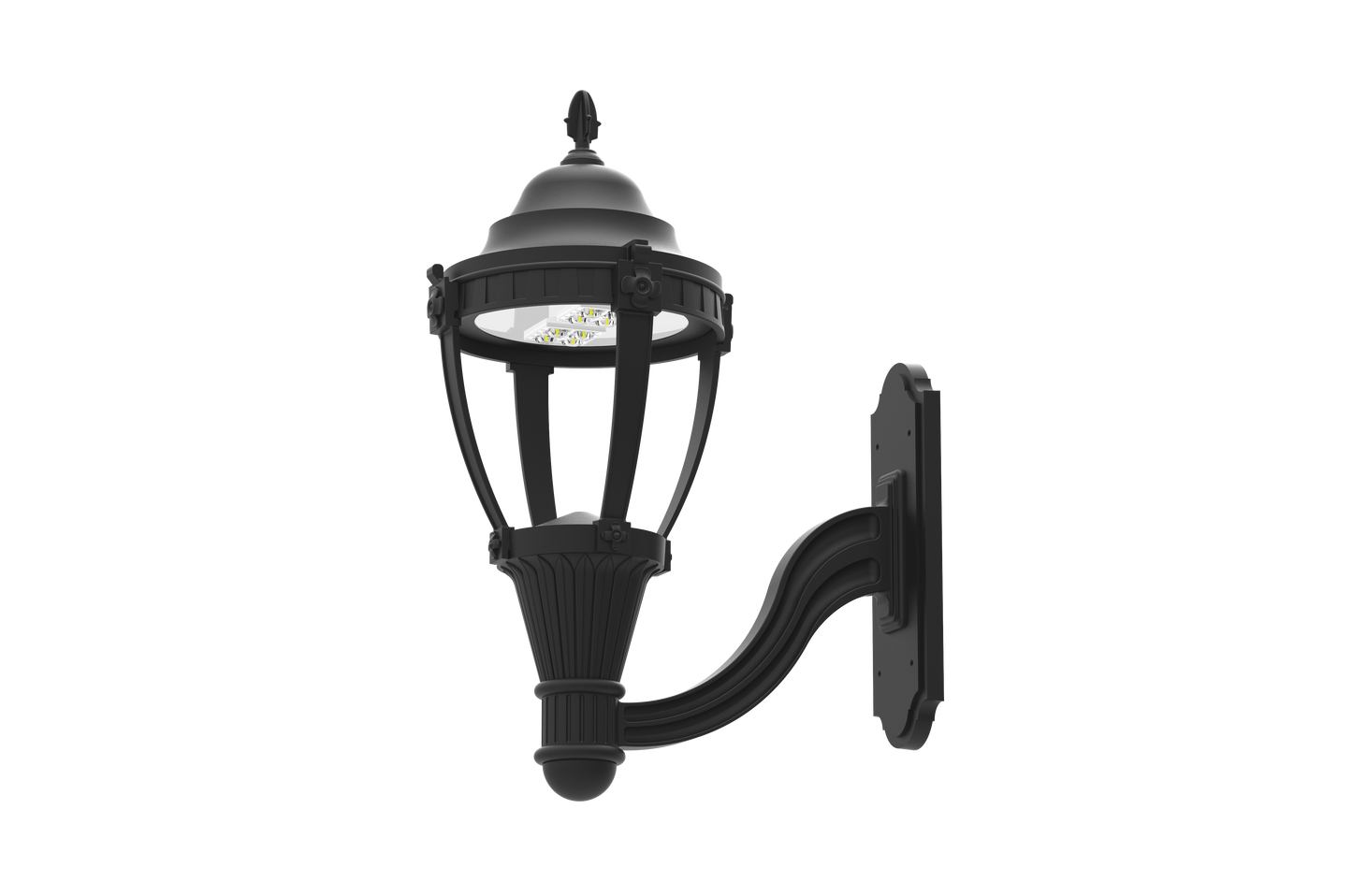

CLP-X43

Architectural LED Luminaire

The CLP-X43 is an architectural LED area light fixture construct-ed with rugged die -cast aluminum. IP66 OPTICS standard . Perfect for lighting up residential exteriors, walkways, perime - ters, school campuses, industrial/commercial spaces, parking lots, recreational parks.

-10 year/100,000 hour limited warranty.

-Dark Sky Luminaire

FEATURES :

• Energy Savings: Over 66% compared to HID light sources..
• Improved lumen maintenance.
• Utilizes high efficient Phillips Lumiled LED’s.
• Operating temperatures: -30°C ~ 60°C.
• Driver: Constant current, 120-277v or 480v (Optional).
• 10Kv surge protector (Standard)
• 0-10Dimming, Occupancy Sensors, Photocell and Wireless Controls (Optional)

CONSTRUCTION :

• Housing is Heavy-Duty Cast Aluminum.
• Clear Optical System
• 3 mils Powder Coat bronze finish (standard) various colors avail-able
• Silicone gasket provide weather-tight protection.
• Mounting: over of a 3” O.D Tenon or Pole (standard) (Adapter is Required for other mounting sizes)

Cat# : CLP-X43

• A : 33” 3/8
• B : 17
• EPA : 1.4

Cat# : CLP-X43-20CLED

• Input Power : 25W
• Lumen Output : 3,680
• LPW : 184
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 50W MH

Cat# : CLP-X43-40CLED

• Input Power : 45W
• Lumen Output : 6,492
• LPW : 162
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 150W MH

Cat# : CLP-X43-50CLED

• Input Power : 55W
• Lumen Output : 7,780
• LPW : 155
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 250W MH

Cat# : CLP-X43-60CLED

• Input Power : 65W
• Lumen Output : 8,539
• LPW : 142
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 175W PSMH

Cat# : CLP-X43-80CLED

• Input Power : 85W
• Lumen Output : 9,590
• LPW : 119
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 250W PSMH

Cat# : CLP-X43-100CLED

• Input Power : 105W
• Lumen Output : 12,306
• LPW : 123
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 250W HPS

Cat# : CLP-X43-120CLED

• Input Power : 125W
• Lumen Output : 16,012
• LPW : 133
• Color Temp.(CCT) : 5000K
• CRI : 70+
• Rated Life (L70) : >200,000
• Imput Voltage : 120-277V
• HID Equivalent : 400W MH


SKU: HLCLP-X43

Min Order Limit: 1
