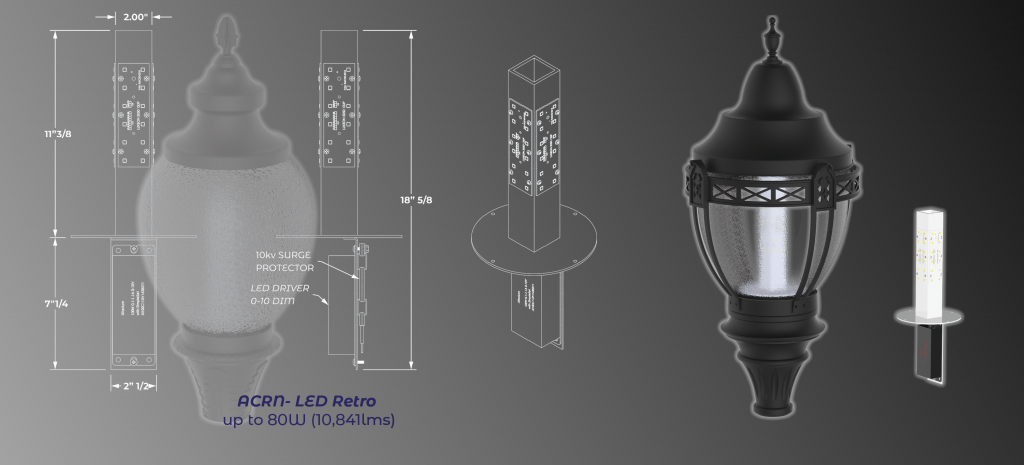

The ACRN-LRET LED Acorn Retrofit Kit is a high-performance solution designed to convert existing HID acorn luminaires into energy-efficient LED fixtures. Ideal for campuses, parks, pathways, municipalities, and retail environments, this retrofit module mounts below the existing HID reflector to provide full cutoff light distribution, improving efficiency while reducing glare and light pollution.
Manufactured from durable Aluminum 6063 for superior thermal dissipation and finished with a 3 mil white powder coating, the ACRN-LRET delivers long-lasting performance in outdoor environments. With energy savings exceeding 66% compared to traditional HID lamps and a rated life over 200,000 hours (L70), this retrofit significantly lowers maintenance and operating costs.
Backed by a 10 Year / 100,000 Hour Limited Warranty, the ACRN-LRET is the ideal solution for upgrading decorative acorn luminaires without replacing the entire fixture.
Key Features
Designed to retrofit existing HID acorn luminaires
Full cutoff distribution when mounted below HID reflector
Energy savings over 66% compared to HID
High-efficiency LED performance
Rated life over 200,000 hours (L70)
120–277V standard, 480V optional
Available in Type III and Type V distribution
Optional wattage adjuster
10 Year / 100,000 Hour Limited Warranty
Construction & Finish
Aluminum 6063 housing for optimal heat dissipation
