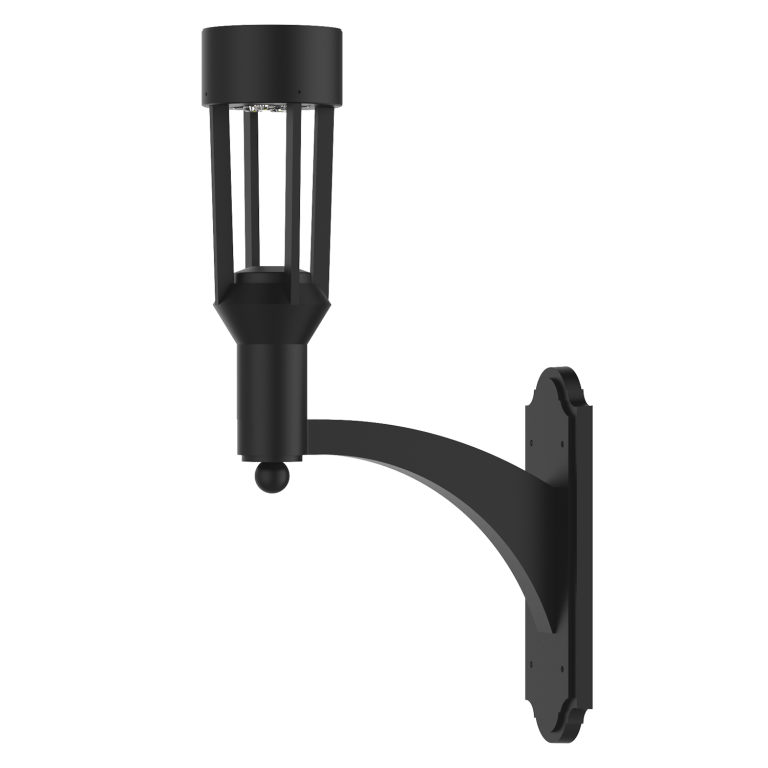

The Astral-PM Architectural LED Luminaire is a high-performance, vandal-resistant post top lighting solution engineered for pathways, campuses, hospitality properties, commercial exteriors, and public spaces. Combining security, durability, and architectural style, the Astral-PM seamlessly blends into any outdoor environment while delivering powerful, energy-efficient illumination.
Designed, fabricated, and assembled in the USA, this LED post mount fixture offers multiple wattages, light distribution patterns, and color temperatures to meet diverse site lighting requirements. With up to 66% energy savings over traditional HID fixtures, the Astral-PM is the ideal upgrade for modern exterior lighting projects.
Backed by a 10-year / 100,000-hour limited warranty.
Key Features
Up to 66% energy savings compared to HID light sources
High-efficiency Lumiled LEDs for superior performance
Improved lumen maintenance for long-term brightness stability
Available wattages: 20W, 40W, 50W
Light distributions: Type 2, Type 3, Type 4, Type 5
Color temperatures: 3000K, 4000K, 5000K
0–10V dimming driver standard
Optional occupancy sensors, photocell, and wireless controls
Voltage options: 120–277V (MV) or 480V (HV optional)
IP65 / IP67 rated for outdoor environments
Operating temperature: -30°C to 60°C
10-Year / 100,000-hour limited warranty
Designed, fabricated, and assembled in the USA
Construction & Durability
Corrosion-resistant cast aluminum housing
3 Mil powder coat finish for long-lasting durability
All stainless steel hardware
Clear optic lens (Types 2, 3, 4, 5 available)
IP67-rated optical system options
Silicone gasket for weather-tight IP66 protection
Vandal-resistant design
Available finish colors:
Black (BLK)
White (WH)
Bronze (BRZ)
Silver (SIL)
Graphite (GPH)
Marine Grade (MG)
Mounting

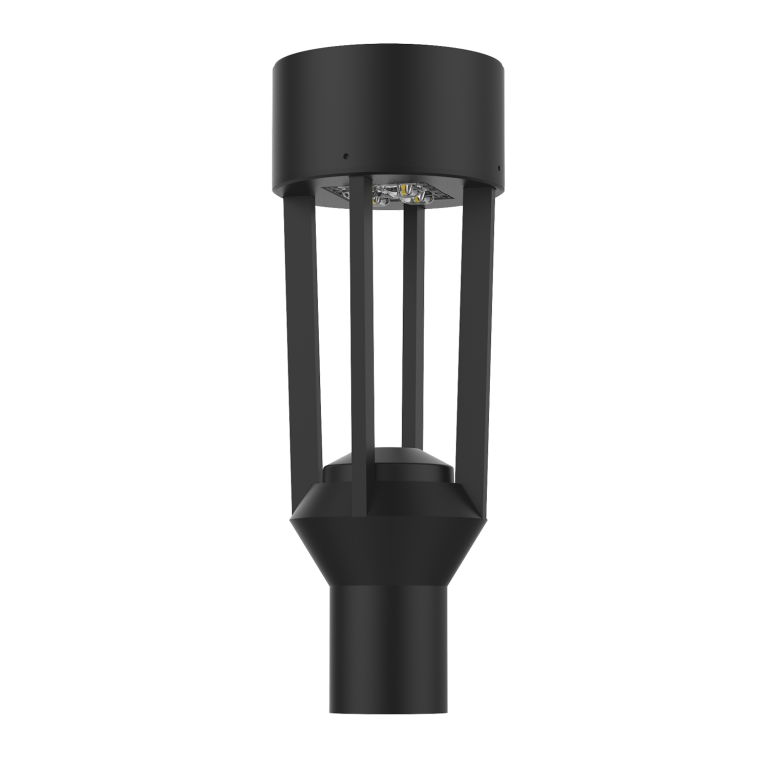

Post Top mounting
Designed to mount over a 3” OD pole or tenon

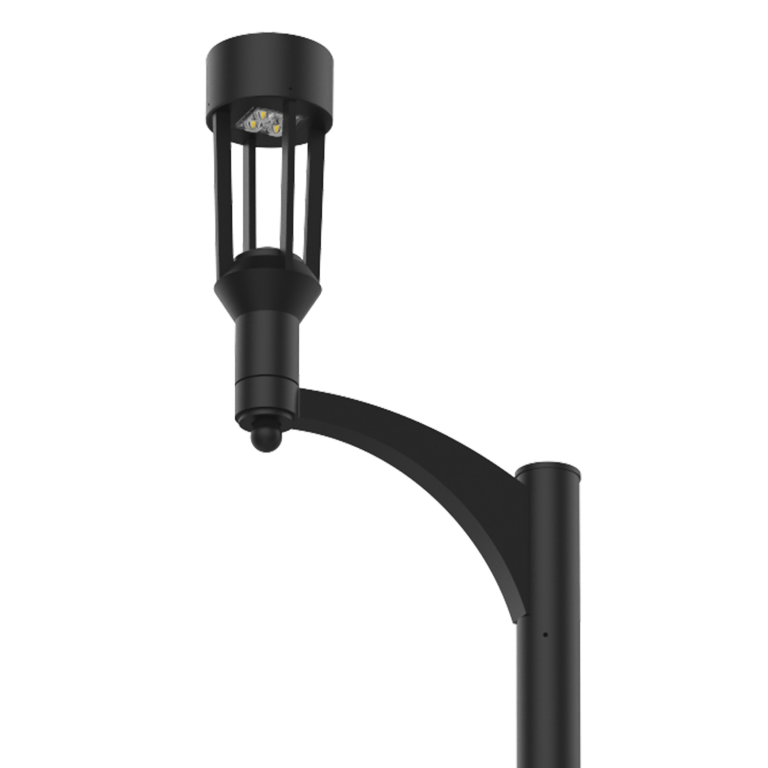

Adapter required for alternative mounting configurations
Dimensions
Height (A): 22”
Width (B): 8”
EPA: 0.69
Catalog Number: AST-PM
Technical Specifications by Model
AST-PM-20CLED (20W)
Input Power: 25W
Lumen Output: 3,148 lumens
Efficacy: 157 LPW
Color Temperature: 5000K
CRI: 70+
Rated Life (L70): >200,000 hours
Input Voltage: 120–277V
Frequency: 50/60Hz
HID Equivalent: 100W Metal Halide
AST-PM-40CLED (40W)
Input Power: 45W
Lumen Output: 5,706 lumens
Efficacy: 142 LPW
Color Temperature: 5000K
CRI: 70+
Rated Life (L70): >200,000 hours
Input Voltage: 120–277V
Frequency: 50/60Hz
HID Equivalent: 150W Metal Halide
AST-PM-50CLED (50W)
Input Power: 55W
Lumen Output: 5,638 lumens
Efficacy: 112 LPW
Color Temperature: 5000K
CRI: 70+
Rated Life (L70): >200,000 hours
Input Voltage: 120–277V
Frequency: 50/60Hz
HID Equivalent: 175W Metal Halide
Product Specifications Summary
Product Type: Architectural LED Post Top Luminaire
