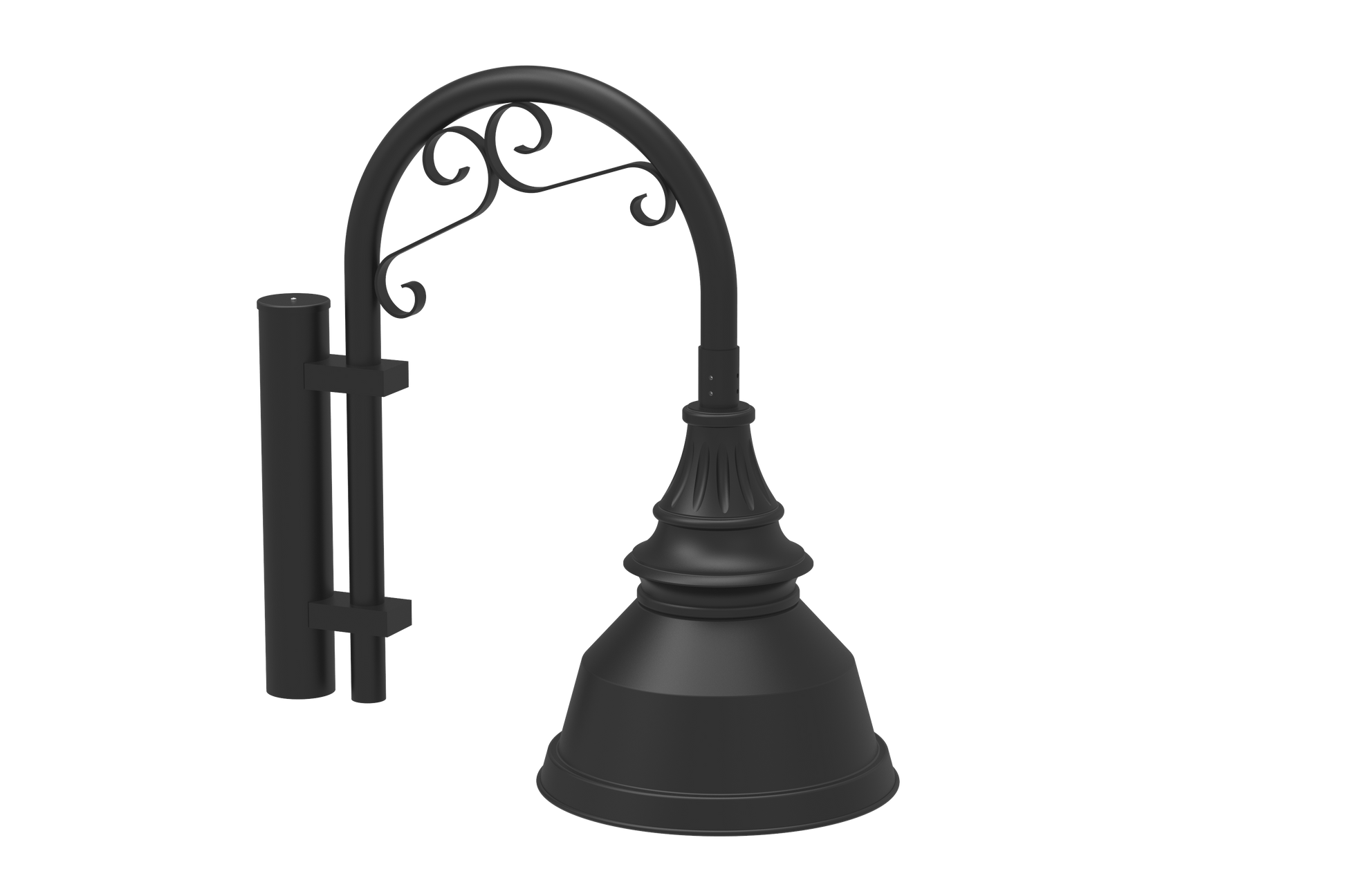

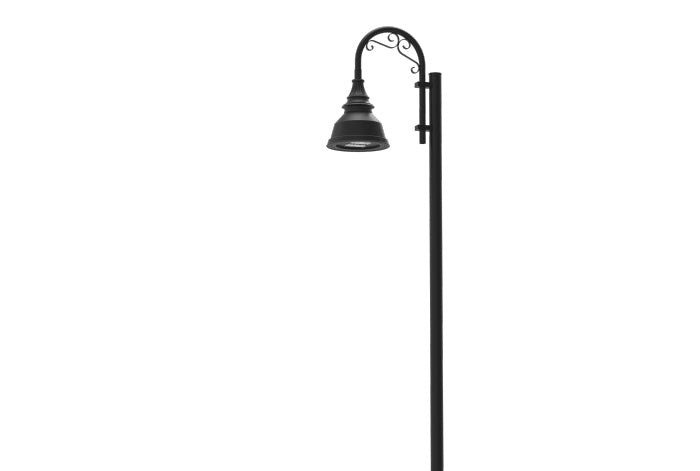

Aurora – Architectural LED Arm Mount Luminaire
Aurora – Architectural LED Arm Mount Luminaire
SKU:HLAurora
Quantity
Couldn't load pickup availability
The Aurora LED Luminaire is a premium architectural outdoor lighting solution, designed for residential, commercial, and industrial exteriors. Its wide light distribution creates an inviting, sophisticated atmosphere for walkways, perimeters, school campuses, recreational parks, and any outdoor setting.
Constructed with a heavy-gauge spun aluminum cast top and shade, the Aurora luminaire is finished with a 3 mil powder coat and features a clear optic system (standard) with silicone gaskets to prevent leakage. Ideal for environments requiring durable, high-performance LED lighting, Aurora is both energy-efficient and long-lasting.
- 10-year / 100,000-hour limited warranty
- Arm mount design for easy installation
- Energy-efficient LED with high lumen output
Key Features
- Heavy-gauge spun aluminum top and shade for durability
- 3 mil powder coat finish for corrosion resistance
- Clear optic system standard (optional clear flat lens)
- Silicone gasket for weather-tight protection
- Wide light distribution (Type 2, 3, 4, 5 optics)
- 120–277V (MV) or 480V (HV) operation
- Optional accessories: Photo Cell (PC), Occupancy Sensor (OCS), Wireless Control (WC), House Side Shield (HSS), Wattage Adjuster (WA)
- Energy savings: Up to 66% compared to HID lighting
- CRI 70+ with long L70 rated life (>200,000 hours)
Wattage & Lumen Output
| Cat# | Input Power | Lumen Output | LPW | Color Temp | CRI | Rated Life | HID Equivalent |
|---|---|---|---|---|---|---|---|
| AUR-40CLED | 45W | 6,492 lm | 162 | 5000K | 70+ | >200,000 hrs | 70W HPS |
| AUR-50CLED | 55W | 7,780 lm | 155 | 5000K | 70+ | >200,000 hrs | 100W MH |
| AUR-60CLED | 65W | 8,256 lm | 137 | 5000K | 70+ | >200,000 hrs | 150W PSMH |
| AUR-80CLED | 85W | 10,841 lm | 135 | 5000K | 70+ | >200,000 hrs | 175W HPS |
| AUR-100CLED | 105W | 15,560 lm | 155 | 5000K | 70+ | >200,000 hrs | 250W PSMH |
| AUR-120CLED | 125W | 16,512 lm | 137 | 5000K | 70+ | >200,000 hrs | 310W HPS |
| AUR-150CLED | 155W | 23,340 lm | 155 | 5000K | 70+ | >200,000 hrs | 400W PSMH |
Mounting & Dimensions
- Mounting: Arm Mount (AM)
- Dimensions (A x B): 21 ½” x 20 ¼”
- EPA: 1.6
Color & Finish Options
- Bronze (BRZ)
- Silver (SIL)
- Black (BLK)
- White (WH)
- Graphite (GPH)
- Marine Grade (MG)
Ideal Applications
- Residential walkways and perimeters
- Commercial exteriors and building facades
- School and university campuses
- Recreational parks and plazas
- Industrial or commercial outdoor lighting
