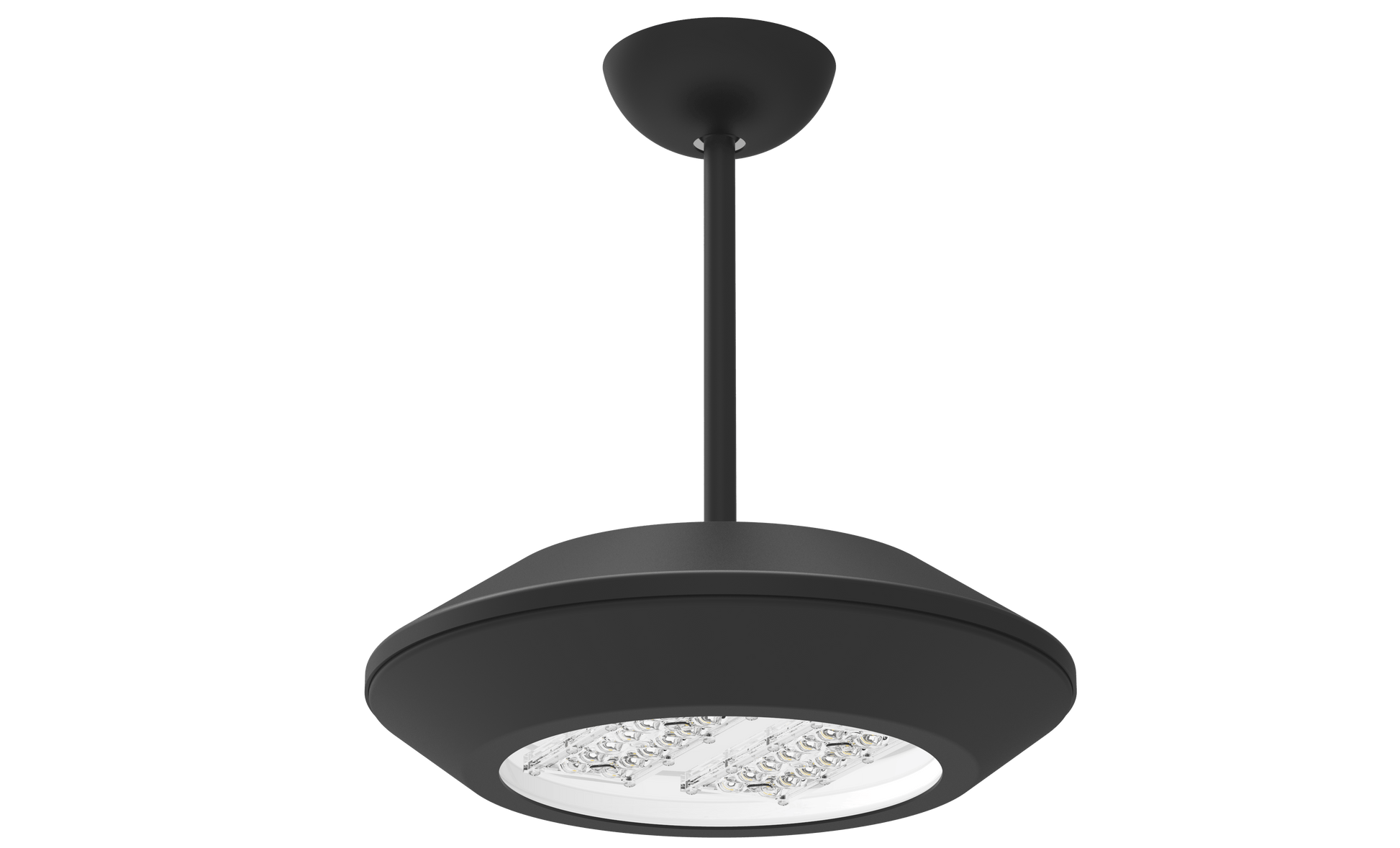

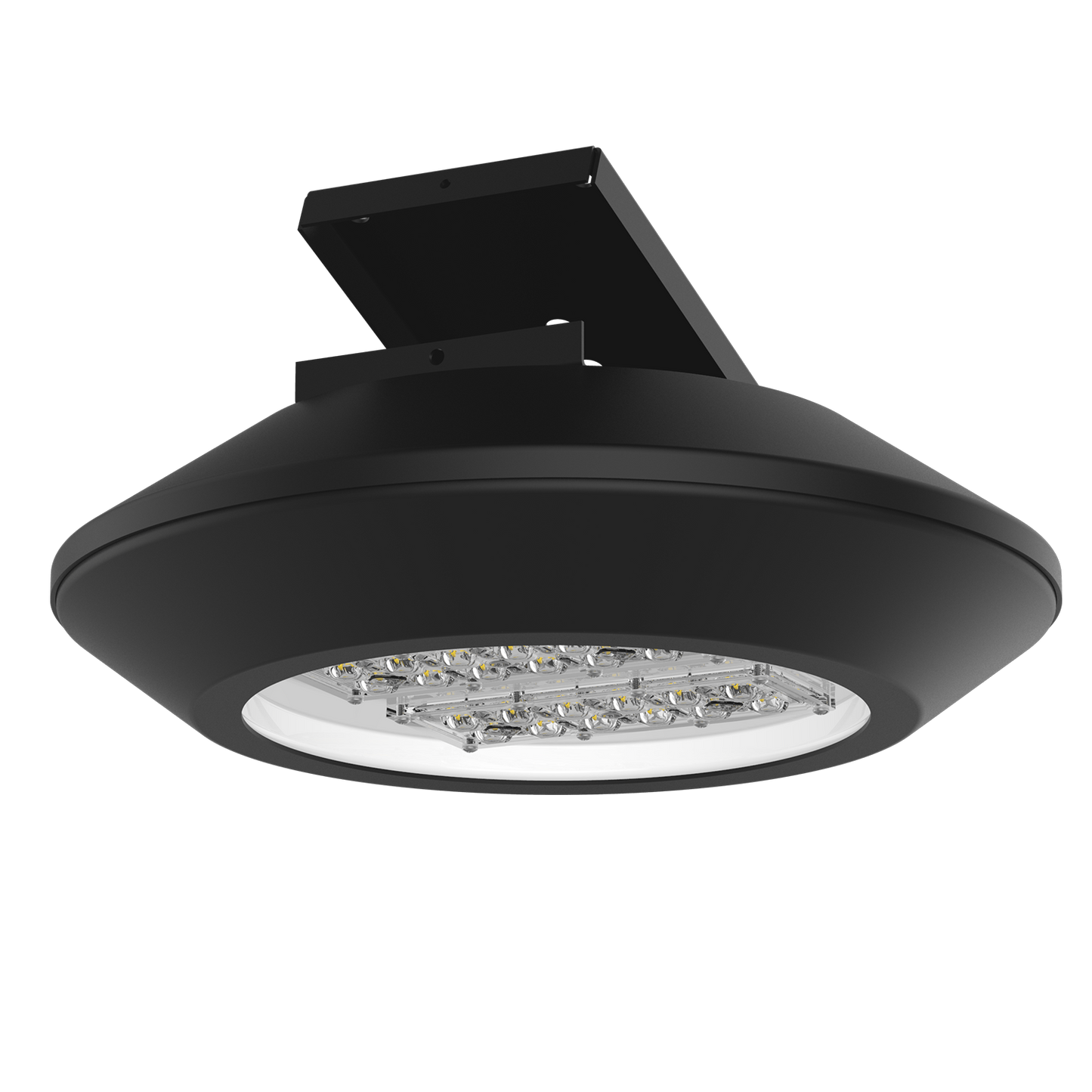

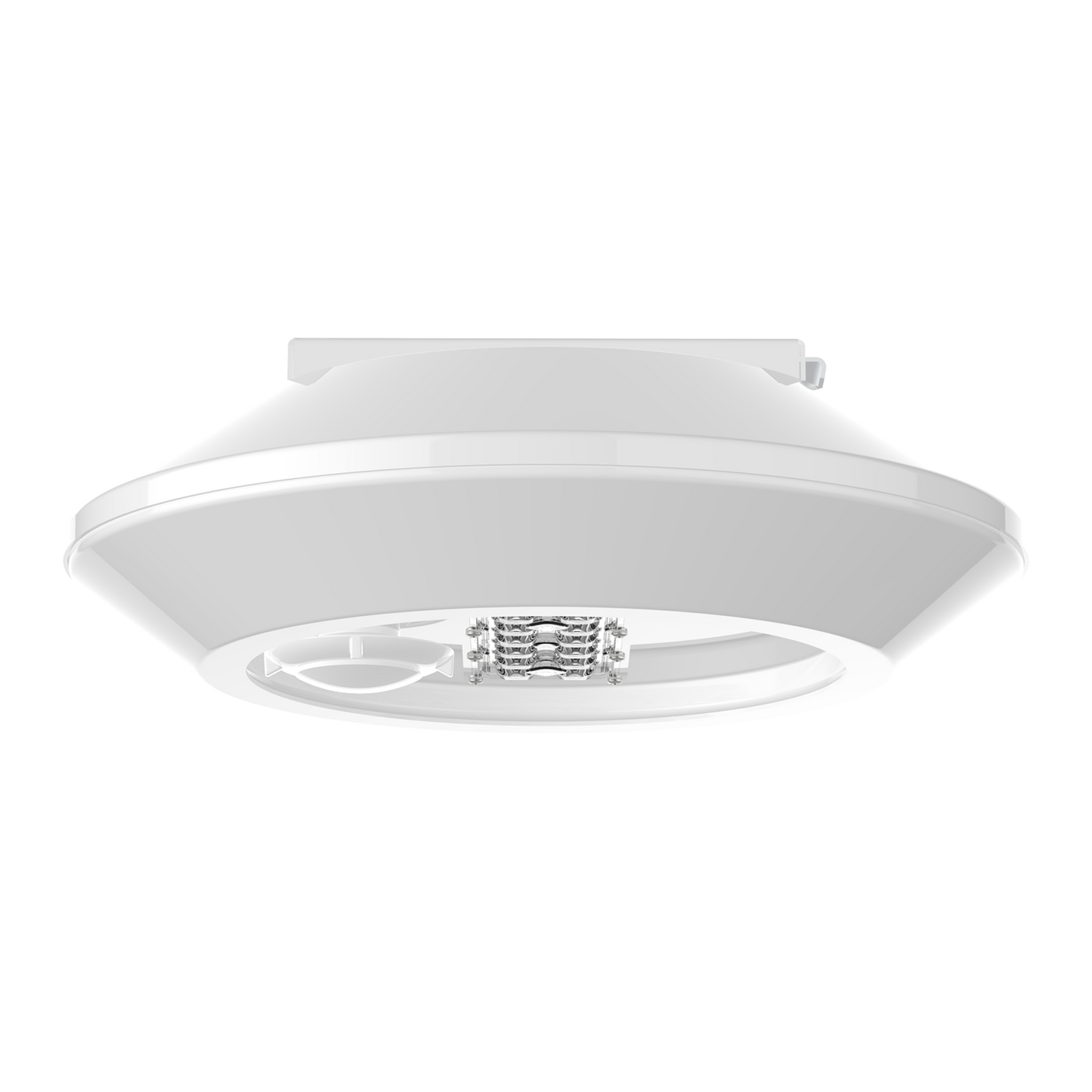

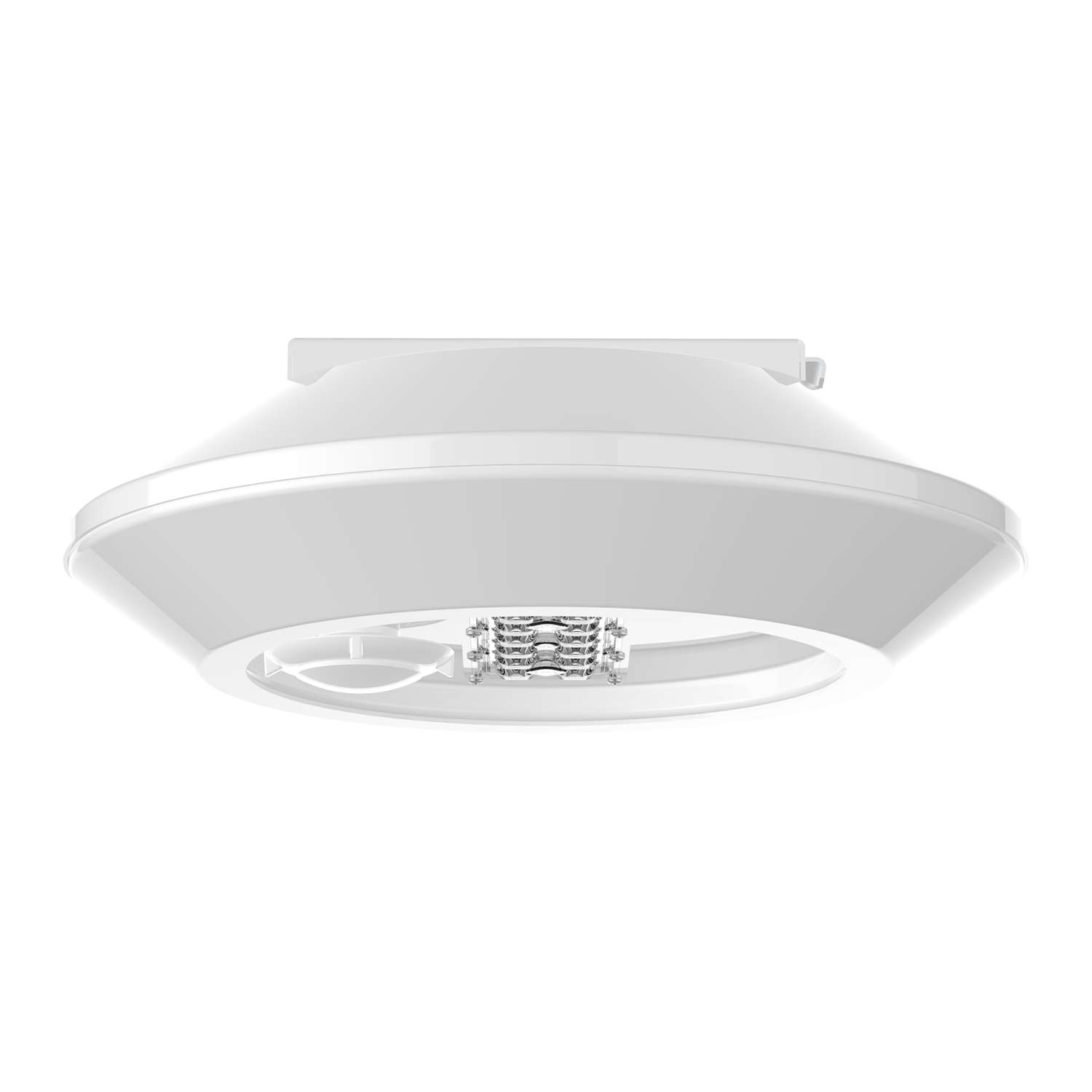

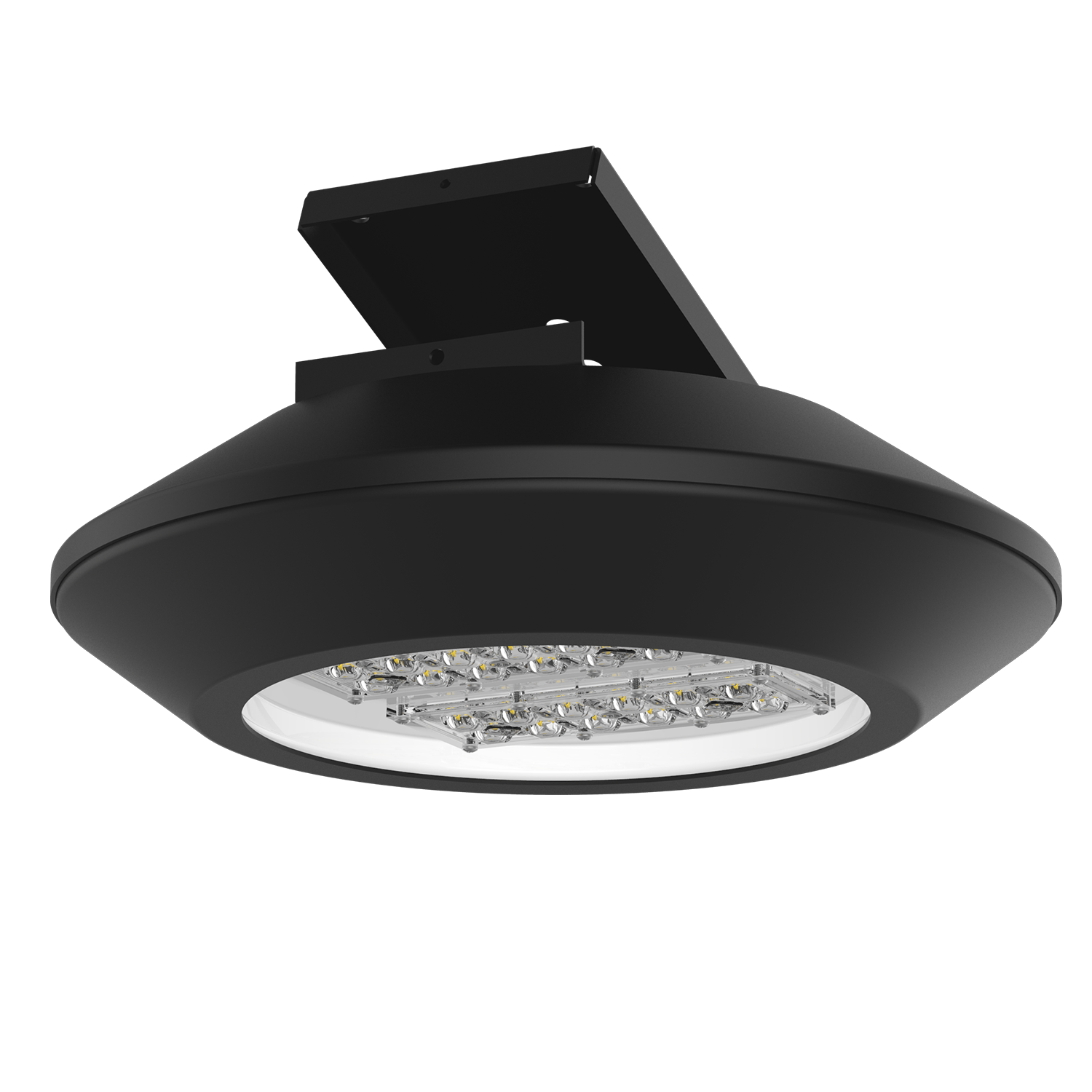

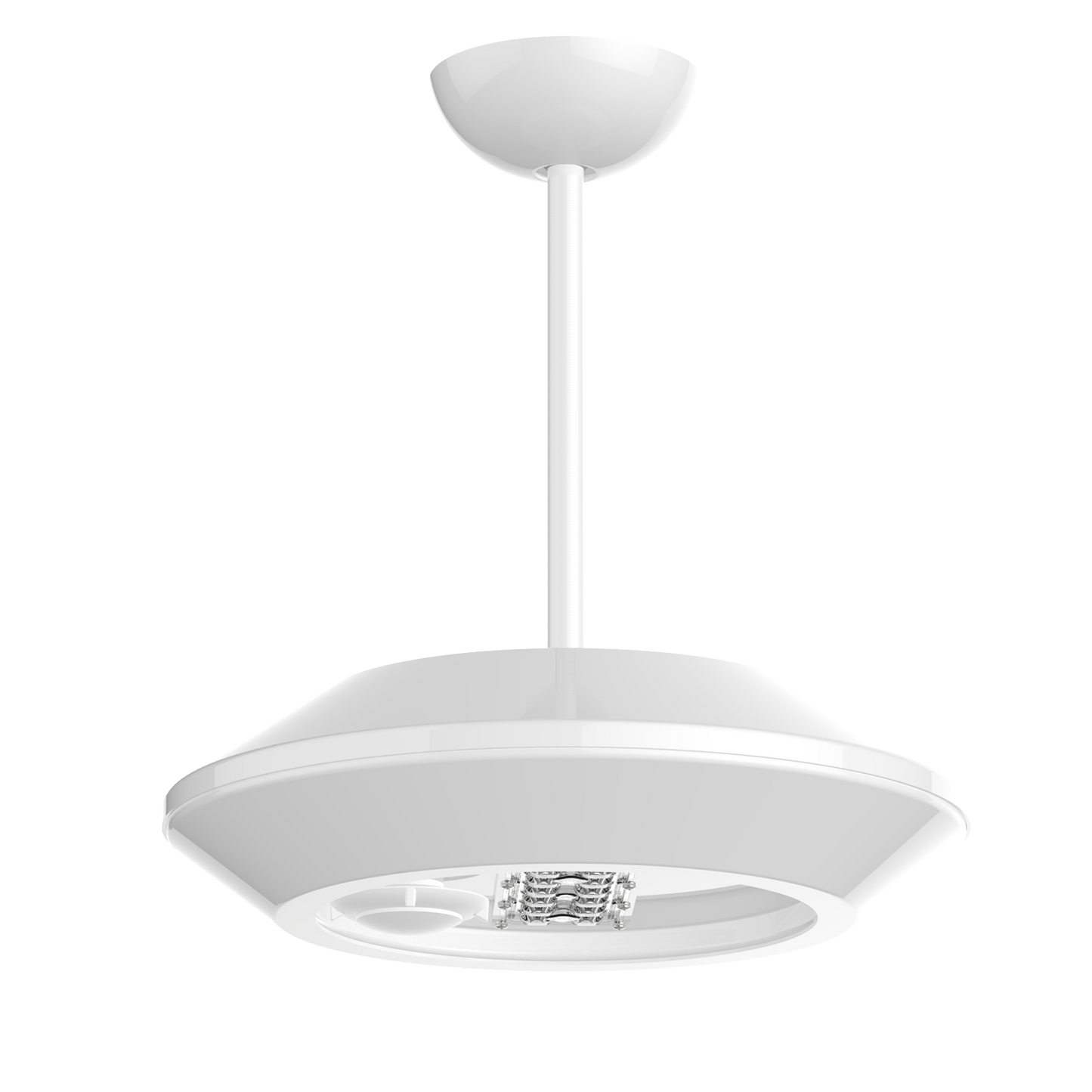

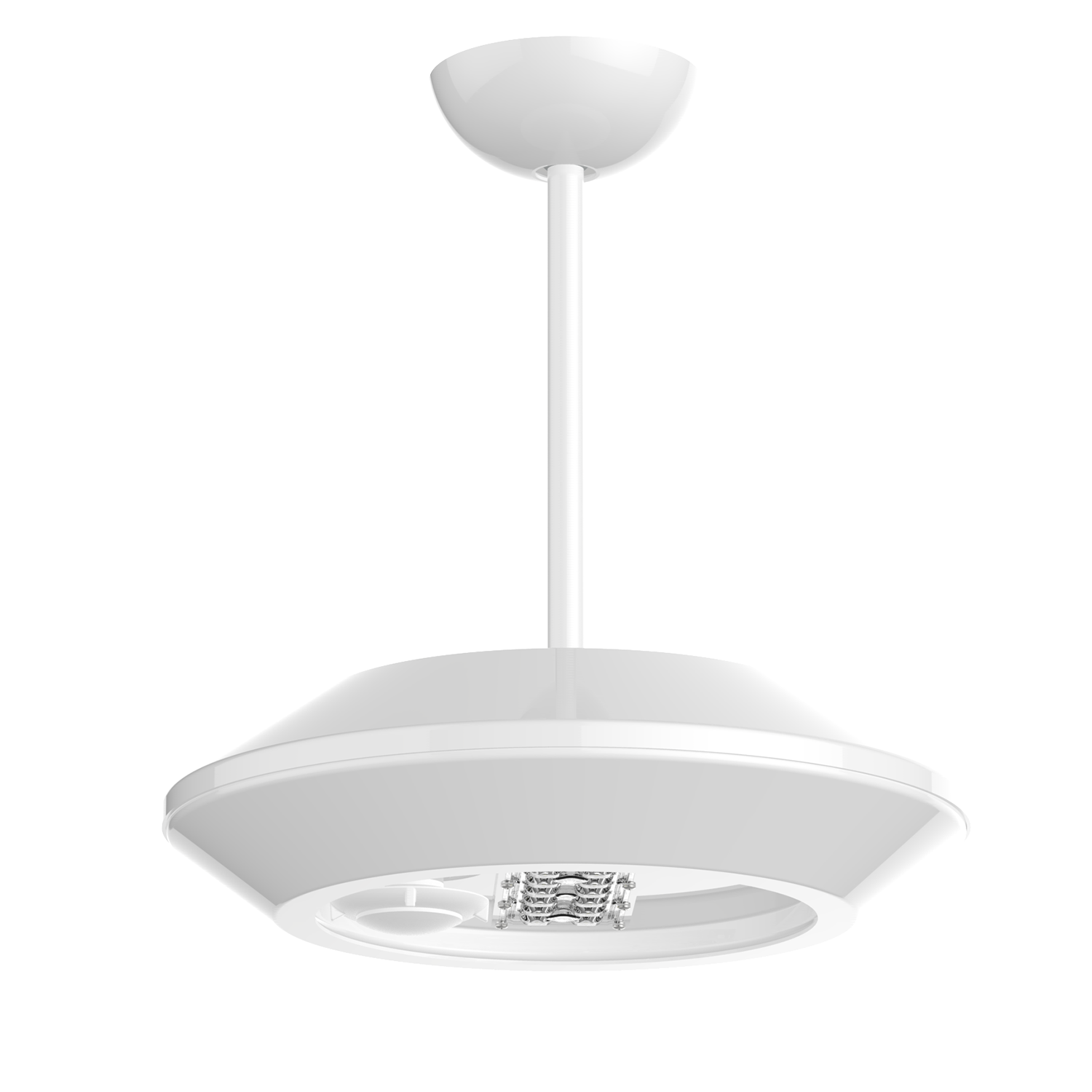

Ceiling / Pendant Mount 5001 – LED Garage & Canopy Light (Up to 70W, 9,986 Lumens)

The Ceiling / Pendant Mount 5001 is a high-performance LED fixture engineered for demanding interior environments such as parking garages, fuel station canopies, warehouses, and industrial/commercial facilities. Designed for wet locations and built with a wide light distribution pattern, this fixture delivers reliable, energy-efficient illumination with long service life.

Constructed from durable aluminum housing and sealed with a silicone gasket for IP65 protection, the 5001 series withstands moisture, dust, and harsh operating conditions. With multi-watt options up to 70W delivering up to 9,986 lumens, this fixture provides powerful, uniform lighting coverage.

Backed by a 10-Year / 100,000-Hour Limited Warranty, the 5001 is built for long-term performance and reduced maintenance costs.

Product Specifications

• Product Name: Ceiling / Pendant Mount 5001
• Cat#: 5001
• SKU: HLCPM-5001
• Maximum Output: Up to 70W (9,986 Lumens)
• Warranty: 10-Year / 100,000 Hours Limited Warranty
• Housing: Formed Aluminum
• Gasket: Silicone Gasket (IP65 Rated)
• Finish: 3 Mils Powder Coat
• Optic System: Clear Optic System
• Voltage: Multi-Volt (120–277V)
• Frequency: 50/60Hz
• CRI: 70+

Wattage Options

• 20W (20CLED)
• 30W (30CLED)
• 40W (40CLED)
• 60W (60CLED)
• 70W (70CLED)

CENTURY Series – Up to 70W (9,986 Lumens)

Color Temperature (CCT) Options

• 3000K (3K)
• 4000K (4K)
• 5000K (5K)

Mounting Options

• Ceiling Mount (CM) – Directly over 4" J-Box
• Pendant Mount:
  • 12" Stem (PM12)
  • 24" Stem (PM24)
  • 36" Stem (PM36)

Finish Options

• Bronze (BRZ)
• Graphite (GPH)
• Black (BLK)
• White (WH)
• Custom (CST)

Optional Add-Ons

• Motion Sensor (OCC)
• Button Photocell (PC)
• Emergency Battery Backup (EMR)
• Wireless Control (WC)

Performance Specifications (Ceiling Mount Models)

• 5001-CM-30CLED
  • Input Power: 35W
  • Lumen Output: 5,222 Lumens
  • Efficacy (LPW): 174
  • CCT: 5000K
  • Voltage: 120–277V
• 5001-CM-40CLED
  • Input Power: 45W
  • Lumen Output: 6,492 Lumens
  • Efficacy (LPW): 162
  • CCT: 5000K
  • Voltage: 120–277V
• 5001-CM-50CLED
  • Input Power: 55W
  • Lumen Output: 7,320 Lumens
  • Efficacy (LPW): 146
  • CCT: 5000K
  • Voltage: 120–277V
• 5001-CM-60CLED
  • Input Power: 65W
  • Lumen Output: 9,340 Lumens
  • Efficacy (LPW): 155
  • CCT: 5000K
  • Voltage: 120–277V
• 5001-CM-70CLED
  • Input Power: 75W
  • Lumen Output: 9,986 Lumens
  • Efficacy (LPW): 142
  • CCT: 5000K
  • Voltage: 120–277V

• Dimensions
• 5001-CM (Ceiling Mount)
• A: 16 1/8"
• B: 5 1/4"
• EPA: 0.53
• 5001-PM12
• A: 16 1/8"
• B: 5 1/4"
• C: 12"
• EPA: 0.60
• 5001-PM24
• A: 16 1/8"
• B: 5 1/4"
• C: 24"
• EPA: 0.67
• 5001-PM36
• A: 16 1/8"
• B: 5 1/4"
• C: 36"
• EPA: 0.74

• Key Features
• IP65 rated for wet location use
• Durable aluminum housing construction
• Wide light distribution for uniform coverage
• Multi-volt 120–277V operation
• Energy-efficient LED technology
• Optional motion sensor, photocell, emergency battery & wireless control
• Multiple wattage, color temperature, and mounting configurations
• 10-year / 100,000-hour limited warranty

• Ideal Applications
• Parking garages
• Fuel station canopies
• Warehouses
• Industrial facilities
• Commercial interiors
• Covered walkways
