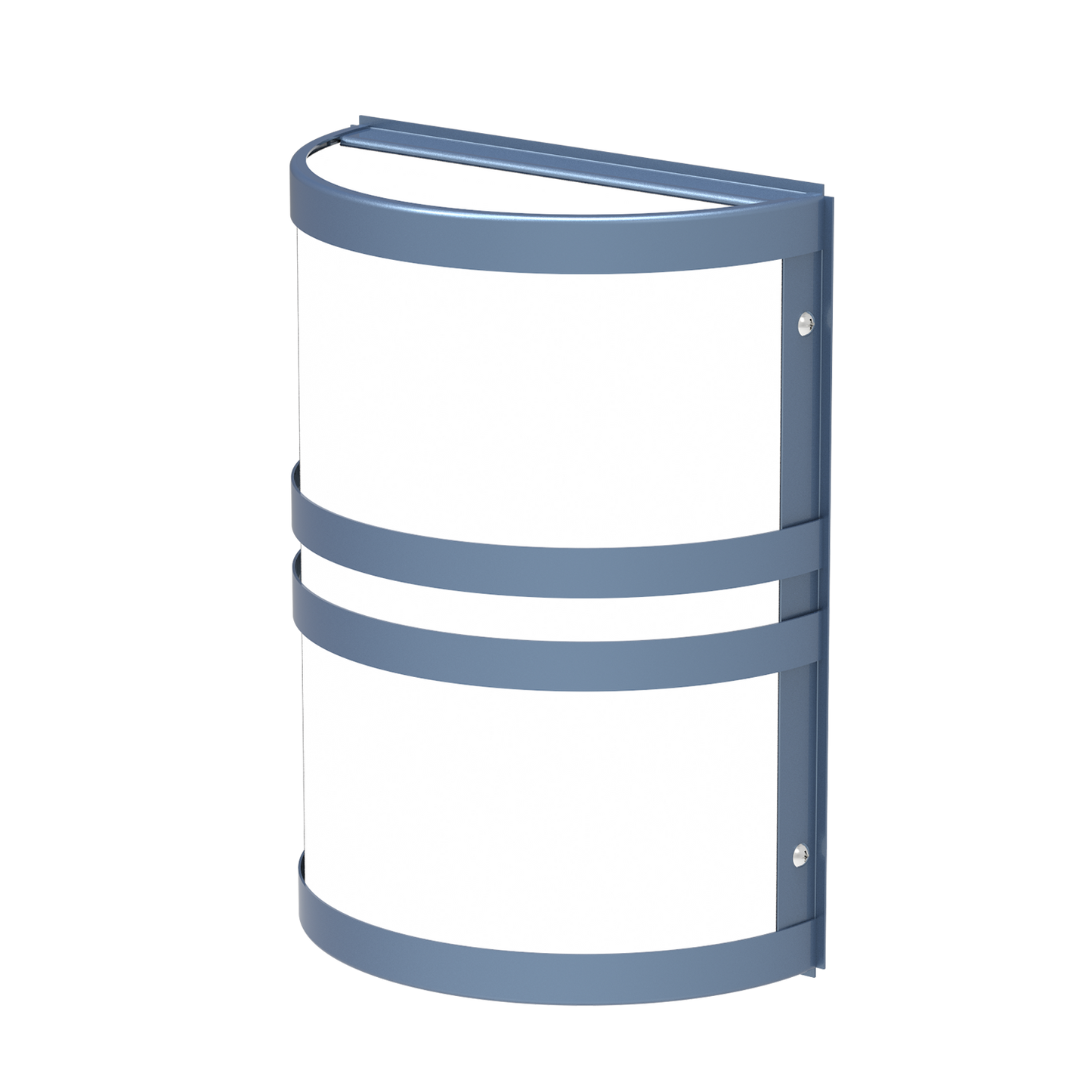

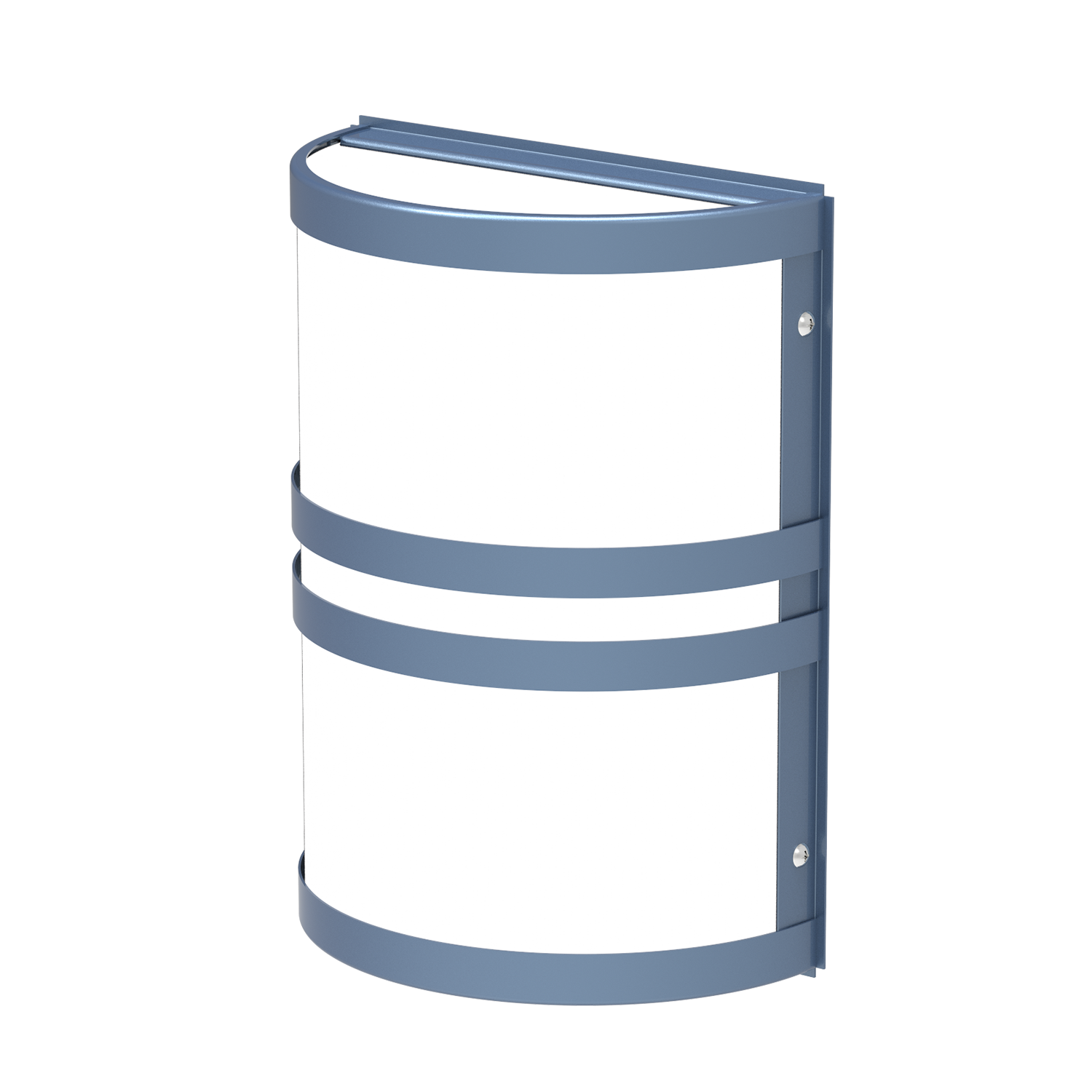

CL-13 Architectural LED Fixture – Decorative Exterior & Interior Lighting for Hotels, Restaurants, and Commercial Spaces
CL-13 Architectural LED Fixture – Decorative Exterior & Interior Lighting for Hotels, Restaurants, and Commercial Spaces
SKU:HLCL-13
Couldn't load pickup availability
The CL-13 Architectural LED Fixture combines decorative sophistication with high performance, enhancing the appearance of any interior or exterior location. Designed for hotels, restaurants, public transportation facilities, and commercial areas, the CL-13 is available in small, medium, and large sizes with multiple finish options.
This fixture features a top/bottom hard cover with frosted or opal acrylic lenses, delivering elegant light distribution. The high-efficiency Lumileds LEDs ensure long-lasting illumination, while optional features such as motion sensors, photocells, and emergency battery packs provide versatility for commercial applications.
Durable aluminum heavy-gauge housing with UL listing for damp and wet locations ensures reliable performance, backed by a 10-year or 10,000-hour limited warranty.
Key Features:
- Decorative architectural design with top/bottom hard cover
- Aluminum heavy-gauge housing for durability
- Frosted or opal acrylic lens (standard)
- 120/277V multi-volt driver with 0-10V dimming
- High-efficiency Lumileds LEDs
- Color temperatures: 3000K, 4000K, 5000K
- CRI: 70+
- UL listed for damp and wet locations
- Optional features: Motion sensor, photocell, emergency battery pack
- Multiple finishes: Matte Black, Glossy Black, Texture Black, Texture White, Silver, Bronze, Graphite
- Rated life (L70) > 200,000 hours
- 10-year or 10,000-hour limited warranty
Specifications by Model & Size:
| Model | Strap Design | Distribution | Wattage | Lumen Output | LPW | Voltage | Finish | Mounting | Options | Dimensions (A×B×C) |
|---|---|---|---|---|---|---|---|---|---|---|
| CL-13S | SD0 | Top/Bottom Hard Cover | 5W – 10W | 918 – 1,914 | 183 – 191 | 120-277V | MBLK, GBLK | Wall Mount (WM) | Photocell (PC), Emergency Pack (EMR) | 10” × 7½” × 4” |
| CL-13M | SDB | Up/Down Light | 20W – 25W | 2,754 – 2,935 | 146 – 183 | 120-277V | TBLK, TWHT, SLR, BRZ | Wall Mount / Sconce | Motion Sensor, Frosted Acrylic Lens | 12” × 9” × 4” |
| CL-13L | -- | Down Light / UDL | 30W – 40W | 4,842 – 6,252 | 152 – 161 | 120-277V | GPH | Wall Mount / Sconce | Frosted / Opal Acrylic Lens | 16” × 11” × 5” |
