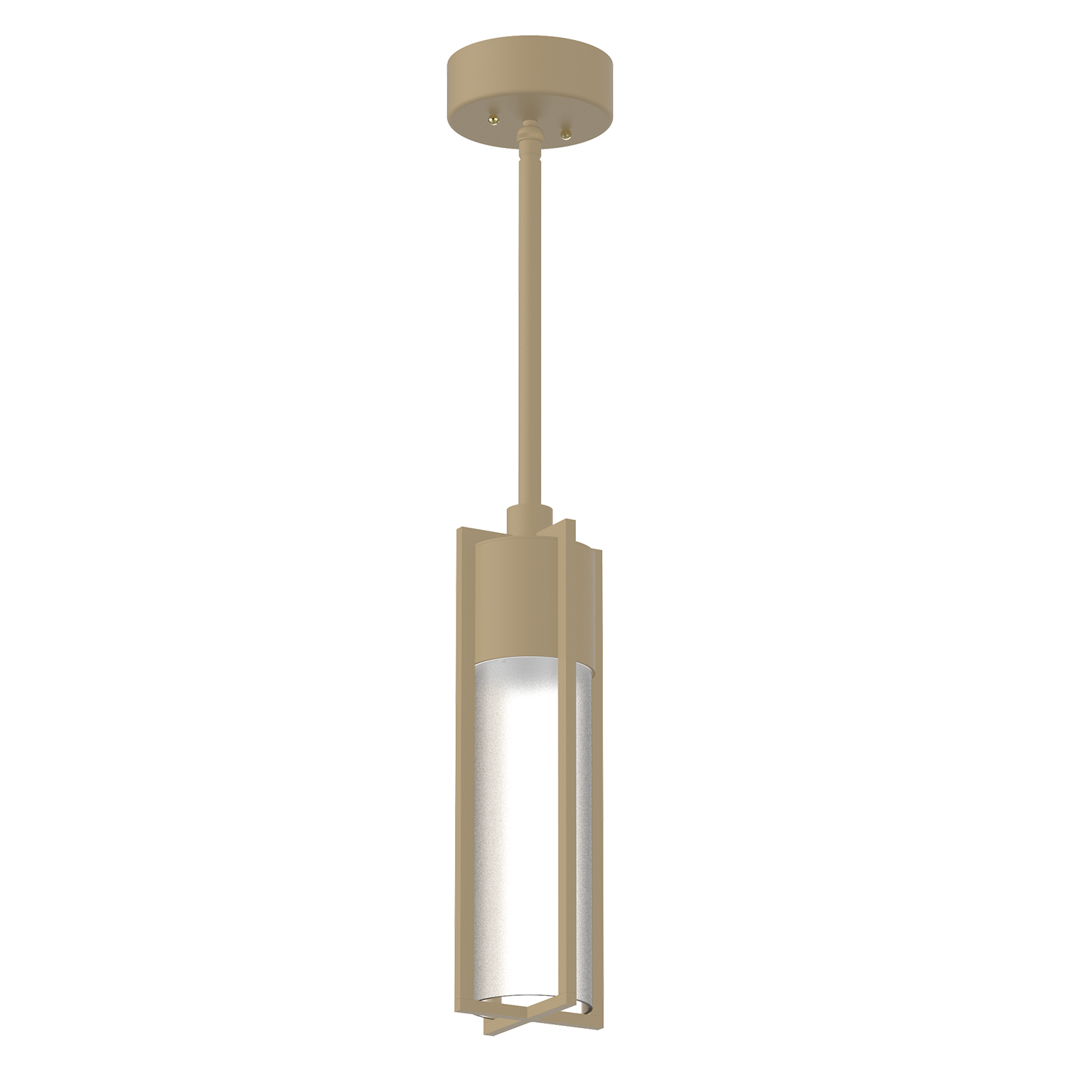

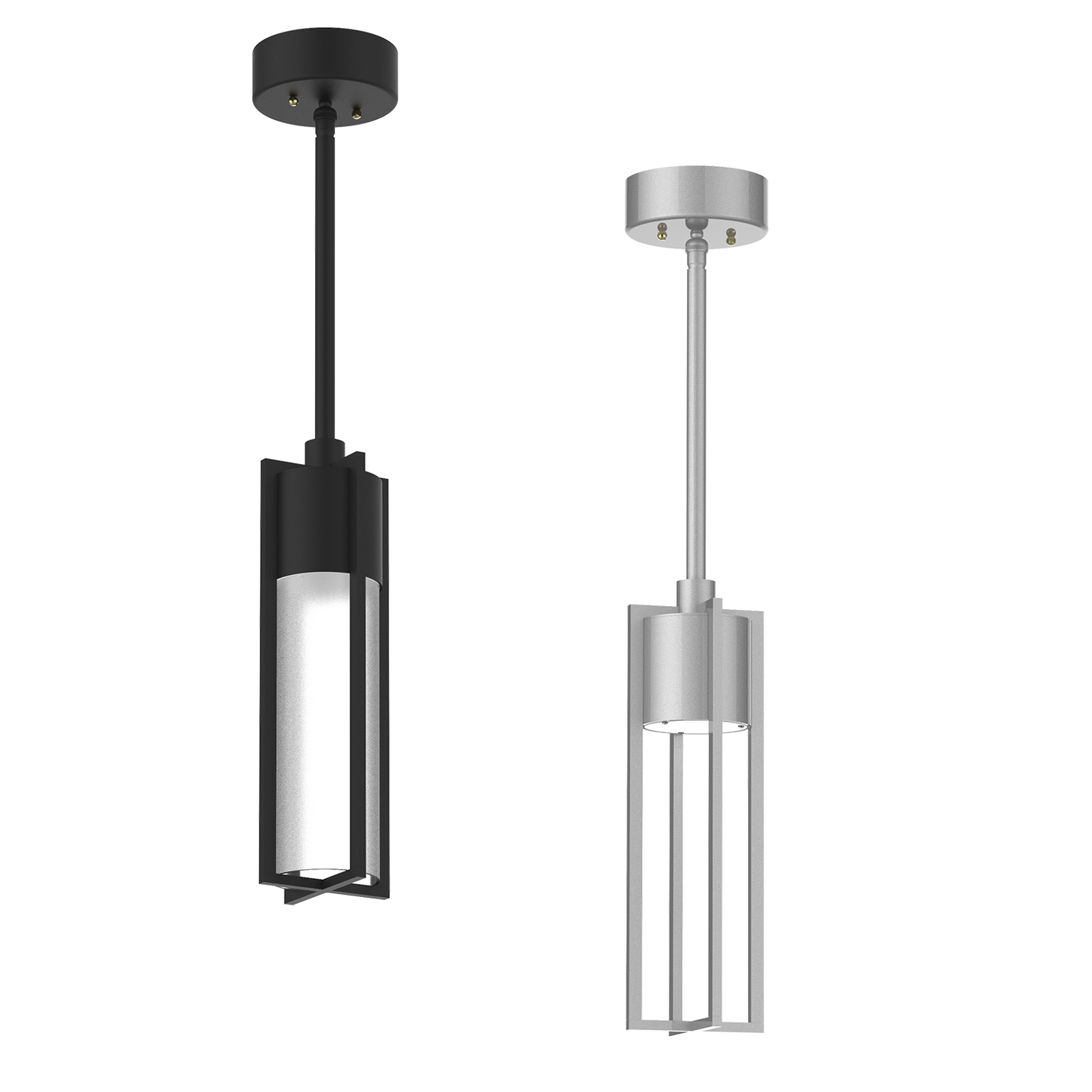

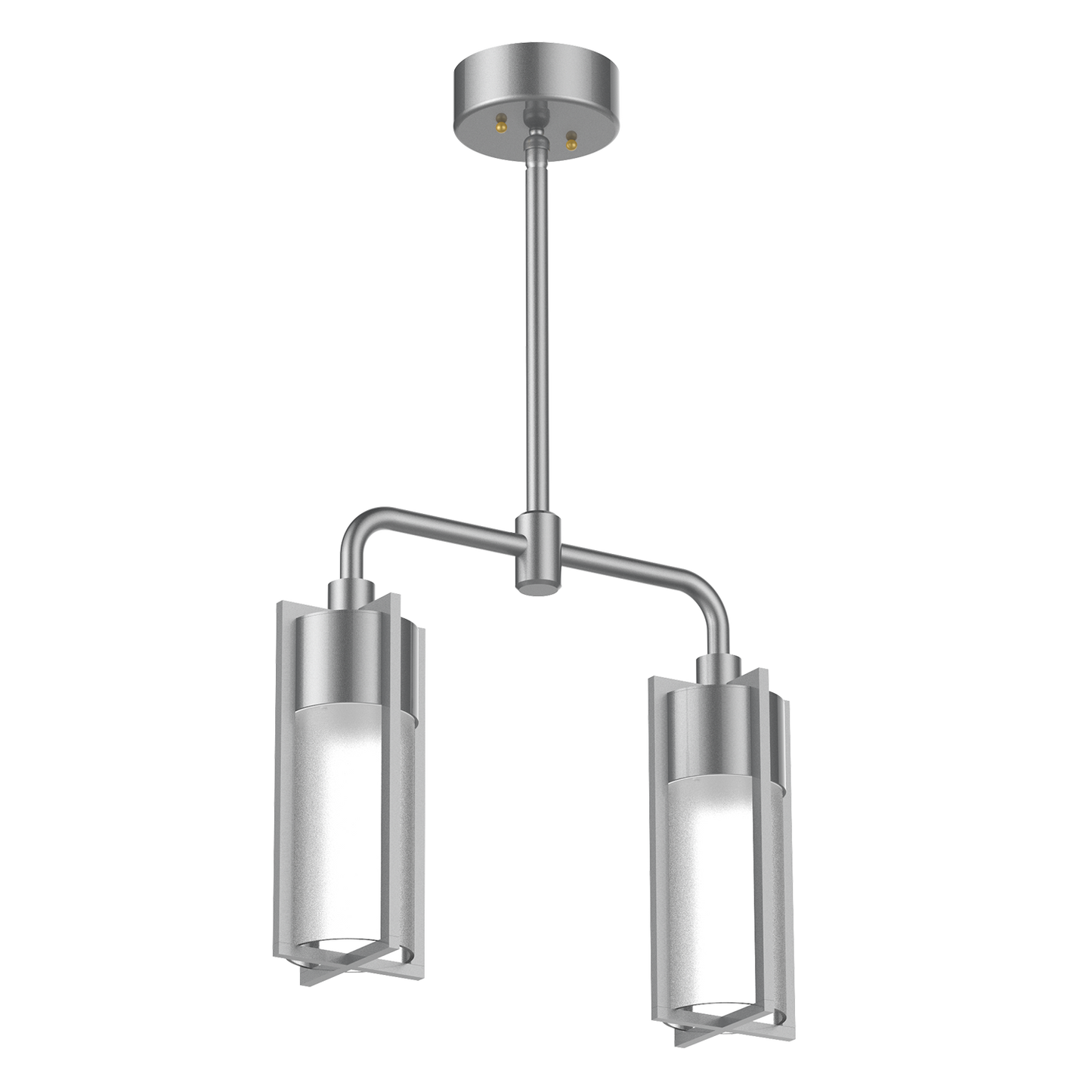

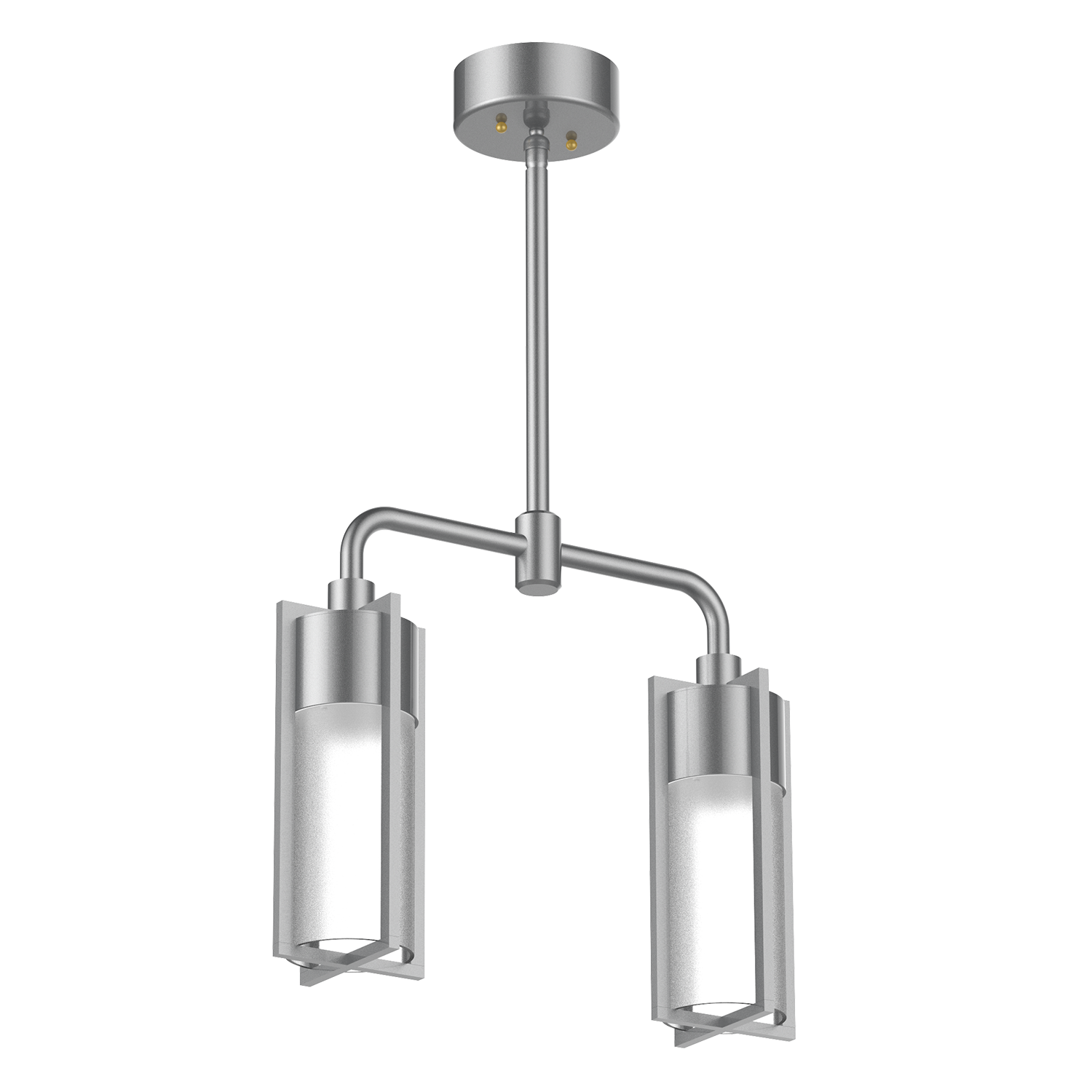

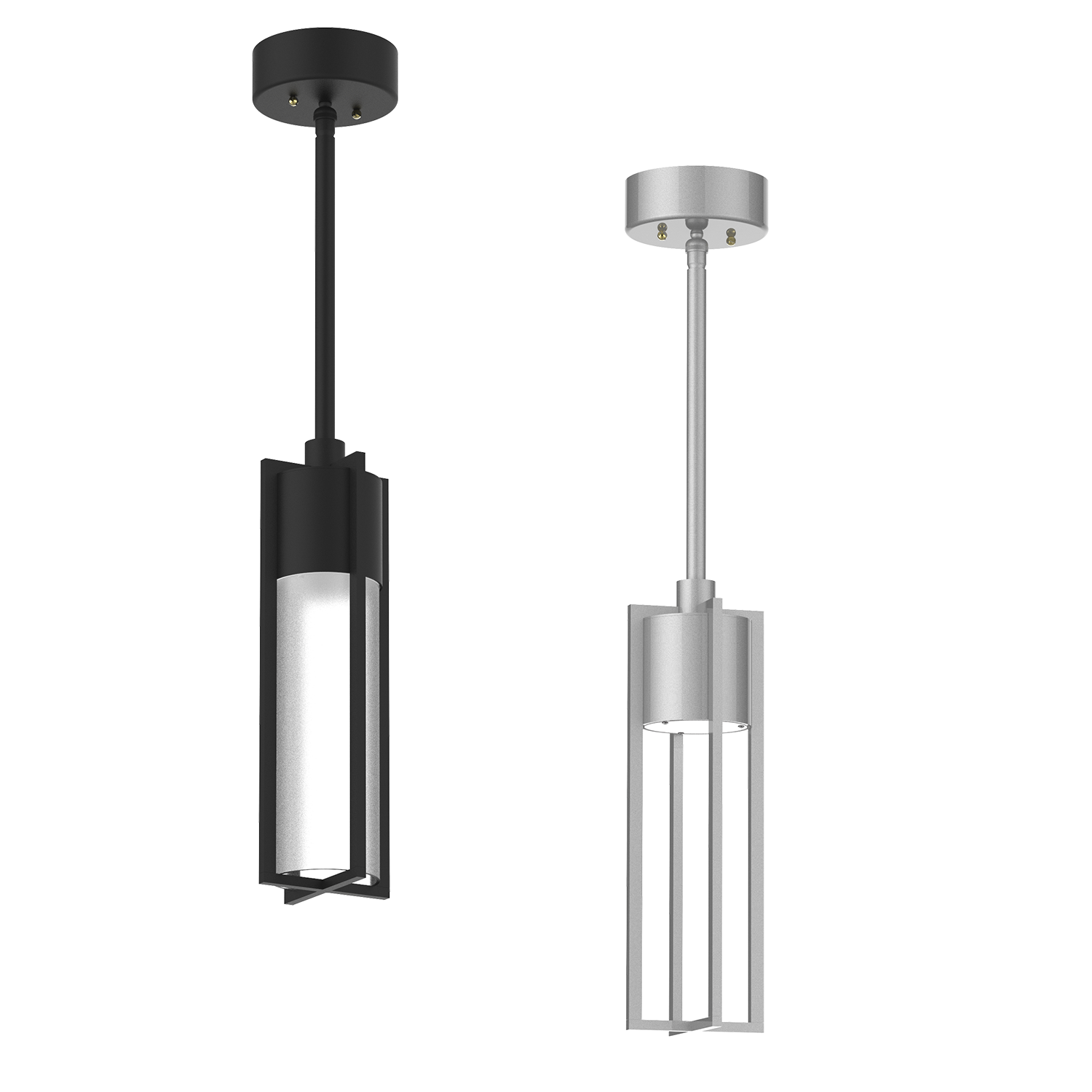

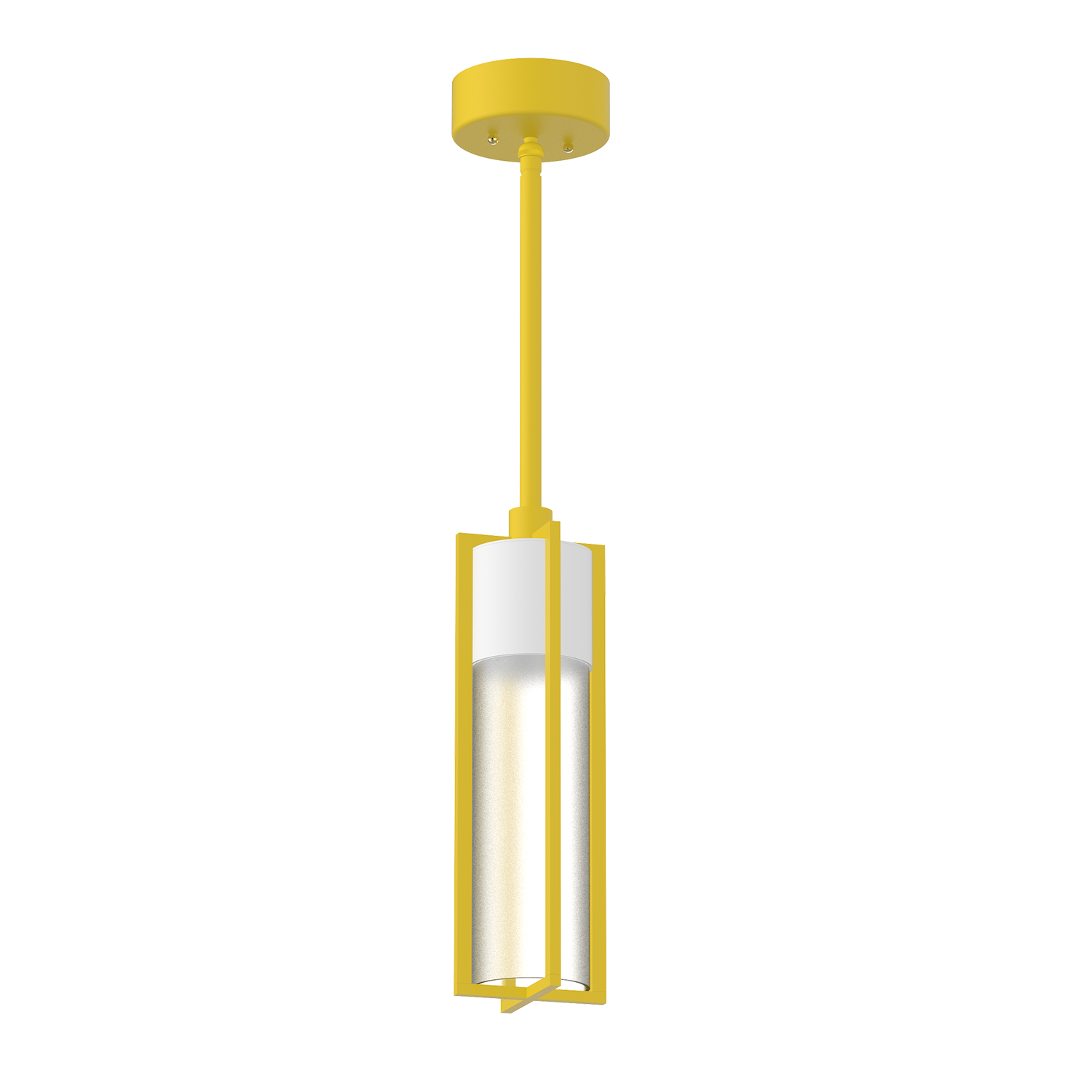

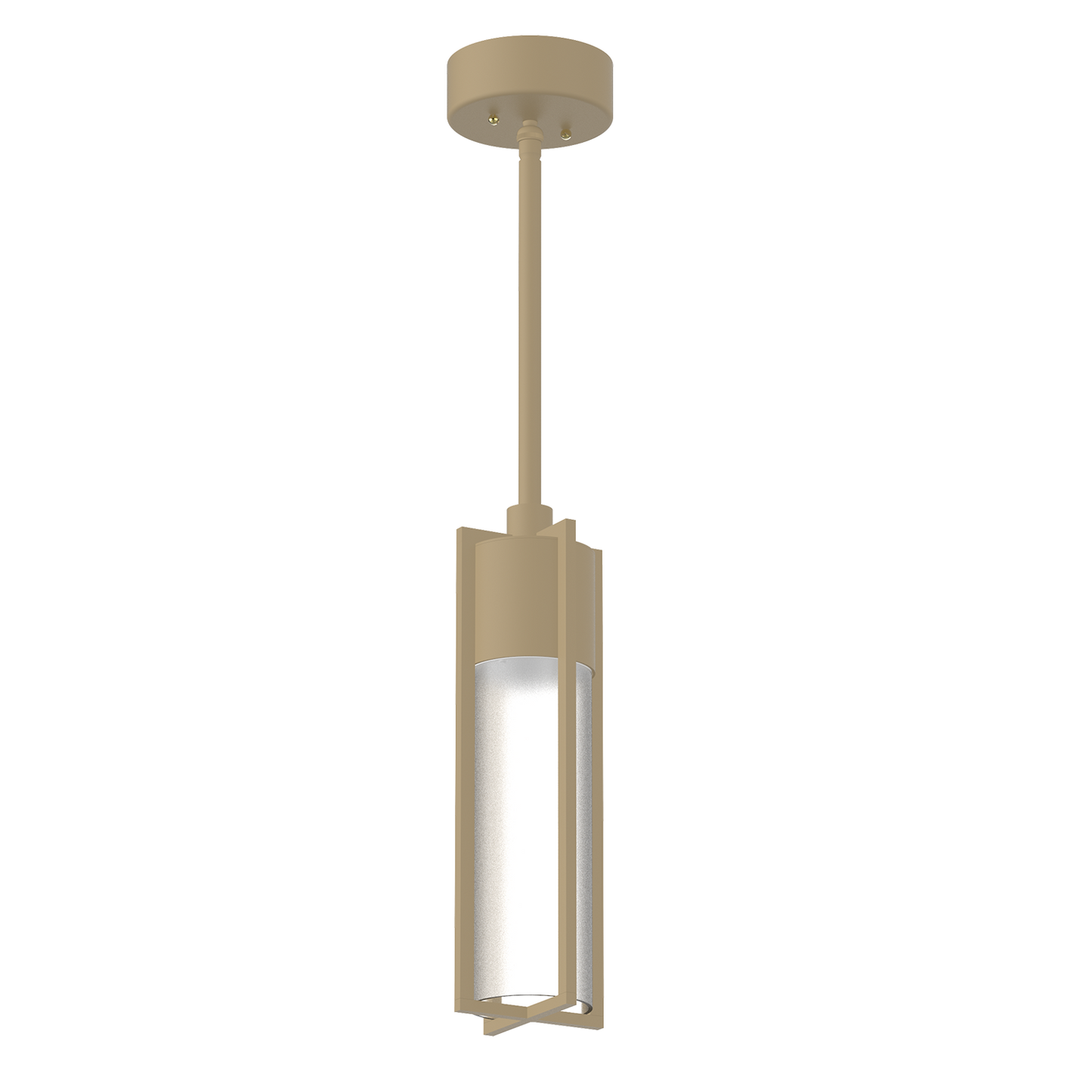

The CL-164 Series Interior Architectural LED fixture features a decorative, sophisticated cylinder design that enhances the appearance of hallways, corridors, offices, and residential interiors. Available in three diameters with multiple finishes and lens options, the CL-164 offers flexible configuration for modern architectural spaces.
Engineered with high-efficiency LED modules and a 0–10V dimming driver, this fixture delivers uniform, energy-efficient illumination while maintaining a clean, contemporary profile. UL listed for damp and wet locations, the CL-164 is suitable for a wide range of interior applications.
Backed by a 5-Year Limited Warranty, this architectural LED fixture combines performance, durability, and design versatility.
Product Specifications
Product Name: CL-164 Series Interior Architectural LED
SKU: HLCL-164-S
Voltage: 120–277V (Multi-Volt)
Driver: 0–10V Dimming Driver
Standard CCT: 3000K (80CRI)
Optional CCT: 4000K, 5000K
CRI Options: 80CRI Standard / 90CRI Optional
Rated Life (L70): >200,000 Hours
UL Listed: Damp and Wet Locations
Warranty: 5-Year Limited Warranty
Construction
Aluminum Housing
Frosted Acrylic Lens (Standard)
Optional Opal Acrylic Lens (OAL)
3 Mil Powder Coat Finish
Multiple Designer Finish Options
Available Diameters (O.D.)
4" O.D. (4OD)
6" O.D. (6OD)
8" O.D. (8OD)
Lens Options
Flat Acrylic Lens (FL)
Cylinder Acrylic Lens (CAL)
Optional Opal Acrylic Lens (OAL)
Wattage Options
4” O.D.
5W (5CLED)
10W (10CLED)
6” O.D.
15W (15CLED)
20W (20CLED)
30W (30CLED)
8” O.D.
35W (35CLED)
40W (40CLED)
Color Temperature (CCT) Options
3000K (30K)
4000K (40K)
5000K (50K)
CRI Options
80CRI
90CRI
Finish Options
Matte Black (MBLK)
Glossy Black (GBLK)
Texture Black (TBLK)
Texture White (TWHT)
Silver (SLR)
Bronze (BRZ)
Graphite (GPH)
Copper Vein (CPV)
Silver Vein (SLV)
Oil Rubbed Bronze (ORB)
Mounting Options
Pendant Mount
1FT (PM1)
2FT (PM2)
3FT (PM3)
4FT (PM4)
Dimensions
4” O.D. Model
A: 4"
B: 12"
6” O.D. Model
A: 6"
B: 14"
8” O.D. Model
A: 8"
B: 18"
Performance Specifications
CL-164-4OD-5CLED
Input Power: 10W
Lumen Output: 918 Lumens
LPW: 183
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
CL-164-4OD-10CLED
Input Power: 15W
Lumen Output: 1,914 Lumens
LPW: 191
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
CL-164-6OD-15CLED
Input Power: 20W
Lumen Output: 2,754 Lumens
LPW: 183
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
CL-164-6OD-20CLED
Input Power: 25W
Lumen Output: 2,935 Lumens
LPW: 146
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
CL-164-8OD-30CLED
Input Power: 35W
Lumen Output: 4,842 Lumens
LPW: 161
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
CL-164-8OD-35CLED
Input Power: 40W
Lumen Output: 5,320 Lumens
LPW: 152
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
CL-164-8OD-40CLED
Input Power: 45W
Lumen Output: 6,252 Lumens
LPW: 156
CCT: 3000K
CRI: 80+
Rated Life: >200,000 Hours
Input Voltage: 120–277V
Key Features
Decorative architectural cylinder LED fixture
Available in 4", 6", and 8" diameters
High-efficacy LED modules up to 6,252 lumens
0–10V dimming capability
Multiple finish and lens combinations
Damp and wet location rated
Energy-efficient and long lifespan (>200,000 hours)
