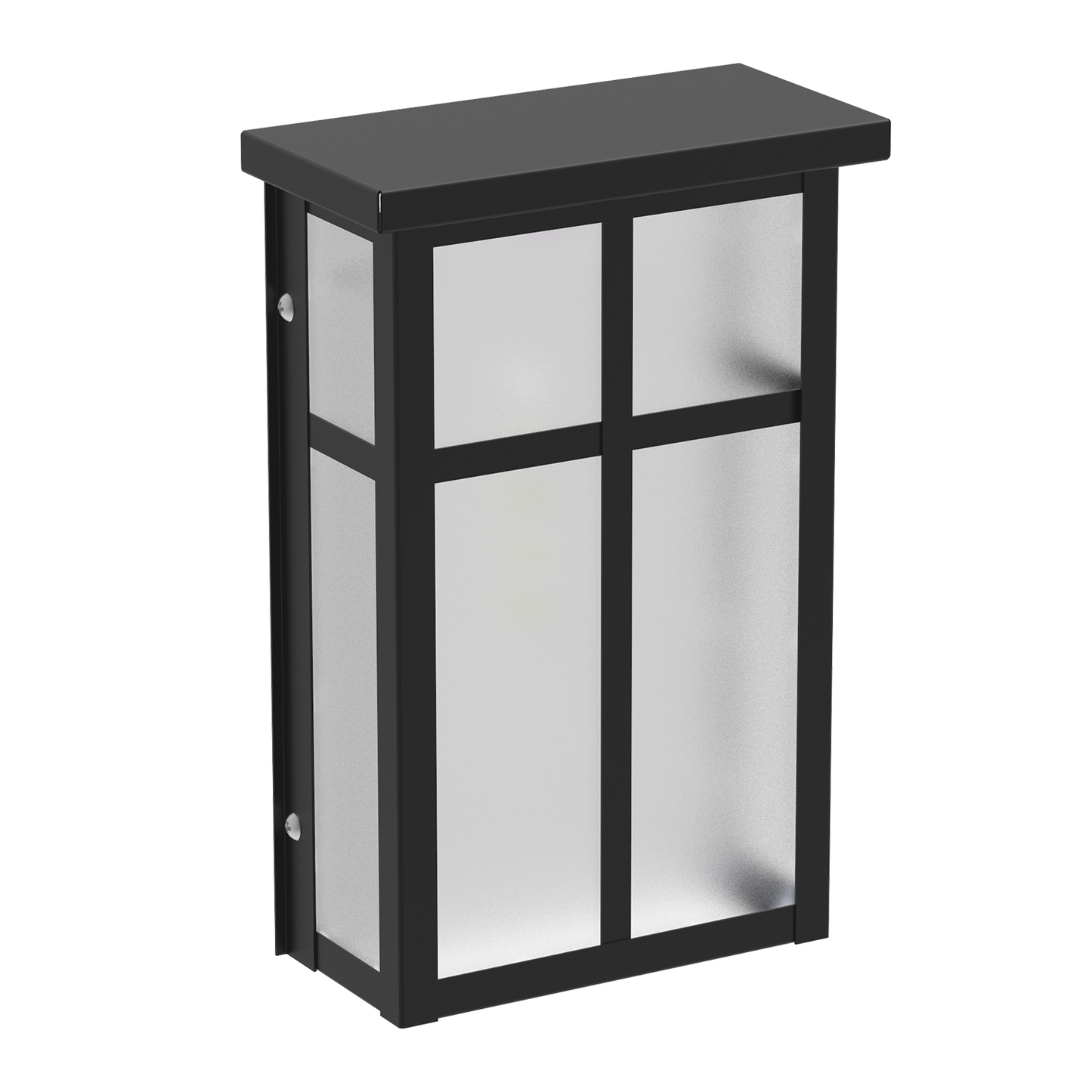

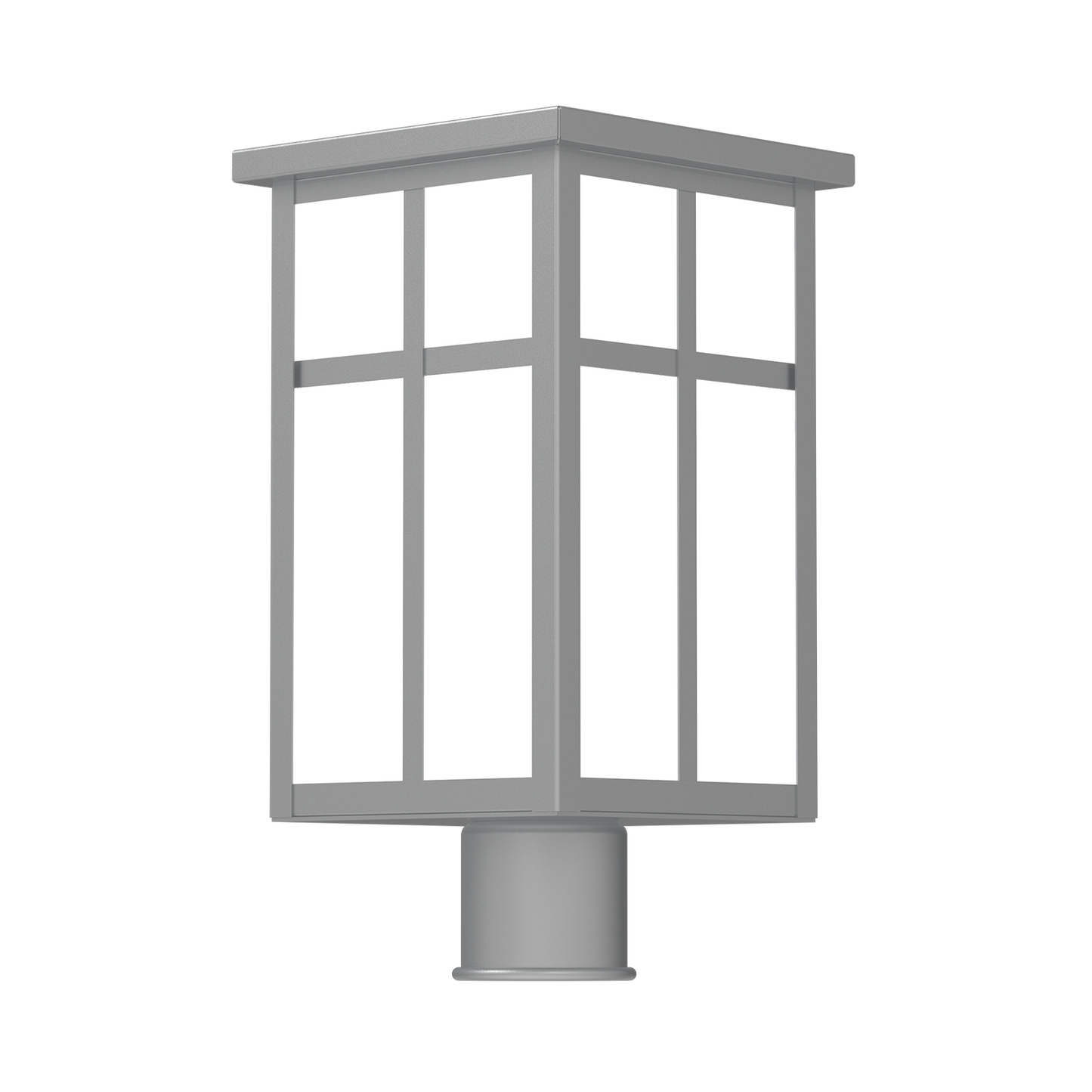

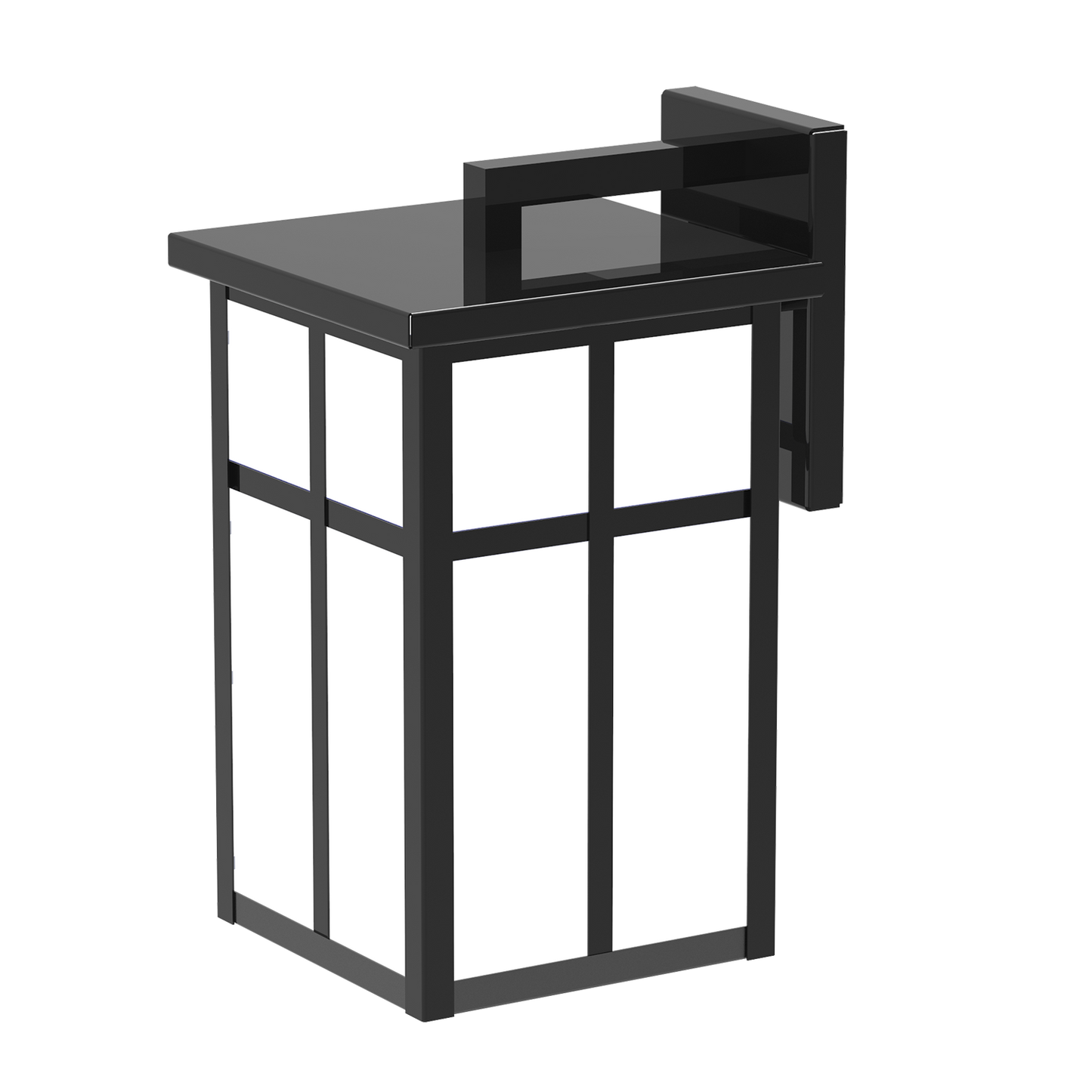

CL-20 Architectural LED Fixture – Decorative Exterior & Interior Lighting for Hotels, Restaurants, and Commercial Spaces

Name: CL-20 Architectural LED Fixture – Decorative Exterior & Interior Lighting for Hotels, Restaurants, and Commercial Spaces
Brand: Hotel Lamps
SKU: HLCL-20-S
Availability: InStock

CL-20 Architectural LED Fixture – Decorative Exterior & Interior Lighting for Hotels, Restaurants, and Commercial Spaces

SKU:HLCL-20-S

The CL-20 Architectural LED Fixture combines decorative design with high functionality, enhancing the appearance of any indoor or outdoor space. Available in small, medium, and large sizes with multiple finishes, the CL-20 is ideal for hotels, restaurants, public transportation facilities, and commercial areas.

Built with a heavy-gauge aluminum housing and frosted acrylic lens (standard), this fixture offers high-efficiency Lumileds LEDs with multiple mounting options including sconce, arm mount, and post mount. Optional features such as photocells, emergency battery packs, and opal acrylic lenses make it a versatile solution for modern architectural lighting.

Backed by a 10-year or 10,000-hour limited warranty, the CL-20 provides reliable, long-lasting illumination.

Key Features:

Decorative and sophisticated architectural design
Heavy-gauge aluminum housing for durability
Frosted acrylic lens (standard), opal lens optional
Multi-volt 120/277V driver with 0-10V dimming
High-efficiency Lumileds LEDs
Color temperatures: 3000K, 4000K, 5000K
CRI: 70+
UL listed for damp and wet locations
Optional features: Photocell, Emergency Battery Pack, Opal Acrylic Lens
Multiple finishes: Matte Black, Glossy Black, Texture Black, Texture White, Silver, Bronze, Graphite
Rated life (L70) > 200,000 hours
10-year or 10,000-hour limited warranty

Specifications by Model & Size:

Model	Strap Design	Wattage	Lumen Output	LPW	Voltage	Finish	Mounting	Options	Dimensions (A×B×C / D for Arm Mount)
CL-20S	SD0 / SDA	5W – 10W	918 – 1,914	183 – 191	120-277V	MBLK, GBLK	Sconce / Arm Mount	Photocell (PC), Emergency Pack (EMR)	10” × 7” × 4” / 10” × 7” × 8 5/8 × 12”
CL-20M	SDB	20W – 25W	2,754 – 2,935	146 – 183	120-277V	TBLK, TWHT, SLR, BRZ	Post Mount / Arm Mount	Opal Acrylic Lens (OAL)	11 1/2” × 8 1/2” × 4” / 11 1/2” × 8 1/2” × 10 1/8 × 13 1/2”
CL-20L	SDC	30W – 40W	4,842 – 6,252	152 – 161	120-277V	TWHT, SLR, BRZ, GPH	Post Mount / Arm Mount	Opal Acrylic Lens (OAL)	16” × 9 1/2” × 5” / 16” × 9 1/2” × 11 1/8 × 18”
