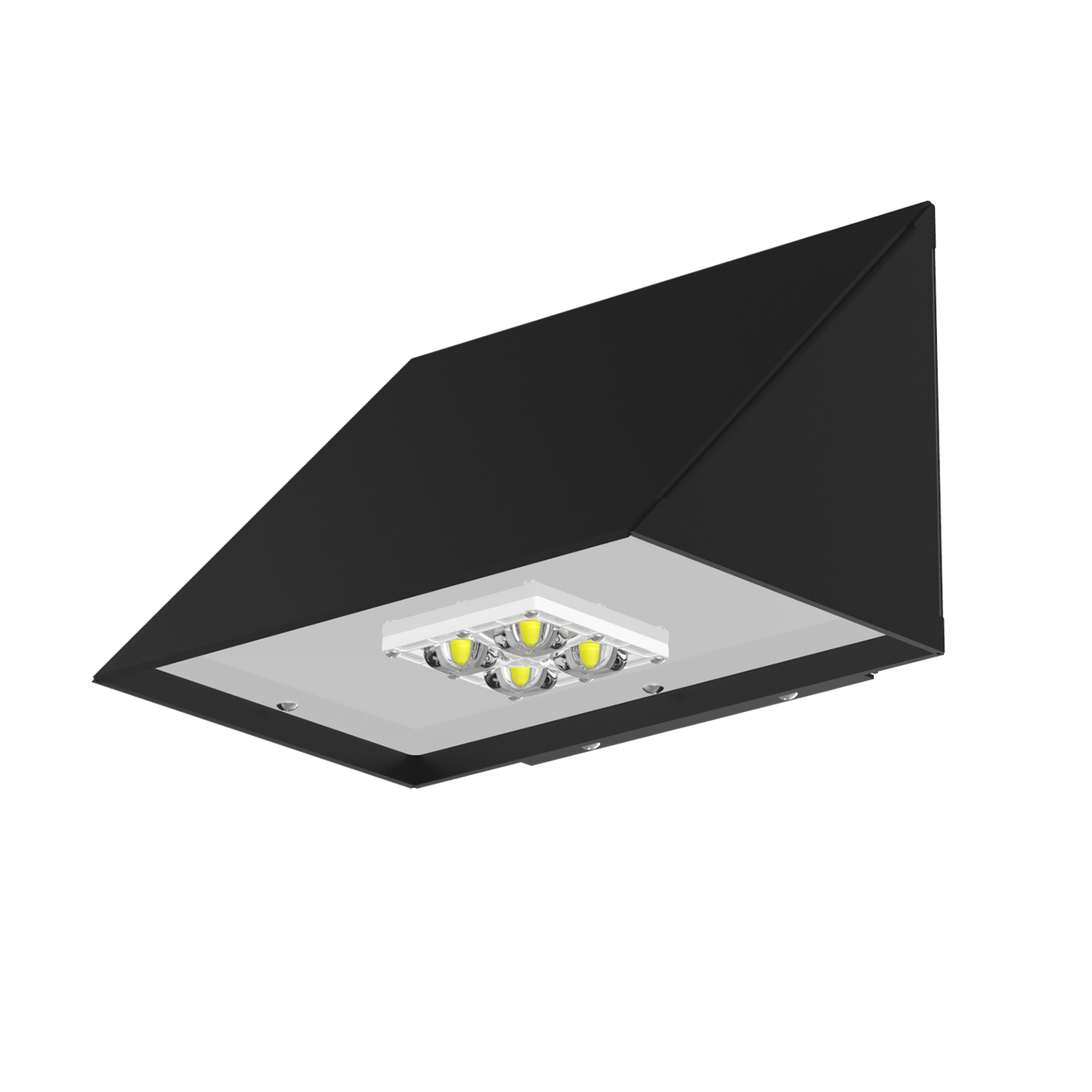

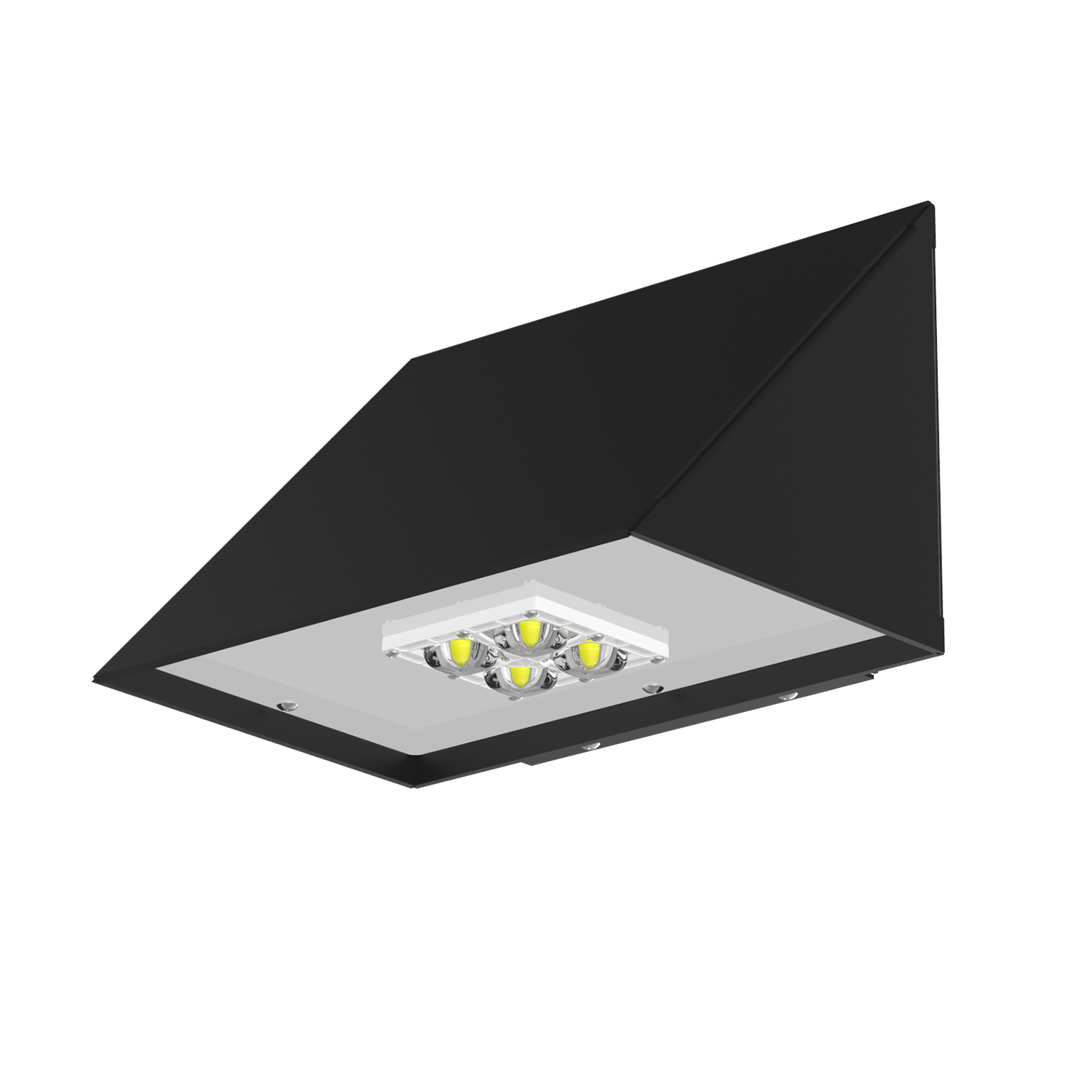

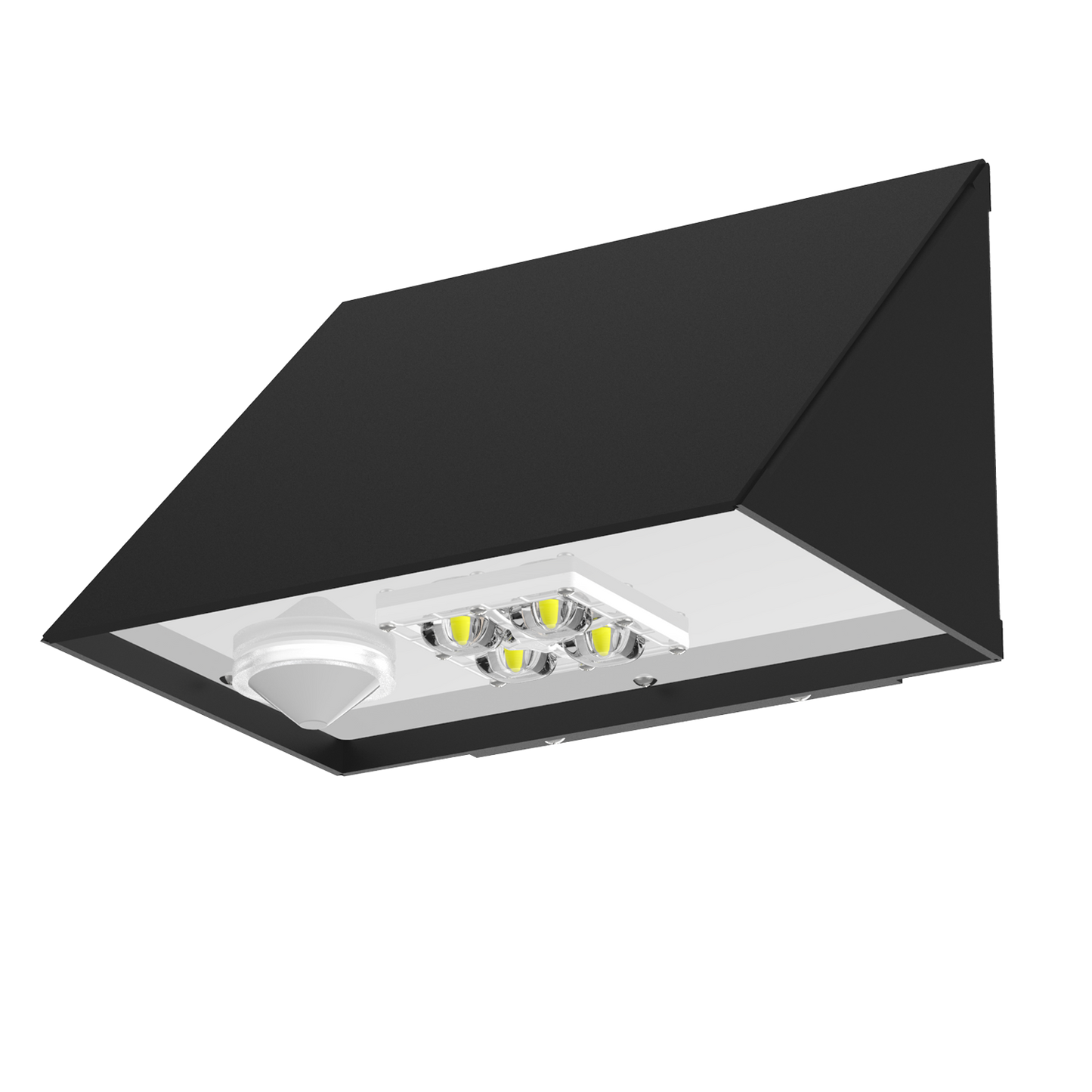

CL-2078 Low Profile LED Wall Pack – Architectural & Commercial Exterior Lighting (HLCL-2078)

The CL-2078 LED Wall Pack Luminaire is a low-profile, architectural-grade exterior lighting solution engineered for superior performance, durability, and wide light distribution. Designed for walkways, entryways, building exteriors, and industrial/commercial spaces, this fixture delivers high-output illumination while maintaining a clean, modern appearance.

Built with a corrosion-resistant aluminum housing and an advanced optical system, the CL-2078 is Dark Sky Compliant and rated IP65/IP67 for dependable performance in harsh weather conditions.

Providing over 66% energy savings compared to traditional HID fixtures, this luminaire offers exceptional lumen maintenance and a long operating life of up to 200,000 hours (L70).

Backed by a 10-Year / 100,000-Hour Limited Warranty, the CL-2078 is a reliable, energy-efficient upgrade for exterior wall lighting.

Ideal Applications

• Architectural exterior lighting
• Walkways and pathways
• Entryways
• Commercial buildings
• Industrial facilities
• Warehouses
• Parking areas
• Campus environments

Key Features

• Low-profile architectural design
• Wide light distribution
• Dark Sky compliant
• Over 66% energy savings vs HID
• High-efficiency Lumiled LEDs
• Improved lumen maintenance
• 0-10V dimming capability
• Voltage: 120-277V (MV) standard
• Optional 480V (HV)
• IP65 / IP67 rated protection
• Operating temperature: -30°C to 60°C
• Rated life: 200,000 hours (L70)
• 10-Year / 100,000-Hour Limited Warranty

Construction & Protection

• Corrosion-resistant aluminum housing
• 3 mil powder coat finish
• CL optical system – IP67 rated (standard)
• Silicone gasket enclosure – IP66 weather-tight protection
• Wall mount installation
• EPA: 0.3

Available Wattages & Performance

• 20W (CL-2078-20CLED)
  • Input Power: 25W
  • Lumen Output: 2,958
  • LPW: 147
  • HID Equivalent: 100W MH
  • CRI: 70+
  • CCT Options: 3000K / 4000K / 5000K
  • Voltage: 120-277V
• 40W (CL-2078-40CLED)
  • Input Power: 45W
  • Lumen Output: 5,449
  • LPW: 136
  • HID Equivalent: 150W MH
  • CRI: 70+
  • CCT Options: 3000K / 4000K / 5000K
  • Voltage: 120-277V
• 50W (CL-2078-50CLED)
  • Input Power: 55W
  • Lumen Output: 6,648
  • LPW: 132
  • HID Equivalent: 175W MH
  • CRI: 70+
  • CCT Options: 3000K / 4000K / 5000K
  • Voltage: 120-277V

• Light Distribution Options
• Type 2 (T2)
• Type 3 (T3)
• Type 4 (T4)

• Voltage Options
• 120-277V (MV)
• 480V (HV – Optional)

• Finish Options
• Black (BLK)
• White (WH)
• Bronze (BRZ)
• Silver (SIL)
• Graphite (GPH)
• Marine Grade (MG)

• Available Options & Controls

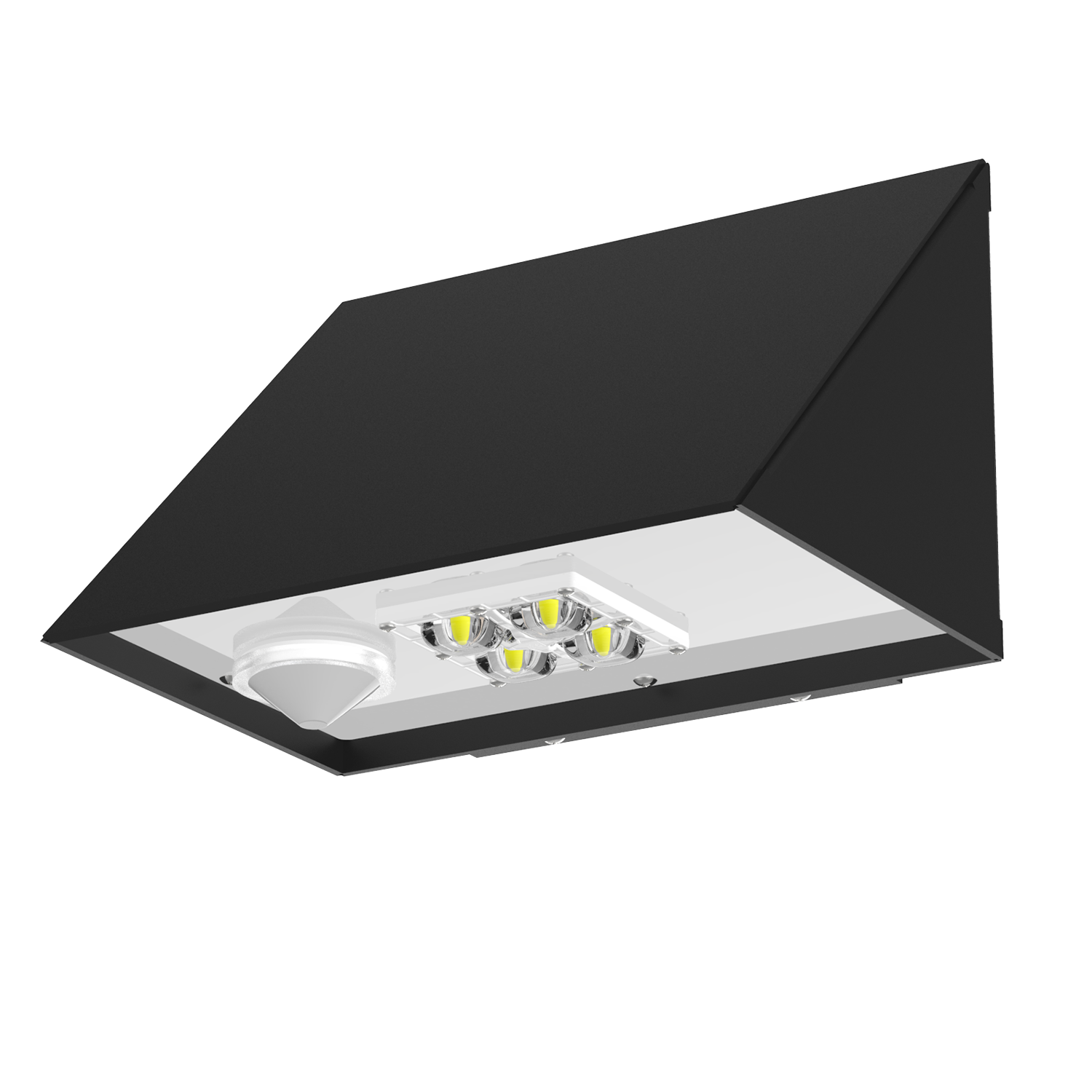

• Microwave Sensor (Internal) (MS)
• Button Photo Cell (PC)
• Wireless Controls (WC)
• Emergency Battery (EMR)

• Dimensions
• Model: CL-2078
• A: 12”
• B: 8-3/8”
• C: 9-1/4”
• EPA: 0.3

• Technical Specifications
• SKU: HLCL-2078
• Series: CL-2078
• Mounting: Wall Mount (WM)
• Housing: Corrosion-Resistant Aluminum
• Finish: 3 Mil Powder Coat
• Protection Rating: IP65/IP67
• Dimming: 0-10V
• Rated Life: 200,000 Hours (L70)
• Warranty: 10 Years
