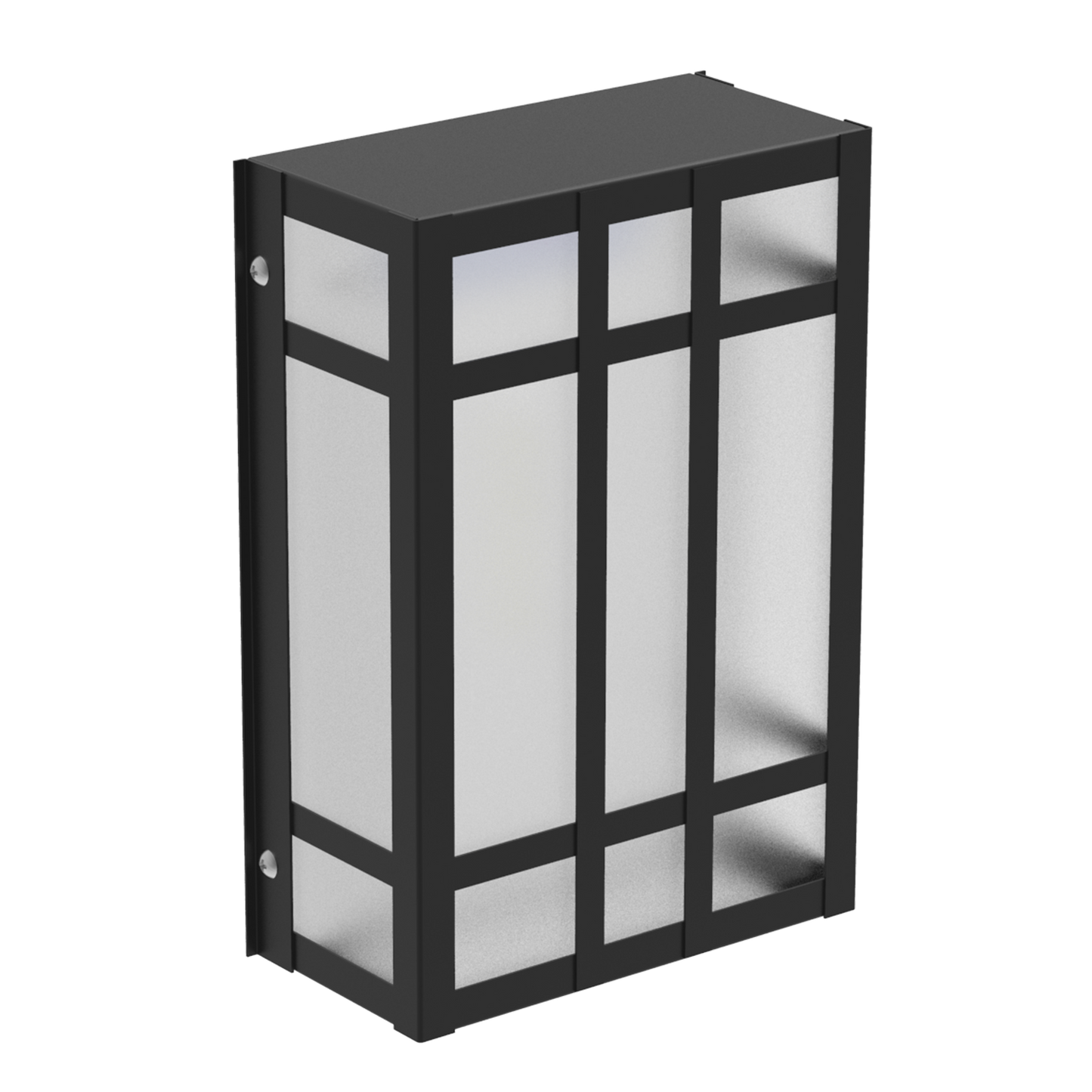

CL-2086 Architectural LED Lighting – Decorative Exterior LED Wall & Commercial Fixture

CL-2086 Architectural LED Lighting – Decorative Exterior LED Wall & Commercial Fixture

HLCL-2086

The CL-2086 Series delivers a decorative, sophisticated design ideal for exterior commercial spaces such as hotels, restaurants, public transportation facilities, and other commercial locations.

Available in three sizes and multiple finishes, this fixture combines modern aesthetics with high-efficiency LED technology. The CL-2086 is UL-listed for damp and wet locations, making it ideal for outdoor installation.

Backed by a 10-year or 10,000-hour limited warranty, it offers long-lasting illumination, optional emergency battery pack, and photocell control for convenience.

Key Features:

  • Decorative architectural LED lighting for exterior commercial applications
  • Multi-volt driver: 120-277V
  • Kelvin: 3000K, 4000K, 5000K
  • High-efficiency Lumiled LED’s
  • CRI: 70+
  • UL listed for damp and wet locations
  • Frosted acrylic lens standard; Opal Acrylic Lens optional
  • Housing: Heavy gauge aluminum
  • Emergency battery pack and photocell options
  • Rated life (L70): >200,000 hours

Specifications by Size:

Model Strap Design Wattage Color Temp Mounting Finish Options Dimensions (A×B×C)
CL-2086S SD0 / SDA 5W / 10W / 15W 3000K / 4000K / 5000K Wall Mount Matte / Glossy Black Button Photocell / Emergency Batt. Pack 10” × 6” × 4”
CL-2086M SDB 20W / 25W 5000K Wall Mount Texture Black Frosted Acrylic Lens (Standard) 12” × 8” × 4”
CL-2086L SDC 25W / 30W / 40W 5000K Wall Mount Texture White / Silver / Bronze / Graphite Opal Acrylic Lens (Optional) 16” × 10” × 5”

LED Performance:

Cat# Input Power Lumen Output LPW CRI Color Temp Rated Life Voltage
CL-2086S-5CLED 10W 918 183 70+ 5000K >200,000 120-277V
CL-2086S-10CLED 15W 1,914 191 70+ 5000K >200,000 120-277V
CL-2086S-15CLED 20W 2,754 183 70+ 5000K >200,000 120-277V
CL-2086S/M-20CLED 25W 2,935 146 70+ 5000K >200,000 120-277V
CL-2086M/L-30CLED 35W 4,842 161 70+ 5000K >200,000 120-277V
CL-2086M/L-35CLED 40W 5,320 152 70+ 5000K >200,000 120-277V
CL-2086M/L-40CLED 45W 6,252 156 70+ 5000K >200,000 120-277V
