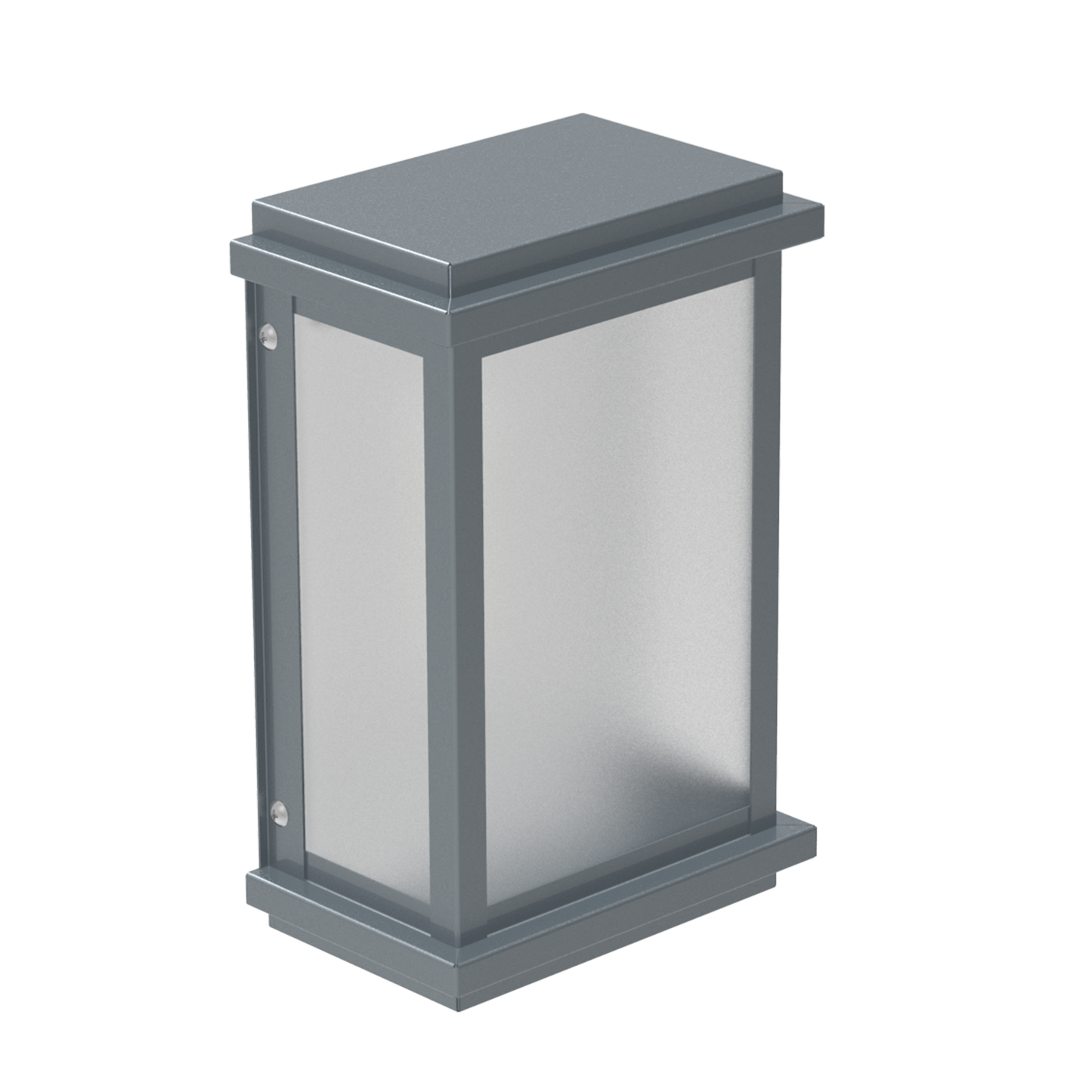

CL-2087 Architectural LED Lighting – Decorative Exterior LED Wall & Commercial Fixture
CL-2087 Architectural LED Lighting – Decorative Exterior LED Wall & Commercial Fixture
SKU:HLCL-2087
Quantity
Couldn't load pickup availability
The CL-2087 Series offers a decorative, sophisticated design perfect for enhancing exterior commercial spaces such as hotels, restaurants, public transportation facilities, and other commercial areas.
Available in three sizes and multiple finishes, the CL-2087 combines modern aesthetics with high-efficiency LED technology, UL-listed for damp and wet locations.
Backed by a 10-year or 10,000-hour limited warranty, this fixture provides long-lasting illumination with optional emergency battery pack and photocell control.
Key Features:
- Decorative architectural LED lighting for exterior commercial applications
- Multi-volt driver: 120-277V
- Kelvin options: 3000K, 4000K, 5000K
- High-efficiency Lumiled LED’s
- CRI: 70+
- UL listed for damp and wet locations
- Frosted acrylic lens standard; Opal Acrylic Lens optional
- Housing: Heavy gauge aluminum
- Emergency battery pack and photocell options
- Rated life (L70): >200,000 hours
Specifications by Size:
| Model | Strap Design | Wattage | Color Temp | Mounting | Finish | Options | Dimensions (A×B×C) |
|---|---|---|---|---|---|---|---|
| CL-2087S | SD0 / SDA | 5W / 10W / 15W | 3000K / 4000K / 5000K | Wall Mount | Matte / Glossy Black | Button Photocell / Emergency Batt. Pack | 10” × 6” × 4” |
| CL-2087M | SDB | 20W / 25W | 5000K | Wall Mount | Texture Black | Frosted Acrylic Lens (Standard) | 12” × 8” × 5” |
| CL-2087L | SDC | 25W / 30W / 40W | 5000K | Wall Mount | Texture White / Silver / Bronze / Graphite | Opal Acrylic Lens (Optional) | 15” × 10” × 5” |
LED Performance:
| Cat# | Input Power | Lumen Output | LPW | CRI | Color Temp | Rated Life | Voltage |
|---|---|---|---|---|---|---|---|
| CL-2087S-5CLED | 10W | 918 | 183 | 70+ | 5000K | >200,000 | 120-277V |
| CL-2087S-10CLED | 15W | 1,914 | 191 | 70+ | 5000K | >200,000 | 120-277V |
| CL-2087S-15CLED | 20W | 2,754 | 183 | 70+ | 5000K | >200,000 | 120-277V |
| CL-2087S/M-20CLED | 25W | 2,935 | 146 | 70+ | 5000K | >200,000 | 120-277V |
| CL-2087M/L-30CLED | 35W | 4,842 | 161 | 70+ | 5000K | >200,000 | 120-277V |
| CL-2087M/L-35CLED | 40W | 5,320 | 152 | 70+ | 5000K | >200,000 | 120-277V |
| CL-2087M/L-40CLED | 45W | 6,252 | 156 | 70+ | 5000K | >200,000 | 120-277V |
