CL-304 Half Moon Full Cut-Off LED Wall Pack – Dark Sky Compliant (HLCL-304)

The CL-304 LED Wall Pack Luminaire is a high-performance, half-moon full cut-off fixture designed for exterior commercial and residential lighting applications. Engineered for wet locations and built with a heavy-duty aluminum housing, the CL-304 delivers exceptional durability, energy efficiency, and long-term performance.

This fixture is Dark Sky compliant and available in downlight or optional up/down light configurations, making it ideal for perimeter lighting while minimizing light pollution.

Perfect for residential exteriors, walkways, entryways, parking garages, school campuses, and industrial/commercial spaces, the CL-304 provides over 66% energy savings compared to HID fixtures.

Backed by a 10-Year / 100,000-Hour Limited Warranty, this LED wall pack is built for reliable, maintenance-free operation.

Ideal Applications

• Residential exterior lighting
• Walkways and pathways
• Entryways
• Building perimeters
• Parking garages
• School campuses
• Commercial buildings
• Industrial facilities

Key Features

• Full cut-off half-moon design
• Dark Sky compliant
• Optional uplight (10W or 20W max)
• Over 66% energy savings vs HID
• High-efficiency Lumiled LEDs
• Improved lumen maintenance
• 0-10V dimmable driver
• Constant current driver
• Voltage: 120-277V standard
• Optional 480V
• 50/60Hz
• Suitable for wet locations
• Operating temperature: -30°C to 60°C
• Rated life: 200,000 hours (L70)
• 10-Year / 100,000-Hour Limited Warranty

Construction & Durability

• Heavy-duty aluminum housing
• 3 mil powder coat finish
• Clear optical system
• Silicone gasket for weather-tight protection

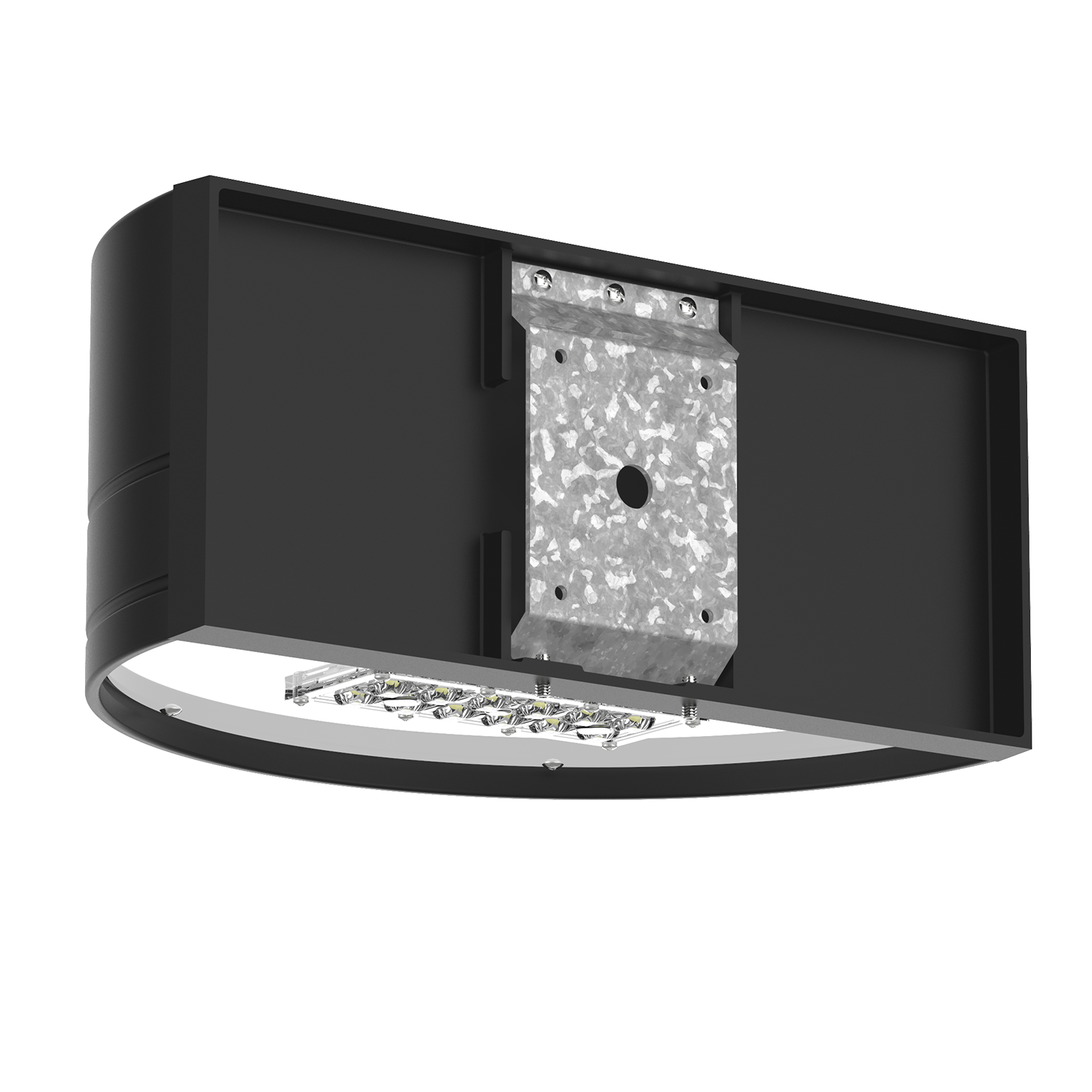

• Mounts over standard 4” J-box
• EPA Rating: 0.88

Light Configuration Options

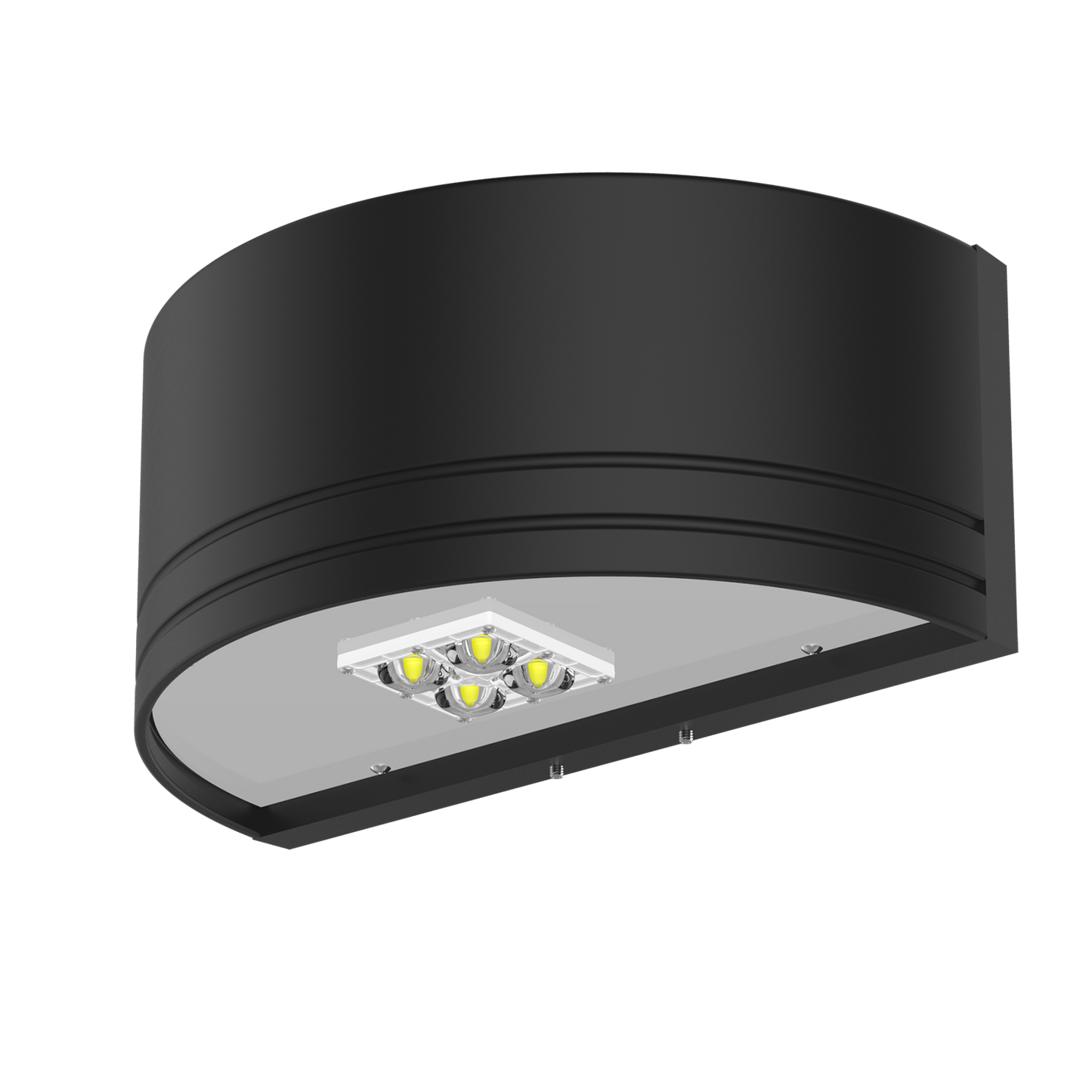

• Down Light (D)

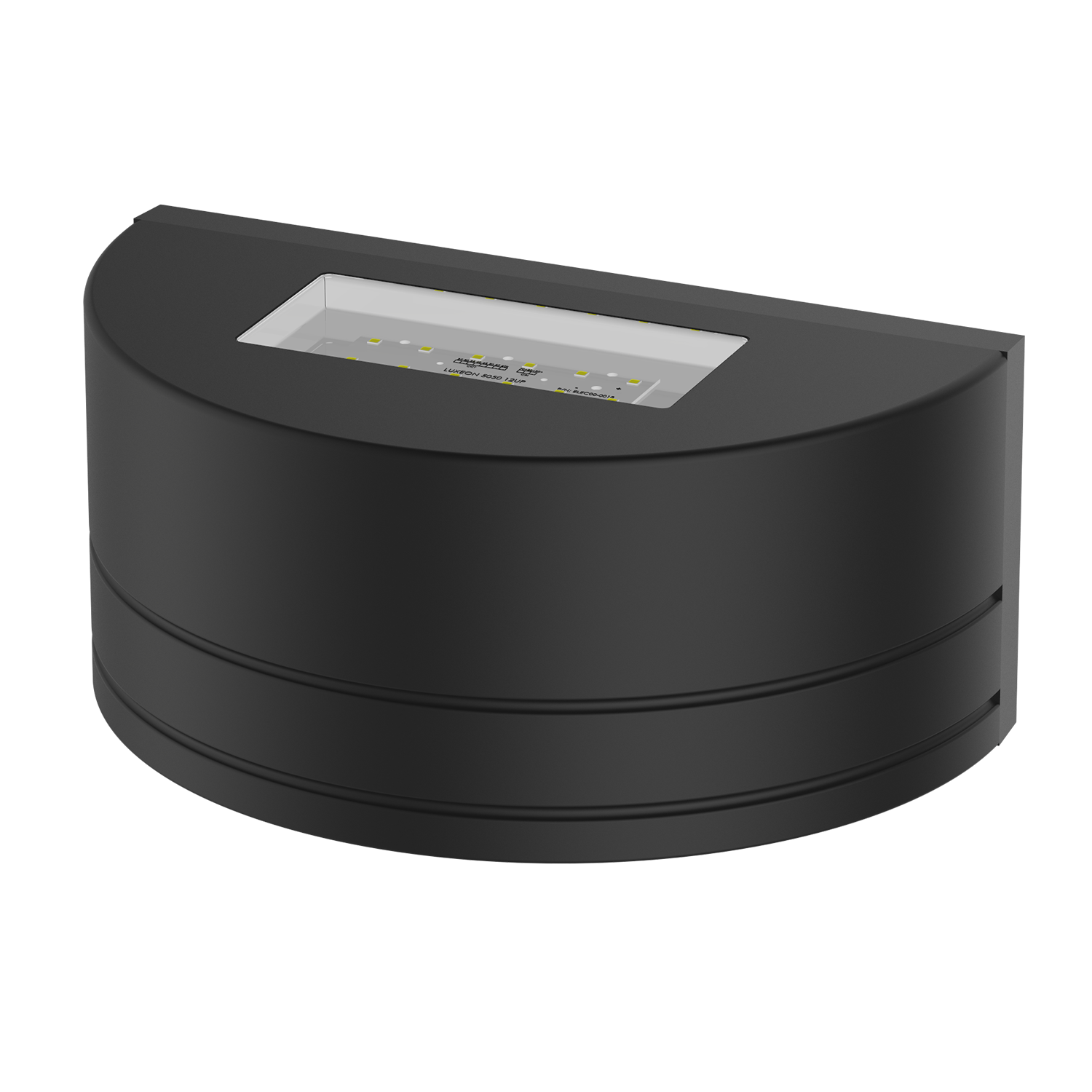

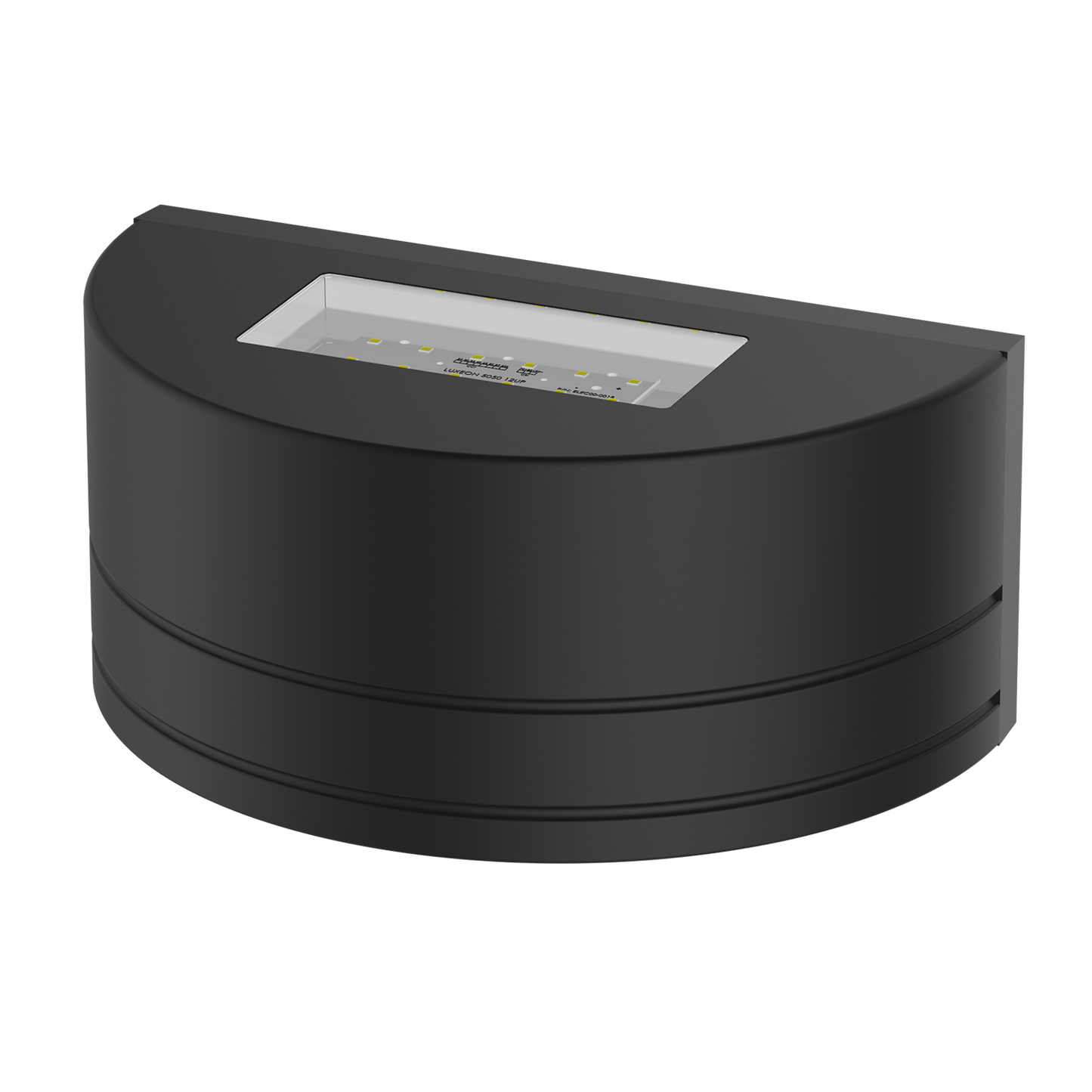

• Up/Down Light (UD)
• Up Light Only (10W or 20W Max)

Available Wattages & Performance

• 20W (CL-304-20CLED)
  • Input Power: 25W
  • Lumen Output: 2,958
  • LPW: 147
  • HID Equivalent: 70W MH
  • CRI: 70+
  • CCT: 3000K / 4000K / 5000K
  • Voltage: 120-277V
• 40W (CL-304-40CLED)
  • Input Power: 45W
  • Lumen Output: 5,449
  • LPW: 136
  • HID Equivalent: 150W HPS
  • CRI: 70+
  • CCT: 3000K / 4000K / 5000K
  • Voltage: 120-277V
• 50W (CL-304-50CLED)
  • Input Power: 55W
  • Lumen Output: 6,589
  • LPW: 131
  • HID Equivalent: 150W MH
  • CRI: 70+
  • CCT: 3000K / 4000K / 5000K
  • Voltage: 120-277V

• Light Distribution Options
• Type 2 (T2)
• Type 3 (T3)
• Type 4 (T4)
• Type 5 (T5)

• Voltage Options
• 120-277V (MV)
• 480V (HV – Optional)

• Finish Options
• Black (BLK)
• White (WHT)
• Silver (SLR)
• Bronze (BRZ)
• Graphite (GPH)
• Custom (CST)

• Available Options & Controls

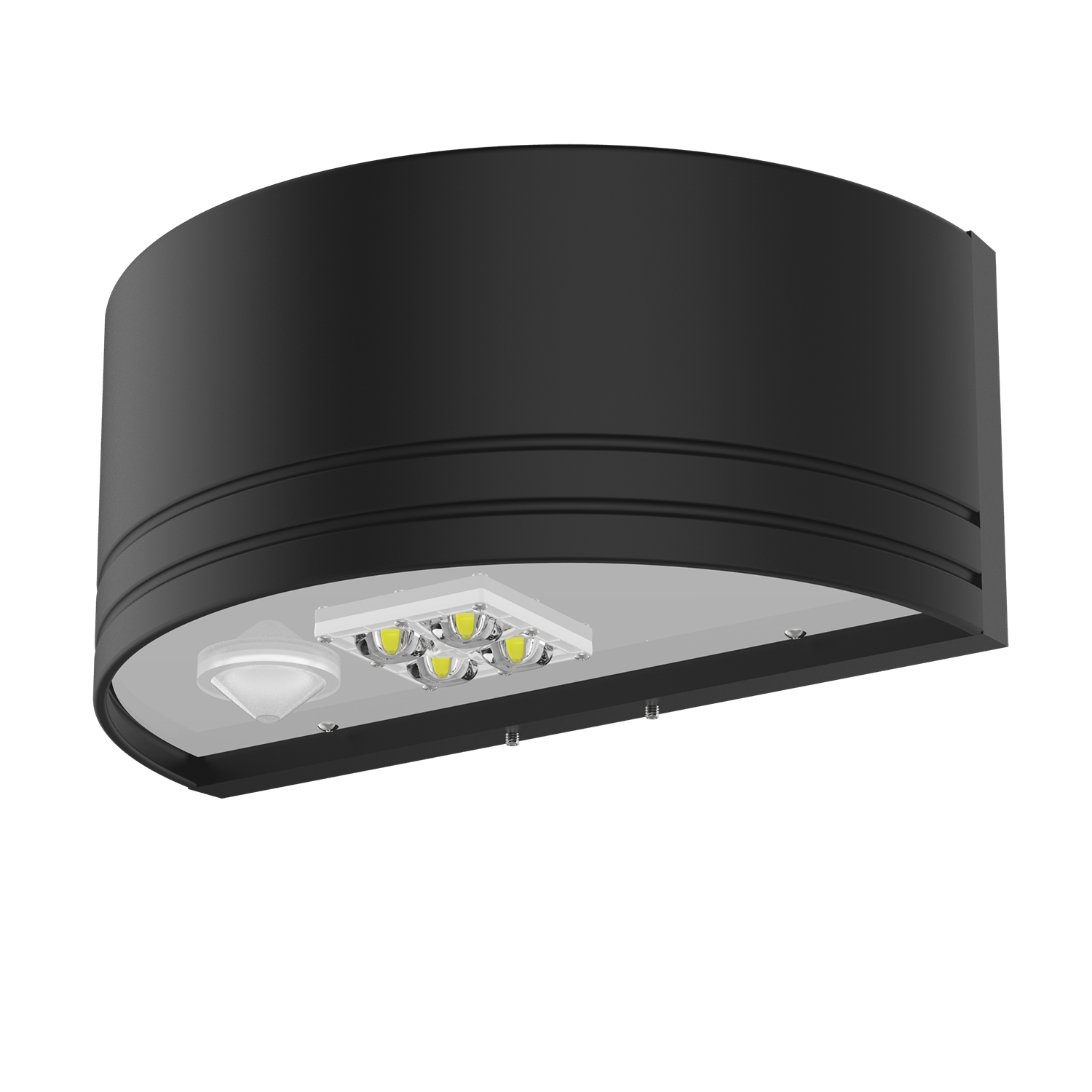

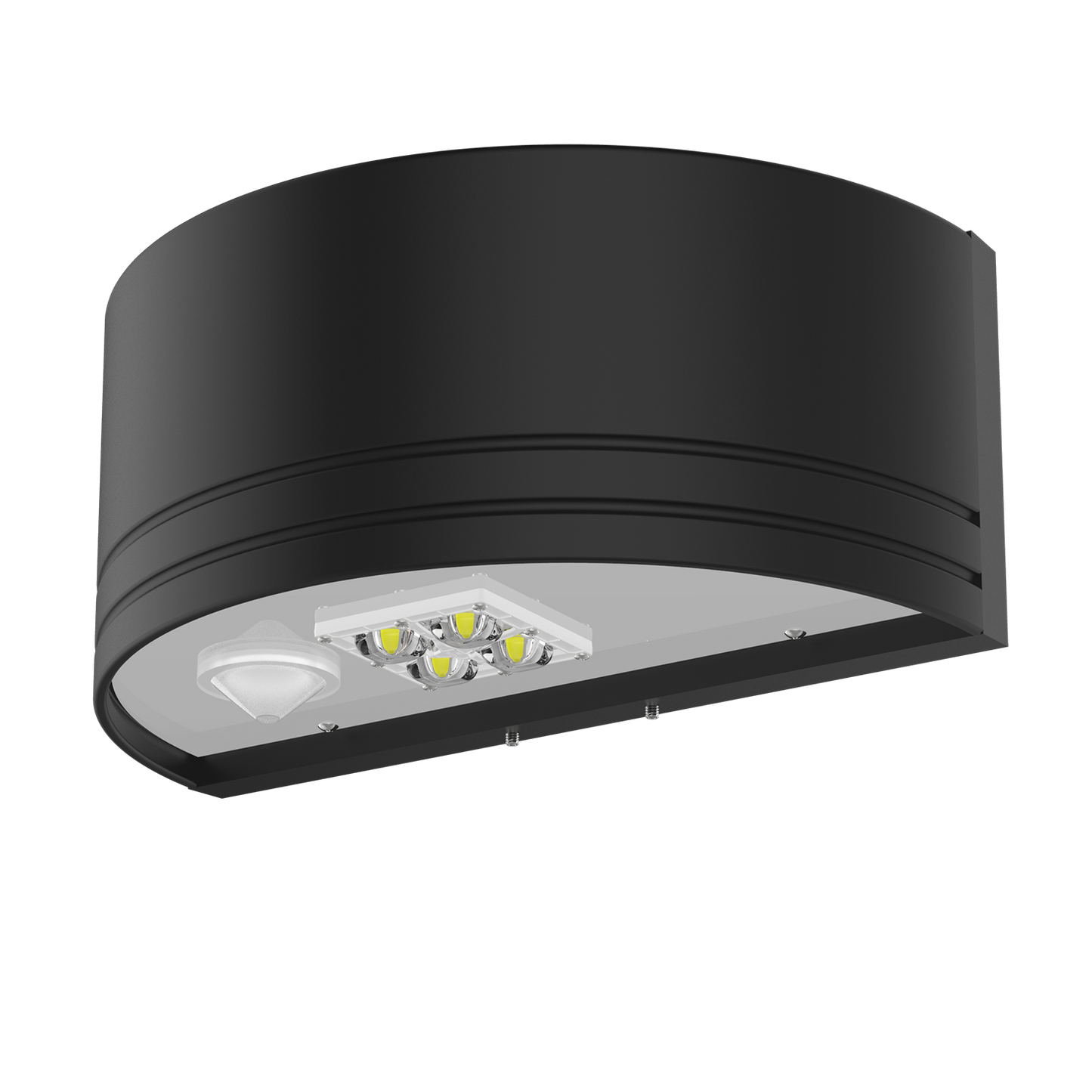

• Motion Sensor (OCC)
• Button Photo Cell (PC)
• Wireless Controls (WC)
• Emergency Battery Pack (EMR)

• Dimensions
• Model: CL-304
• A: 7.5”
• B: 17”
• C: 9.5”
• EPA: 0.88

• Technical Specifications
• SKU: HLCL-304
• Series: CL-304
• Mounting: Wall Mount (Over 4” J-Box)
• Housing: Heavy-Duty Aluminum
• Finish: 3 Mil Powder Coat
• Protection: Wet Location Rated
• Dimming: 0-10V
• Rated Life: 200,000 Hours (L70)
• Warranty: 10 Years
