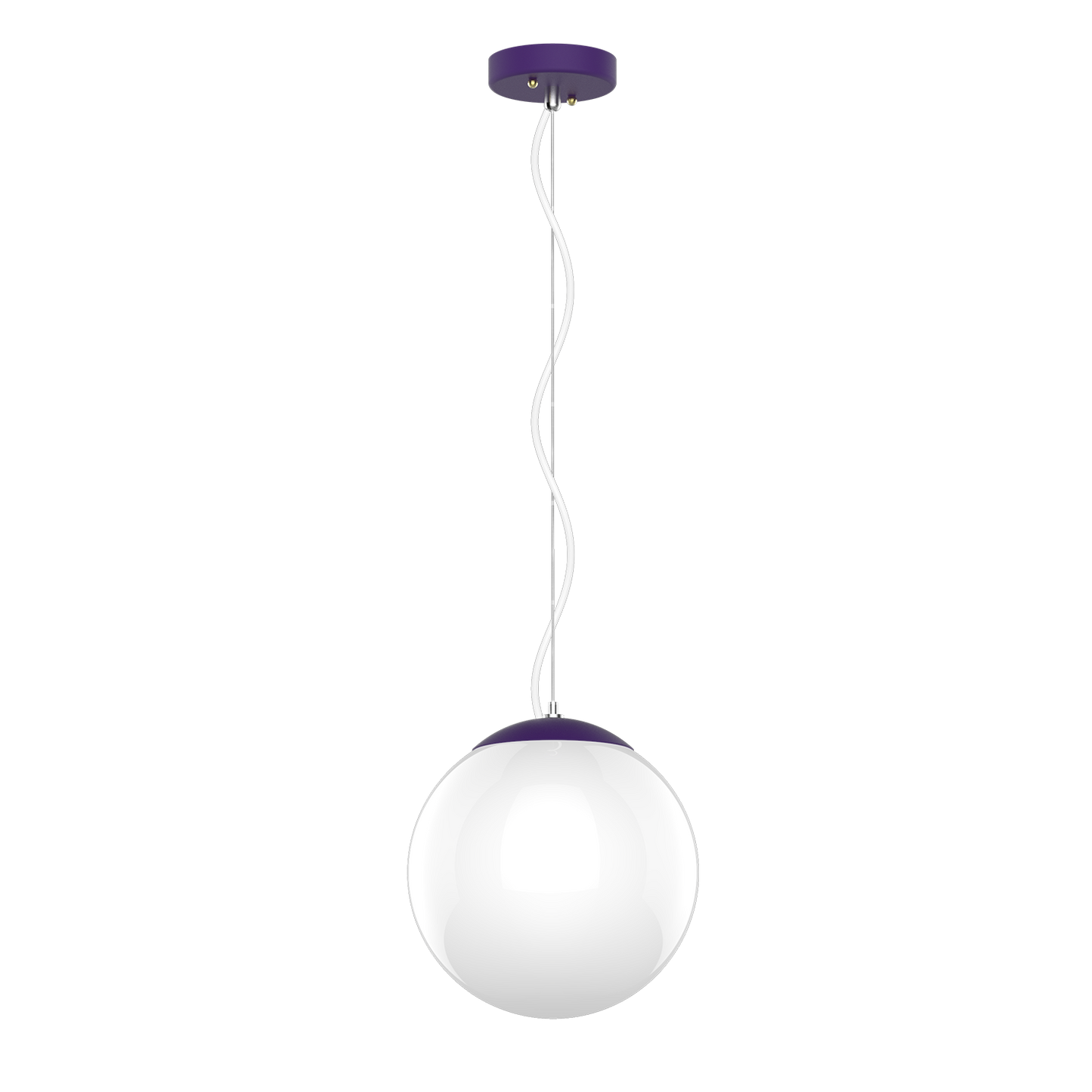

The CL-3050 Series Cable Mount LED Luminaire is a versatile architectural lighting solution designed for both interior and exterior applications. Featuring a modern globe design with aircraft cable suspension, this fixture delivers clean, uniform illumination for commercial and residential environments.
Commonly installed in public buildings, shopping plazas, restaurants, business facilities, and residential areas, the CL-3050 combines contemporary styling with long-lasting LED performance. With three globe sizes, multiple finishes, and wattage options up to 30W, this luminaire offers flexibility to meet diverse architectural requirements.
Backed by a 5-Year Limited Warranty, the CL-3050 Series provides dependable, energy-efficient lighting in damp and wet locations.
Product Specifications
Product Name: CL-3050 Series Cable Mount LED Luminaire
SKU: HLCL-3050-S
Application: Interior / Exterior Architectural Lighting
Voltage: 120–277V (Multi-Volt)
Driver: 0–10V Dimming
UL Listed: Damp and Wet Locations
Rated Life (L70): >200,000 Hours
Warranty: 5-Year Limited Warranty
Construction
- Opal Acrylic Globe
- Aluminum Cap and Canopy
- 3 Mils Powder Coat Finish (Multiple Finishes Available)
- Stainless Steel Aircraft Cable Suspension
Globe Size Options
- 10" Globe (GL10)
- 14" Globe (GL14)
- 18" Globe (GL18)
Dimensions
-
CL-3050-GL10: A: 10"
-
CL-3050-GL14: A: 14"
-
CL-3050-GL18: A: 18"
Wattage Options
- 10W (10CLED)
- 20W (20CLED)
- 30W (30CLED)
Color Temperature (CCT) Options
- 3000K (30K)
- 4000K (40K)
- 5000K (50K)
Finish Options
- Matte Black (MBLK)
- Glossy Black (GBLK)
- Texture Black (TBLK)
- Texture White (TWHT)
- Silver (SLR)
- Bronze (BRZ)
- Graphite (GPH)
- Copper Vein (CPV)
- Silver Vein (SLV)
- Oil Rubbed Bronze (ORB)
Mounting Options
- Aircraft Cable Mount
- 4’ Cable (CBM2)
- 6’ Cable (CBM3)
- Custom Length (CST)
Optional Lens
Performance Specifications
- CL-3050-GL10/14/18-10CLED
- Input Power: 15W
- Lumen Output: 1,914 Lumens
- Efficacy (LPW): 191
- CCT: 5000K
- CRI: 70+
- Rated Life: >200,000 Hours
- Input Voltage: 120–277V
- CL-3050-GL10/14/18-20CLED
- Input Power: 25W
- Lumen Output: 2,935 Lumens
- Efficacy (LPW): 146
- CCT: 5000K
- CRI: 70+
- Rated Life: >200,000 Hours
- Input Voltage: 120–277V
- CL-3050-GL10/14/18-30CLED
- Input Power: 35W
- Lumen Output: 4,842 Lumens
- Efficacy (LPW): 161
- CCT: 5000K
- CRI: 70+
- Rated Life: >200,000 Hours
- Input Voltage: 120–277V
- Key Features
- Interior and exterior architectural globe pendant
- 0–10V dimmable LED driver
- UL listed for damp and wet locations
- Stainless steel aircraft cable suspension
- Available in three globe sizes
- Multiple designer powder coat finishes
- Optional clear acrylic lens
- Energy-efficient LED performance up to 4,842 lumens
- 5-year limited warranty
- Ideal Applications
- Public buildings
- Shopping plazas
- Restaurants and hospitality
- Office and business facilities
- Residential communities
- Exterior covered walkways
