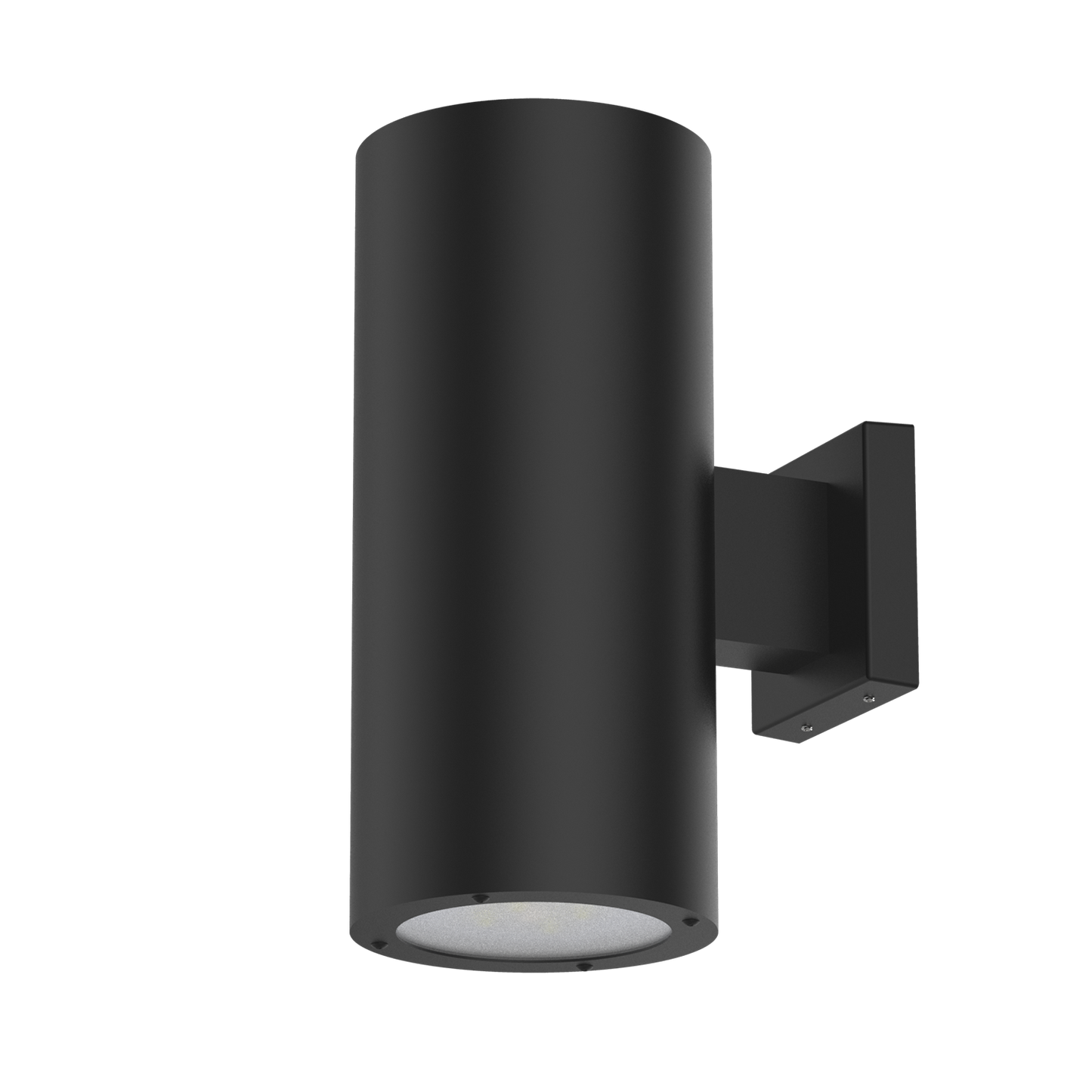

The CL-3099 LED Luminaire is a sleek, architectural-grade cylinder lighting fixture designed for wall, ceiling, and pendant mounting applications. Featuring a modern cylindrical profile and versatile configuration options, the CL-3099 is ideal for residential, hospitality, and commercial environments.
Engineered with high-efficiency Philips Lumiled LEDs, this fixture delivers over 66% energy savings compared to traditional HID lighting, while providing excellent lumen maintenance and long service life.
With multiple diameter options (4", 6", 8"), beam angles, finishes, and mounting configurations, the CL-3099 offers a customizable architectural lighting solution.
Backed by a 10-Year / 100,000-Hour Limited Warranty, this luminaire is built for long-term performance in wet location environments.
Ideal Applications
Residential exteriors
Hospitality properties
Commercial buildings
Entryways and corridors
Architectural accent lighting
Covered walkways
Retail and mixed-use spaces
Key Features
Modern cylindrical architectural design
Wall, ceiling, or pendant mount options
Over 66% energy savings vs HID
High-efficiency Philips Lumiled LEDs
Improved lumen maintenance
0-10V dimmable driver
Constant current driver
Voltage: 120-277V standard
Optional 480V
Suitable for wet locations
Operating temperature: -30°C to 60°C
Rated Life: 200,000 hours (L70)
10-Year / 100,000-Hour Limited Warranty
Optical Options

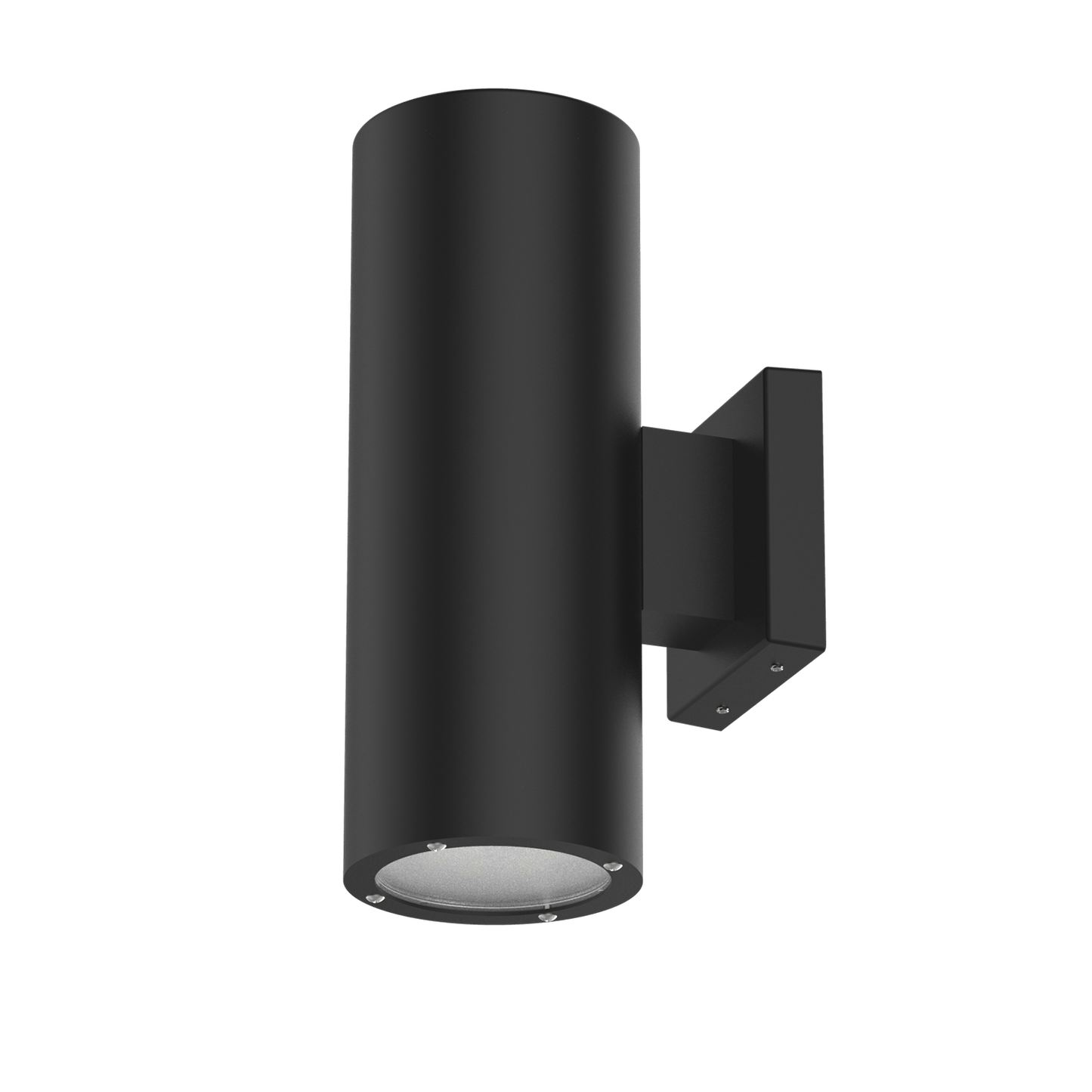

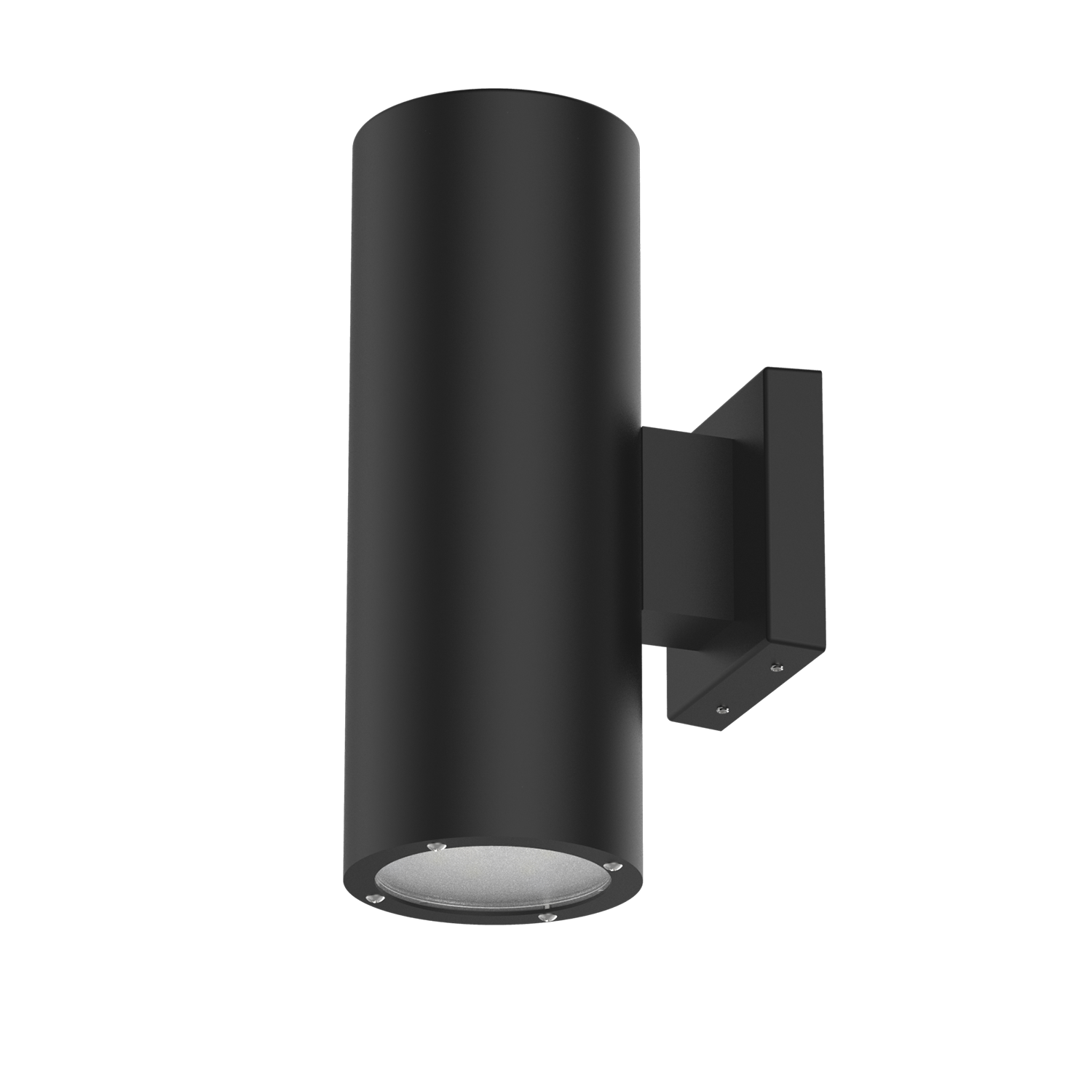

50° Beam (6” & 8” OD)
78° Beam (6” & 8” OD)
Type 5 Optic (6” & 8” OD – Standard)
4” OD Clear Acrylic Lens (Standard)
Construction
Heavy gauge aluminum housing
3 mil powder coat finish
Corrosion-resistant design
Silicone gasket weather protection

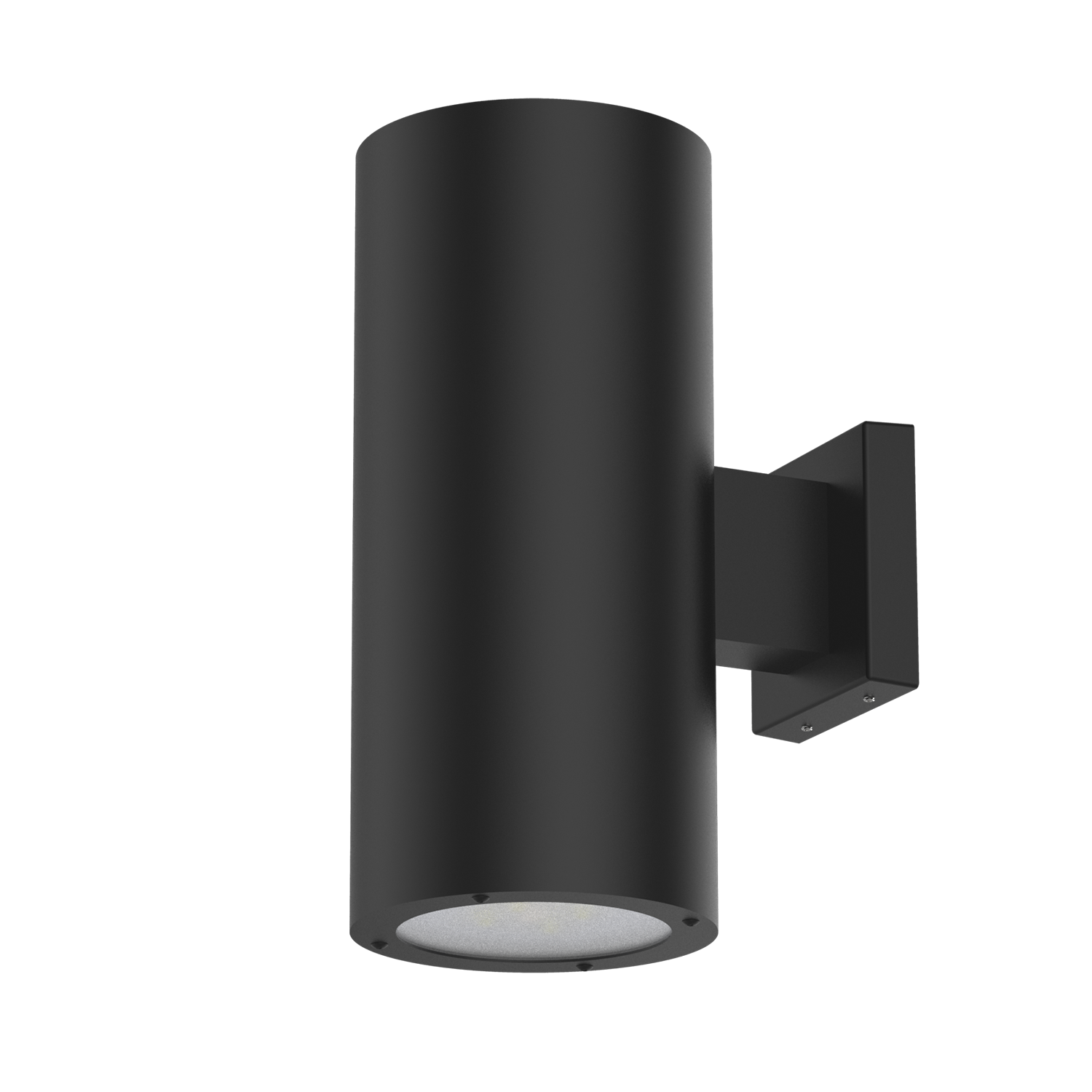

Mounting: Wall (WM), Ceiling (CM), or Pendant (PM)
