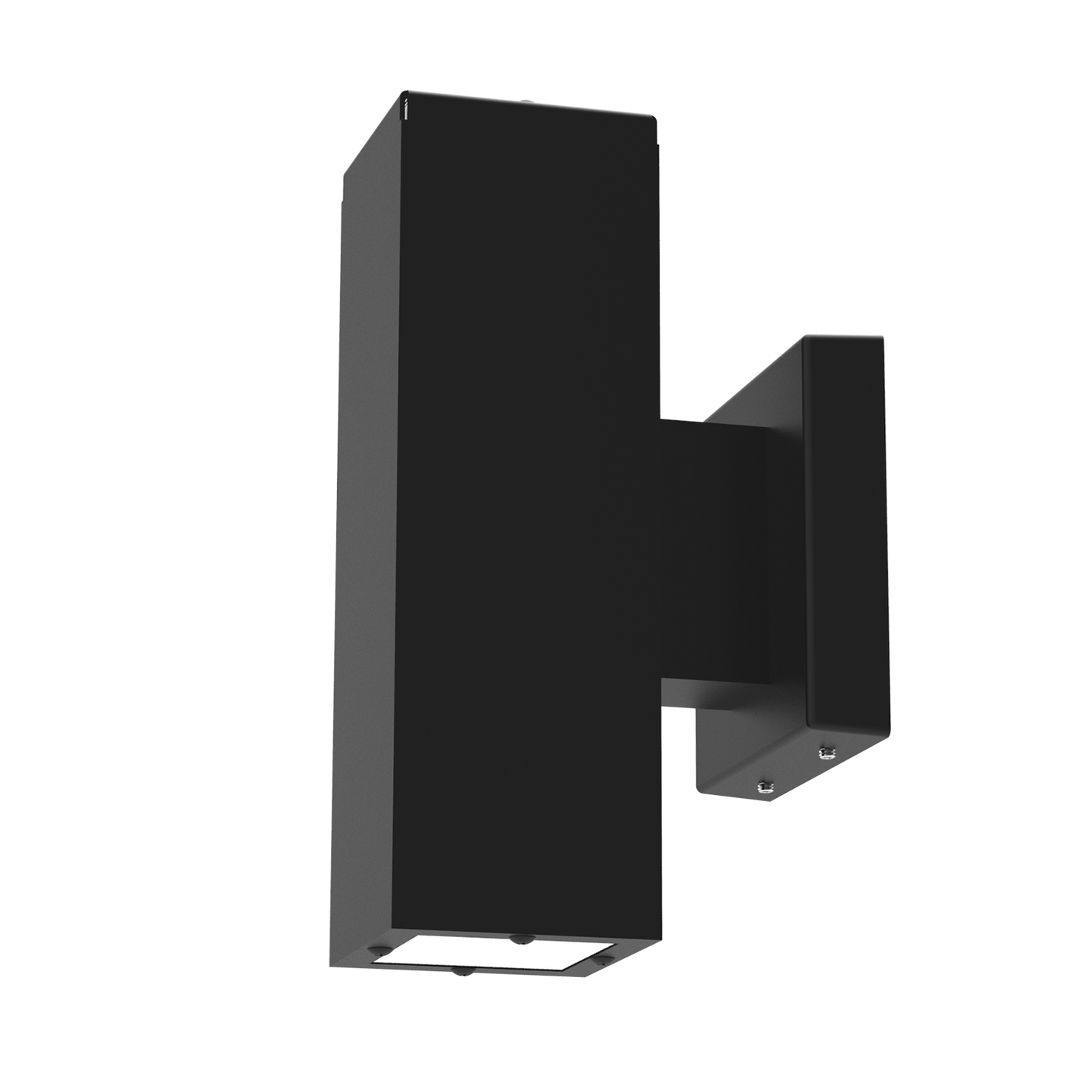

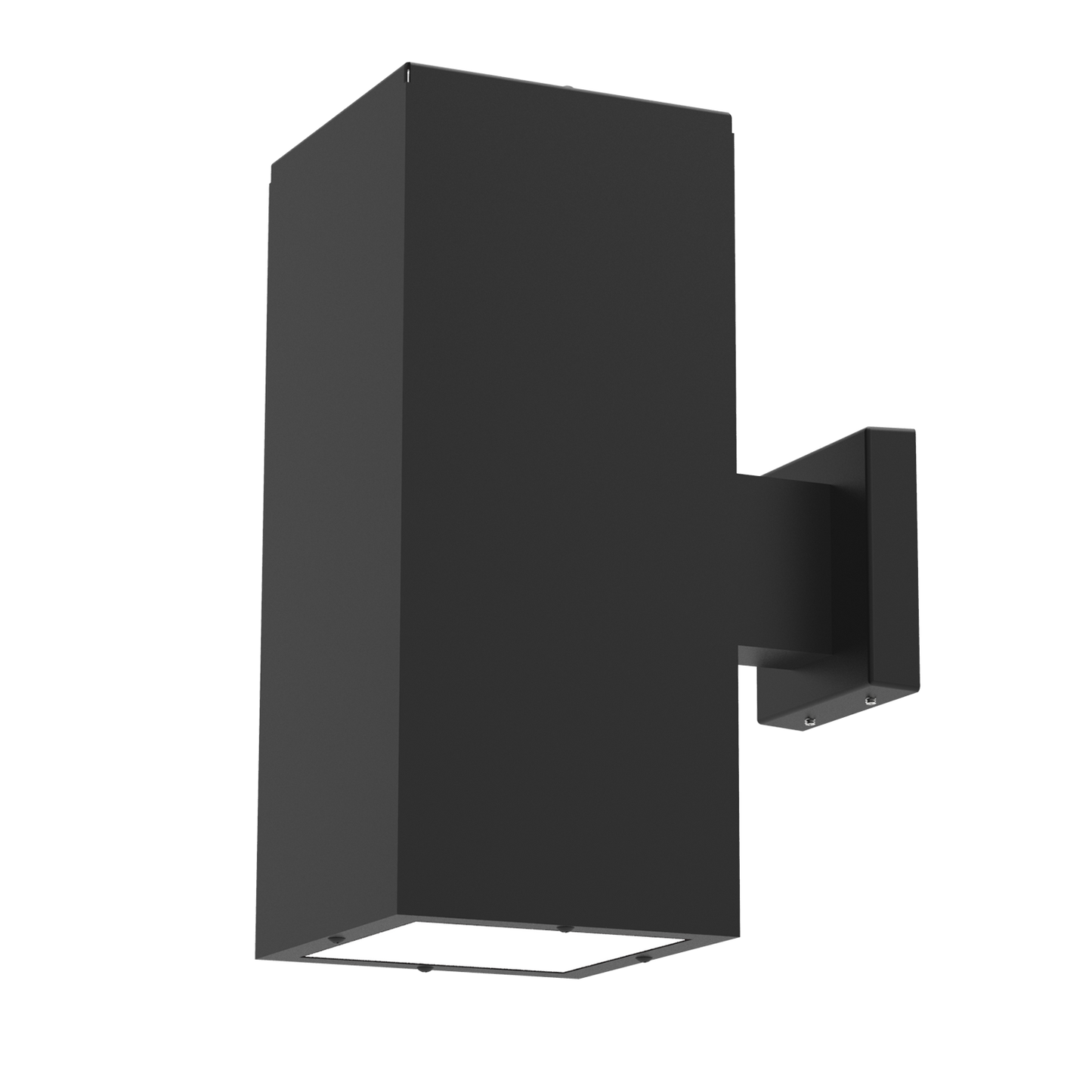

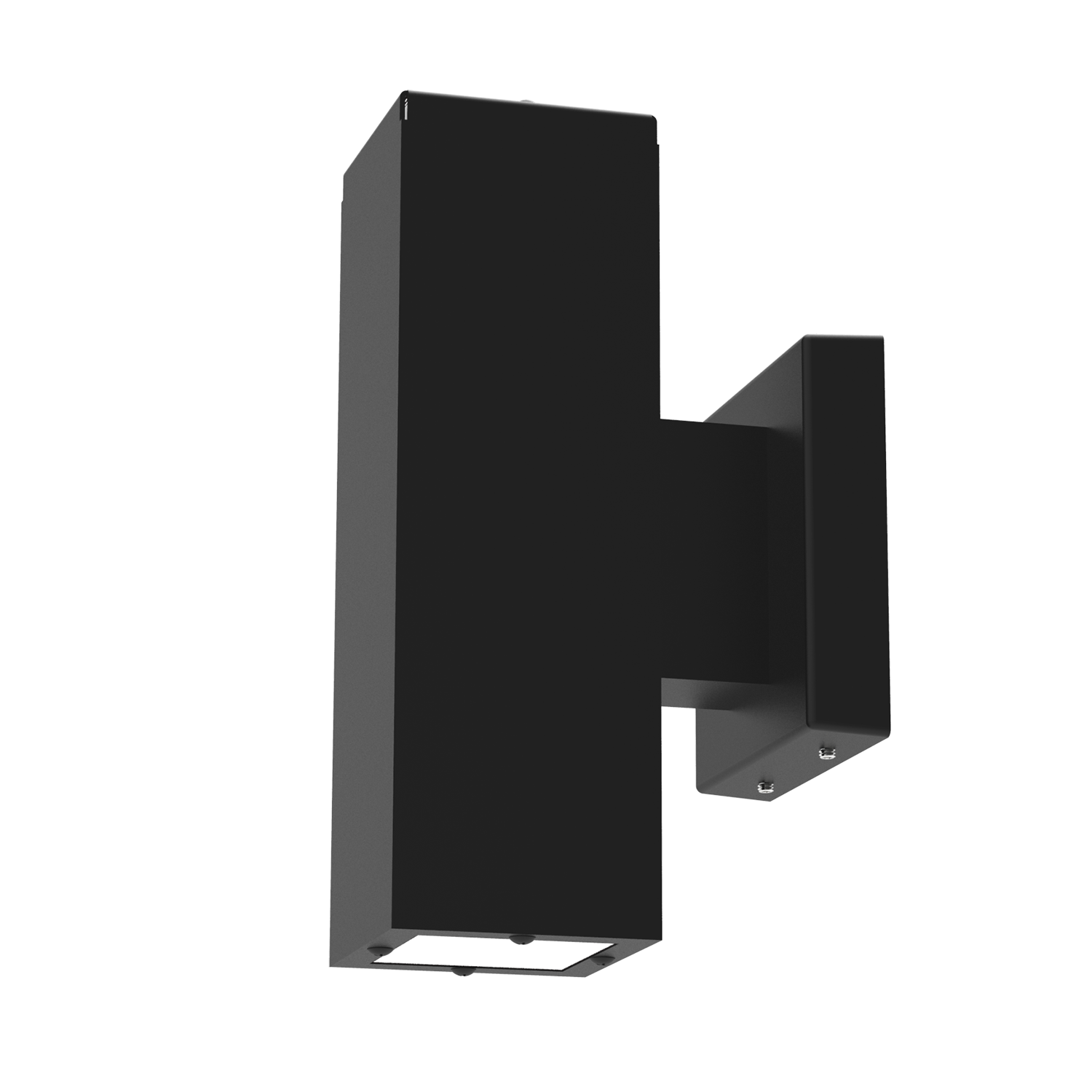

CL-3099 Square LED Ceiling / Wall Mount Luminaire

CL-3099 Square LED Ceiling / Wall Mount Luminaire

SKU:HLCL-3099-S

Quantity

The CL-3099 Square LED Ceiling / Wall Mount Luminaire is a sleek, architectural lighting solution designed for residential, hospitality, and commercial environments. Featuring a modern square cylinder profile, this versatile fixture offers wall mount, ceiling mount, and pendant mount options, making it ideal for entryways, corridors, building facades, hotels, and multi-family properties.

Engineered with high-efficiency Philips Lumiled LEDs, the CL-3099 delivers exceptional lumen output, superior energy savings (over 66% compared to traditional HID fixtures), and outstanding long-term performance. Built with heavy-gauge aluminum housing and suitable for wet locations, this luminaire performs reliably in demanding indoor and outdoor applications.

With multiple sizes, wattages, finishes, and optical distributions available, the CL-3099 Square LED fixture provides flexible design solutions while maintaining a clean, contemporary aesthetic.

Backed by a 10-Year / 100,000-Hour Limited Warranty.


Key Features

  • High-efficiency Philips Lumiled LED technology
  • Over 66% energy savings compared to HID light sources
  • Long rated life: L70 > 200,000 hours
  • Suitable for wet locations
  • Operating temperature: -30°C to 60°C
  • Constant current driver
  • 120-277V standard (480V optional)
  • 0-10V dimming standard
  • Optional occupancy sensor, photocell & wireless controls
  • Dark Sky compliant (Down Light Only / 3000K)
  • Heavy-gauge aluminum construction
  • Clear acrylic lens (standard)
  • 10-Year / 100,000-hour limited warranty

Available Sizes (Square Profile)

  • 4” SQ (4S)
  • 6” SQ (6S)
  • 8” SQ (8S)

Mounting Options

  • Wall Mount (WM)
    • Up/Down Light (UDL)
    • Down Light (DL)
  • Ceiling Mount (CM) – Down Light Only
  • Pendant Mount (PM) – Specify stem length

Wattage Options

  • 12W
  • 15W
  • 20W
  • 30W
  • 50W

Color Temperature Options

  • 3000K
  • 4000K
  • 5000K

Voltage

  • 120-277V (Standard Multi-Volt)
  • 480V (Optional)

Finish Options

  • Black
  • White
  • Bronze
  • Silver
  • Graphite
  • Marine Grade Finish

Optical Options

  • 50° Beam (6” & 8” OD)
  • 78° Beam (6” & 8” OD)

Lens Options

  • Clear Acrylic Lens (Standard)
  • Frosted Acrylic Lens (Optional)
  • Opal Acrylic Lens (Optional)

Optional Accessories

  • Emergency Battery (EMR)
  • Button Photocell
  • Photo Cell (PC)
  • Wireless Controls (WC)

Performance Specifications

  • 4S – 12CLED
    • Input Power: 18W
    • Lumen Output: 1,348 lm
    • LPW: 112
    • CRI: 70+
    • Voltage: 120-277V
    • HID Equivalent: 70W MH
  • 6S – 15CLED
    • Input Power: 20W
    • Lumen Output: 1,744 lm
    • LPW: 116
    • CRI: 70+
    • HID Equivalent: 100W HPS
  • 6S – 20CLED
    • Input Power: 25W
    • Lumen Output: 2,230 lm
    • LPW: 111
    • CRI: 70+
    • HID Equivalent: 100W PSMH
  • 8S – 35CLED
    • Input Power: 35W
    • Lumen Output: 4,388 lm
    • LPW: 125
    • CRI: 70+
    • HID Equivalent: 150W HPS
  • 8S – 50CLED
    • Input Power: 55W
    • Lumen Output: 6,120 lm
    • LPW: 122
    • CRI: 70+
    • HID Equivalent: 175W MH

  • Dimensions
  • 4S Wall Mount
    • A: 4” SQ
    • B: 12”
    • C: 5”
  • 4S Ceiling Mount
    • A: 4” SQ
    • B: 12”
  • 6S Wall Mount
    • A: 6” SQ
    • B: 16”
    • C: 6 1/8”
  • 6S Ceiling Mount
    • A: 6” SQ
    • B: 16”
  • 8S Wall Mount
    • A: 8” SQ
    • B: 18”
    • C: 9 1/4”
  • 8S Ceiling Mount
    • A: 8” SQ
    • B: 18”

  • Ideal Applications
  • Hotel exteriors & corridors
  • Commercial building facades
  • Residential entryways
  • Multi-family housing
  • Walkways & stairwells
  • Hospitality lighting projects
