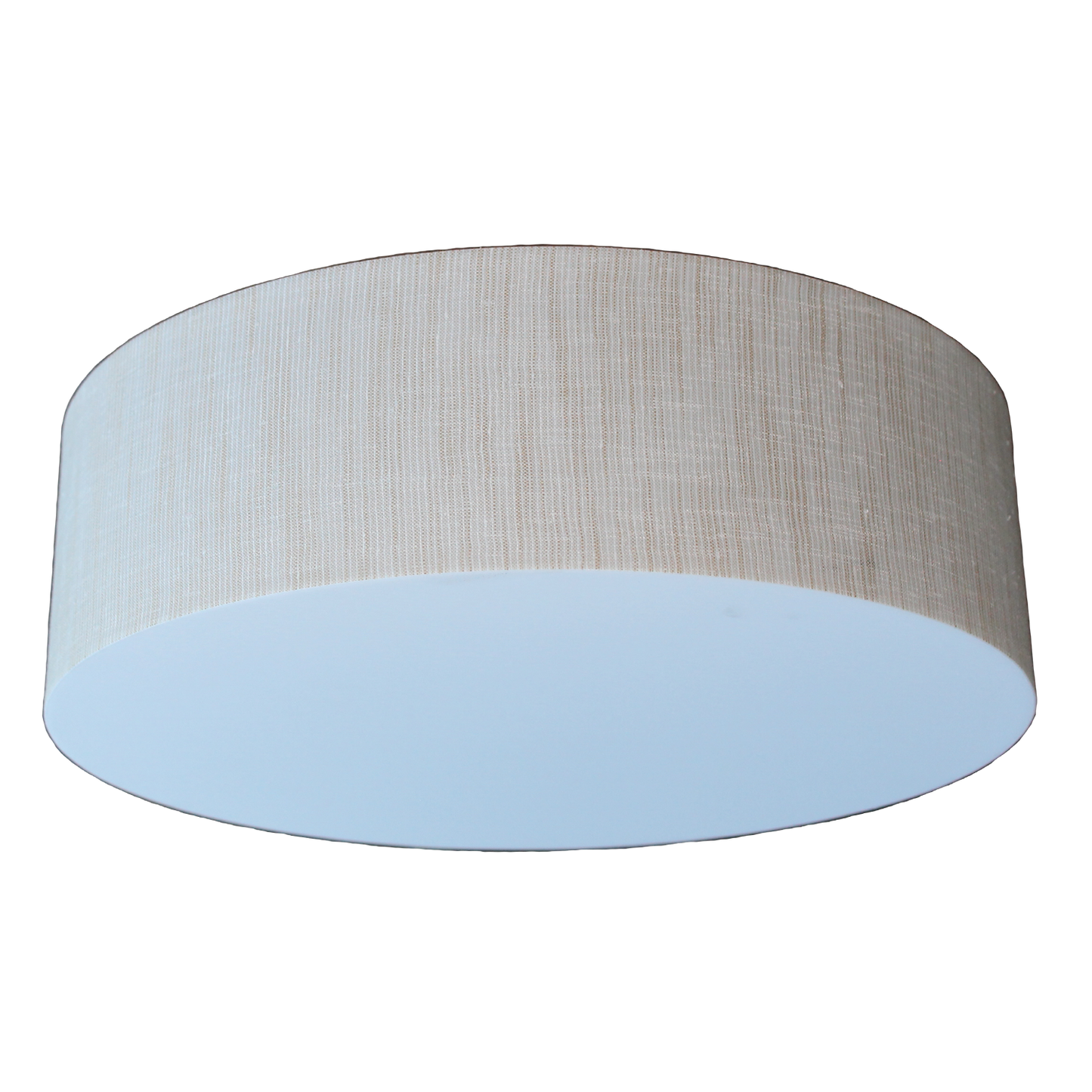

The CL-DRUM Interior Architectural LED fixture is a modern, design-forward lighting solution ideal for residential and commercial interiors. Available in three sizes with multiple finish and acrylic lens options, the CL-DRUM provides flexible configuration to match a wide range of architectural styles.

Commonly installed in residential homes, indoor shopping centers, offices, restaurants, and hospitality spaces, this fixture delivers clean, uniform illumination with energy-efficient LED performance. Built with a heavy-gauge aluminum ceiling pan and finished with durable 3 mil powder coating, CL-DRUM combines style, performance, and longevity.

Backed by a 10-Year Limited Warranty, this interior architectural fixture is engineered for long-term reliability.

Product Specifications

• Product Name: CL-DRUM Interior Architectural LED
• SKU: HLCL-DRUM-867
• Driver: 120–277V, 0–10V Dimming Driver
• Voltage: 120–277V (Multi-Volt)
• Standard CCT: 3000K (30K) – 80CRI
• Optional CCT: 4000K (40K), 5000K (50K)
• CRI Options: 80CRI Standard / 90CRI Optional
• Rated Life (L70): >200,000 Hours
• UL Listed: Damp and Wet Locations
• Warranty: 10-Year Limited Warranty

Construction

• Ceiling Pan Made of Heavy Gauge Aluminum
• 3 Mil Powder Coating Finish
• Multiple Decorative Finish Options
• Acrylic Lens Included

Available Finish Options

• White Matte
• Russel Square
• Jute
• Chocolate Linen
• Rapids

Acrylic Lens Options

• White Line
• Wedge
• Grey Alabaster
• Digital Layered

Size & Model Options

• CL-DRUM-SM (CL-DRUMS)
• Wattage: 10W (10CLED)
• Color Temp: 3000K
• CRI: 80CRI
• Voltage: 120–277V
• Finish: White Matte / Acrylic (WMA)
• Mounting: Ceiling Mount (CM)
• Option: Micro Wave Sensor
• Dimensions
• A: 4 1/2"
• B: 15"

• CL-DRUM-MD (CL-DRUMM)
• Wattage: 20W (20CLED)
• Color Temp Options: 4000K / 5000K
• CRI: 90CRI
• Finish Options: Russel Square, Jute, Chocolate Linen
• Mounting Options: Aircraft Cable Length
• Options: Micro Wave Sensor (MWS), Emergency Battery (EMR)
• Dimensions
• A: 8"
• B: 24"

• CL-DRUM-LG (CL-DRUML)
• Wattage: 50W (50CLED)
• Finish: Rapids
• Acrylic Options: White Line, Wedge, Grey Alabaster, Digital Layered
• Mounting Options:
  • 1’ Aircraft Cable
  • 2’ Aircraft Cable
  • 3’ Aircraft Cable
  • 4’ Aircraft Cable
  • Custom
• Dimensions
  • A: 9"
  • B: 36"

• Performance Specifications
• CL-DRUM-S/L-10CLED
  • Input Power: 15W
  • Lumen Output: 800 Lumens
  • CCT: 3000K
  • CRI: 80+
  • Rated Life: >200,000 Hours
  • Input Voltage: 120–277V
• CL-DRUM-S/L-20CLED
  • Input Power: 25W
  • Lumen Output: 1,900 Lumens
  • CCT: 3000K
  • CRI: 80+
  • Rated Life: >200,000 Hours
  • Input Voltage: 120–277V
• CL-DRUM-S/L-50CLED
  • Input Power: 55W
  • Lumen Output: 5,200 Lumens
  • CCT: 3000K
  • CRI: 80+
  • Rated Life: >200,000 Hours
  • Input Voltage: 120–277V

• Key Features
• Interior architectural LED drum fixture
• Available in small, medium, and large sizes
• 0–10V dimming driver standard
• Multiple designer finish and acrylic options
• Heavy gauge aluminum construction
• UL listed for damp and wet locations
• Optional 90CRI for enhanced color rendering
• Micro wave sensor and emergency battery options available
• 10-year limited warranty

• Ideal Applications
• Residential interiors
• Shopping centers
• Offices and corporate spaces
• Restaurants and hospitality
• Multi-family developments
• Indoor commercial facilities
