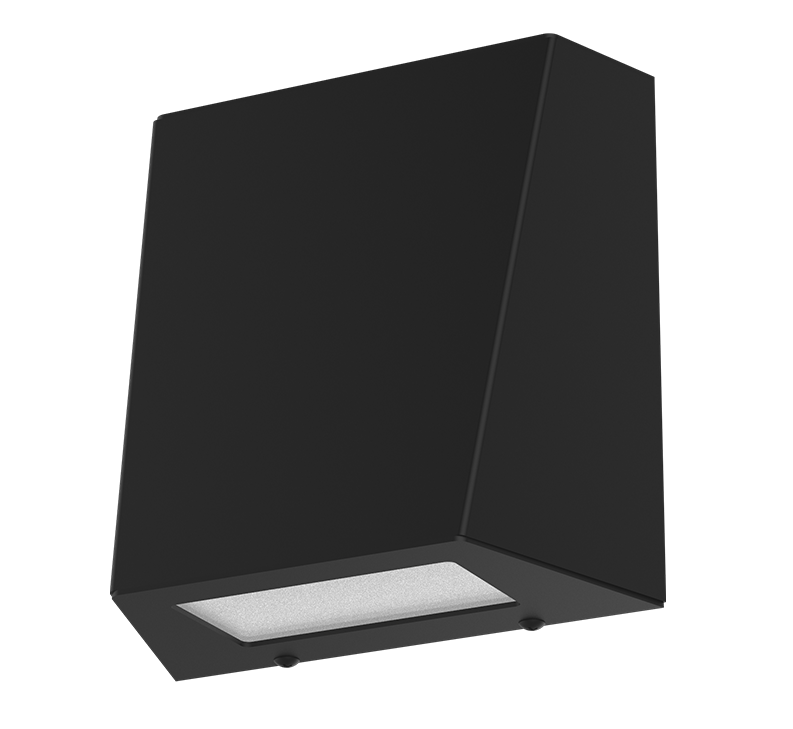

The CL-NV3031 Full Cutoff LED Wall Pack is a high-performance architectural luminaire designed for commercial, industrial, and residential exterior lighting applications. Engineered for superior illumination and energy efficiency, this ADA-compliant fixture delivers powerful light output while maintaining a full cutoff design to minimize glare and light pollution.
Perfect for building exteriors, walkways, entryways, perimeters, parking garages, and school campuses, the CL-NV3031 provides dependable, long-lasting performance in demanding environments. Manufactured 100% in the USA, this fixture combines heavy-gauge aluminum construction with advanced Lumiled LED technology for maximum durability and efficiency.
Dark Sky compliant with optional uplight configuration available. Backed by a 10-Year / 100,000-Hour Limited Warranty.
Key Features
Architectural full cutoff LED wall pack
Dark Sky compliant design
ADA compliant
100% manufactured in the USA
Over 66% energy savings compared to HID fixtures
High-efficiency Lumiled LEDs
Rated life (L70): >200,000 hours
Operating temperature: -30°C to 60°C
Constant current driver
120-277V multi-volt input
0-10V dimming standard
Optional occupancy sensor or photocell
Suitable for wet locations
10-Year / 100,000-Hour limited warranty
Ideal Applications
Commercial building exteriors
Residential exterior walls
Walkways & entryways
Parking garages
Perimeter lighting
School campuses
Industrial facilities
Wattage Options
10W (10CLED)
15W (15CLED)
20W (20CLED)
Light Distribution
Type IV (T4)
Type V (T5)
Color Temperature Options
3000K
4000K
5000K
Voltage
120-277V (Multi-Volt)
Finish Options
Black
White
Bronze
Silver
Graphite
Custom Finish
Construction Details
Heavy-gauge aluminum housing
3 mil powder coat finish
Frosted acrylic lens (standard)
Silicone gasket for weather-tight protection
Mounts over standard 4” J-Box
EPA: 0.2
Optional Accessories
Emergency Battery (EMR)
Button Photocell (PC)
Wireless Controls (WC)
Dimensions
Height (A): 8 1/4”
Width (B): 8”
Depth (C): 4”
EPA: 0.2
Performance Specifications
10CLED
Input Power: 15W
Lumen Output: 1,914 lm
LPW: 191
CRI: 70+
Voltage: 120-277V
HID Equivalent: 50W HPS
15CLED
Input Power: 20W
Lumen Output: 2,754 lm
LPW: 193
CRI: 70+
HID Equivalent: 70W HPS
20CLED
Input Power: 25W
Lumen Output: 2,935 lm
LPW: 146
CRI: 70+
HID Equivalent: 100W HPS
Why Choose CL-NV3031?
Reduces energy costs significantly compared to traditional HID wall packs
Minimizes glare and light trespass with full cutoff optics
Long lifespan reduces maintenance costs
Weather-sealed for reliable outdoor operation
Ideal upgrade for outdated metal halide or HPS fixtures
