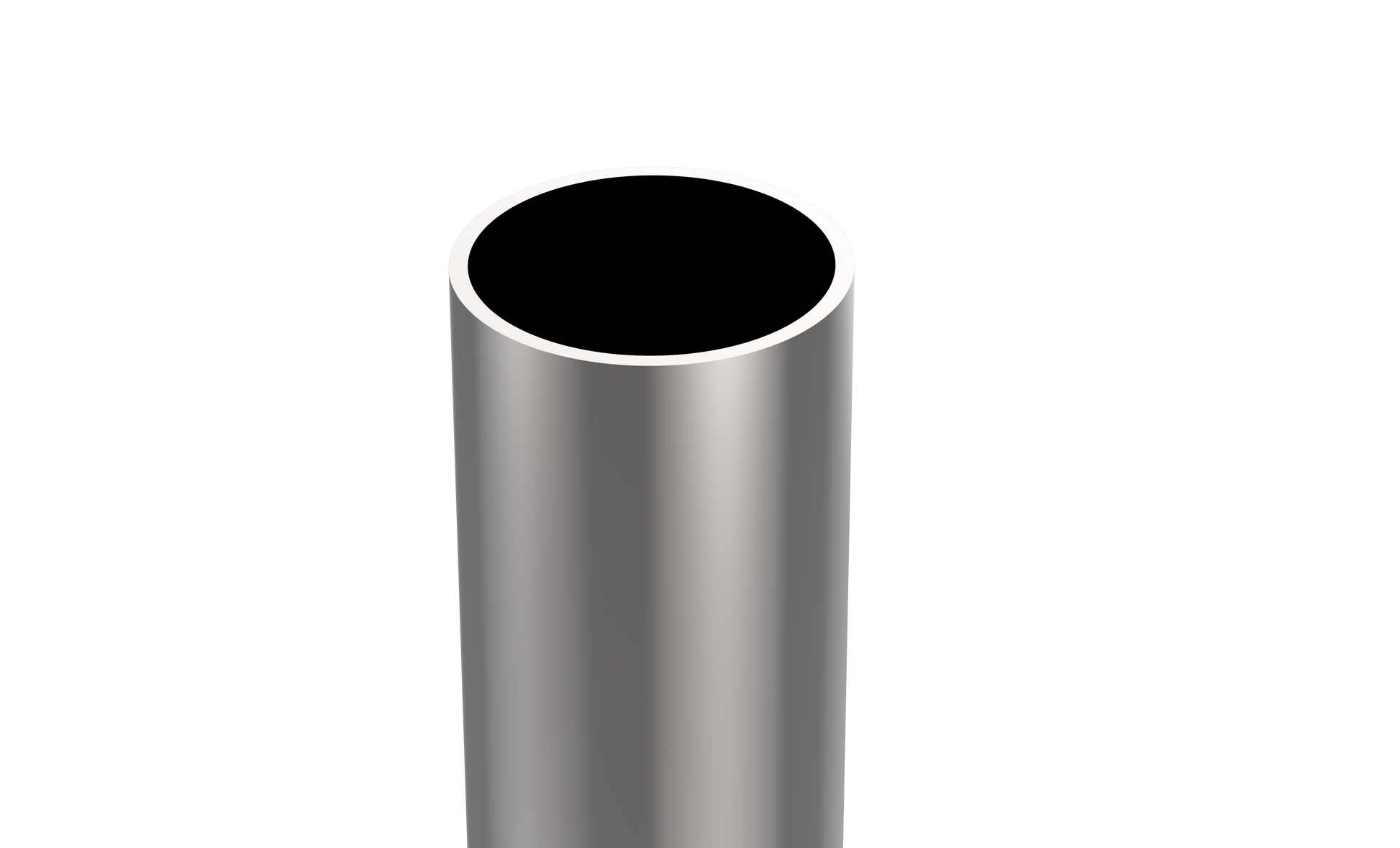

The CL-RSA Round Straight Aluminum Pole Shaft is a premium-grade, seamless extruded lighting pole engineered for commercial, municipal, hospitality, and marine applications. Constructed from 6063 Aluminum Alloy tubing per ASTM B221 requirements, this pole delivers exceptional structural strength, corrosion resistance, and long-term durability in demanding environments.
Designed for versatility, the CL-RSA series is available in heights from 8 ft to 30 ft, with multiple pole diameters, mounting configurations, and finish options. Each pole includes a welded ground lug, reinforced 3” x 5” hand hole, removable pole cap, powder-coated aluminum base cover, and anchor bolt kit for complete installation readiness.
All poles are sandblasted prior to finishing and coated with a minimum 3 mil powder coat, baked at 400°F for superior adhesion and weather resistance. Backed by a 3-year warranty, CL-RSA poles are built for performance, safety, and long-term reliability.
Key Features
- Seamless extruded 6063 aluminum alloy construction (ASTM B221 compliant)
- Available heights: 8’, 10’, 12’, 14’, 16’, 18’, 20’, 25’, 30’
- Reinforced 3” x 5” hand hole with welded internal ground lug
- Heavy-duty 4-bolt aluminum base flange
- 3/4” thick base plate (up to 20’)
- 1” thick base plate (21’ and above)
- Minimum 3 mil powder coating, baked at 400°F
- Includes removable pole cap and aluminum base cover
- Cast aluminum hand hole cover with internal bridge support
- Anchor bolt kit included (ASTM F1554 Grade 36, 36,000 PSI minimum)
- Suitable for side mount, single, double (D-180, D-90), triple (T-90), and quad configurations
- Optional tenons and GFI provisions available
- Marine grade finish option available
- 3-Year Manufacturer Warranty
Construction Details
Pole Shaft
- Seamless extruded aluminum tube
- 6063 Aluminum Alloy
- ASTM B221 compliant
- Welded internal ground lug
- Reinforced hand hole frame
Base Plate
- 4-bolt aluminum flange
- 3/4” thick (8’–20’)
- 1” thick (25’–30’)
Anchor Bolts
- 4 L-shaped hot-dip galvanized anchor bolts
- Each bolt includes two galvanized nuts and washer
- Minimum 36,000 PSI
- Conforms to ASTM F1554 Grade 36
Finish Options
- White (WHT)
- Silver (SVR)
- Green (GRN)
- Black (BLK)
- Graphite (GPH)
- Marine Grade (MG)
- Custom (CST)
Mounting & Accessories
Mounting Options
- Side Mount
- Single (SGL)
- Double (D-180 / D-90)
- Triple (T-90)
- Quad (QD)
Tenon Options
- 2-3/8” Round (T2R)
- 3” Round (T3R)
- 3-1/2” Round (T312R)
- 4” Round (T4R)
- 4-1/2” Round (T412R)
- 3-1/2” Square (T312S)
- 4-1/2” Square (T412S)
- 5-1/2” Square
Additional Options
- Round Base Cover (RBC)
- GFI Provision Only (GFIP)
- GFI Kit (GFIK)
Available Specifications
Height Options
8 ft | 10 ft | 12 ft | 14 ft | 16 ft | 18 ft | 20 ft | 25 ft | 30 ft
Pole Diameters
3” OD | 4” OD | 5” OD | 6” OD
Wall Thickness
0.125” | 0.188”
Bolt Circle
9”-3/16” | 12”-1/2”
Anchor Bolts
3/4” x 24” | 1” x 36”
Maximum EPA (Effective Projected Area) Ratings
Engineered for wind speeds from 90 MPH to 130 MPH, CL-RSA poles are designed to meet demanding environmental load conditions.
EPA varies based on:
- Pole height
- Diameter
- Wall thickness
- Base plate configuration
(Refer to engineering charts for specific EPA ratings per configuration.)
Applications
- Commercial parking lot lighting
- Street and roadway lighting
- Hospitality properties
- Retail centers
- Municipal projects
- Marine and coastal installations
- Campus and industrial facilities
Specifications Summary
- SKU: HLCL-RSA
- Material: 6063 Aluminum Alloy
- Manufacturing Standard: ASTM B221
- Anchor Bolt Standard: ASTM F1554 Grade 36
- Finish: Powder Coated (3 mil minimum)
- Warranty: 3 Years
