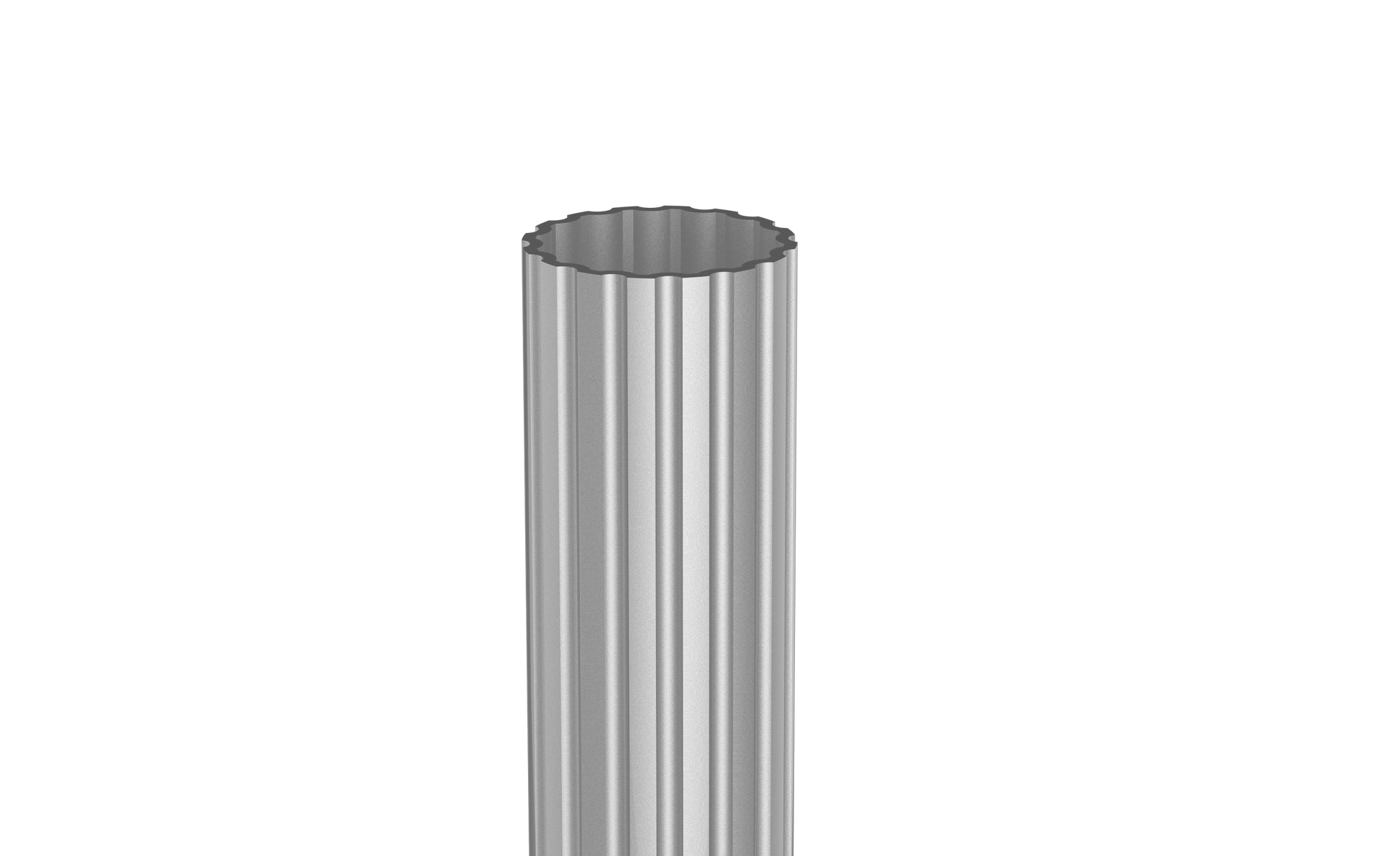

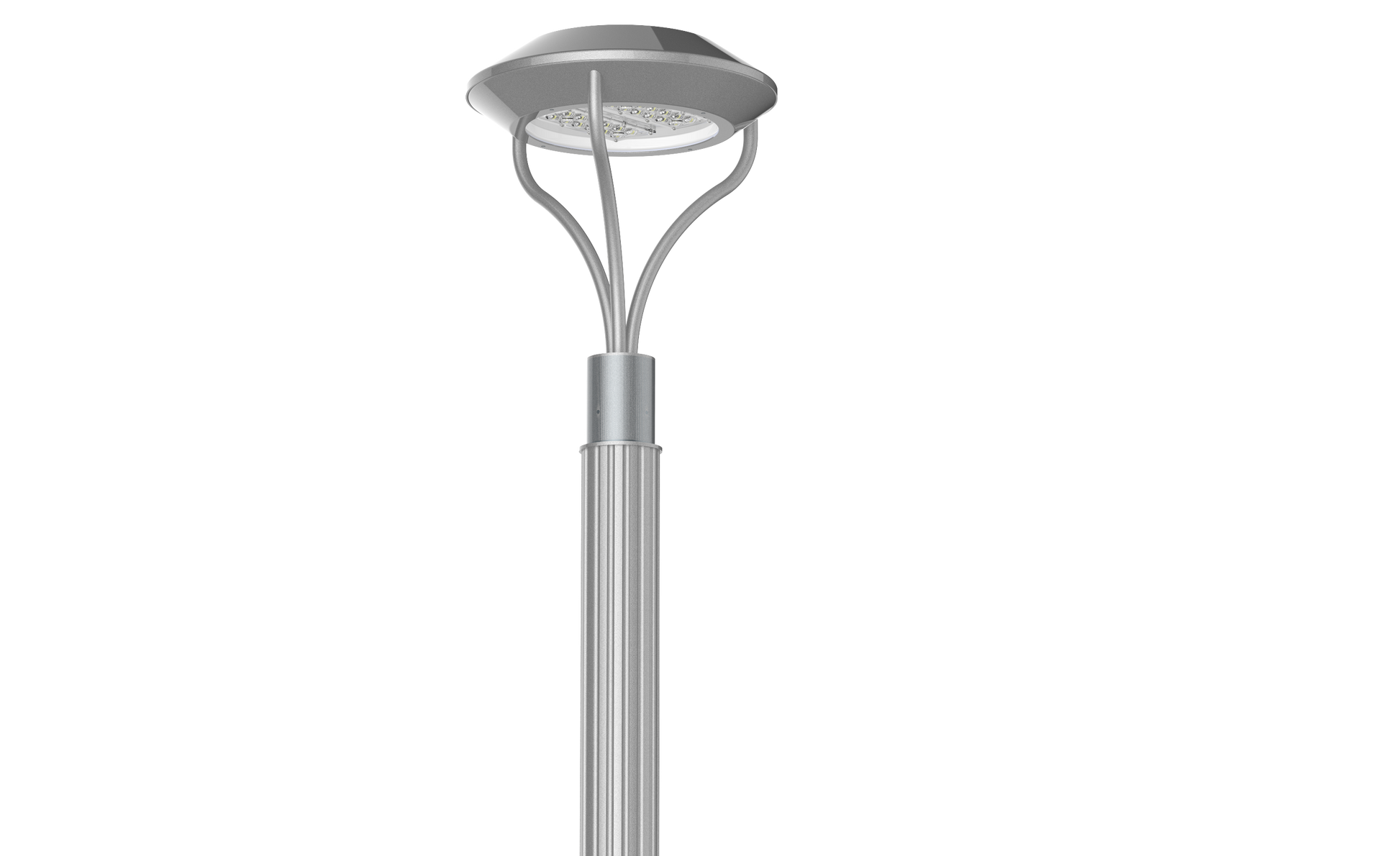

The CL-RSAF Round Straight Aluminum Fluted Pole Shaft is a premium architectural light pole engineered for durability, strength, and long-term outdoor performance. Manufactured from seamless extruded 6063 aluminum alloy in accordance with ASTM B221 standards, this fluted aluminum pole offers superior corrosion resistance, structural integrity, and clean architectural styling.

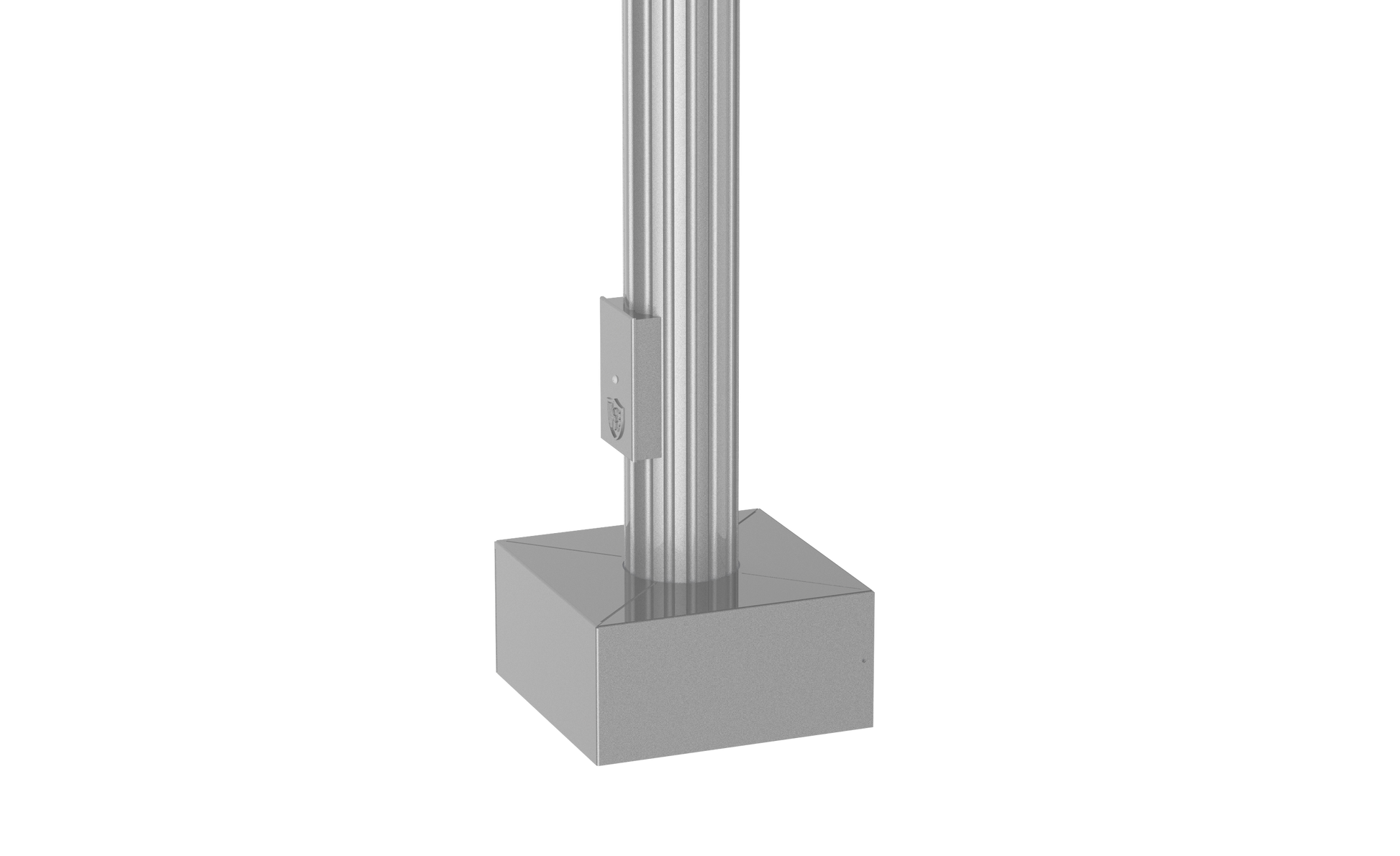

Designed for commercial, municipal, campus, and parking lot lighting applications, the CL-RSAF includes a reinforced 3” x 5” hand hole with welded ground lug, heavy-duty aluminum base plate, removable pole cap, and matching aluminum base cover. Each pole is sandblasted prior to finishing and coated with a minimum 3 mil powder coat finish baked at 400°F for long-lasting protection.

Anchor bolt kits are included and meet ASTM F1554 Grade 36 standards with a minimum strength of 36,000 PSI.

Backed by a 3-Year Limited Warranty, the CL-RSAF delivers reliable structural performance and professional-grade aesthetics.

Key Features

• Seamless extruded 6063 aluminum alloy construction
• Manufactured per ASTM B221 requirements
• Fluted round straight design for architectural appeal
• Reinforced 3” x 5” hand hole with welded ground lug
• 3 mil powder coat finish, baked at 400°F
• Removable pole cap included
• Powder-coated aluminum base cover included
• Cast aluminum hand hole cover with internal bridge support
• Anchor bolts meet ASTM F1554 Grade 36
• 3-Year Limited Warranty

Pole Shaft Specifications

• Material: 6063 Aluminum Alloy
• Thickness: .188” (standard)
• Available Heights: 8’, 10’, 12’, 14’, 16’, 18’, 20’
• Pole O.D.: 4” RD or 5” RD
• Hand Hole: 3” x 5” reinforced frame
• Ground Lug: Welded inside behind hand hole

Base Plate Specifications

• 4-Bolt aluminum base flange
• 3/4” thick plate for poles up to 20 ft
• 1” thick plate for poles 21 ft and over
• Bolt Circle Options:
  • 9”–3/16
  • 10”–12” (varies by height)

Powder Coating Finish Options

• Bronze
• White
• Silver
• Green
• Black
• Graphite
• Custom finish
• Marine Grade option available

Anchor Bolt Kit (Included)

• (4) L-shaped hot dip galvanized bolts
• Two galvanized nuts and washer per bolt
• Bolt sizes:
  • 3/4” x 24”
  • 1” x 36”
• Minimum 36,000 PSI strength
• Conforms to ASTM F1554 Grade 36

Mounting Configurations

• Single (SGL)
• Double 180° (D180)
• Double 90° (D90)
• Triple 90° (T90)
• Triple 120° (T120)
• Quad (QD)

Tenon Options

• 2” 3/8” Round
• 3” Round
• 3 1/2” Round
• 4” Round
• 4 1/2” Round
• 3 1/2” Square
• 4 1/2” Square
• 5 1/2” Square

Additional Options

• Round Base Cover (RBC)
• GFI Provision Only (GFIP)
• GFI Kit (GFIK)

EPA (Effective Projected Area) Wind Ratings

• 8’ Height – 4” OD
  • 90 mph: 11.4
  • 100 mph: 9
• 10’ Height – 4” OD
  • 80 mph: 10.3
  • 90 mph: 7.8
  • 100 mph: 6
• 12’ Height
  • 4” OD (.125 wall)
  • 80 mph: 8.2
  • 90 mph: 6
  • 100 mph: 4.5
• 5” OD (.188 wall)
  • 80 mph: 11.6
  • 90 mph: 8.7
  • 100 mph: 6.5
• 14’ Height
• 4” OD
  • 80 mph: 7.1
  • 90 mph: 4.8
  • 100 mph: 2.8
• 5” OD
  • 80 mph: 10
  • 90 mph: 7.5
  • 100 mph: 5.5
• 16’ Height
• 4” OD
  • 80 mph: 8.3
  • 90 mph: 6
  • 100 mph: 4.4
• 5” OD
  • 80 mph: 13.7
  • 90 mph: 10.4
  • 100 mph: 7.6
• 18’ Height
• 4” OD
  • 80 mph: 6.2
  • 90 mph: 3.6
  • 100 mph: 1.7
• 5” OD
  • 80 mph: 11.7
  • 90 mph: 8.2
  • 100 mph: 6.4
• 20’ Height
• 4” OD
  • 80 mph: 12.4
  • 90 mph: 8.2
  • 100 mph: 5.3
• 5” OD
  • 80 mph: 9.8
  • 90 mph: 7
  • 100 mph: 5

• Ideal Applications
• Parking lot lighting
• Campus lighting
• Commercial plazas
• Municipal streetscapes
• Parks and pathways
• Retail centers
• Office complexes
