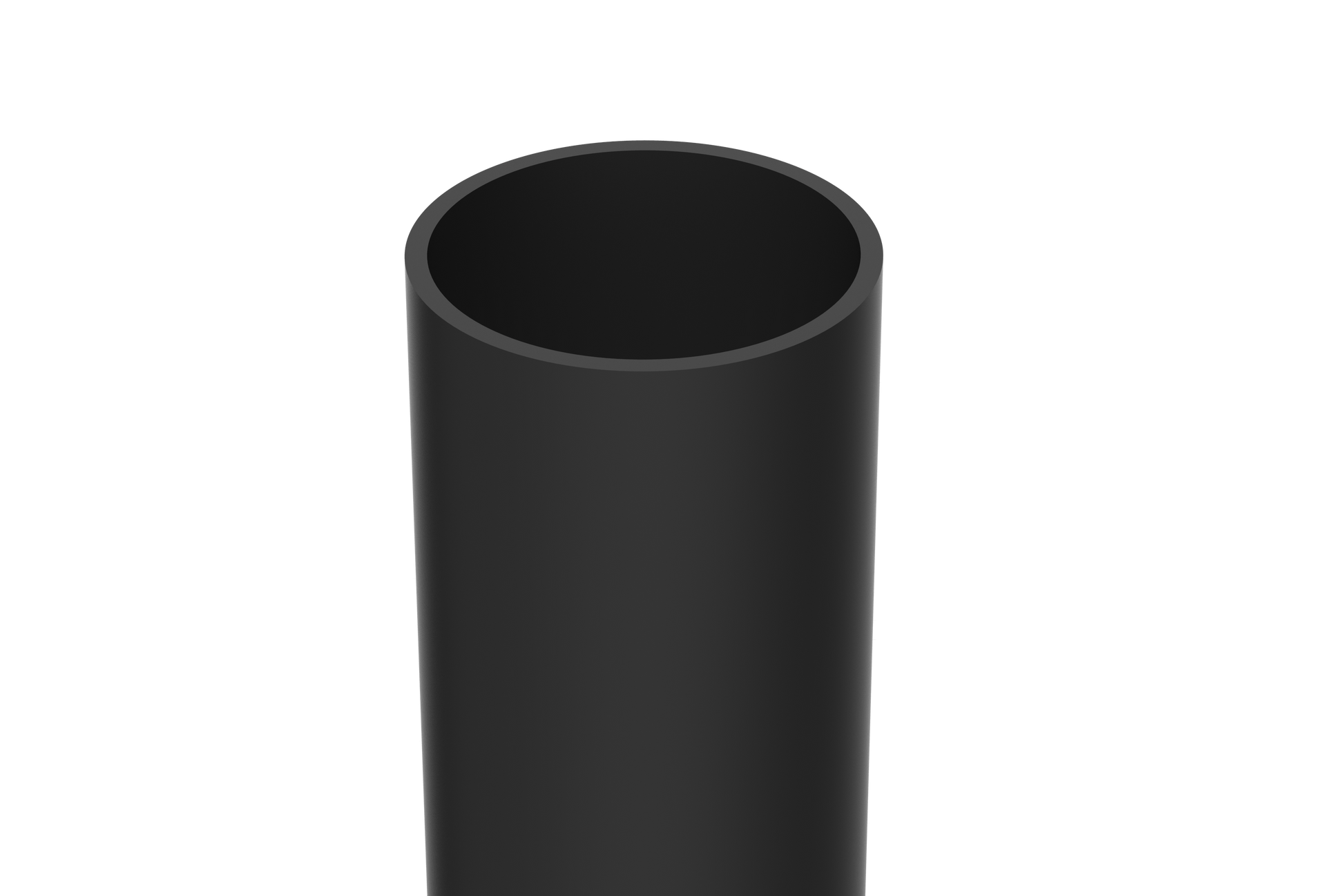

The CL-RSS Round Straight Steel Light Pole is a heavy-duty, commercial-grade lighting pole engineered for maximum structural integrity and long-term performance. Manufactured from cold-rolled, weldable carbon steel tubing conforming to ASTM A500 Grade B, this pole delivers a minimum yield strength of 45,000 PSI, making it ideal for demanding outdoor lighting applications.
Designed for parking lots, roadways, retail centers, hospitality properties, and municipal projects, the CL-RSS series features a reinforced 4-bolt base plate, internal ground lug welded opposite the hand hole, and a durable powder-coated finish for corrosion resistance.
Available in heights from 8 ft to 35 ft, multiple diameters, and 11-gauge or 7-gauge wall thickness options, the CL-RSS offers versatile mounting configurations and wind-load performance up to 140 MPH (based on configuration).
Backed by a 3-year manufacturer warranty, this steel lighting pole is built for reliability, strength, and code-compliant installation.
Key Features
- Cold-rolled carbon steel tubing
- Conforms to ASTM A500 Grade B
- Minimum yield strength: 45,000 PSI
- 11-gauge (.120”) and 7-gauge (.180”) options
- Welded internal ground lug opposite hand hole
- Reinforced 4-bolt steel base plate
- 3/4” base plate (8’–20’)
- 1” base plate (21’–35’)
- Hot-dip galvanized anchor bolt kit included
- Powder coated (minimum 3 mil thickness)
- Baked finish at 400°F for durability
- Removable pole cap included
- Aluminum base cover powder coated to match
- Cast aluminum hand hole cover with internal bridge support
- Wind load ratings up to 140 MPH (varies by configuration)
- 3-Year Warranty
Available Heights
8’ | 10’ | 12’ | 14’ | 16’ | 18’ | 20’ | 22’ | 25’ | 28’ | 30’ | 35’
Pole Diameters
Wall Thickness (Gauge)
- 11 Gauge (.120”)
- 7 Gauge (.180”)
Base Plate Specifications
- Hot rolled carbon steel
- Conforms to ASTM A36 (36,000 PSI)
- 3/4” thick steel (up to 20’)
- 1” thick steel (21’–35’)
- Bolt Circle Options: 9”-3/16” or 12”-1/2”
- Anchor Bolts: 3/4” x 24” or 1” x 36”
Anchor Bolt Kit
- 4 L-shaped hot dip galvanized bolts
- Two galvanized nuts and washer per bolt
- Minimum 36,000 PSI
- Conforms to ASTM F1554 Grade 36
Mounting Options
- Side Mount
- Single (SGL)
- Double 180° (D-180)
- Double 90° (D-90)
- Triple 90° (T-90)
- Quad (QD)
Finish Options
- Bronze (BRZ)
- White (WHT)
- Silver (SVR)
- Green (GRN)
- Black (BLK)
- Graphite (GPH)
- Marine Grade (MG)
- Custom (CST)
Accessories & Options
- Tenon Adapters
- 2-3/8” Round (T2R)
- 3” Round (T3R)
- 3-1/2” Round (T312R)
- 4” Round (T4R)
- 4-1/2” Round (T412R)
- 3-1/2” Square (T312S)
- 4-1/2” Square (T412S)
- 5-1/2” Square
- Round Base Cover (RBC)
- GFI Provision Only (GFIP)
- GFI Kit (GFIK)
Maximum EPA (Effective Projected Area) Ratings
Engineered to perform in wind zones from 90 MPH to 140 MPH, the CL-RSS offers strong wind resistance across multiple configurations.
8’ Height – 3” OD – 11G
- 90 MPH: 14.2
- 100 MPH: 11.2
- 110 MPH: 10.4
- 120 MPH: 8.6
- 130 MPH: 7.2
- 140 MPH: 6
10’ Height
3” OD – 11G
- 90 MPH: 10.8
- 100 MPH: 8.5
- 110 MPH: 7.8
- 120 MPH: 6.4
- 130 MPH: 5.2
- 140 MPH: 4.3
4” OD – 11G
- 90 MPH: 20.8
- 100 MPH: 16.6
- 110 MPH: 15.2
- 120 MPH: 12.6
- 130 MPH: 10.4
- 140 MPH: 8.8
20’ Height
5” OD – 7G
- 90 MPH: 20.6
- 100 MPH: 15.8
- 110 MPH: 14.6
- 120 MPH: 12.2
- 130 MPH: 10.2
- 140 MPH: 8.6
30’ Height
5” OD – 7G
- 90 MPH: 8.6
- 100 MPH: 5.8
- 110 MPH: 5.2
- 120 MPH: 4
- 130 MPH: 3.2
- 140 MPH: 2.4
(Additional EPA values available per configuration.)
Applications
- Commercial parking lot lighting
- Street and roadway lighting
- Shopping centers and retail developments
- Hotels and hospitality properties
- Industrial facilities
- Municipal and campus projects
- High-wind zone installations
Specifications Summary
- SKU: HLCL-RSS
- Material: Carbon Steel Tubing
- Compliance: ASTM A500 Grade B
- Base Plate Standard: ASTM A36
- Anchor Bolt Standard: ASTM F1554 Grade 36
- Finish: Powder Coated (3 mil minimum)
- Warranty: 3 Years
