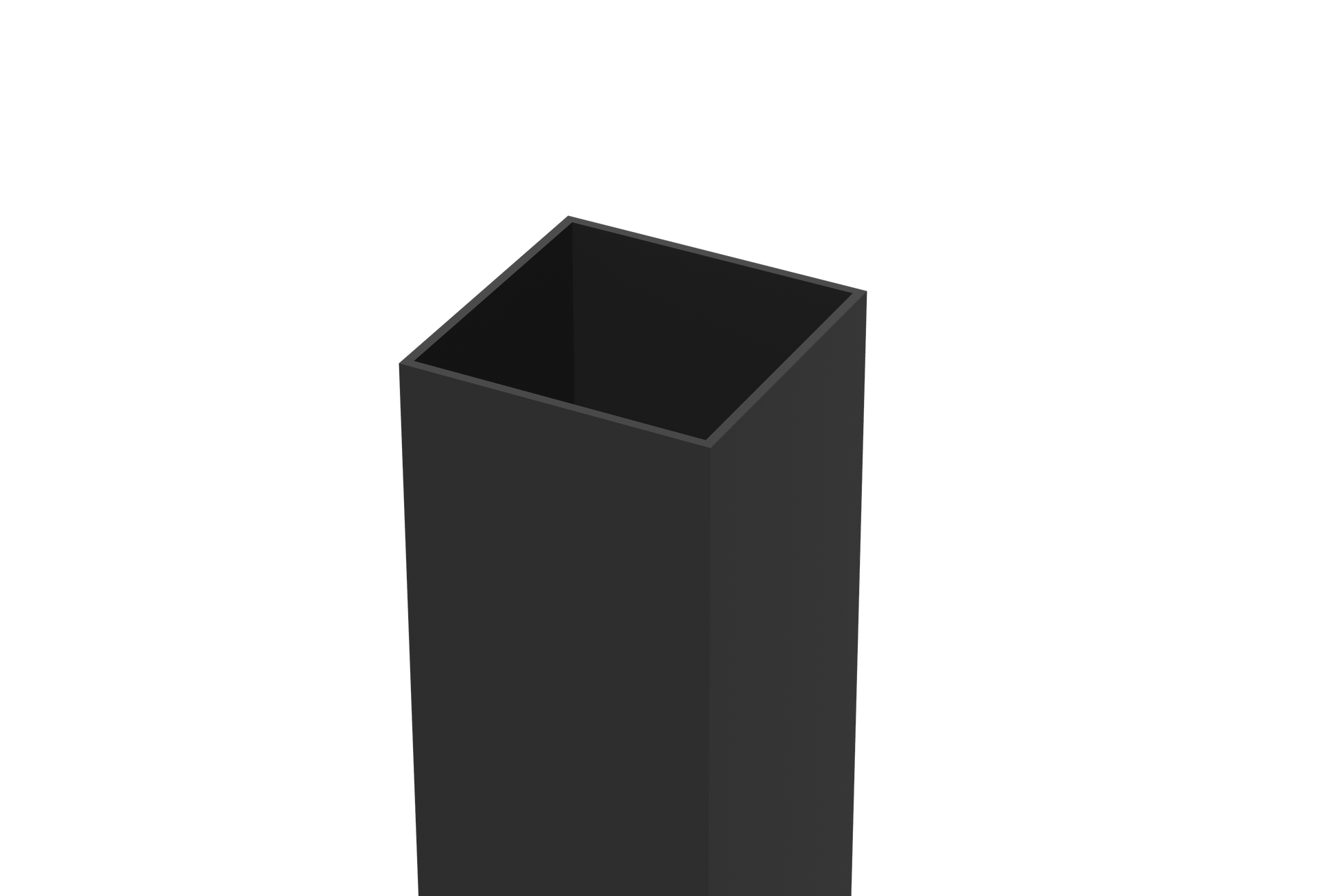

The CL-SSS Square Straight Steel Light Pole is a heavy-duty commercial lighting pole engineered for strength, durability, and long-term outdoor performance. Manufactured from cold-rolled, weldable carbon steel tubing conforming to ASTM A500 Grade B, this square steel pole delivers a minimum yield strength of 45,000 PSI for superior structural integrity.
Designed for parking lots, roadways, retail centers, municipal installations, campuses, and hospitality properties, the CL-SSS series features a reinforced 4-bolt steel base plate, internal ground lug welded opposite the hand hole, and a high-performance powder-coated finish for corrosion resistance.
Available in heights from 10 ft to 39 ft, multiple square profiles, and 11-gauge or 7-gauge wall thickness options, the CL-SSS provides exceptional wind load performance up to 140 MPH depending on configuration.
Backed by a 3-year manufacturer warranty, this square steel lighting pole is ideal for high-wind and high-traffic environments.
Key Features
- Square straight steel construction
- Conforms to ASTM A500 Grade B
- Minimum yield strength: 45,000 PSI
- 11 Gauge (.120”) and 7 Gauge (.180”) options
- Welded internal ground lug opposite hand hole
- Reinforced 4-bolt steel base plate
- 3/4” base plate thickness (up to 20’)
- 1” base plate thickness (21’–39’)
- Hot-dip galvanized anchor bolt kit included
- Powder coated finish (minimum 3 mil thickness)
- Baked at 400°F for enhanced durability
- Removable pole cap included
- Powder-coated aluminum base cover
- Cast aluminum hand hole cover with internal bridge support
- Wind load ratings up to 140 MPH (varies by configuration)
- 3-Year Warranty
Available Heights
10’ | 12’ | 14’ | 16’ | 18’ | 20’ | 22’ | 25’ | 28’ | 30’ | 35’ | 39’
Square Pole Sizes
4” Square (4S)
5” Square (5S)
6” Square (6S)
Wall Thickness (Gauge)
- 11 Gauge (.120”)
- 7 Gauge (.180”)
Base Plate Specifications
- Hot rolled carbon steel
- Conforms to ASTM A36 (36,000 PSI)
- 3/4” thick steel (up to 20’)
- 1” thick steel (21’–39’)
- Bolt Circle: 9”-3/16” or 12”-1/2”
- Anchor Bolts: 3/4” x 24” or 1” x 36”
Anchor Bolt Kit
- Four L-shaped hot dip galvanized bolts
- Two galvanized nuts and washer per bolt
- Minimum 36,000 PSI rating
- Conforms to ASTM F1554 Grade 36
Mounting Options
- Side Mount
- Single (SGL)
- Double 180° (D-180)
- Double 90° (D-90)
- Triple (T-90)
- Quad (QD)
Finish Options
- Bronze (BRZ)
- White (WHT)
- Silver (SVR)
- Green (GRN)
- Black (BLK)
- Graphite (GPH)
- Marine Grade (MG)
- Custom (CST)
Accessories & Options
- Tenon
- 2-3/8” Round (T2R)
- 3” Round (T3R)
- 3-1/2” Round (T312R)
- 4” Round (T4R)
- 4-1/2” Round (T412R)
- 3-1/2” Square (T312S)
- 4-1/2” Square (T412S)
- 5-1/2” Square
- Round Base Cover (RBC)
- GFI Provision Only (GFIP)
- GFI Kit (GFIK)
Maximum EPA (Effective Projected Area) Ratings
Designed for high-wind regions with performance ratings up to 140 MPH (configuration dependent).
10’ Height – 4” Square – 11G
- 90 MPH: 28.6
- 100 MPH: 22.6
- 110 MPH: 21
- 120 MPH: 17.2
- 130 MPH: 14.4
- 140 MPH: 12
20’ Height – 5” Square – 7G
- 90 MPH: 28.6
- 100 MPH: 22
- 110 MPH: 20.2
- 120 MPH: 16.2
- 130 MPH: 13
- 140 MPH: 10.4
30’ Height – 6” Square – 7G
- 90 MPH: 20.4
- 100 MPH: 14.6
- 110 MPH: 13
- 120 MPH: 9.2
- 130 MPH: 6.4
- 140 MPH: 4
39’ Height – 6” Square – 7G
- 90 MPH: 9
- 100 MPH: 4.8
- 110 MPH: 3.6
- 120 MPH: 1
(Full EPA charts available per configuration.)
Applications
- Parking lot lighting
- Commercial property lighting
- Street and roadway lighting
- Retail centers
- Industrial facilities
- Municipal and campus lighting
- Hospitality properties
- High wind zone installations
Specifications Summary
- SKU: HLCL-SSS
- Material: Carbon Steel Tubing
- Compliance: ASTM A500 Grade B
- Base Plate Standard: ASTM A36
- Anchor Bolt Standard: ASTM F1554 Grade 36
- Finish: Powder Coated (3 mil minimum)
- Warranty: 3 Years
