CLA-D323 Architectural LED Post Top & Wall Mount Luminaire – Small & Large Sizes

CLA-D323 Architectural LED Post Top & Wall Mount Luminaire – Small & Large Sizes

SKU:HLCLA-D323

Quantity

The CLA-D323 Architectural LED Luminaire is a decorative yet high-performance outdoor lighting solution designed for residential exteriors, walkways, perimeters, recreational parks, and refurbishment projects. Available in Small and Large sizes, this fixture delivers wide light distribution while remaining dark sky compliant—making it ideal for modern exterior upgrades.

Engineered with durable cast aluminum construction and high-efficiency Lumiled LEDs, the CLA-D323 offers outstanding lumen maintenance, energy savings of over 66%, and long-lasting reliability. Backed by a 10-Year / 100,000-Hour Limited Warranty, this luminaire is built for performance and style.


Key Features

  • Over 66% energy savings compared to traditional lighting
  • Wide light distribution
  • Dark sky compliant design
  • High-efficiency Lumiled LEDs
  • Excellent lumen maintenance
  • 0–10V dimming driver standard
  • 10kV surge protector standard
  • Optional microwave sensor, photocell, and wireless controls
  • Operating temperature: -30°C to 60°C
  • Voltage: 120–277V, 50/60Hz
  • Rated life (L70): >200,000 hours
  • 10-Year / 100,000-hour limited warranty

Construction & Finish

  • Heavy-duty cast aluminum housing
  • 3 Mil powder coat finish
  • Frosted acrylic lens (standard)
  • Optional opal acrylic lens
  • Silicone gasket for weather-tight protection
  • Available finishes:
    • Matte Black
    • Glossy Black
    • Texture Black
    • Texture White
    • Silver
    • Bronze
    • Graphite
    • Copper Vein
    • Silver Vein
    • Oil Rubbed Bronze

Mounting Options

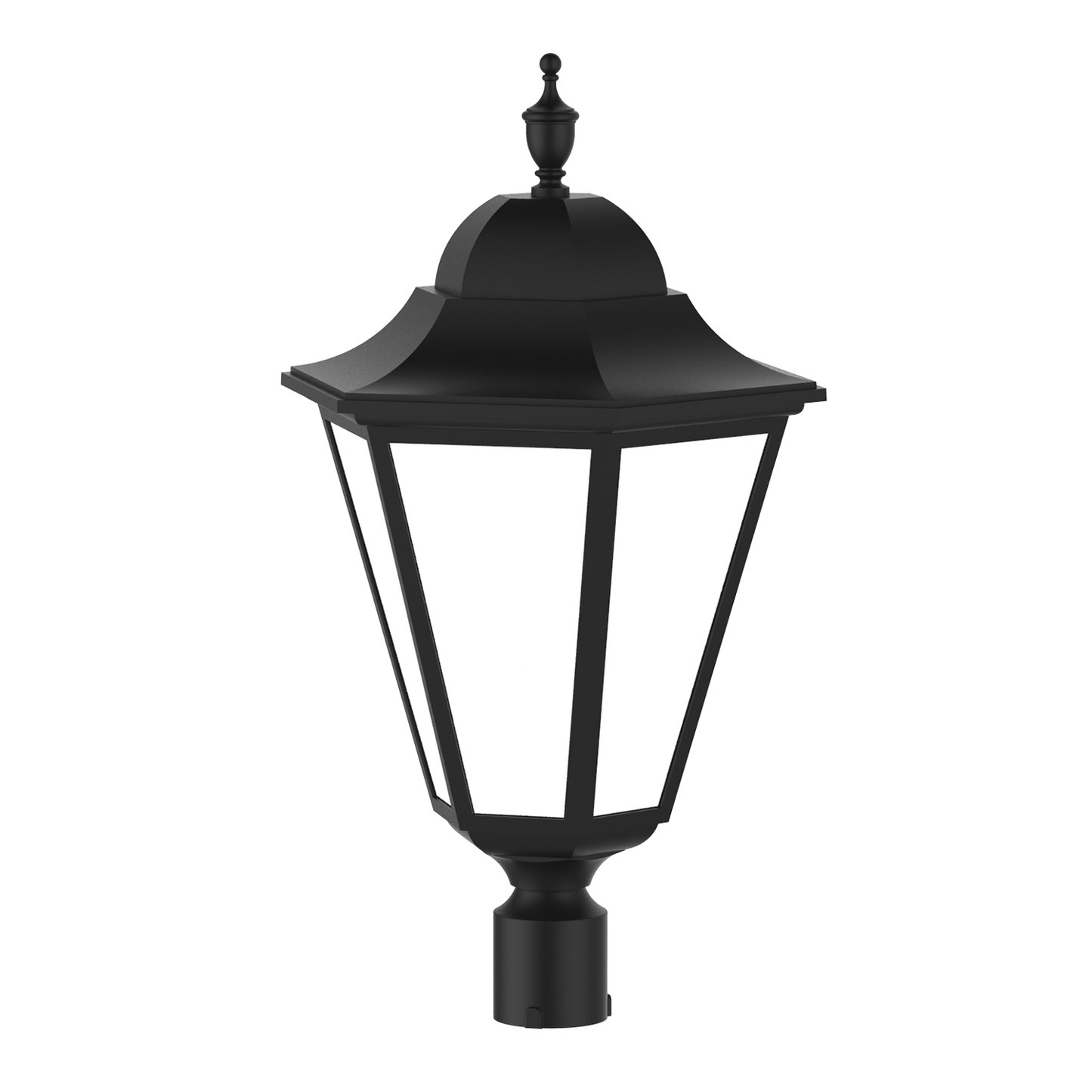

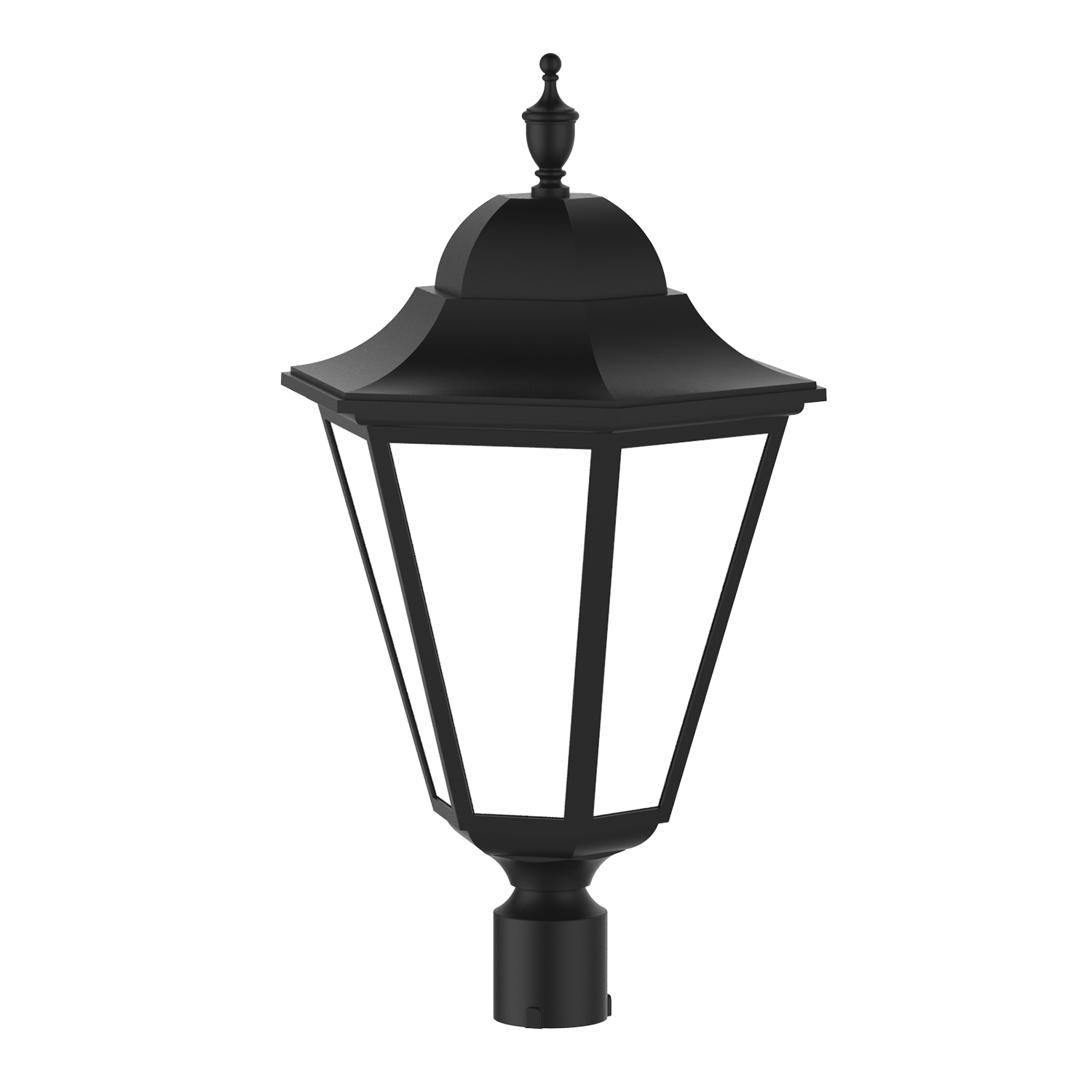

  • Post Top 3” OD
  • 2-Cluster Post Top 3” OD

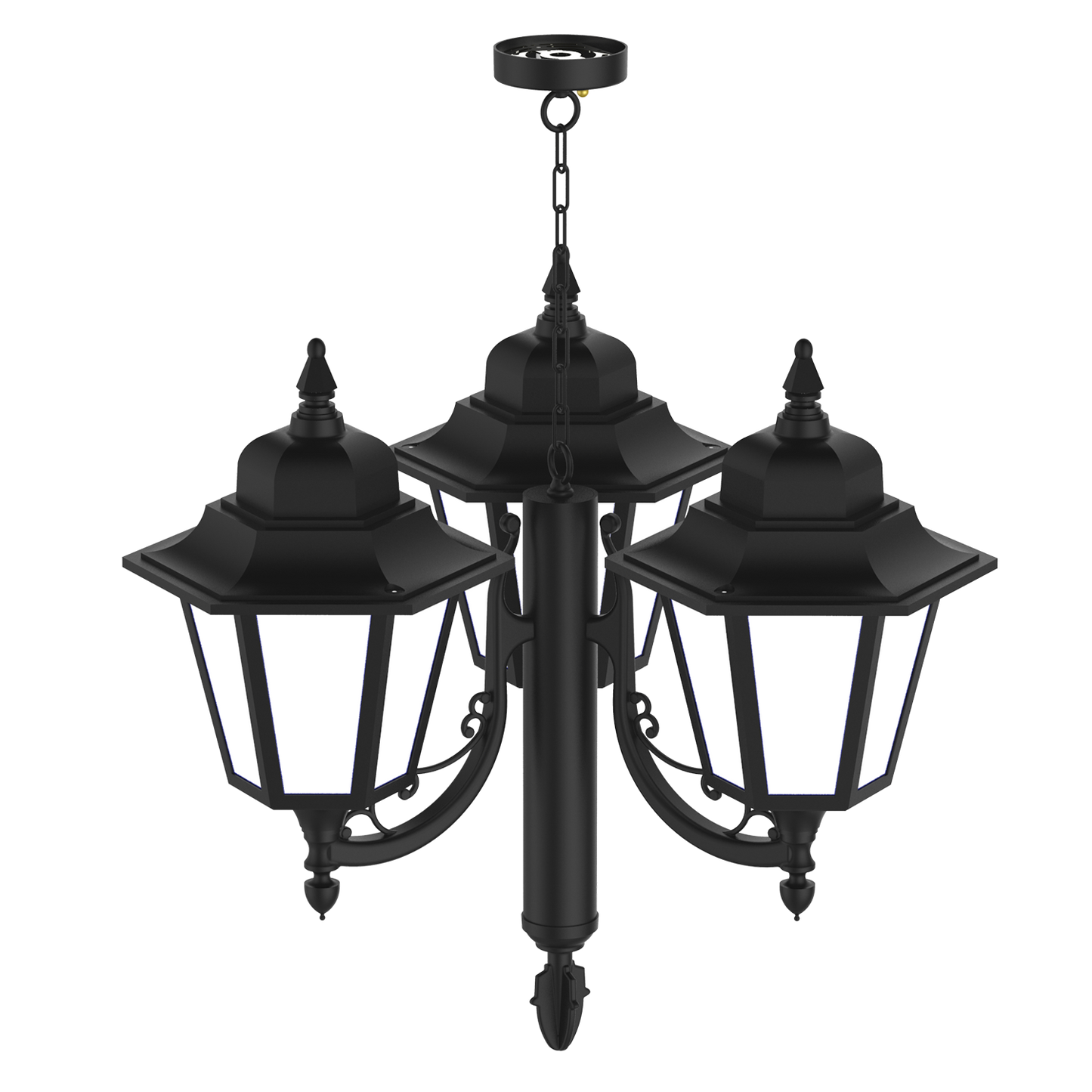

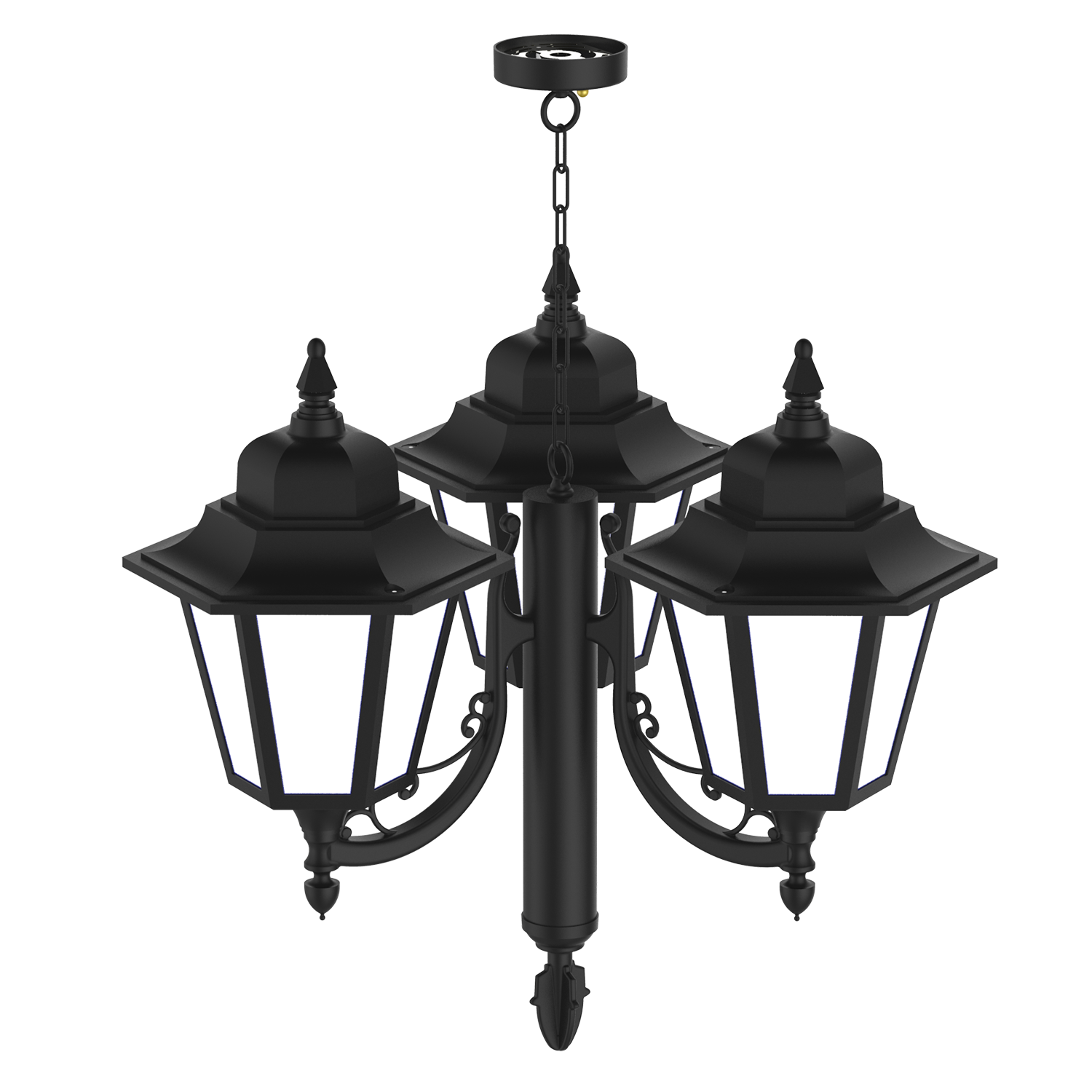

  • 3-Cluster Post Top 3” OD

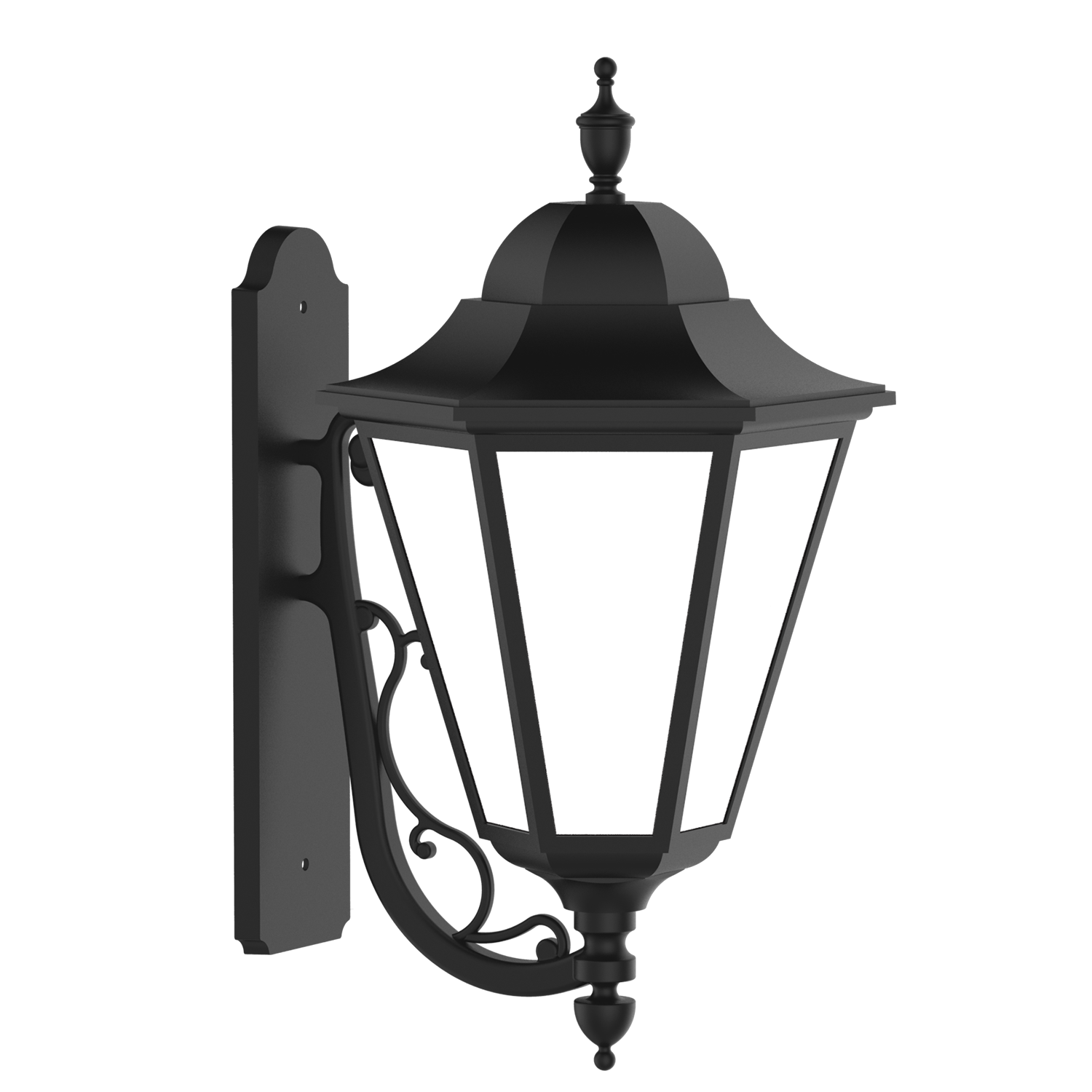

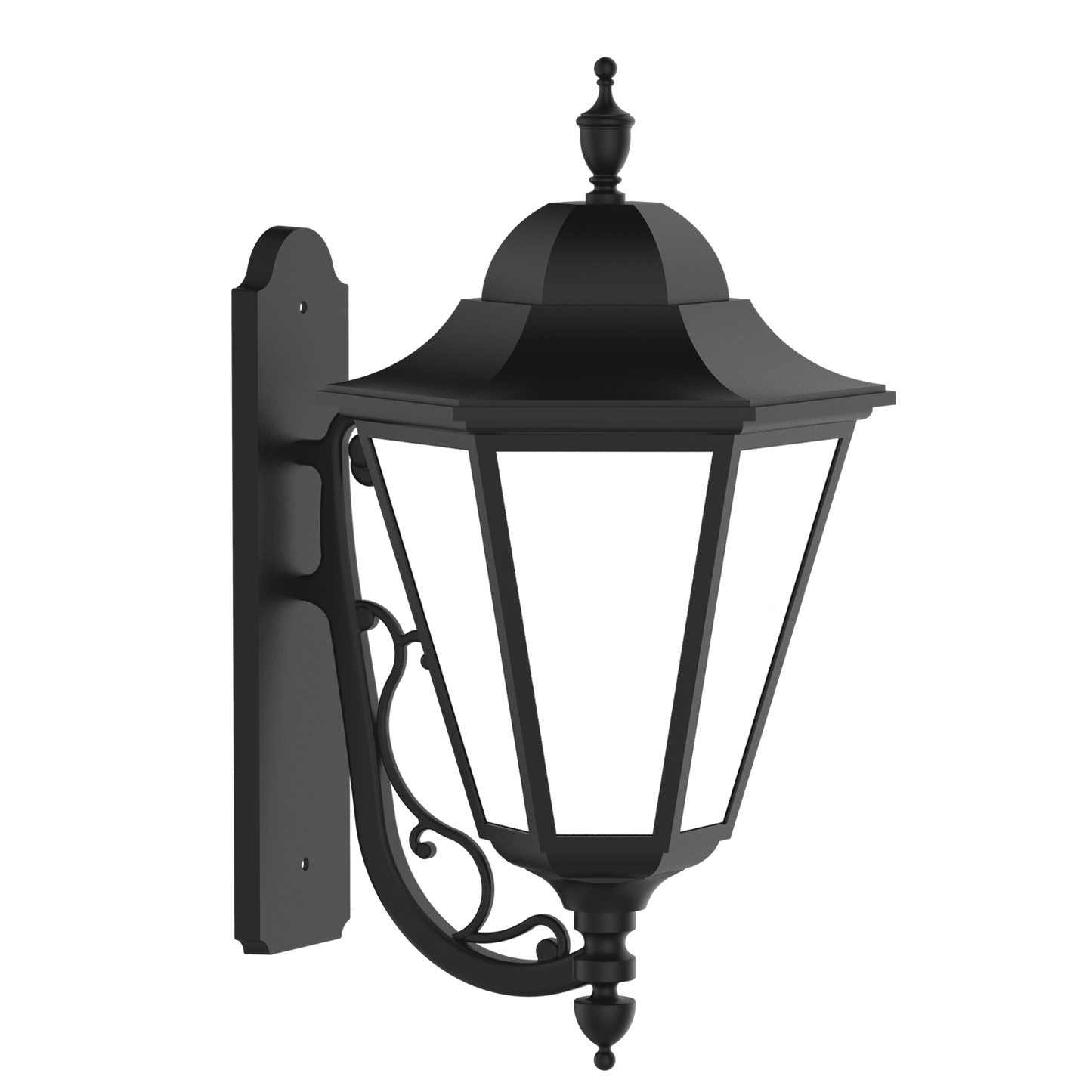

  • Wall Mount

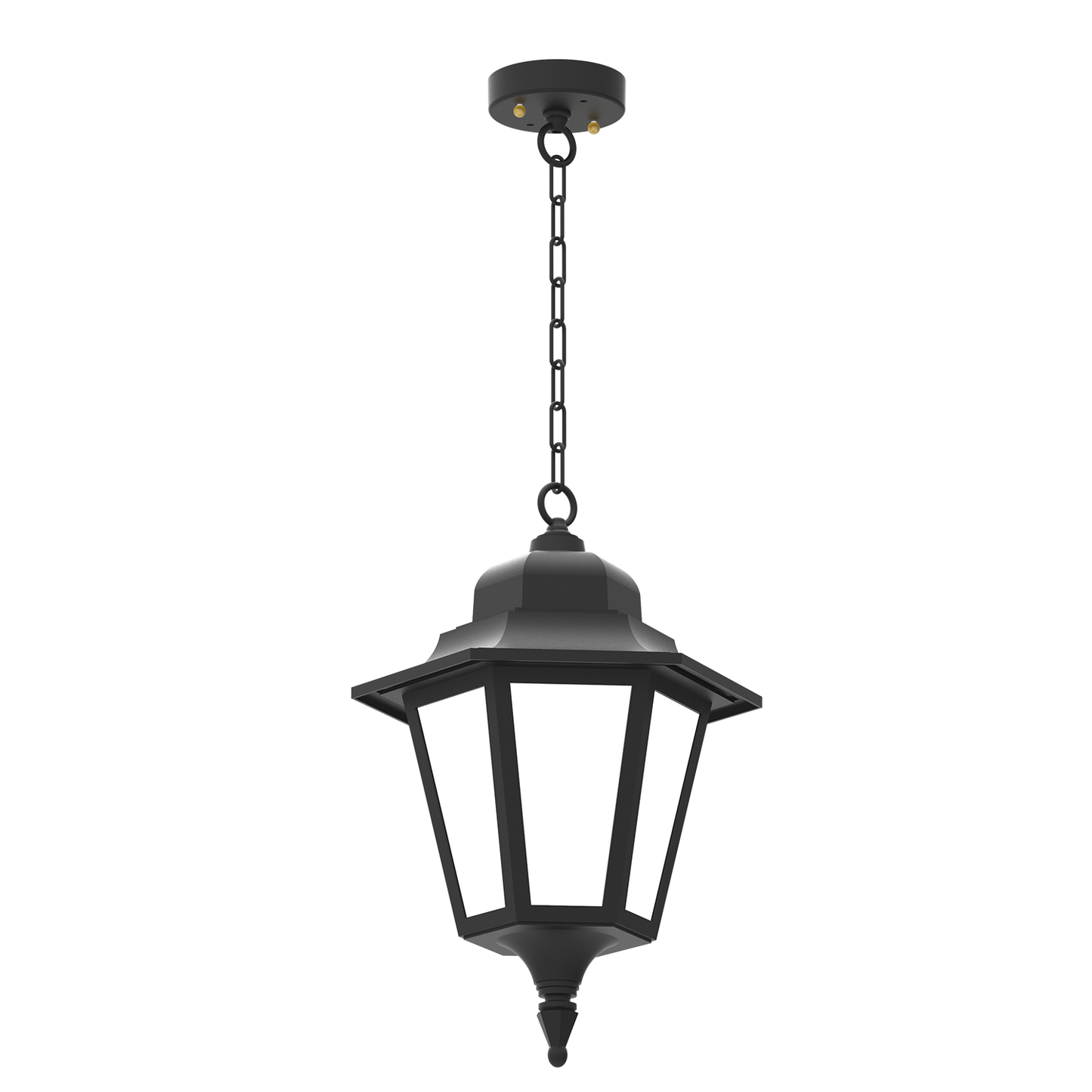

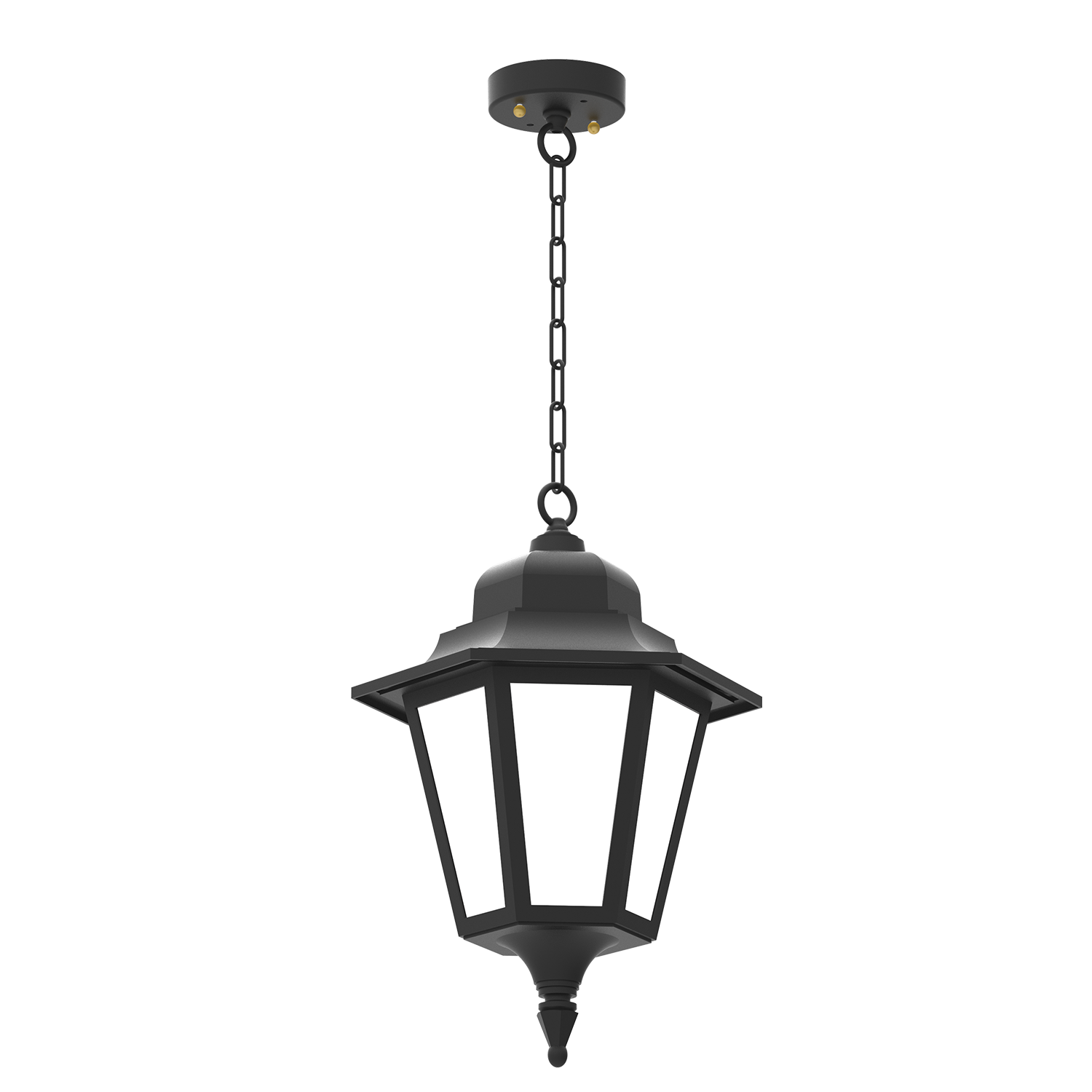

  • Pendant Mount Chain (1 ft / 2 ft / 3 ft options)
  • 1/2 Stem Mount

Size & Dimensions

  • CLA-D323S (Small)
    • A: 8 1/2”
    • B: 12 1/8”
    • C: 18 7/8”
  • CLA-D323L (Large)
    • A: 11 1/8”
    • B: 16 1/2”
    • C: 29 5/8”

  • Technical Specifications by Model
  • CLA-D323S-5CLED
    • Input Power: 10W
    • Lumen Output: 918 lumens
    • Efficacy: 183 LPW
    • CCT: 5000K
    • CRI: 70+
    • Input Voltage: 120–277V
  • CLA-D323S-10CLED
    • Input Power: 15W
    • Lumen Output: 1,914 lumens
    • Efficacy: 191 LPW
    • CCT: 5000K
    • CRI: 70+
    • Input Voltage: 120–277V
  • CLA-D323S-20CLED
    • Input Power: 25W
    • Lumen Output: 2,935 lumens
    • Efficacy: 183 LPW
    • CCT: 5000K
    • CRI: 70+
    • Input Voltage: 120–277V
  • CLA-D323L-30CLED
    • Input Power: 35W
    • Lumen Output: 4,842 lumens
    • Efficacy: 146 LPW
    • CCT: 5000K
    • CRI: 70+
    • Input Voltage: 120–277V
  • CLA-D323L-35CLED
    • Input Power: 40W
    • Lumen Output: 5,320 lumens
    • Efficacy: 161 LPW
    • CCT: 5000K
    • CRI: 70+
    • Input Voltage: 120–277V
  • CLA-D323L-40CLED
    • Input Power: 45W
    • Lumen Output: 6,252 lumens
    • Efficacy: 152 LPW
    • CCT: 5000K
    • CRI: 70+
    • Input Voltage: 120–277V

  • Product Specifications Summary
  • Product Type: Architectural LED Outdoor Luminaire
  • Model: CLA-D323
  • Sizes: Small (S) / Large (L)
  • Wattage Range: 5W – 40W
  • Color Temperatures: 3000K / 4000K / 5000K
  • Voltage: 120–277V
  • Dimming: 0–10V
  • Surge Protection: 10kV Standard
  • Lens: Frosted Acrylic (Standard)
  • Housing: Cast Aluminum
  • Protection: Weather-Tight Sealed Construction
  • Warranty: 10 Years / 100,000 Hours
  • SKU: HLCLA-D323

  • Ideal Applications
  • Residential exterior lighting
  • Walkways and pathways
  • Community perimeters
  • Recreational parks
  • HOA developments
  • Multi-family properties
  • Exterior refurbishment projects
