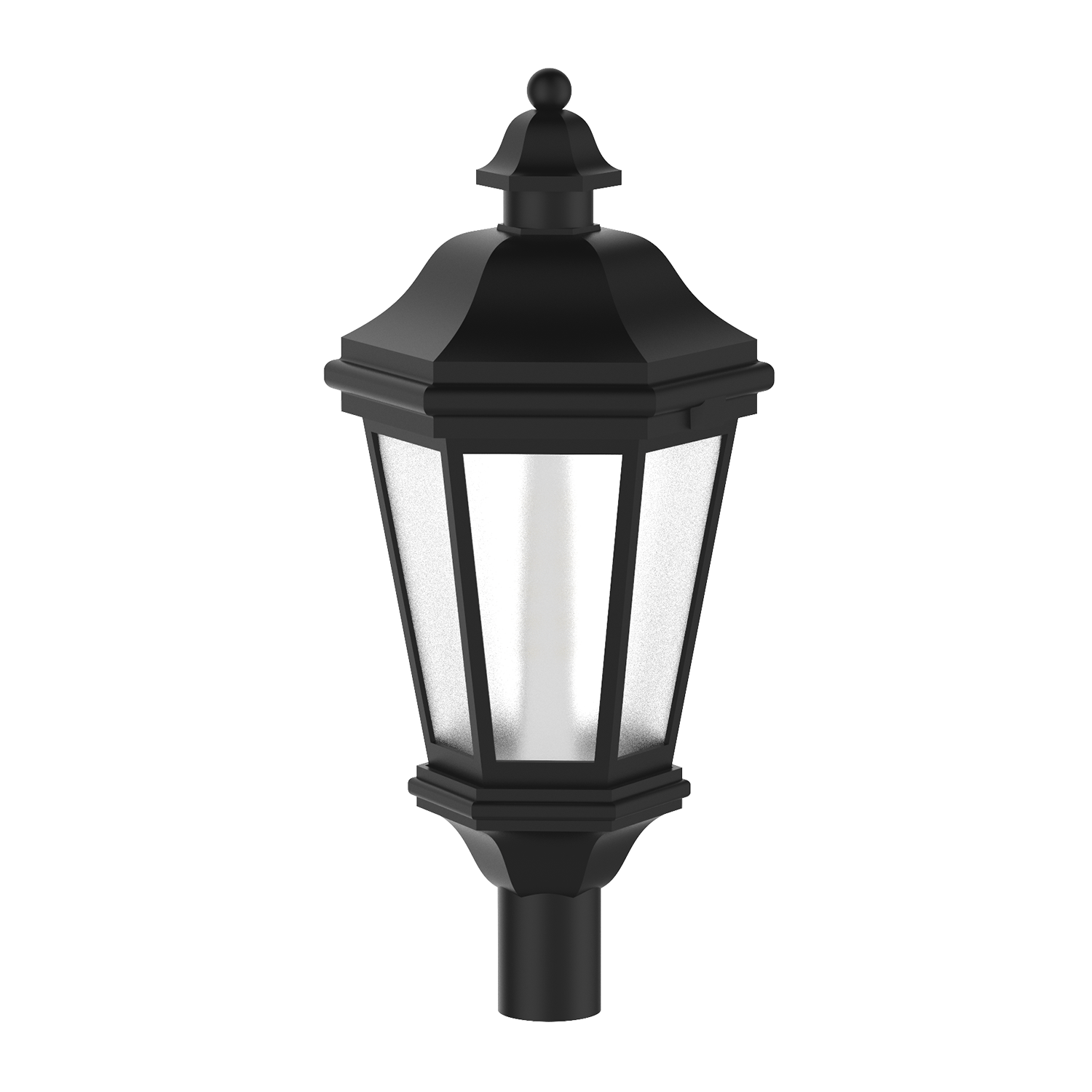

The CLP-257 Architectural LED Luminaire is a high-performance decorative outdoor lighting solution available in three sizes and multiple wattages from 10W to 150W. Designed for residential exteriors, walkways, perimeters, school campuses, commercial spaces, parking lots, and recreational parks, the CLP-257 combines architectural style with powerful, energy-efficient illumination.
With over 66% energy savings compared to traditional HID fixtures, high-efficiency Lumiled LEDs, and robust cast aluminum construction, this luminaire is built for durability, performance, and long-term reliability. Backed by a 10-Year / 100,000-Hour Limited Warranty.
Key Features
Over 66% energy savings vs. HID light sources
Improved lumen maintenance for long-term performance
Light distributions available: Type 3 (T3) and Type 5 (T5)
High-efficiency Lumiled LEDs
Constant current driver
Voltage options: 120–277V (MV) or 480V (HV)
10kV surge protector (standard)
0–10V dimming driver
Optional photocell and wireless controls
Operating temperature: -30°C to 60°C
Rated life (L70): >200,000 hours
10-Year / 100,000-hour limited warranty
Construction & Durability
Heavy-duty cast aluminum housing
3 Mil powder coating finish (standard)
Frosted Acrylic Lens (FAL) – standard
Optional lenses:
Clear Seedy Acrylic (CSA)
Opal Acrylic Lens (OAL)
Clear Tempered Glass (CTG)
Silicone gasket for weather-tight protection
2-3/8” OD or 3” OD tenon / round pole mounting (standard)
