The CLP-3040 Series LED Area Luminaire is a high-performance outdoor LED area and flood light engineered for wet locations and demanding commercial environments. Designed with wide light distribution optics and heavy-duty aluminum construction, this fixture delivers powerful, uniform illumination for parking lots, garages, walkways, perimeters, campuses, industrial facilities, and recreational parks.

Powered by high-efficiency Lumiled LEDs, the CLP-3040 provides over 66% energy savings compared to traditional HID lighting while delivering exceptional lumen maintenance and long service life. With multiple mounting options, wattages from 10W to 300W, and IP66 weather protection, this fixture is built for durability and versatility.

Backed by a 10-year / 100,000-hour limited warranty, the CLP-3040 is a dependable solution for large-scale outdoor lighting projects.

Key Features

• Over 66% energy savings compared to HID fixtures
• High-efficiency Lumiled LEDs
• Wide light distribution (Type 2, 3, 4, 5)
• IP66 rated – suitable for wet locations
• Constant current driver (120–277V standard, 480V optional)
• 50/60Hz input frequency
• Operating temperature: -30°C to 60°C
• 0-10V dimming capability (optional)
• Optional occupancy sensor, photocell, wireless control, emergency battery
• Operating life: >60,000 hours
• 10-year / 100,000-hour limited warranty

Construction & Durability

• Heavy-duty aluminum housing
• 3 mil powder coat finish (multiple color options)
• Clear optic lens system
• Silicone gasket for sealed protection
• IP66 rated enclosure

Available Models

• CLP-3040S (Small)
• CLP-3040M (Medium)
• CLP-3040L (Large)

Wattage Options

10W, 20W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 130W, 150W, 200W, 250W, 300W

Light Distribution Options

• Type 2 (T2)
• Type 3 (T3)
• Type 4 (T4)
• Type 5 (T5)

Color Temperature Options

• 3000K
• 4000K
• 5000K

Voltage Options

• 120–277V (Multi-Voltage)
• 480V (Optional High Voltage)

Finish Options

• Black
• White
• Bronze
• Silver
• Graphite
• Marine Grade
• Custom

Mounting Options

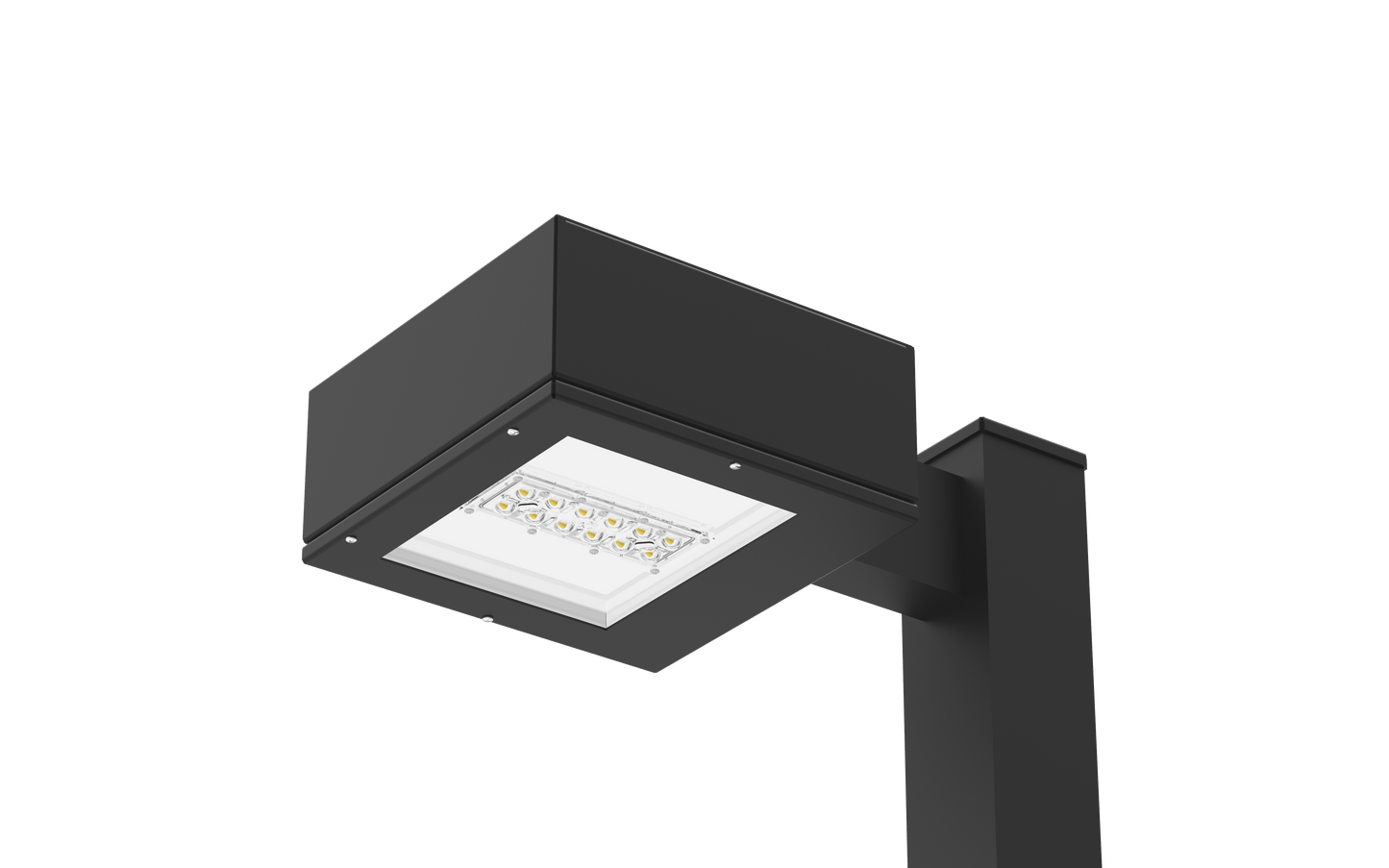

• 6” Extruded Arm (EA6)
• 10” Extruded Arm (EA10)

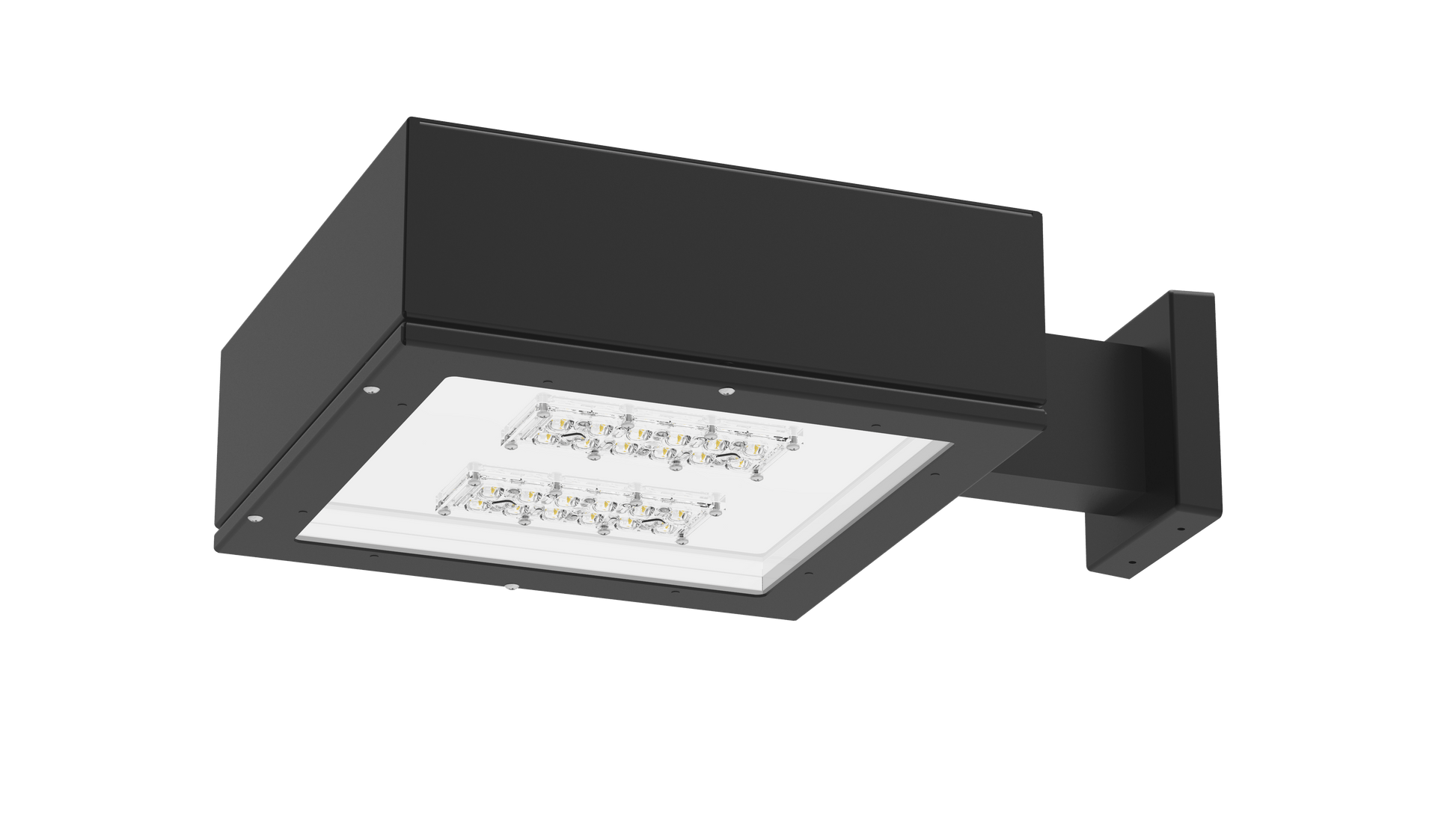

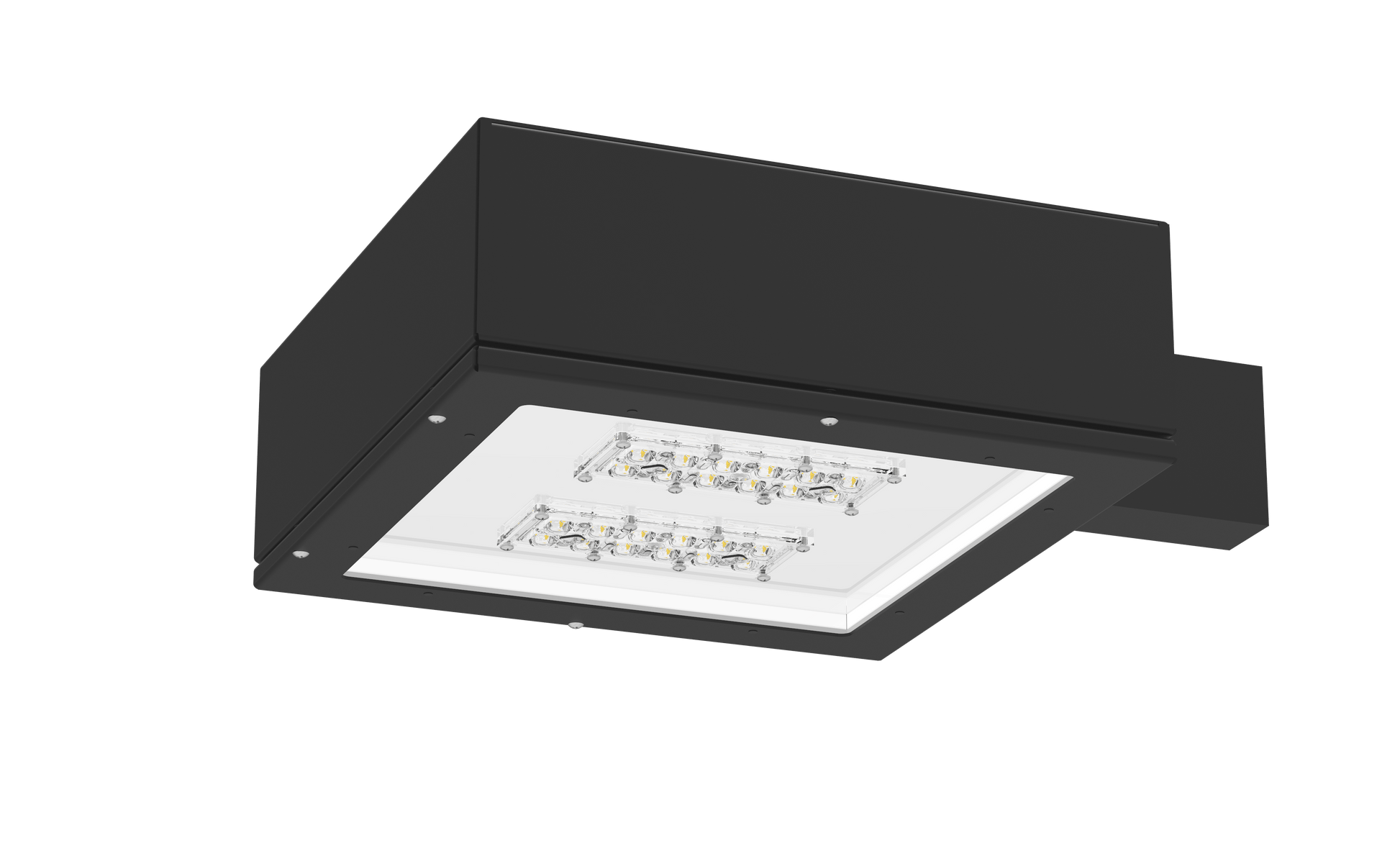

• 6” Arm Wall Mount (EA6WM)
• Slip Fitter (Over 2 3/8” O.D.)

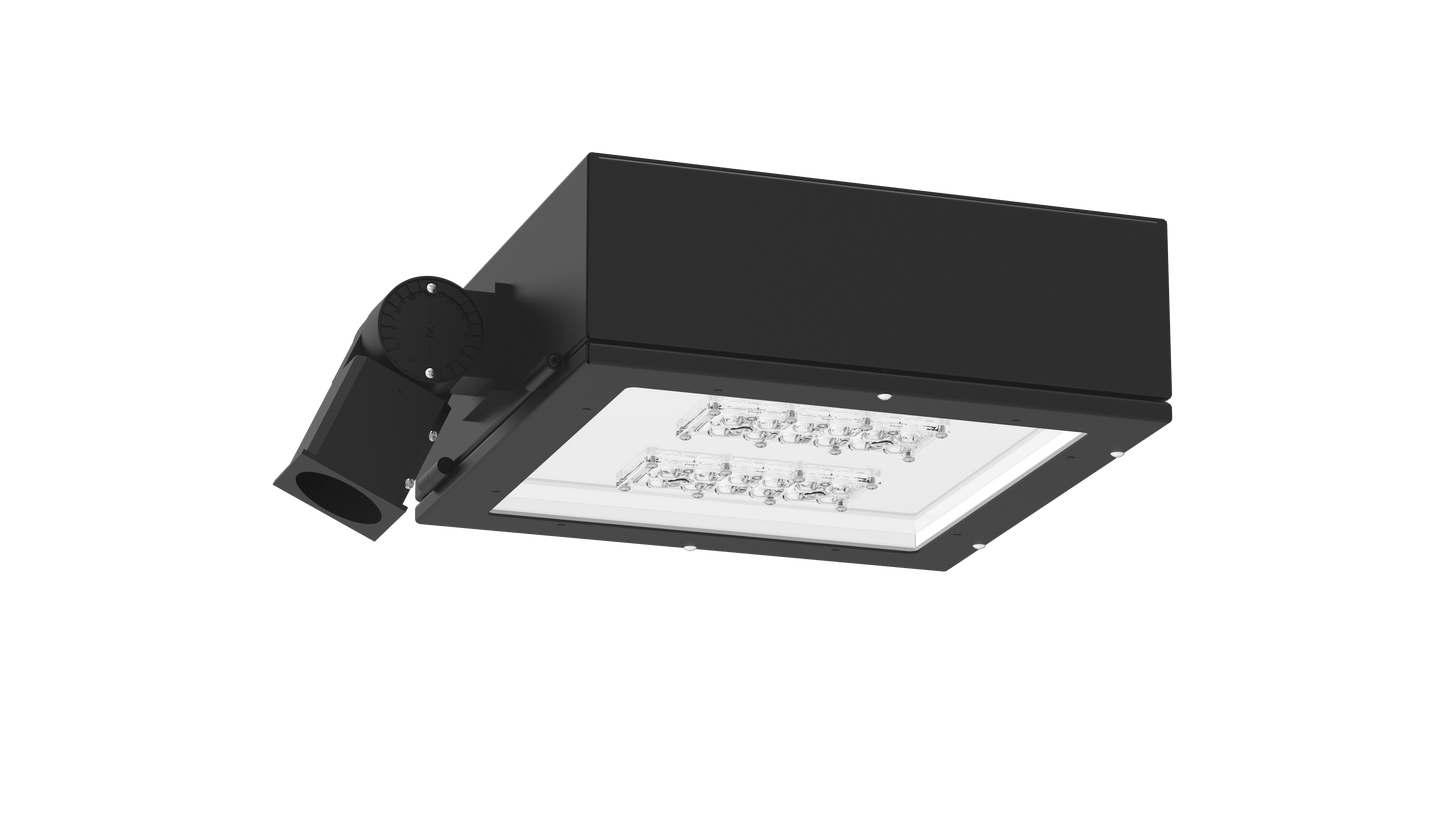

• Swivel Bracket

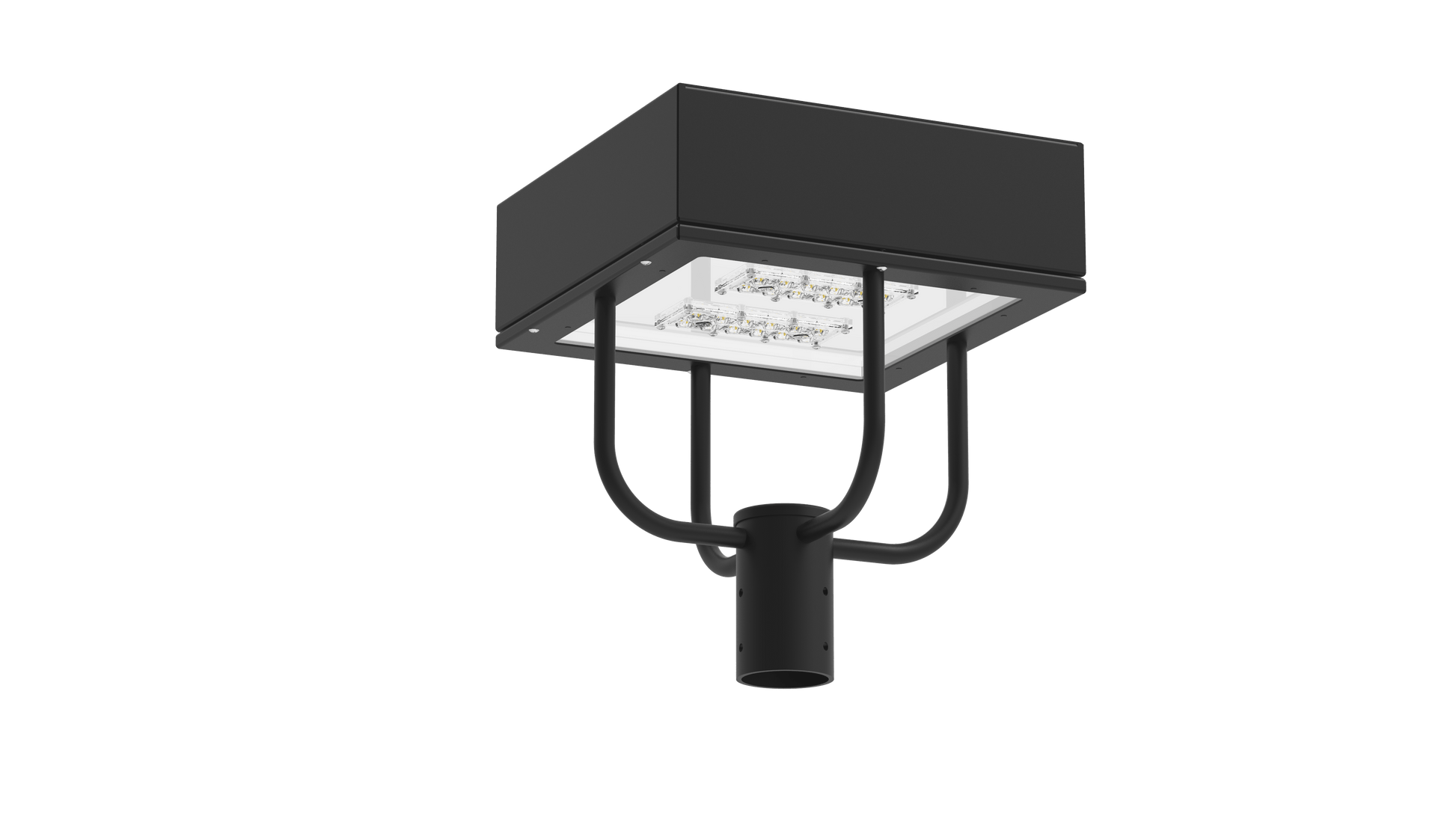

• Spider Mount (Over 3” O.D.)
• Yoke Mount (Over 3” O.D.)

Optional Accessories

• Motion Sensor (OCC)
• Button Photocell (PC)
• Emergency Battery (EMR)
• House Side Shield (HSS)
• Wireless Control (WC)

Dimensions & EPA

• CLP-3040S
  • A: 12 1/2”
  • B: 12 1/2”
  • C: 5 1/4”
  • D: 21 1/4”
  • Arm Mount EPA: 0.45
  • Spider/Yoke EPA: 0.55
• CLP-3040M
  • A: 16 1/4”
  • B: 16 1/4”
  • C: 5 1/2”
  • D: 19”
  • Arm Mount EPA: 0.62
  • Spider/Yoke EPA: 0.75
• CLP-3040L
  • A: 22 5/8”
  • B: 22 5/8”
  • C: 6 1/4”
  • D: 17”
  • Arm Mount EPA: 0.98
  • Spider/Yoke EPA: 1.1

• Performance Specifications
• CLP-3040S Series
• 10W Model
• Input Power: 15W
• Lumen Output: 1,938 lm
• Efficacy: 189 LPW
• HID Equivalent: 35W MH
• 20W Model
• Input Power: 25W
• Lumen Output: 3,650 lm
• Efficacy: 182 LPW
• HID Equivalent: 50W HPS
• 30W Model
• Input Power: 35W
• Lumen Output: 5,222 lm
• Efficacy: 174 LPW
• HID Equivalent: 70W PSMH
• 40W Model
• Input Power: 45W
• Lumen Output: 6,492 lm
• Efficacy: 162 LPW
• HID Equivalent: 150W HPS
• (All models: CRI 70+, >200,000 hours L70, 120–277V, 50/60Hz)

• CLP-3040M Series

• 50W: 7,320 lm

• 60W: 8,320 lm

• 80W: 10,340 lm

• 100W: 14,640 lm

• 120W: 16,984 lm

• 130W: 20,238 lm

• HID equivalents range from 150W to 400W.

• CLP-3040L Series

• 150W: 20,680 lm

• 200W: 30,020 lm

• 250W: 36,600 lm

• 300W: 43,620 lm

• HID equivalents range from 400W to 1000W.
• (All models: CRI 70+, >200,000 hours L70, 120–277V input)

• Ideal Applications
• Parking lots
• Parking garages
• Entryways
• Storage yards
• Industrial facilities
• Commercial buildings
• School campuses
• Recreational parks
• Walkways and perimeter lighting
