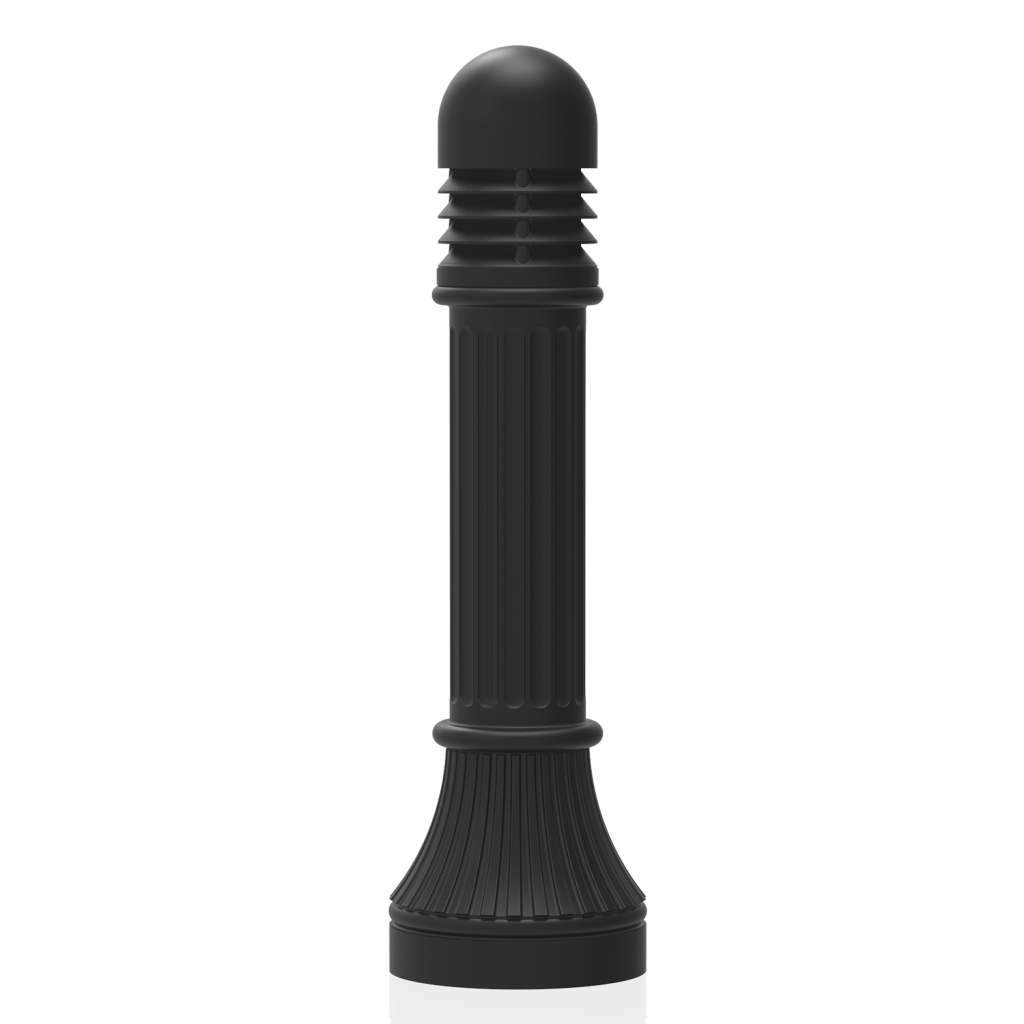

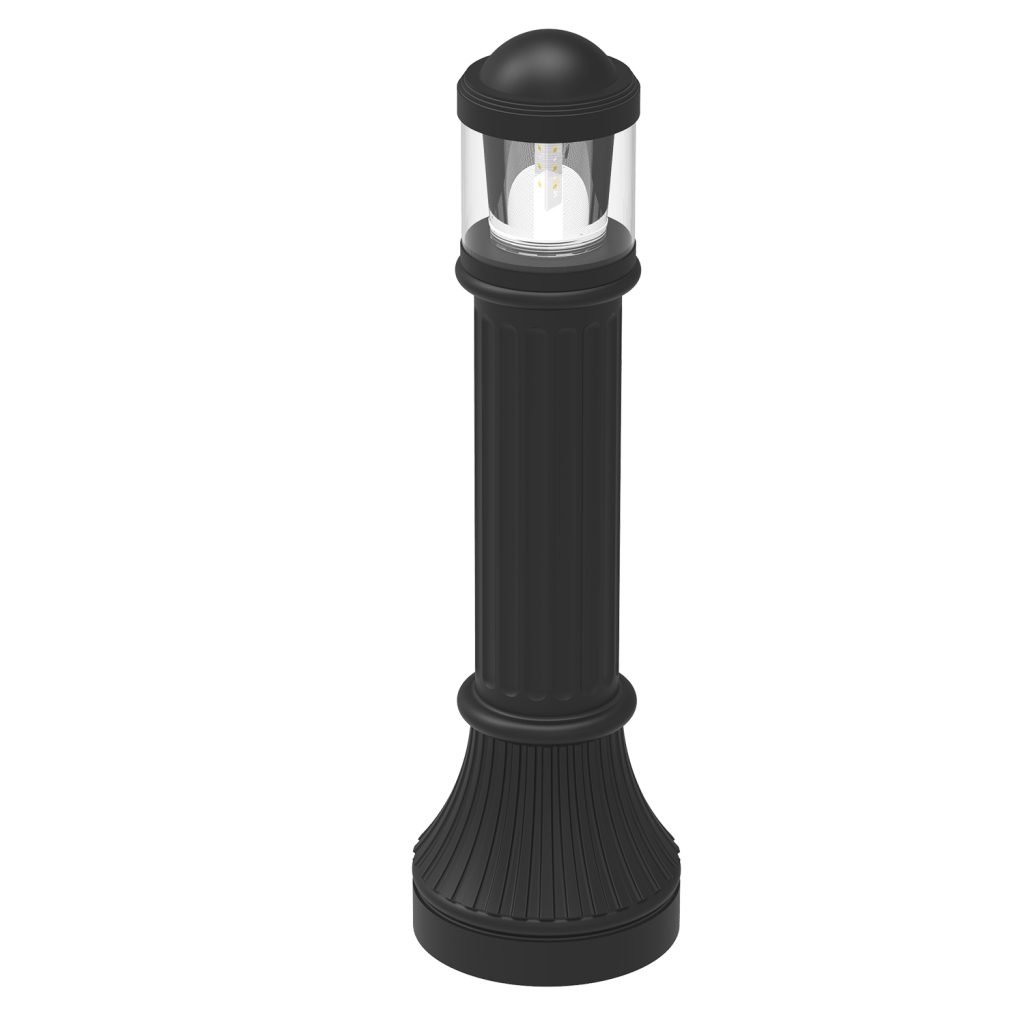

The CLP-3096 Architectural LED Bollard combines durability, energy efficiency, and modern design to enhance exterior environments. Designed with a sleek domed top for a sophisticated architectural appearance, this bollard is constructed from heavy-duty die-cast aluminum and assembled with a clear acrylic lens for long-lasting performance.

Engineered for pedestrian walkways, commercial grounds, apartment complexes, hotels, parks, and office exteriors, the CLP-3096 provides reliable, uniform illumination while delivering over 66% energy savings compared to traditional HID lighting.

Manufactured using high-efficiency Philips® Lumiled LEDs and built for demanding outdoor conditions, this bollard is IP65 rated for wet locations and backed by a 10-year / 100,000-hour limited warranty.

Key Features

• Architectural domed-top design
• Heavy-duty die-cast aluminum housing
• Clear acrylic lens (standard)
• High-efficiency Philips® Lumiled LEDs
• Over 66% energy savings vs HID
• Improved lumen maintenance
• IP65 rated – suitable for wet locations
• Operating temperature: -30°C to 60°C
• Constant current driver
• 120–277V standard (480V optional)

• 200,000-hour operating life

• 10-year / 100,000-hour limited warranty

Distribution Options

• Cast Grill 45º (CG45)
• Glass Refractor Type 3 (GR3)
• Glass Refractor Type 5 (GR5)

Wattage Options

• 15W (15CLED)
• 20W (20CLED)
• 30W (30CLED)

Color Temperature Options

• 3000K (Warm White)
• 4000K (Neutral White)
• 5000K (Cool White)

Voltage Options

• 120–277V (Multi-Voltage)
• 480V (High Voltage Option)

Finish Options

• Black (BLK)
• White (WHT)
• Silver (SLR)
• Bronze (BRZ) – Standard
• Graphite (GPH)
• Marine Grade (MG)
• Custom (CST)

Optional Accessories

• Photocell (PC)
• Wireless Controls (WC)
• Emergency Battery Backup (EMR)
• Anchor Bolt Kit (BAK12) – (4) 3/8” x 12” anchor bolts

Dimensions

CLP-3096

• Height (A): 45 1/2”
• Diameter (B): 13”

Performance Specifications

15W Model (CLP-3096-15CLED)

• Input Power: 20W
• Lumen Output: 2,754 lm
• Efficacy: 183 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

20W Model (CLP-3096-20CLED)

• Input Power: 25W
• Lumen Output: 3,308 lm
• Efficacy: 165 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

30W Model (CLP-3096-30CLED)

• Input Power: 35W
• Lumen Output: 4,403 lm
• Efficacy: 146 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

Ideal Applications

• Pedestrian walkways
• Office building exteriors
• Apartment complexes
• Hotels and hospitality properties
• Parks and recreational areas
• Commercial landscape lighting
• Campus grounds
• Perimeter and pathway lighting

Why Choose the CLP-3096 LED Bollard?

• Elegant architectural appearance
• Durable commercial-grade construction
• Multiple optical distribution options
• High energy efficiency
• Long service life with minimal maintenance
• Wet-location rated for outdoor reliability
• Wide range of finishes and options
