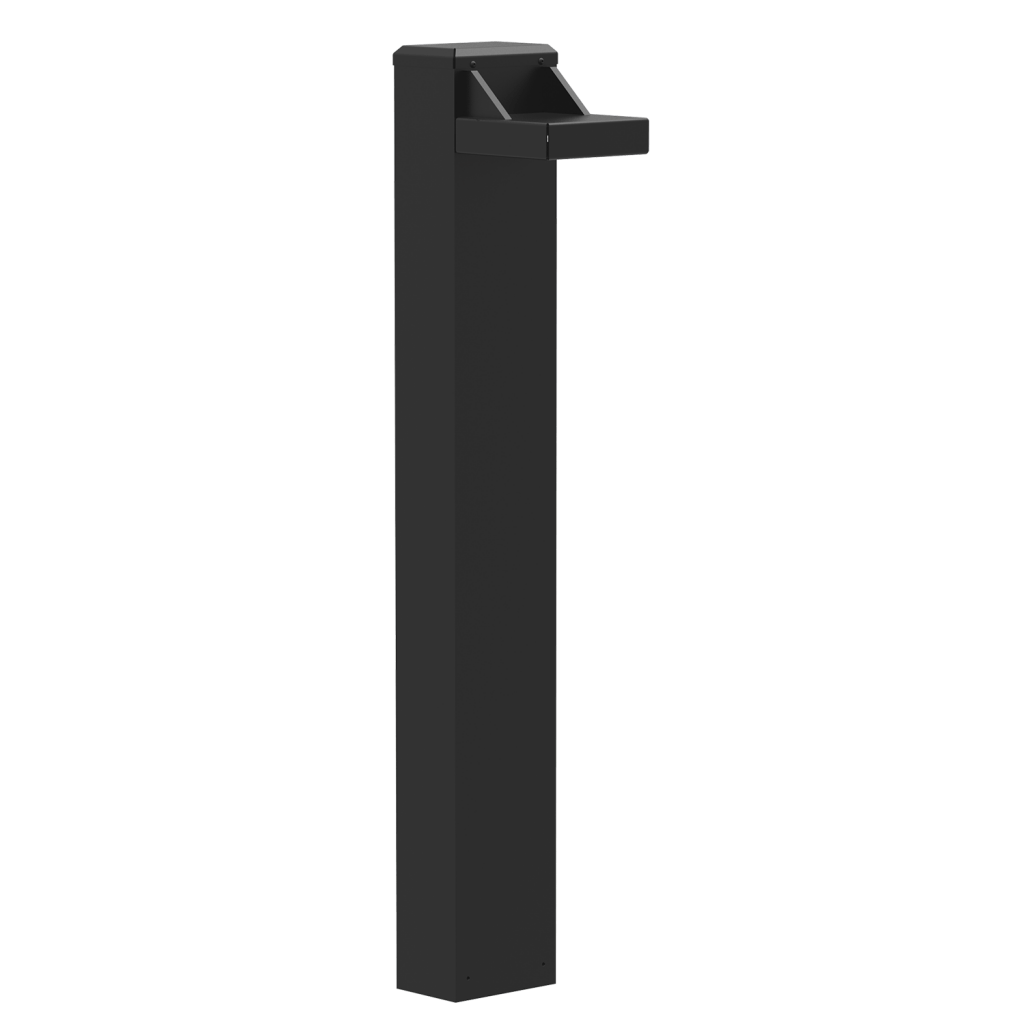

CLP-330FAL-B Architectural LED Bollard – Vandal-Resistant Pathway & Landscape Lighting, Multiple Heights & Finishes
CLP-330FAL-B Architectural LED Bollard – Vandal-Resistant Pathway & Landscape Lighting, Multiple Heights & Finishes
SKU:HLCLP-330FAL-B
Couldn't load pickup availability
Illuminate pathways, landscapes, and exterior grounds with the CLP-330FAL-B Architectural LED Bollard, designed for both security and vandal-resistant performance. Crafted from extruded aluminum with a powder coat finish, this slim bollard provides uniform illumination for pedestrian walkways, parks, office grounds, apartment complexes, and hotel exteriors.
Available in 24", 36", or 42" heights, the CLP-330FAL-B combines durable construction with modern aesthetics. It features a clear optical lens, silicone gaskets for weather-tight protection, and includes 12” anchor bolts for secure installation. Backed by a 10-year / 100,000-hour limited warranty, this bollard delivers reliable, long-lasting performance.
Optional upgrades include wireless controls and emergency battery backup, giving you advanced control and safety for outdoor lighting applications.
Key Features
- Durable extruded aluminum body with powder coat finish
- Vandal-resistant and security-focused slim design
- Uniform illumination for pathways and landscapes
- Available heights: 24", 36", 42"
- Lumen output: 1,812 – 4,608 depending on wattage
- Color temperatures: 3000K, 4000K, 5000K
- Voltage options: 120–277V or 480V
- Mounting included: 12” anchor bolts
- Optional upgrades: Wireless Controls, Emergency Battery Backup, Anchor Bolt Kit
- Rated life: >200,000 hours (L70)
- 10-year limited warranty
Specifications
Physical Dimensions
| Model | Height (A) | Width (B) | Depth (C) |
|---|---|---|---|
| CLP-330FAL-B-24 | 24" | 10" | 6" |
| CLP-330FAL-B-36 | 36" | 10" | 6" |
| CLP-330FAL-B-42 | 42" | 10" | 6" |
LED Performance
| Cat # | Input Power | Lumen Output | SCOTOPIC | Color Temp | CRI | HID Equivalent | Voltage | Rated Life |
|---|---|---|---|---|---|---|---|---|
| 12CLED | 13W | 1,812 | 2,900 | 5000K | 70 | 70W MH | 120–277V | >200,000 hrs |
| 16CLED | 18W | 2,484 | 3,974 | 5000K | 70 | 100W MH | 120–277V | >200,000 hrs |
| 24CLED | 26W | 3,300 | 5,280 | 5000K | 70 | 100W HPS | 120–277V | >200,000 hrs |
| 36CLED | 40W | 4,608 | 7,372 | 5000K | 70 | 150W MH | 120–277V | >200,000 hrs |
Finish Options
- Black (BLK)
- White (WHT)
- Bronze (BRZ)
- Silver (SIL)
- Graphite (GPH)
- Marine Grade (MG)
