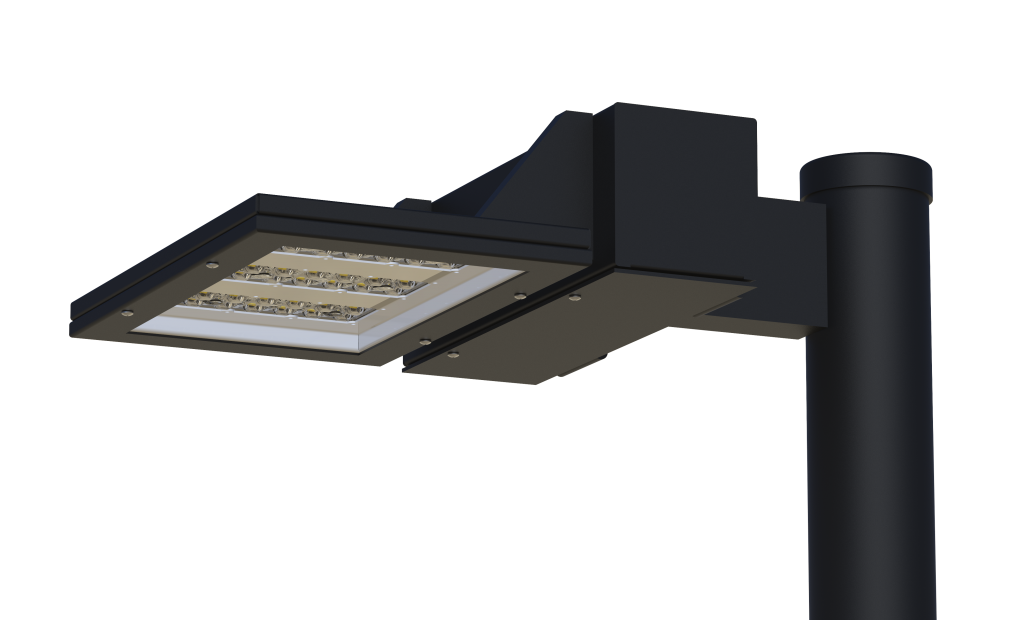

CLP-330FAL LED Area & Flood Light – Wet Location Outdoor Lighting for Commercial & Residential Spaces

CLP-330FAL LED Area & Flood Light – Wet Location Outdoor Lighting for Commercial & Residential Spaces

SKU:HLCLP-330FAL

Quantity

Illuminate large outdoor areas efficiently with the CLP-330FAL LED Area & Flood Fixture. Designed for wet locations, this versatile LED light is perfect for residential exteriors, walkways, entryways, perimeters, storage areas, parking garages, school campuses, industrial and commercial spaces, recreational parks, and wall washing applications.

Built for durability and long-term performance, the CLP-330FAL features heavy-duty aluminum housing with a 3-mil powder coat finish and a silicone gasket for weather-tight protection. With multiple wattages, light distributions, mounting options, and color temperatures, this fixture delivers wide, uniform illumination for any space. Backed by a 10-year/100,000-hour limited warranty, it ensures reliable and energy-efficient lighting for years to come.


Key Features:

  • Heavy-duty aluminum housing with 3-mil powder coat finish for durability
  • Weather-tight IP66 protection with silicone gasket
  • Wide light distribution: Type 2, Type 3, Type 4, and Type 5 optics
  • Multiple wattages: 20W to 300W with high lumen output
  • Color temperatures: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
  • Mounting options: Arm Mount, Extruded Arm, Slip Fitter, Swivel Bracket, Yoke Mount
  • Optional features: Motion Sensor, Button Photo Cell, 5/7-pin Photo Cell, Emergency Battery, Wireless Control, Wattage Adjuster
  • Rated life: >200,000 hours (L70)
  • Ideal for: Parking lots, schools, industrial areas, parks, walkways, commercial and residential exteriors

Specifications:

Model Wattage Lumen Output LPW Color Temp Light Dist. Voltage Mounting Options EPA
CLP-330FAL-S 20-60W 3,650–8,539 lm 142–149 2700K–5000K T2–T5 120-277V / 480V Arm Mount, Extruded Arm, Slip Fitter Motion Sensor, Button Photo Cell, 5/7-pin Photo Cell 0.6
CLP-330FAL-M 80–150W 12,840–20,680 lm 133–151 4000K–6500K T2–T5 120-277V / 480V Extruded Arm, Slip Fitter, Swivel Bracket Wireless Control, EMR Battery, Wattage Adjuster 0.8
CLP-330FAL-L 200–300W 31,140–41,360 lm 133–151 5000K T2–T5 120-277V Swivel Bracket, Large Yoke Mount Wireless Control, Wattage Adjuster 1

Dimensions:

  • Small (S): 5.125" × 15.5" × 12"
  • Medium (M): 5.125" × 16.25" × 15.75"
  • Large (L): 5.125" × 23.5" × 20.75"
