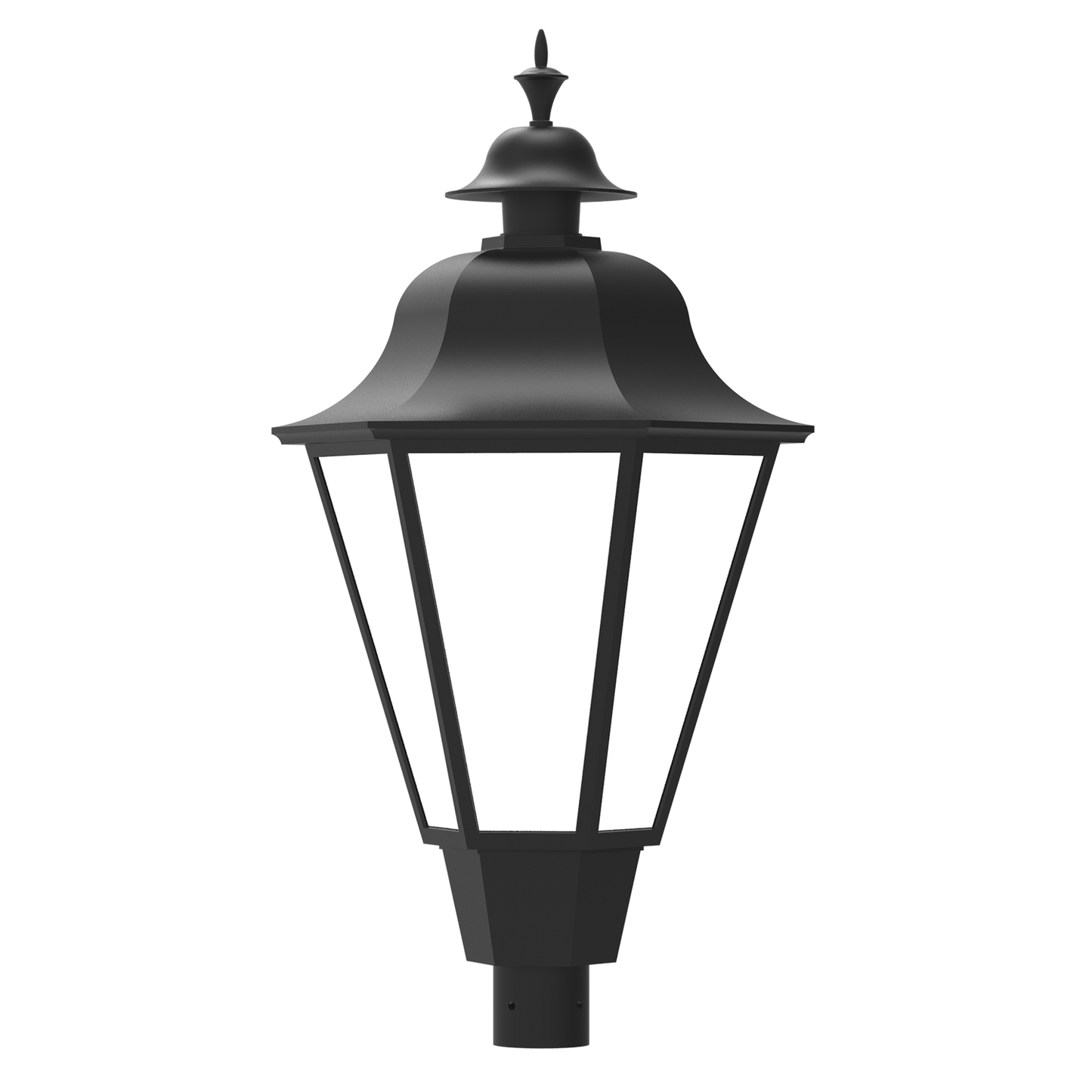

The CLP-M67 Architectural LED Post Top Luminaire delivers a sophisticated, traditional aesthetic combined with high-performance LED technology for outdoor environments. Designed for wet locations, this architectural post top fixture enhances residential communities, commercial properties, school campuses, walkways, parking lots, perimeters, and recreational parks.
Built with corrosion-resistant cast aluminum housing and a durable 3-mil powder coat finish, the CLP-M67 ensures long-lasting performance in harsh outdoor conditions. Featuring high-efficiency Lumiled LEDs, advanced thermal management, and superior lumen maintenance, this fixture provides over 66% energy savings compared to traditional HID lighting systems.
Available in Type III and Type V light distribution patterns, multiple wattages, color temperatures, and mounting configurations, the CLP-M67 offers versatility for various outdoor lighting applications.
Backed by a 10-Year / 100,000-Hour Limited Warranty, this luminaire is engineered for reliability and long-term value.
Key Features
Architectural post top LED luminaire for outdoor applications
Over 66% energy savings compared to HID fixtures
High-efficiency Lumiled LEDs for superior lumen output
Excellent lumen maintenance (L70 > 200,000 hours)
IP65 / IP67 rated for wet locations
Corrosion-resistant cast aluminum housing
3-mil powder coat finish for durability
Frosted acrylic lens (standard)
Silicone gasket for weather-tight protection
Operating temperature range: -30°C to 60°C
0-10V dimming driver (optional)
Optional occupancy sensors, photocell, and wireless controls
Marine grade option available
House side shield option available
10-Year / 100,000-Hour Limited Warranty
Applications
Residential communities
Walkways and pathways
Parking lots
Commercial properties
School campuses
Perimeter lighting
Parks and recreational areas
Specifications
General Specifications
Light Distribution: Type III (T3) or Type V (T5)
Color Temperatures: 3000K / 4000K / 5000K
CRI: 70+
Input Frequency: 50/60Hz
Voltage Options: 120-277V (Multi-Volt) or 480V (High Voltage Optional)
Mounting: 3” OD Post Top (Adapter required for alternate mounting options)
The CLP-M67 LED Post Top Luminaire combines timeless architectural design with cutting-edge LED performance. With exceptional durability, high lumen output, and advanced control options, it is the ideal solution for energy-efficient outdoor area lighting.
