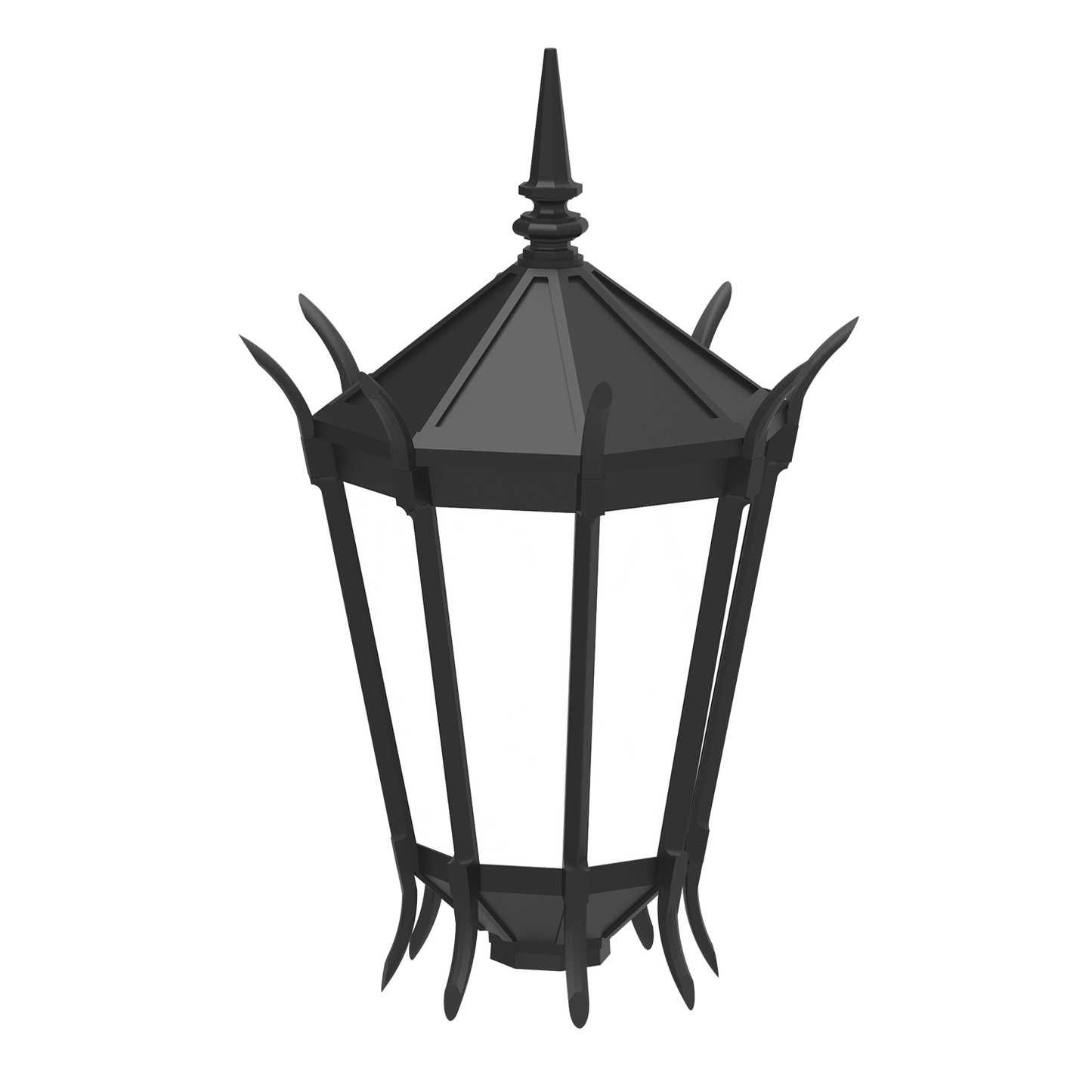

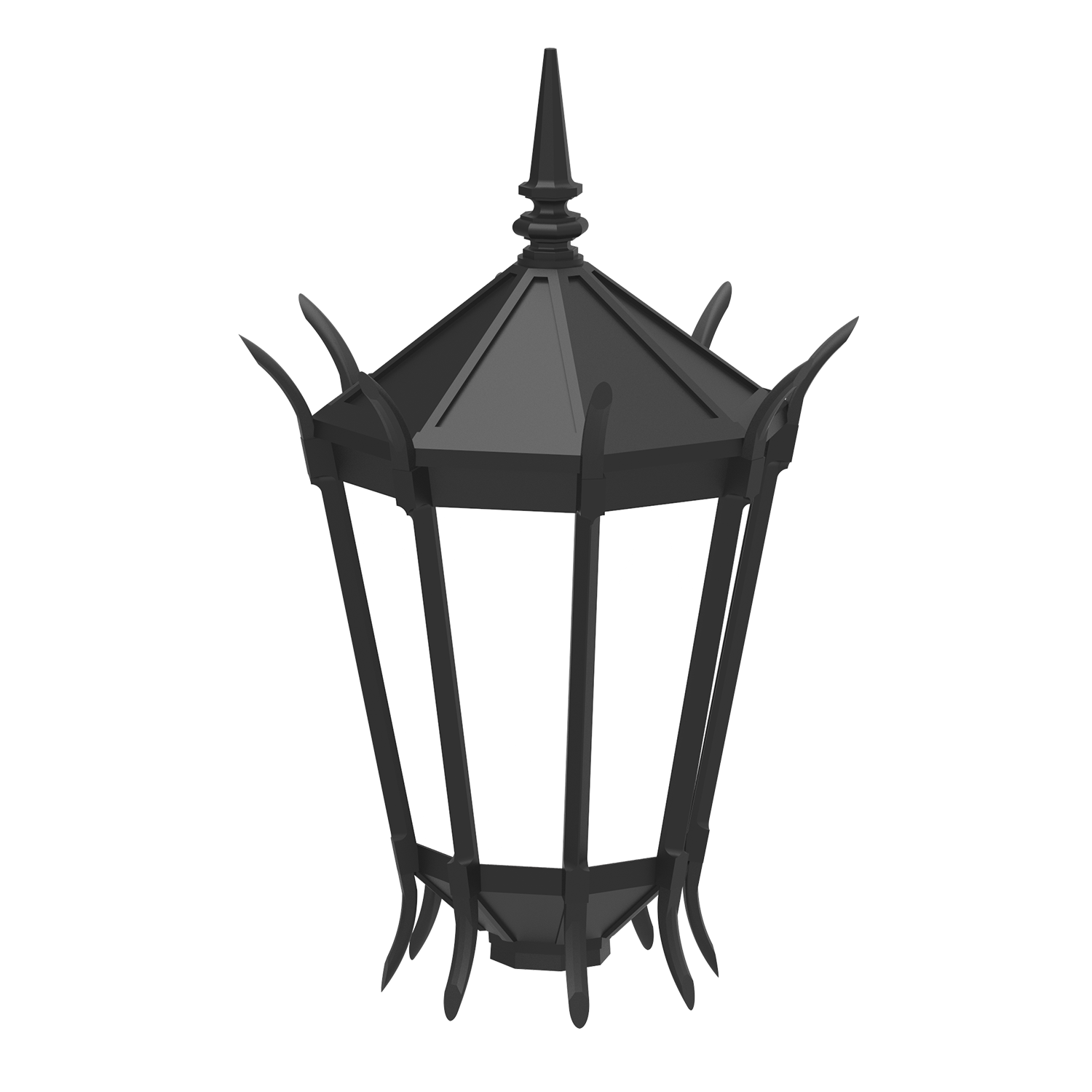

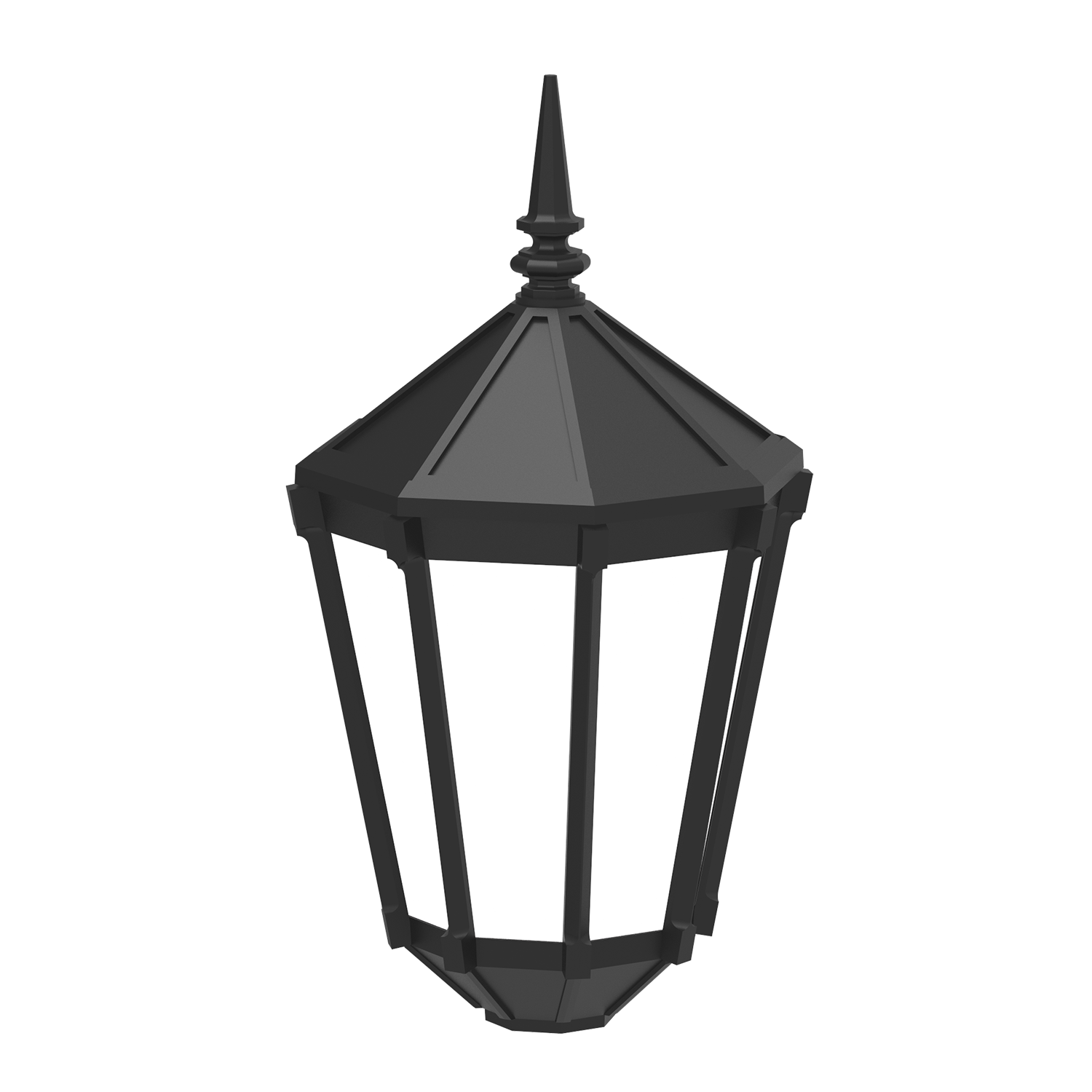

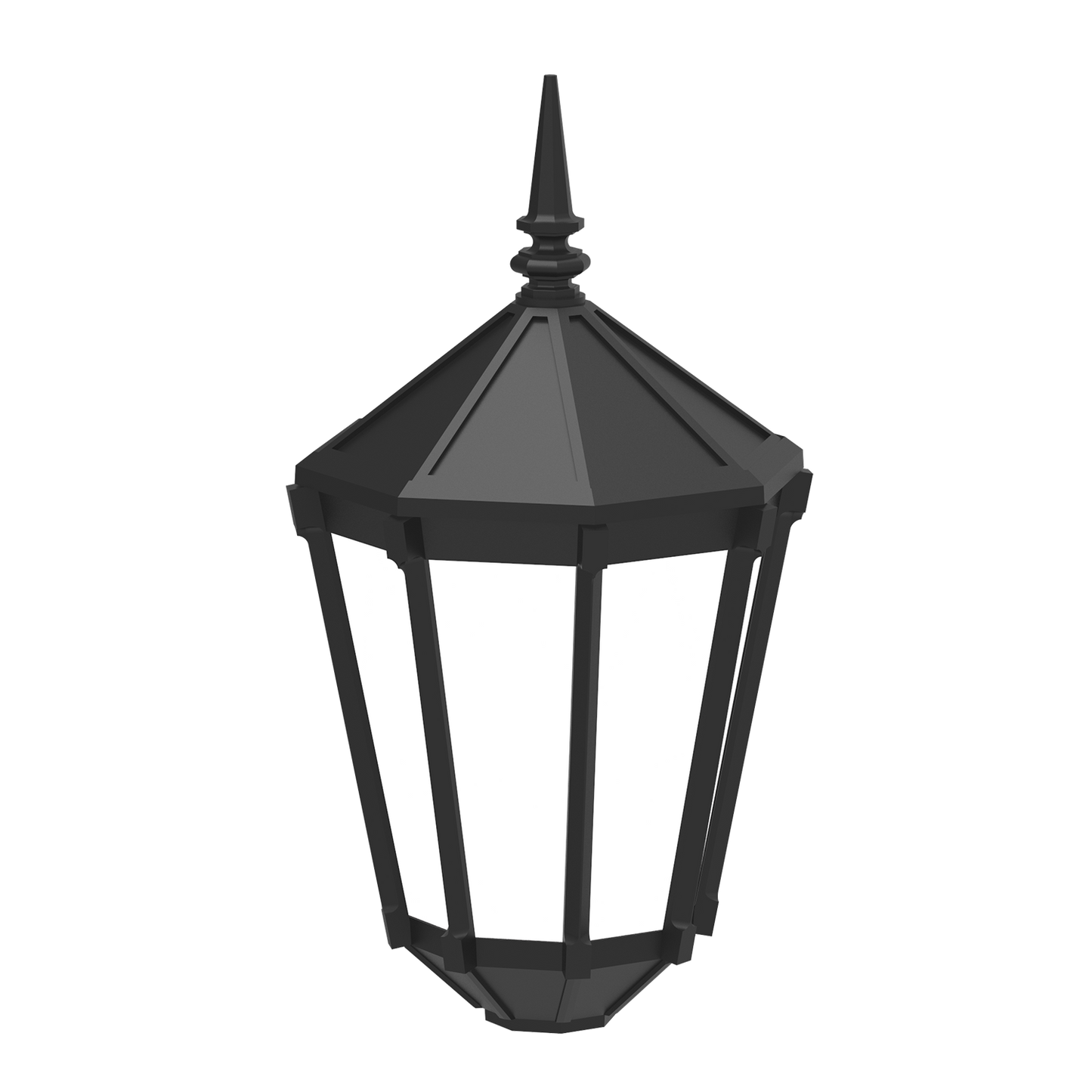

The CLP-MS Architectural LED Luminaire combines elegant design with high-performance LED technology to enhance outdoor environments with style and reliability. Designed for townships, parks, walkways, housing communities, and driveways, the CLP-MS delivers consistent illumination while maintaining architectural appeal.
Engineered for durability, this fixture features corrosion-resistant cast aluminum construction, a 3-mil powder coat finish, and weather-tight protection for demanding outdoor conditions. Powered by high-efficiency Lumiled LEDs, the CLP-MS provides over 66% energy savings compared to traditional HID lighting systems while maintaining superior lumen output and long-term performance.
With multiple wattage options, light distributions, color temperatures, and smart control add-ons, the CLP-MS is a versatile and dependable solution for modern outdoor lighting projects.
Backed by a 10-Year / 100,000-Hour Limited Warranty.
Key Features
Elegant architectural LED post top luminaire
Ideal for parks, communities, townships, and driveways
Over 66% energy savings vs. HID fixtures
High-efficiency Lumiled LEDs
Excellent lumen maintenance (L70 > 200,000 hours)
IP65 / IP67 rated for wet locations
Corrosion-resistant cast aluminum housing
3-mil powder coat finish for enhanced durability
Frosted Acrylic Lens (standard)
Optional Opal Acrylic Lens
Silicone gasket for weather-tight enclosure
Operating temperature range: -30°C to 60°C
0-10V dimming driver (optional)
Optional occupancy sensor, photocell, and wireless controls
Marine grade finish available
10-Year / 100,000-Hour Limited Warranty
Applications
Townships
Parks and recreational areas
Walkways and pathways
Housing communities
Driveways
Residential and light commercial landscapes
General Specifications
Wattage Options: 20W, 40W, 60W, 80W
Light Distribution: Type III (T3) or Type V (T5)
Color Temperatures: 3000K / 4000K / 5000K
CRI: 70+
Input Frequency: 50/60Hz
Voltage Options: 120-277V (Multi-Volt) or 480V (High Voltage Optional)
Mounting: 3” Round Pole (Adapter required for alternate mounting options)
The CLP-MS Architectural LED Luminaire blends refined design with industrial-grade durability. Its energy efficiency, long lifespan, and adaptable configurations make it the ideal solution for outdoor post top lighting in residential and commercial settings.
