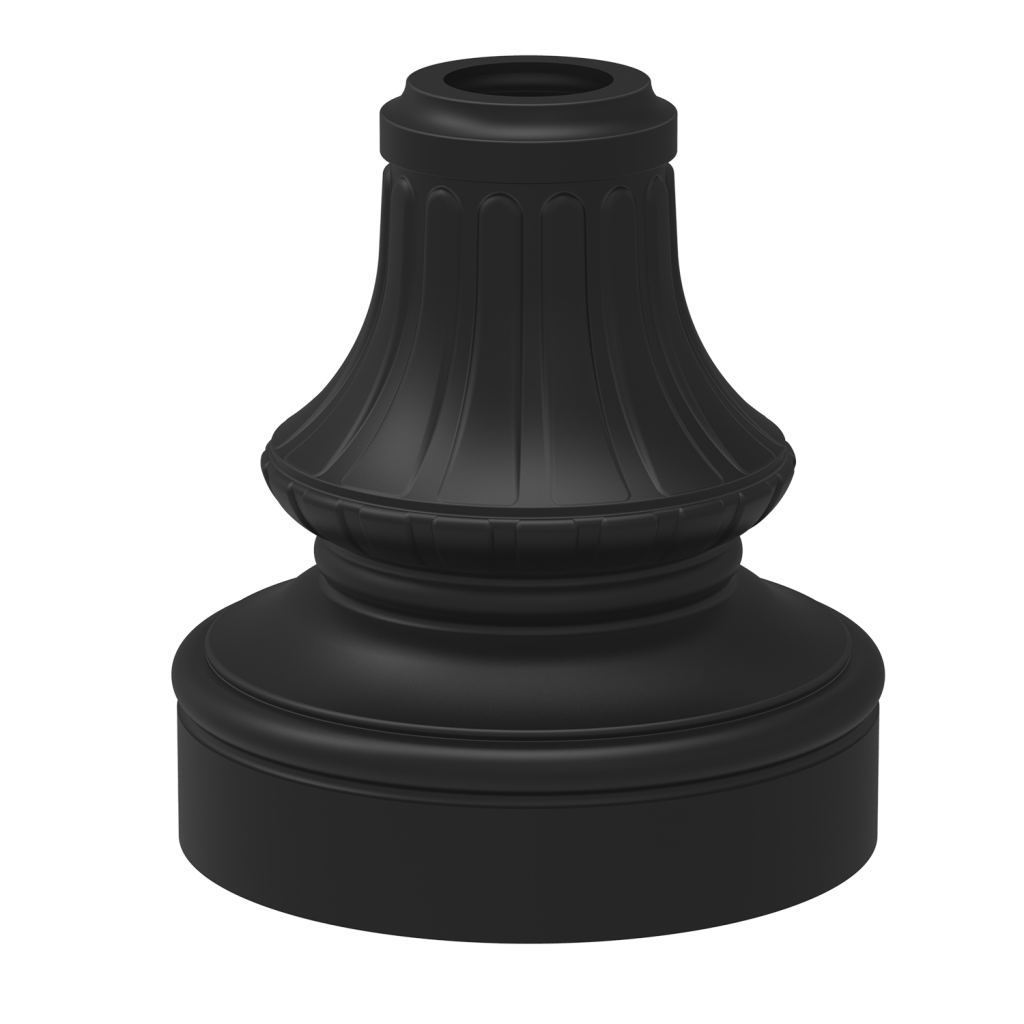

Decorative Base 09 – 2-Piece Cast Aluminum Clamshell for 4" or 5" Pole

Decorative Base 09 – 2-Piece Cast Aluminum Clamshell for 4" or 5" Pole

SKU:HLDB-09

Quantity

The Decorative Base 09 (DB09) is a premium 2-piece cast aluminum clamshell designed to provide a refined architectural finish for outdoor lighting poles. Built for pathway lighting, residential communities, and commercial projects, this decorative base cover fits a 9" square base plate and enhances both aesthetics and durability.

Manufactured from heavy-duty cast aluminum and finished with a 3 mil powder coat, the DB09 offers long-lasting protection against corrosion, weather, and environmental wear. Its two-piece clamshell design allows for easy installation around existing poles without the need for disassembly.

Ideal for new lighting installations or retrofit projects, this decorative pole base combines structural reliability with professional-grade appearance.


Product Specifications

  • Product Name: Decorative Base 09
  • Model / Cat#: DB09
  • SKU: HLDB-09
  • Construction: 2-Piece Cast Aluminum (Clamshell Design)
  • Application: Pathway, Residential & Commercial Projects
  • Base Plate Compatibility: 9" Square Base Plate

Dimensions

  • Height (A): 18 1/2"
  • Width (B): 16 7/8"

Pole Outside Diameter (O.D.) Options

  • 4" O.D.
  • 5" O.D.

Compatible Pole Types

  • RSS (Round Straight Steel): 11 Gauge or 7 Gauge
  • RSA (Round Straight Aluminum): .125 or .187 Wall Thickness

Finish

  • 3 Mils Powder Coat Finish (Weather-Resistant)

Color Options

  • Bronze (BRZ)
  • Gray (GRY)
  • Black (BK)
  • White (WH)
  • Custom (CST)

Key Features

  • Durable cast aluminum construction for outdoor environments
  • Two-piece clamshell design for easy field installation
  • Designed for 9" square base plates
  • Compatible with 4" and 5" diameter poles
  • Works with steel (RSS) and aluminum (RSA) round straight poles
  • 3 mil powder coat finish for superior corrosion resistance
  • Available in multiple standard and custom colors
  • Ideal for pathway, streetscape, and commercial lighting applications

Applications

  • Pathway lighting systems
  • Residential developments
  • Commercial properties
  • Parking lot lighting
  • Streetscape and municipal projects
