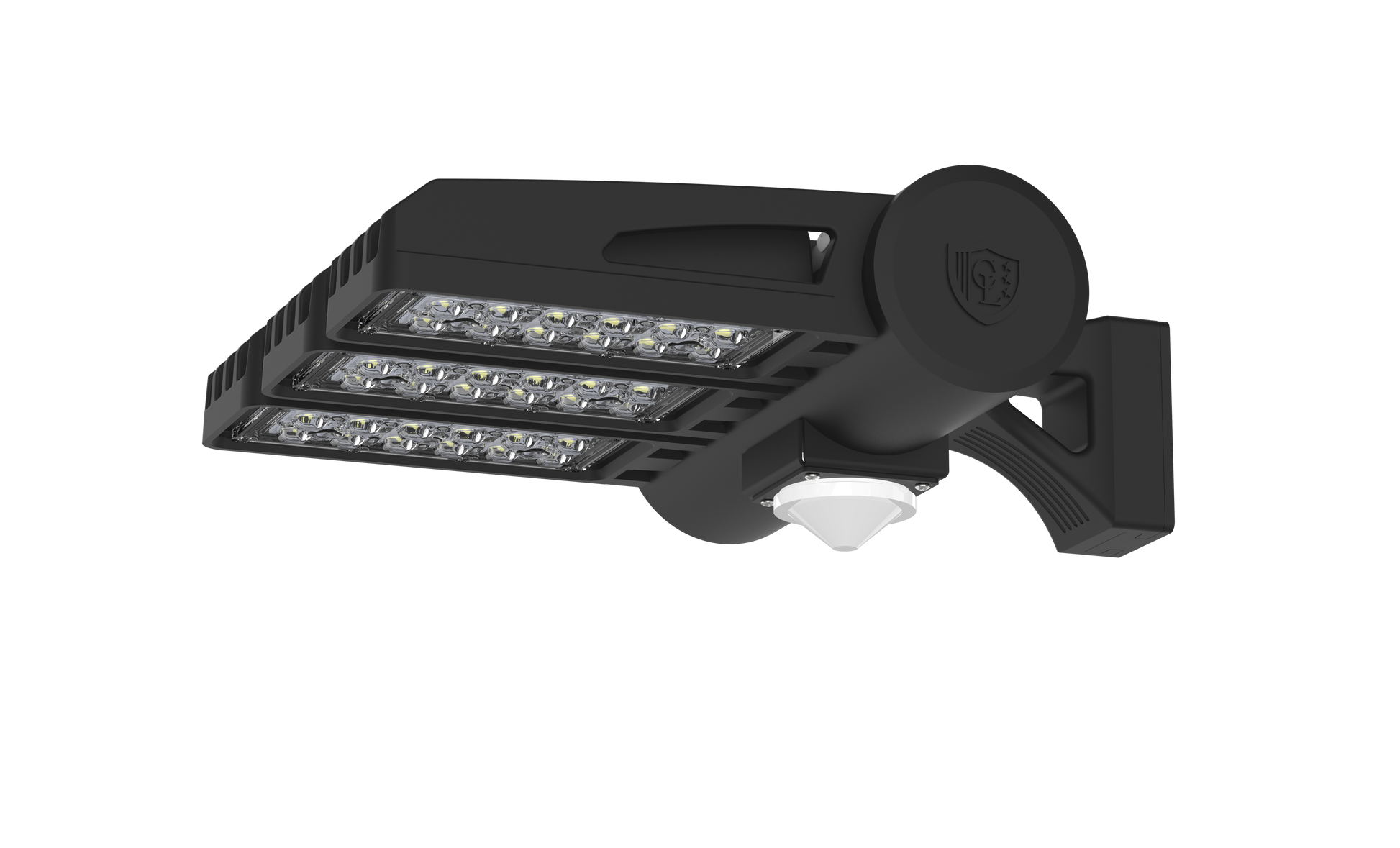

The IRI-X LED Area Luminaire is a high-performance, low-profile outdoor lighting fixture engineered with an external dedicated heat sink for superior thermal management and long-term reliability. Designed for architectural buildings, school campuses, parking lots, storage areas, and recreational parks, the IRI-X delivers wide, uniform light distribution for enhanced visibility and safety.

Built with high-efficiency Lumiled LEDs and a precision CL-Optical System, the IRI-X provides over 66% energy savings compared to traditional HID fixtures while maintaining exceptional lumen output and durability. Its corrosion-resistant aluminum housing and IP65/IP67 rating ensure dependable performance in demanding outdoor environments.

Backed by a 10-year / 100,000-hour limited warranty, the IRI-X Series is an ideal solution for commercial and municipal lighting projects requiring efficiency, longevity, and modern design.

Key Features

• Low-profile architectural design
• Dedicated external heat sink for optimal thermal dissipation
• Over 66% energy savings compared to HID lighting
• High-efficiency Lumiled LEDs
• CL-Optical System for wide light distribution
• IP65 / IP67 rated for harsh outdoor environments
• 0–10V dimming capability
• Optional occupancy sensor, photocell, wireless controls
• 120–277V standard (480V optional)
• Operating temperature: -30°C to 60°C
• Dark Sky compliant (Arm Mount or Wall Mount required)
• 10-year / 100,000-hour limited warranty

Construction & Durability

• Corrosion-resistant aluminum housing
• 3 mil powder coat finish
• Silicone gasket for weather-tight IP66 protection
• Designed for mounting over 4” or 5” round or square poles
• Additional mounting options: Slip Fitter or Swivel Bracket

Available Models

• IRI-X1 (IR-X1)
• IRI-X2 (IR-X2)
• IRI-X3 (IR-X3)

Wattage Options

20W, 40W, 60W, 80W, 100W, 120W, 140W, 160W, 180W

Light Distribution Options

• Type 2 (T2)
• Type 3 (T3)
• Type 4 (T4)
• Type 5 (T5)

Color Temperature Options

• 3000K
• 4000K
• 5000K

Voltage Options

• 120–277V (Multi-Voltage)
• 480V (Optional High Voltage)

Finish Options

• Black
• White
• Bronze
• Silver
• Graphite
• Marine Grade

Mounting Options

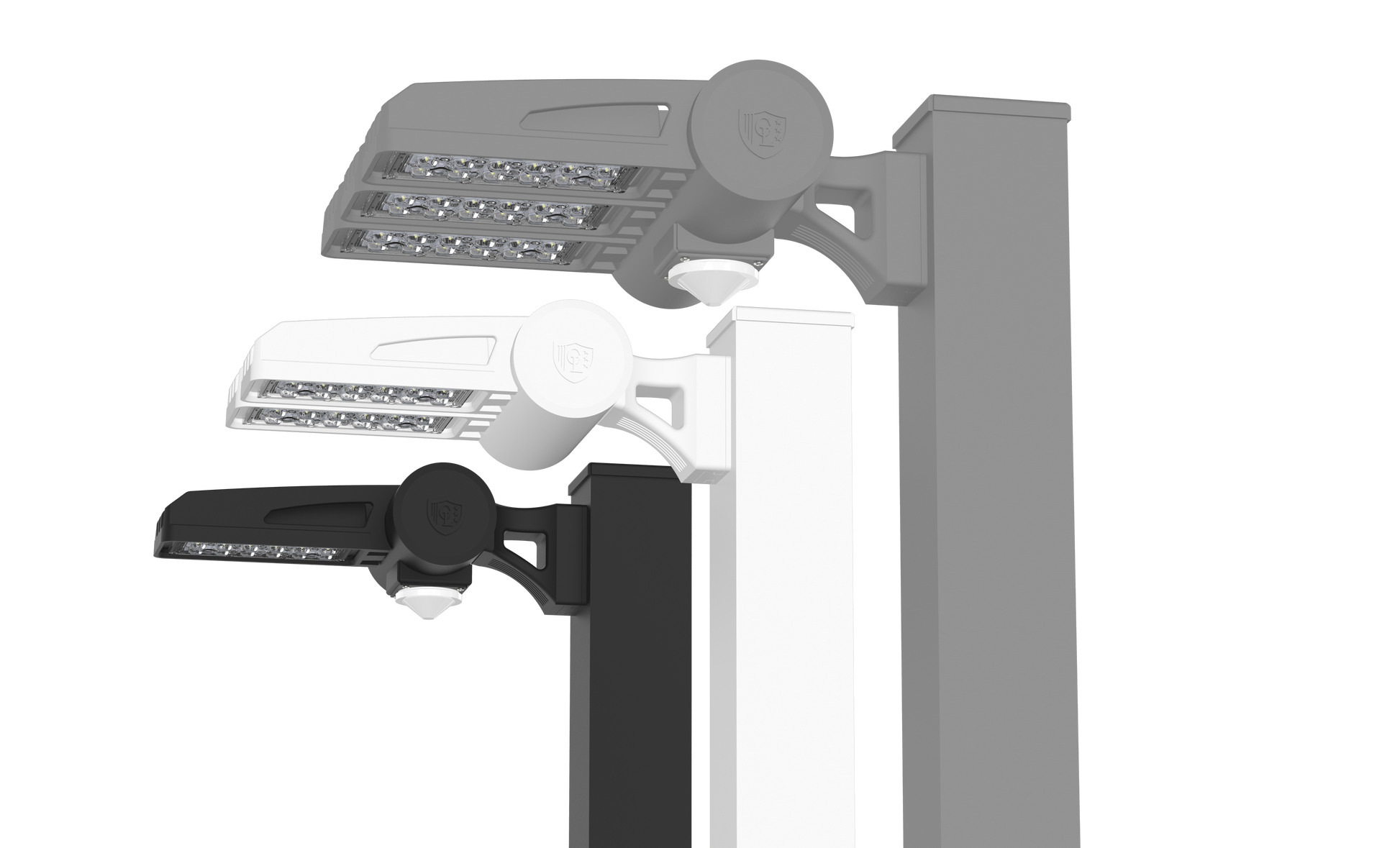

• Arm Mount (AM)
• Wall Mount (WM)

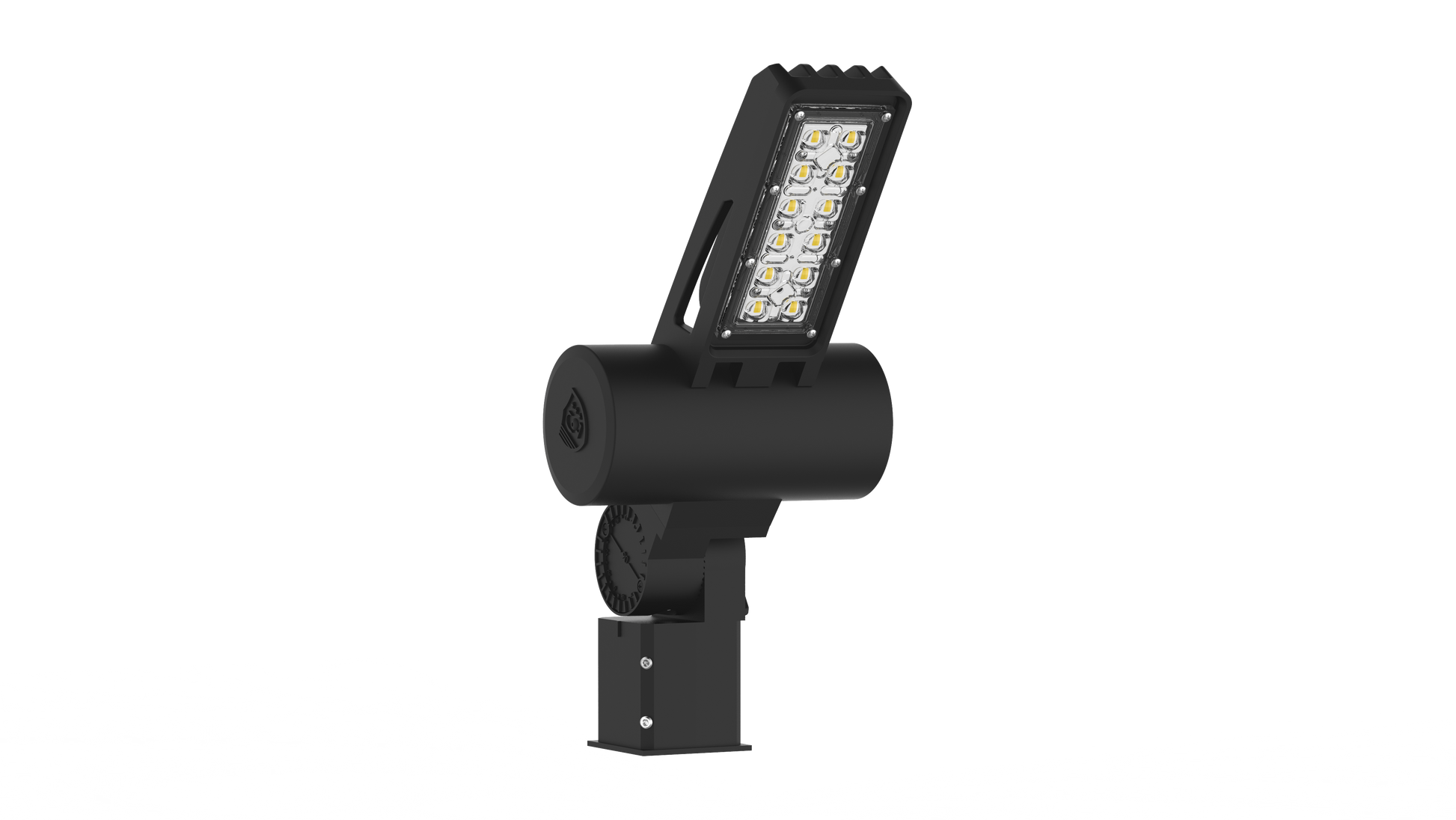

• Slip Fitter (SF)

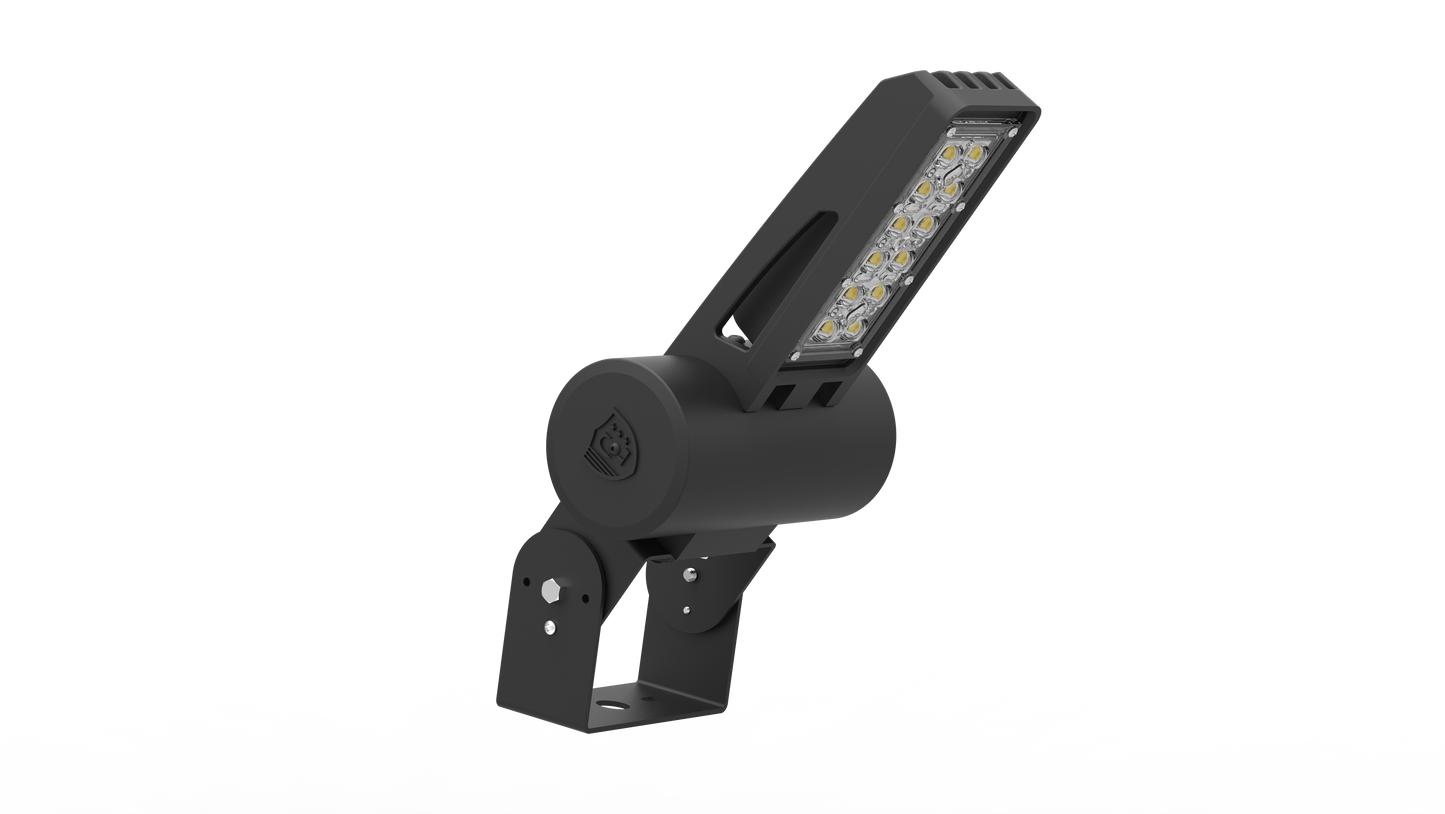

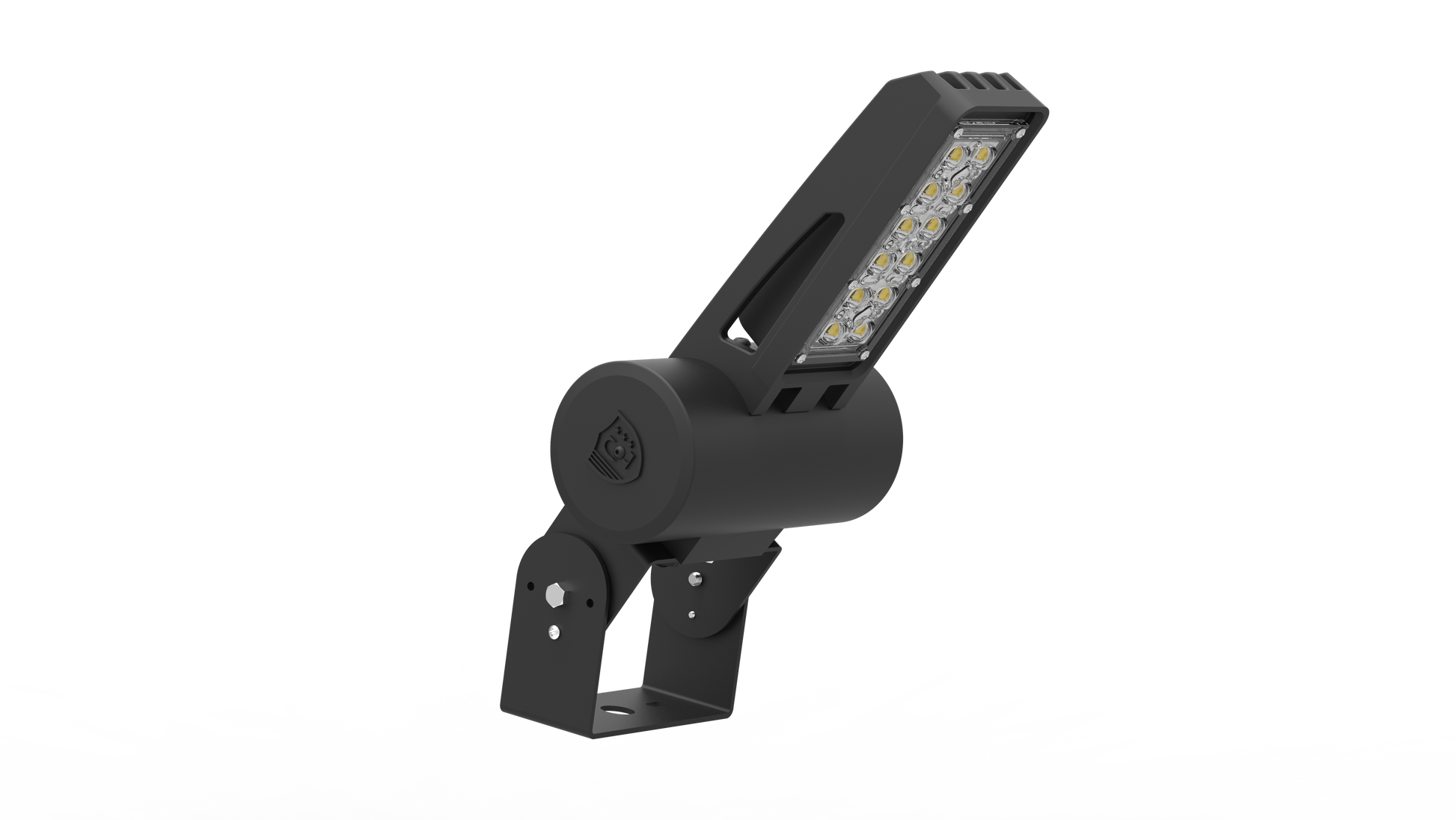

• Swivel Bracket (SB)

Optional Accessories

• Occupancy Sensor (OCC)
• Button Photocell (PC)
• Wireless Controls (WC)
• House Side Shield (HSS)

Dimensions & EPA

• IR-X-AM
  • A: 16 3/8”
  • B: 4”
  • EPA: 0.30
• IR-X-SB
  • A: 19 3/4”
  • B: 4”
  • EPA: 0.32
• IR-X-SF
  • A: 18”
  • B: 4”
  • EPA: 0.37

• Performance Specifications
• IR-X1 Series
• 20W Model
• Input Power: 25W
• Lumen Output: 3,120 lm
• Efficacy: 156 LPW
• HID Equivalent: 100W MH
• 40W Model
• Input Power: 45W
• Lumen Output: 5,475 lm
• Efficacy: 136 LPW
• HID Equivalent: 150W MH
• 60W Model
• Input Power: 65W
• Lumen Output: 8,784 lm
• Efficacy: 146 LPW
• HID Equivalent: 175W MH
• (All models: CRI 70+, >200,000 hours L70, 120–277V, 50/60Hz)

• IR-X2 Series
• 80W: 10,841 lm
• 100W: 12,997 lm
• 120W: 17,568 lm
• HID equivalents range from 175W to 400W.

• IR-X3 Series
• 140W: 21,785 lm
• 160W: 22,773 lm
• 180W: 26,250 lm
• HID equivalents range from 400W to 750W.
• (All models: CRI 70+, >200,000 hours L70, 120–277V input)

• Ideal Applications
• Architectural building exteriors
• School campuses
• Storage yards
• Parking lots
• Commercial facilities
• Industrial sites
• Recreational parks
• Perimeter security lighting
