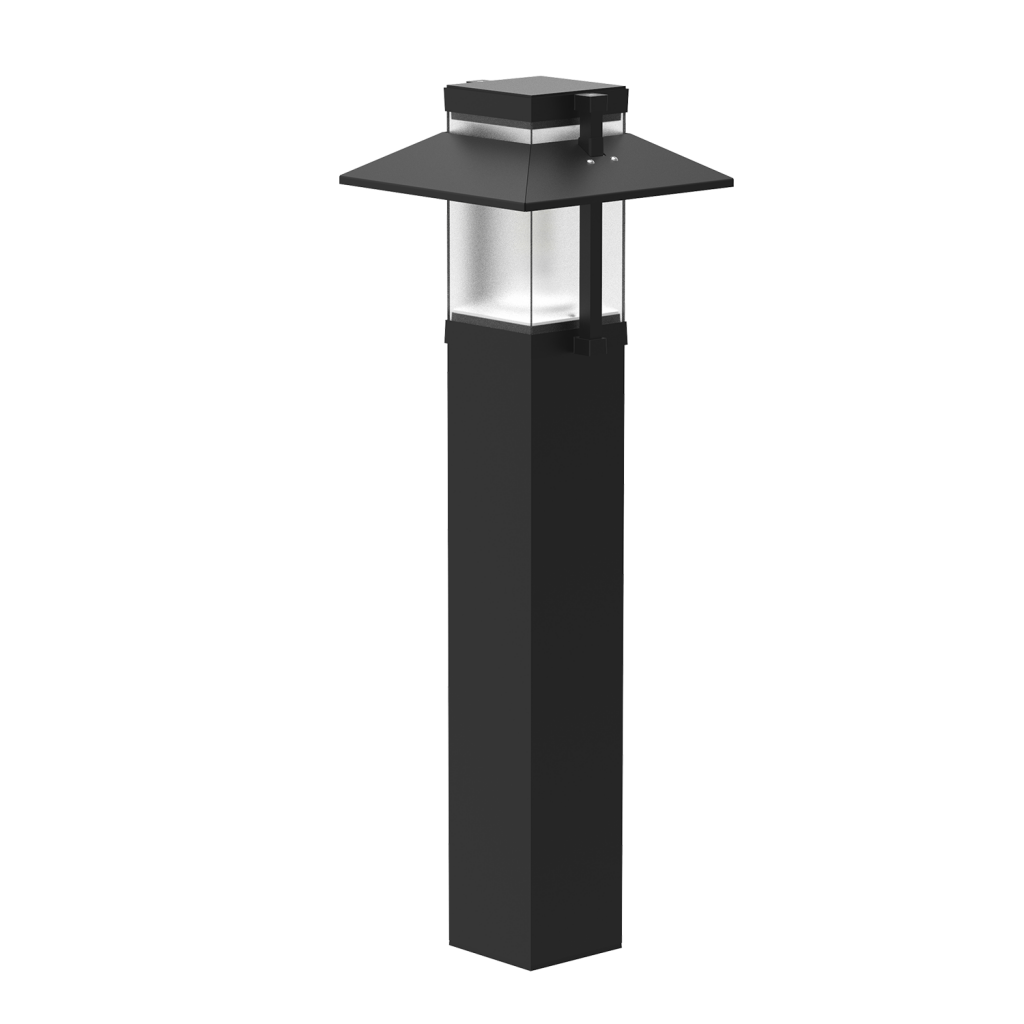

The JANUS Bollard Architectural LED Lighting fixture is designed to deliver wide, uniform illumination with a clean architectural appearance, making it ideal for walkways and exterior environments. Engineered for performance and durability, the JANUS Bollard combines high-efficiency Lumiled LEDs with robust aluminum construction to provide long-lasting, energy-efficient lighting.

With IP65/IP67 weather protection and a corrosion-resistant aluminum housing, the JANUS Bollard is built to perform in demanding outdoor conditions. Its wide Type 5 light distribution ensures optimal coverage for pedestrian pathways, parks, campuses, and commercial landscapes.

Backed by a 10-year / 100,000-hour limited warranty and rated for over 200,000 hours of operating life, this fixture offers dependable, low-maintenance illumination for commercial and municipal projects.

Key Features

• Wide Type 5 light distribution
• High-efficiency Lumiled LEDs
• Over 66% energy savings vs HID
• Improved lumen maintenance
• IP65 / IP67 rated for wet locations
• 0–10V dimming capable
• Optional Micro Wave Sensor, Motion Sensor, Photocell, or Wireless Controls
• Operating temperature: -30°C to 60°C
• 120–277V standard (480V optional)

• 200,000-hour rated life

• 10-year / 100,000-hour limited warranty

Construction & Durability

• Corrosion-resistant aluminum housing
• 3 mil powder coat finish
• Frosted acrylic lens (standard)
• Optional opal acrylic lens (OAL)
• Silicone gasket for weather-tight protection

Configuration Options

Shade

• Shade 1 (SH1) – Only shade option available

Wattage Options

• 15W (15CLED)
• 20W (20CLED)
• 30W (30CLED)
• 50W (50CLED)

Light Distribution

• Type 5 (T5) – Wide distribution

Color Temperature Options

• 3000K
• 4000K
• 5000K

Voltage Options

• 120–277V (MV)
• 480V (HV – Optional)

Finish Options

• Black (BLK)
• White (WH)
• Bronze (BRZ)
• Silver (SIL)
• Graphite (GPH)
• Marine Grade (MG)

Optional Accessories

• Micro Wave Sensor (MWS)
• Motion Sensor
• Button Photocell (PC)
• Wireless Controls (WC)
• Opal Acrylic Lens (OAL)

Dimensions

JNS-B-SH1

• Height (A): 42”
• Diameter (B): 13 3/8”
• Base (C): 6” Square

Performance Specifications

15W Model (JNS-B-15CLED)

• Input Power: 20W
• Lumen Output: 2,754 lm
• Efficacy: 183 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

20W Model (JNS-B-20CLED)

• Input Power: 25W
• Lumen Output: 3,650 lm
• Efficacy: 182 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

30W Model (JNS-B-30CLED)

• Input Power: 35W
• Lumen Output: 5,509 lm
• Efficacy: 183 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

50W Model (JNS-B-50CLED)

• Input Power: 55W
• Lumen Output: 7,761 lm
• Efficacy: 155 LPW
• CRI: 70+
• Rated Life (L70): >200,000 hours
• Voltage: 120–277V

Ideal Applications

• Pedestrian walkways
• Commercial landscapes
• Office building exteriors
• Apartment complexes
• Parks and recreational areas
• Campus pathways
• Hospitality properties
• Perimeter lighting

Why Choose the JANUS Bollard?

• Wide distribution for maximum walkway coverage
• Energy-efficient HID replacement
• Durable weather-resistant construction
• Long service life with minimal maintenance
• Multiple wattage and control options
• Professional architectural appearance
