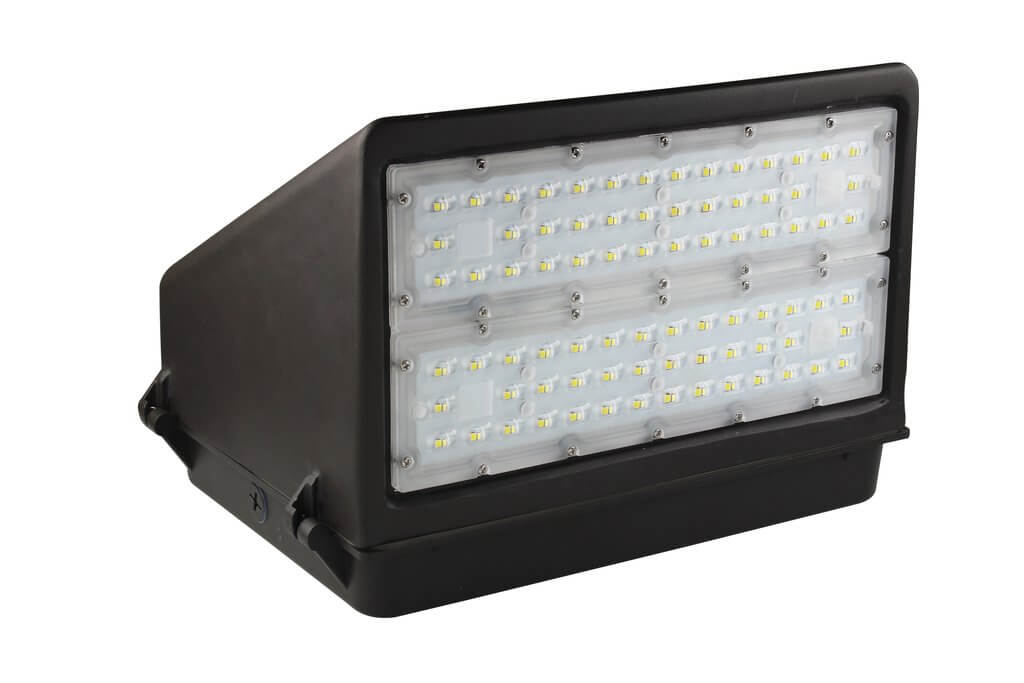

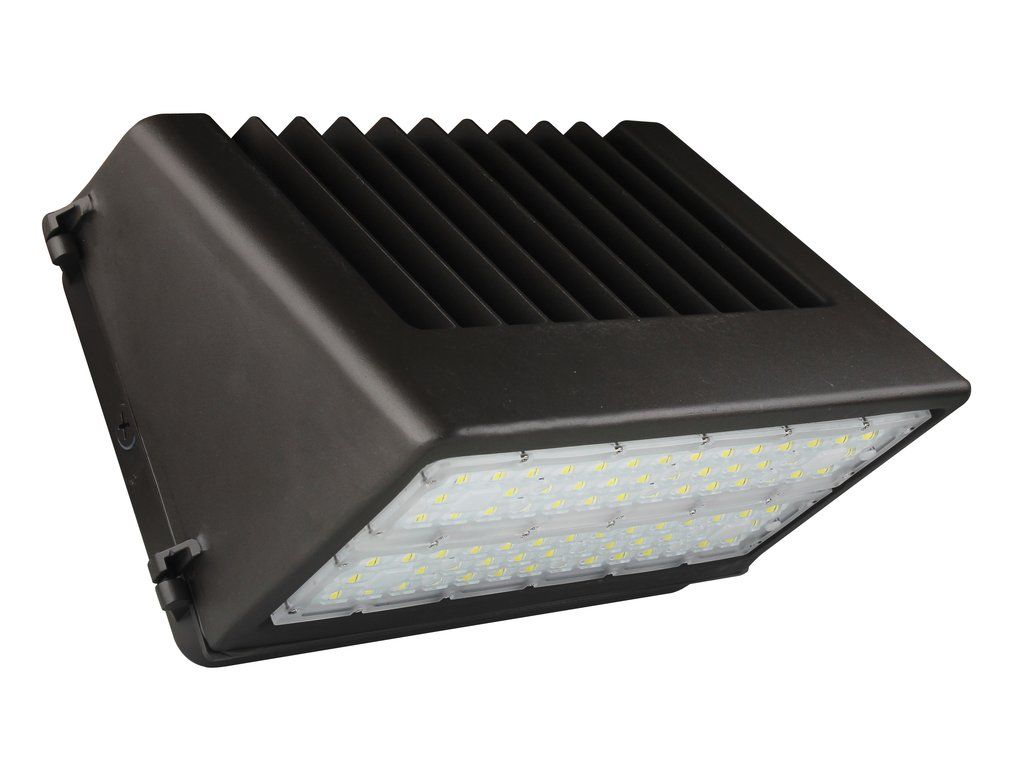

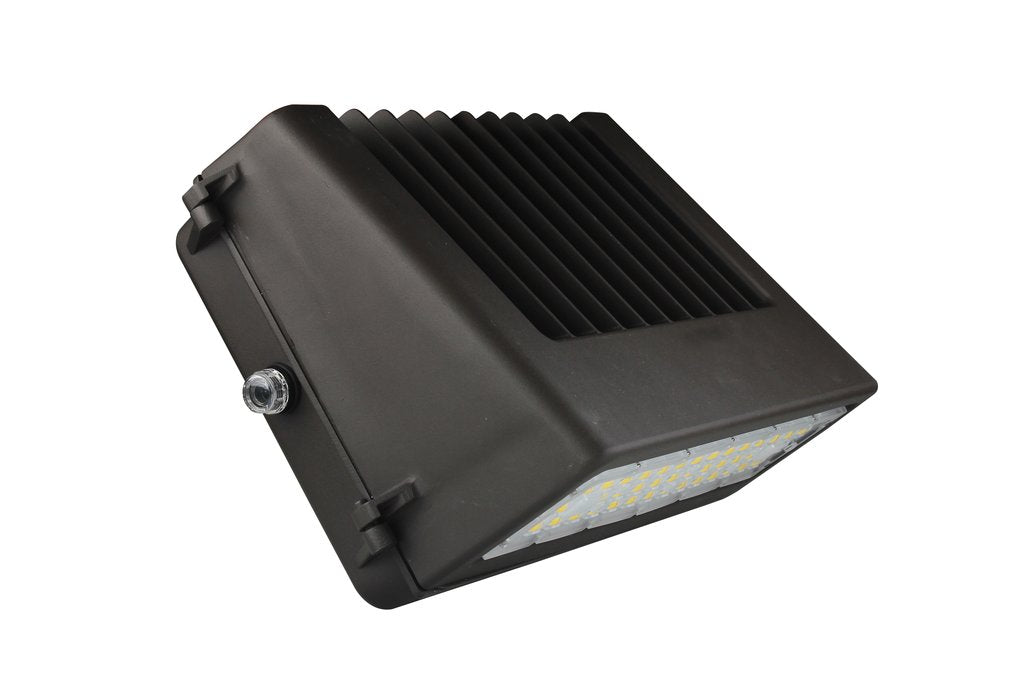

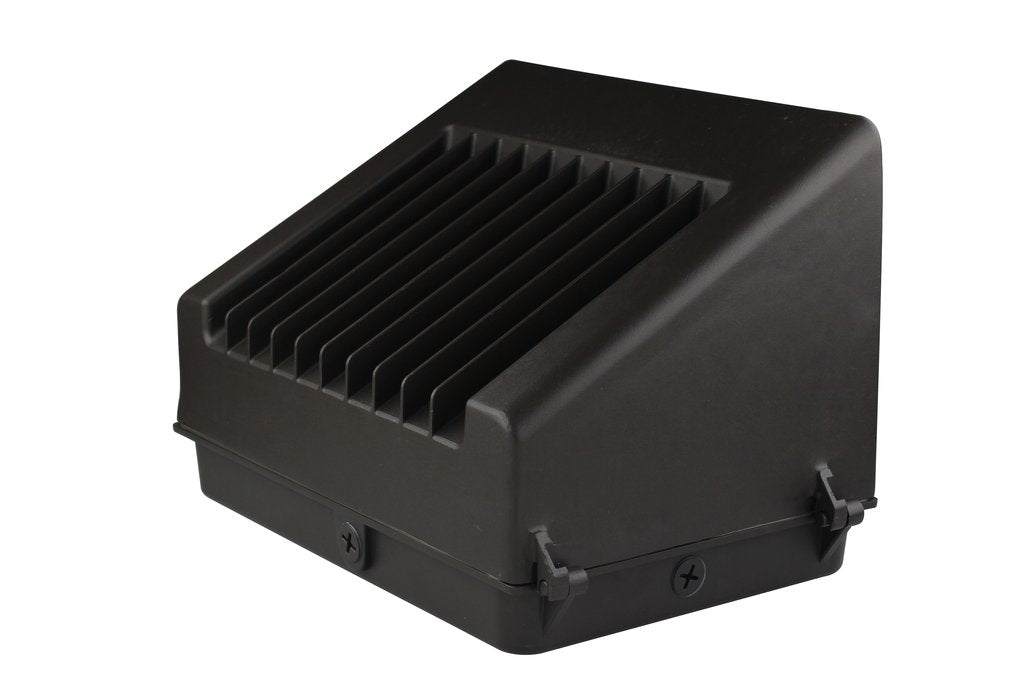

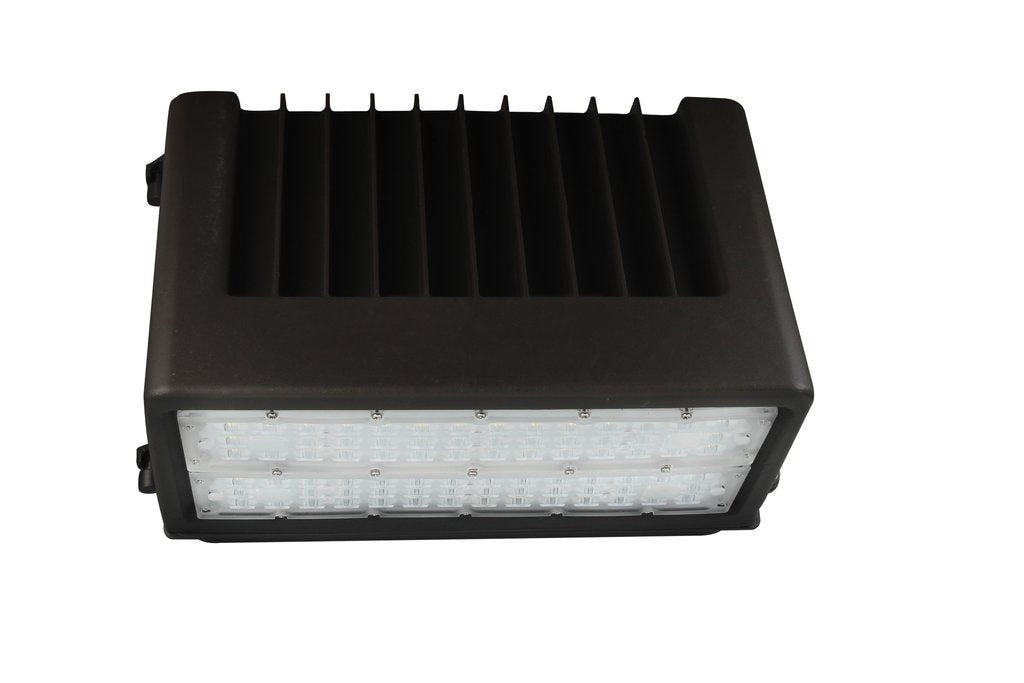

LED Full Cutoff Wall Pack – Outdoor Area & Security LED Lighting

LED Full Cutoff Wall Pack – Outdoor Area & Security LED Lighting

SKU:HLDS10345

Quantity

Illuminate outdoor spaces efficiently with the LED Full Cutoff Wall Pack, designed to focus light precisely where it’s needed. Ideal for building perimeters, walkways, parking lots, and security lighting, this wall pack replaces traditional 100–600W MH fixtures while providing energy-efficient, high-quality illumination. Its angled design reduces light pollution and glare, while the durable die-cast aluminum housing ensures long-lasting outdoor performance.

Key Features:

  • Wattage Options: 40W – 150W to meet various outdoor lighting needs
  • High Brightness: 130 lumens per watt for clear, uniform illumination
  • Color Temperature Options: 3000K (Warm White), 4000K (Neutral White), 5000K & 5700K (Daylight)
  • Voltage Compatibility: 90-277V / 200-480V for flexible installation
  • Compact Dimensions: 14.1 in (L) x 9.2 in (W) x 9.6 in (H)
  • Mounting Type: Wall mount for easy installation
  • Finish Options: Brown, White, or Black to match any exterior
  • DLC Certified: Energy-efficient and rebate-eligible
  • IP65 Rated: Weatherproof and suitable for outdoor environments
  • Housing Material: Die-cast aluminum alloy for durability and heat dissipation
  • Metal Halide Equivalent: Replaces 100–600W MH lamps
  • Long Lifespan: 50,000 hours for maintenance-free operation

Specifications:

Specification Details
Wattage 40W – 150W
Lumens per Watt 130
Color Temperature 3000K / 4000K / 5000K / 5700K
Voltage 90-277V / 200-480V
Dimensions (L x W x H) 14.1 in x 9.2 in x 9.6 in
Mounting Type Wall Mount
Finish Brown / White / Black
DLC Listed Yes
IP Rating 65
Housing Material Die-Cast Aluminum Alloy
Metal Halide Replacement 100–600W MH
Life Hours 50,000
