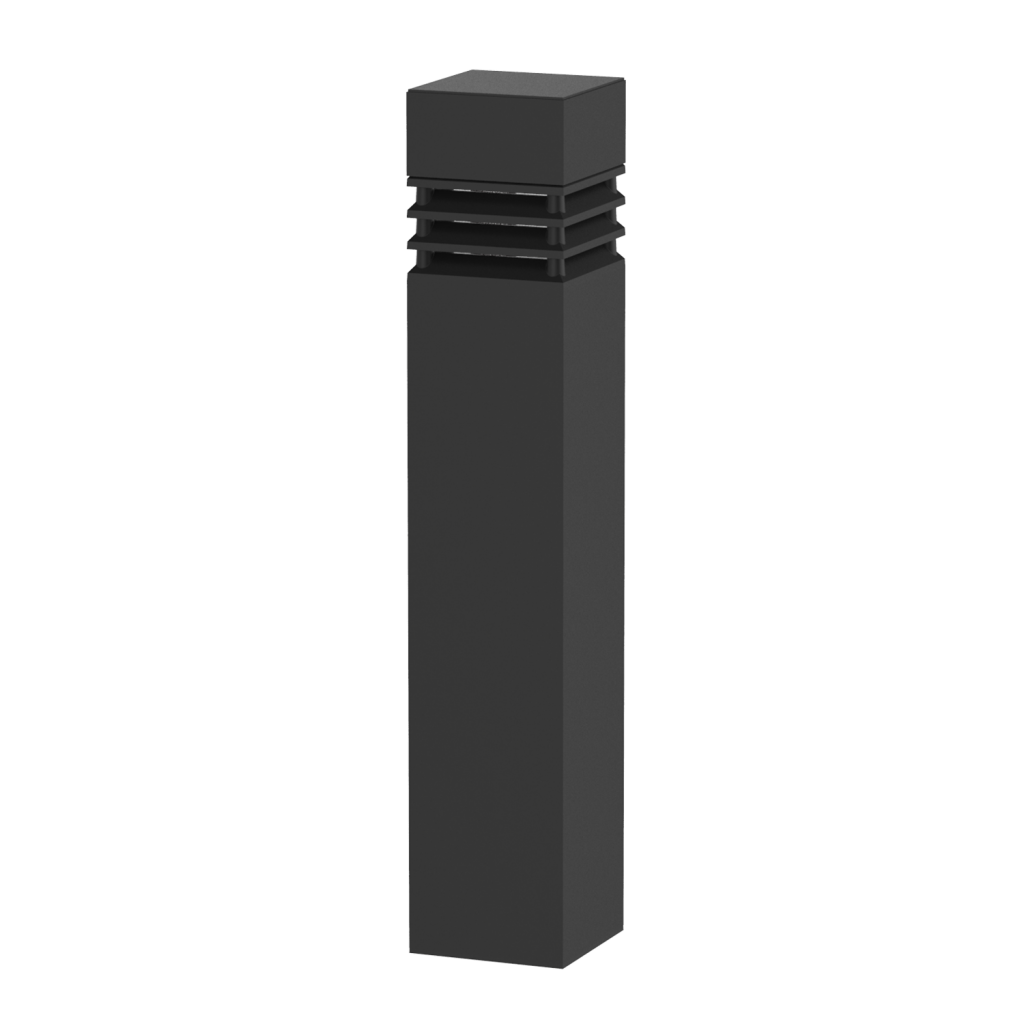

The Malibu SQ. Architectural LED Bollard delivers modern square styling, durable aluminum construction, and high-performance LED illumination for commercial outdoor environments. Designed with a clean, architectural appearance, this 8” square bollard is ideal for pedestrian walkways, office complexes, apartment buildings, hotels, and parks.
Constructed with an extruded aluminum body and cast aluminum base, the Malibu SQ. features a 3 mil powder coat finish for long-lasting durability. A clear polycarbonate lens comes standard, with optional louvers and opal acrylic lens upgrades available. Each unit includes (3) 3/8” x 10” anchor bolts for secure installation.
Offering wattage options from 15W to 30W and multiple optical configurations, this bollard provides over 66% energy savings compared to traditional HID lighting while maintaining superior lumen output and longevity.
Backed by a 10-year limited warranty and rated for over 200,000 hours of operation, the Malibu SQ. is a dependable solution for architectural landscape lighting projects.
Key Features
Modern 8” square architectural design
Extruded aluminum body with cast aluminum base
Clear polycarbonate lens (standard)
Optional louvers and opal acrylic lens
Over 66% energy savings vs HID
200,000-hour operating life
IP-rated for wet locations
Operating temperature: -30°C to 60°C
0–10V dimming capable
120–277V standard (480V optional)
10-year limited warranty
Construction & Durability
Heavy-duty aluminum housing
3 mil powder coat finish (multiple finishes available)
Silicone gasket for weather-tight protection
Optional vandal-resistant base
Mounting kit includes (3) 3/8” x 10” anchor bolts
Configuration Options
Size
8” Square (8S)
Height Options
24”
36”
42”
Light Distribution Options
Cast Grill 45º (CG)
Paracline (PR)
Stock Louver (SL)
Top Style
Flat Top (FT)
Wattage Options
15W (15CLED)
20W (20CLED)
30W (30CLED)
Color Temperature Options
3000K
4000K
5000K
Voltage Options
120–277V (MV)
480V (HV – Optional)
Finish Options
Black (BLK)
White (WH)
Bronze (BRZ)
Silver (SIL)
Graphite (GPH)
Marine Grade (MG)
Optional Accessories
Micro Wave Sensor (MWS)
Motion Sensor
Button Photocell (PC)
Wireless Controls (WC)
Opal Acrylic Lens (OAL)
Vandal-Resistant Base
Dimensions
MLB-8S
Width (A): 8” Square
Height (B): Up to 42” (depending on configuration)
