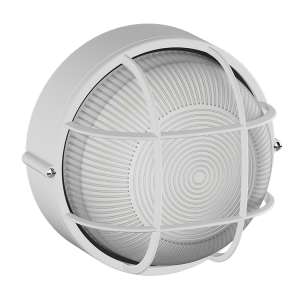

Marine Ceiling / Pendant Mount LED Fixture – Up to 20W (3,650 Lumens)

The Marine Ceiling / Pendant Mount LED Fixture (MRN) is a durable, weather-resistant lighting solution designed for residential, commercial, and public outdoor applications. Constructed from high-quality die-cast aluminum, this fixture delivers long-lasting performance in demanding environments while maintaining a clean architectural look.

Commonly installed in residential complexes, shopping districts, public buildings, and covered outdoor spaces, the Marine series features a white frosted glass diffuser for smooth, glare-reduced illumination. With outputs up to 3,650 lumens and multi-volt operation (120–277V), this fixture provides dependable performance across a wide range of projects.

Backed by a 10-Year / 100,000-Hour Limited Warranty, the Marine LED fixture offers reliability, efficiency, and long-term value.

Product Specifications

• Product Name: Marine Ceiling / Pendant Mount
• Cat#: MRN
• SKU: HLCPMM-480
• Maximum Output: Up to 20W (3,650 Lumens)
• Voltage: 120–277V (Multi-Volt)
• Input Frequency: 50/60Hz
• CRI: 75
• L70 Rating: >200,000 Hours
• Warranty: 10-Year / 100,000 Hours Limited Warranty

Construction & Finish

• Cast Aluminum Housing
• White Frosted Glass Diffuser
• 3 Mils Powder Coating Finish
• Available in Marine Grade Finish (MG)

Wattage Options

• 10W (10CLED)
• 20W (20CLED)

Lumen Output

• 10W: 1,938 Lumens
• 20W: 3,650 Lumens

Color Temperature (CCT) Options

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

Finish Options

• Black (BLK)
• White (WH)
• Bronze (BRZ)
• Gray (GRY)
• Graphite (GPH)
• Marine Grade (MG)

Mounting Options

• Wall Mount (WM)
• Ceiling / Pendant Applications

Optional Add-On

• Photo Cell (PC)

Dimensions

MRN

• A: 6"
• B: 9 5/8"

Performance Specifications

• MRN-10LED
  • Wattage: 10W
  • Lumen Output: 1,938 Lumens
  • Color Temperature: 5000K
  • CRI: 75
  • L70 Rating: >200,000 Hours
  • Input Frequency: 50/60Hz
• MRN-20LED
  • Wattage: 20W
  • Lumen Output: 3,650 Lumens
  • Color Temperature: 5000K
  • CRI: 75
  • L70 Rating: >200,000 Hours
  • Input Frequency: 50/60Hz

• Key Features
• Heavy-duty die-cast aluminum housing
• Frosted glass diffuser for uniform light distribution
• Marine-grade finish option available
• Multi-volt 120–277V compatibility
• Long lifespan with >200,000-hour L70 rating
• Ideal for residential and commercial outdoor installations
• Optional photocell for automatic dusk-to-dawn control
• 10-year / 100,000-hour limited warranty

• Ideal Applications
• Residential communities
• Shopping centers
• Public buildings
• Covered walkways
• Outdoor corridors
• Entryways and common areas
