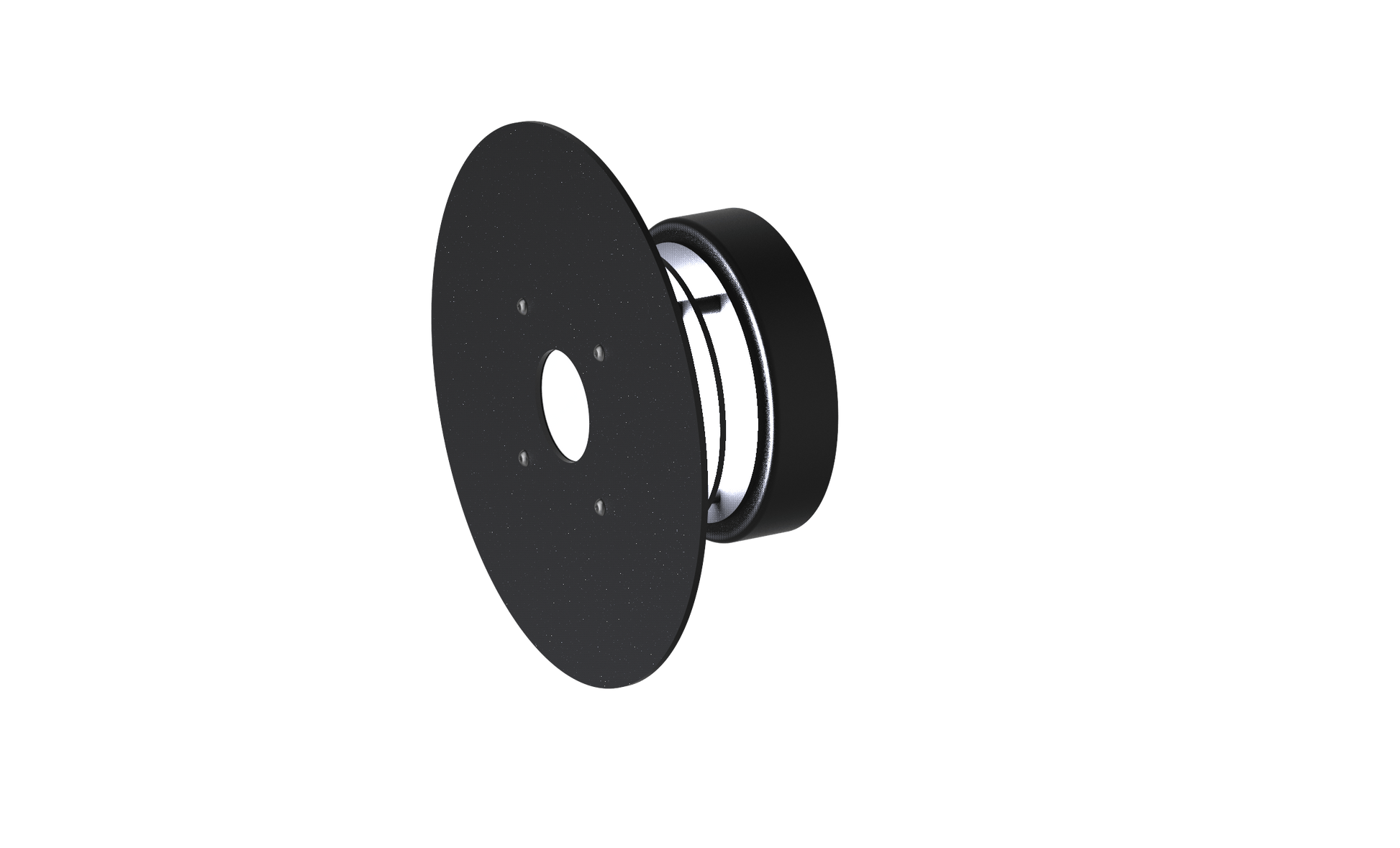

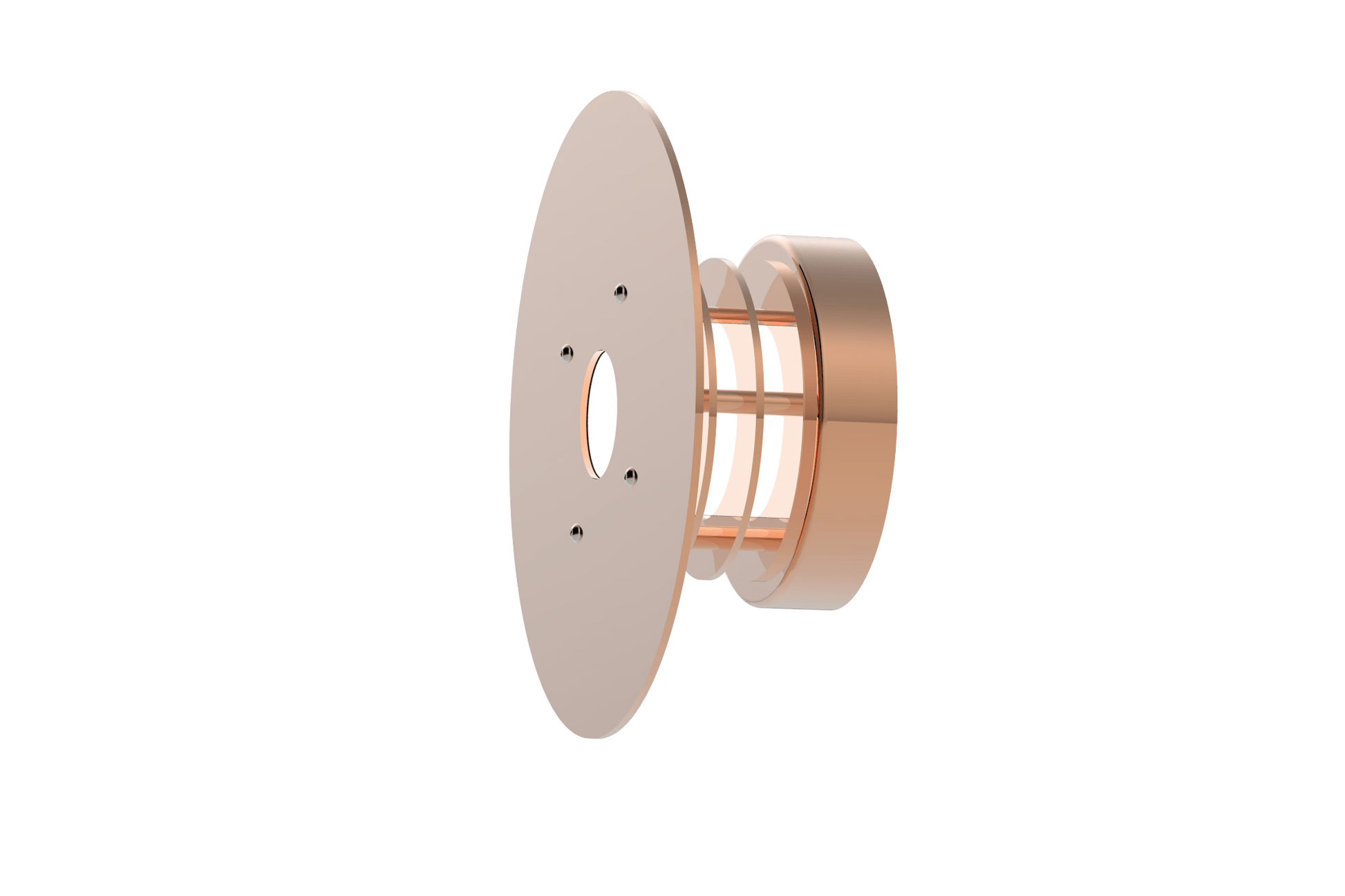

Odin-WM Architectural Wall / Ceiling Mount LED Fixture – Up to 20W (2,750 Lumens)

The Odin-WM Architectural Wall or Ceiling Mount is a sleek, vandal-resistant LED fixture engineered for security and architectural enhancement. Designed with a slim, modern profile, Odin-WM delivers uniform illumination for pathways, pedestrian walkways, landscapes, and building exteriors.

Ideal for office buildings, apartment complexes, hotels, and commercial properties, this fixture combines durability with refined aesthetics. Its heavy-gauge aluminum housing and weather-tight sealed design ensure long-term reliability in demanding outdoor environments.

With outputs up to 20W and 2,750 lumens, Odin-WM provides efficient, evenly distributed lighting while maintaining a low-profile architectural appearance. Backed by a 10-Year / 100,000-Hour Limited Warranty, it offers dependable, maintenance-friendly performance.

Product Specifications

• Product Name: Odin-WM Architectural Wall / Ceiling Mount
• Cat#: ODN-WM
• SKU: HLODWM-486
• Maximum Output: Up to 20W (2,750 Lumens)
• Voltage: 120–277V (Multi-Volt)
• Input Frequency: 50/60Hz
• CRI: 70
• Rated Life (L70): >200,000 Hours
• Warranty: 10-Year / 100,000 Hours Limited Warranty

Construction & Design

• Heavy Gauge Aluminum Housing
• 3 Mils Powder Coat Finish
• Opal Acrylic Lens (Standard)
• Optional Frosted Acrylic Lens (FAL)
• Silicone Gasket for Weather-Tight Protection
• Security & Vandal-Resistant Design
• Slim Architectural Profile

Wattage Options

• 10W (10CLED)
• 20W (20CLED)

Lumen Output

• 10W: 1,450 Lumens
• 20W: 2,750 Lumens

Color Temperature (CCT) Options

• 3000K (30K)
• 4000K (40K)
• 5000K (50K)

Finish Options

• Black (BLK)
• White (WH)
• Bronze (BRZ)
• Silver (SIL)
• Graphite (GPH)
• Marine Grade (MG)

Dimensions

ODN-WM

• A: 10"
• B: 4 1/4"
• C: 6"

Performance Specifications

• ODN-WM-12CLED (10W)
  • Wattage: 10W
  • Lumen Output: 1,450 Lumens
  • Efficacy (LPW): 145
  • Color Temp (CCT): 5000K
  • CRI: 70
  • Rated Life (L70): >200,000 Hours
  • Input Voltage: 120–277V
  • Frequency: 50/60Hz
• ODN-WM-16CLED (20W)
  • Wattage: 20W
  • Lumen Output: 2,750 Lumens
  • Efficacy (LPW): 137
  • Color Temp (CCT): 5000K
  • CRI: 70
  • Rated Life (L70): >200,000 Hours
  • Input Voltage: 120–277V
  • Frequency: 50/60Hz

• Key Features
• Architectural wall or ceiling mount design
• Vandal-resistant, security-focused construction
• Weather-tight silicone gasket protection
• Uniform light distribution for pathways and building exteriors
• Multi-volt 120–277V operation
• Optional frosted acrylic lens upgrade
• Marine-grade finish option available
• 10-year / 100,000-hour limited warranty

• Ideal Applications
• Pedestrian walkways
• Office building exteriors
• Apartment complexes
• Hotels and hospitality properties
• Pathway and landscape lighting
• Security lighting installations
