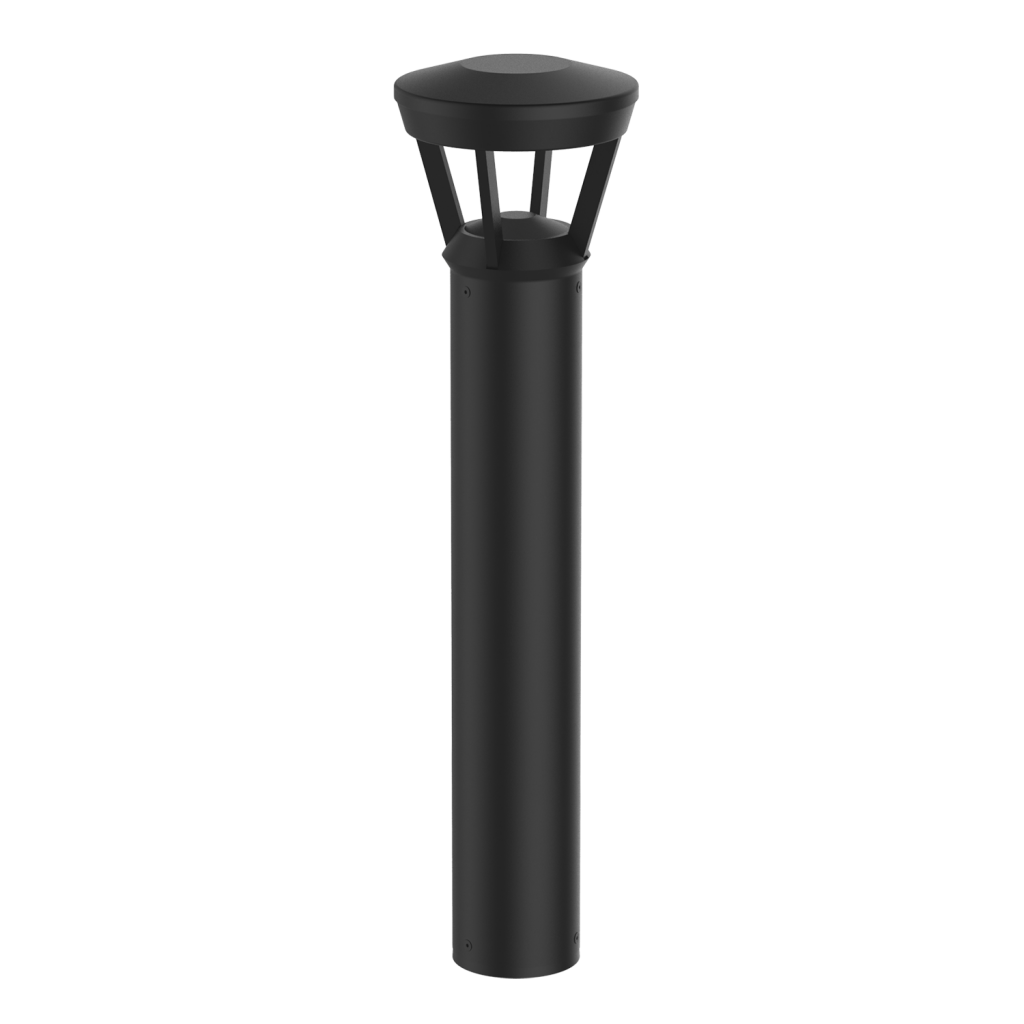

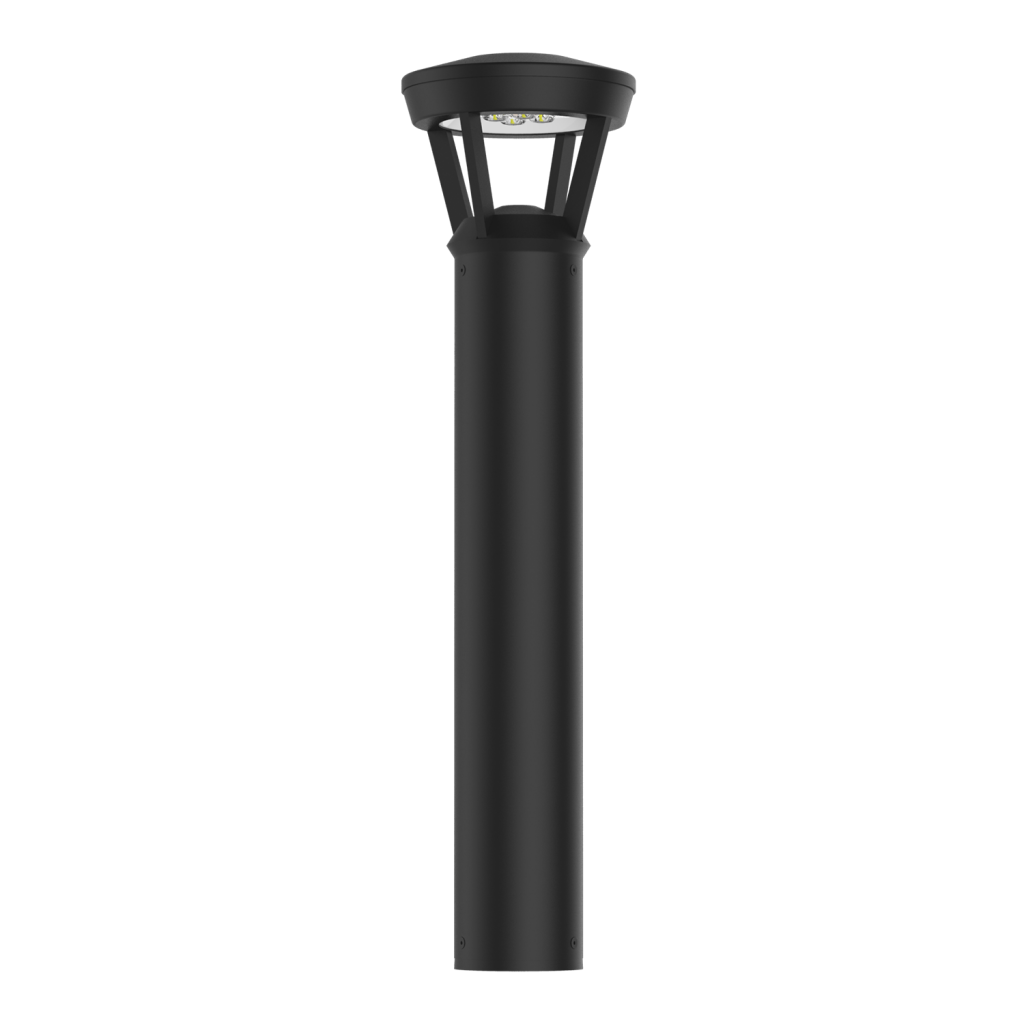

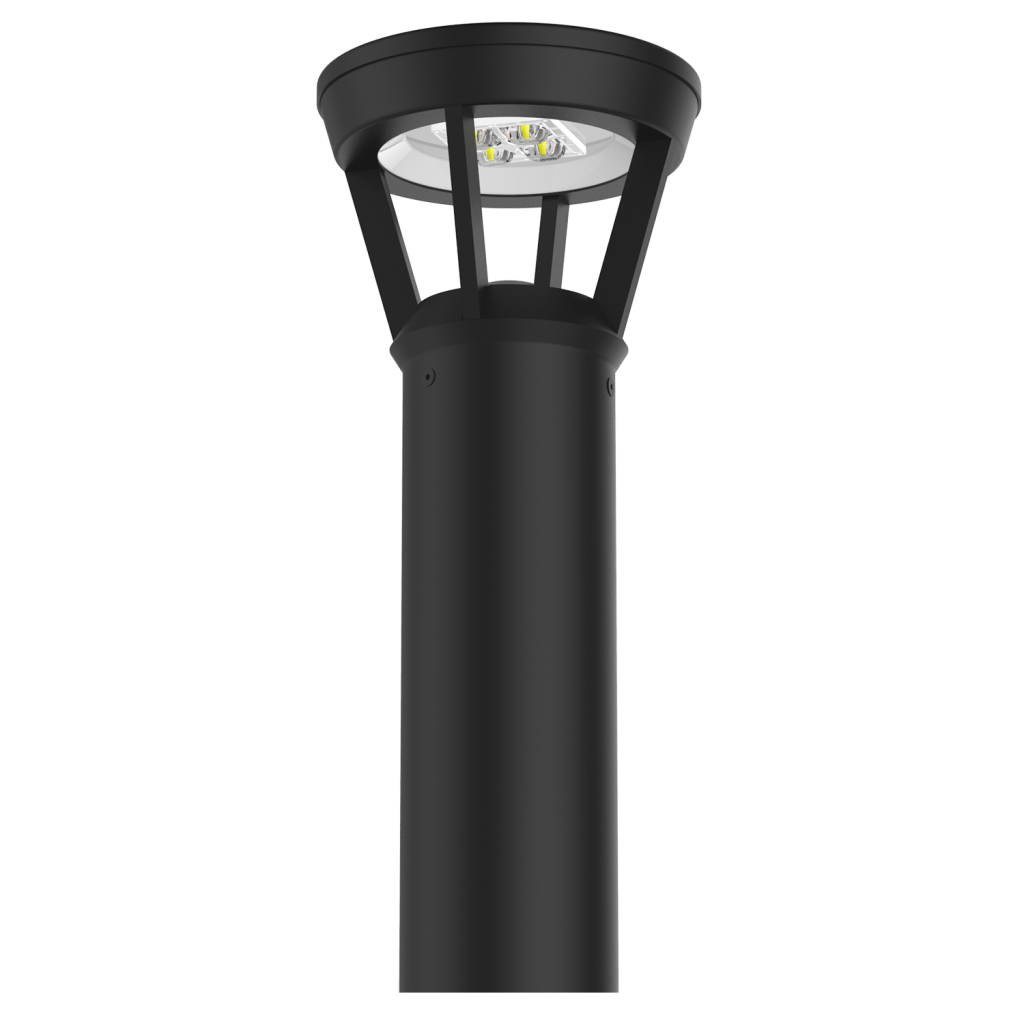

The Pulsar LED Bollard is a premium architectural outdoor lighting solution designed for pedestrian walkways, commercial landscapes, hotels, office complexes, apartment communities, and parks. Featuring a sleek, modern design with downward light distribution, this Dark Sky compliant bollard enhances safety while minimizing glare and light pollution.
Engineered for durability and performance, the Pulsar Bollard delivers superior lumen maintenance, energy savings of over 66% compared to traditional HID fixtures, and an impressive operating life exceeding 200,000 hours. Built with an extruded aluminum body, cast aluminum base, and heavy-gauge spun top, it is designed to withstand harsh outdoor environments.
With multiple wattage options, light distribution types (Type II, III, IV, V), mounting hardware included, and advanced control options available, the Pulsar LED Bollard is the ideal choice for high-performance commercial exterior lighting.
Backed by a 10-Year Limited Warranty.
Key Features
- Energy savings of 66%+ compared to HID light sources
- High-efficiency LED technology with improved lumen maintenance
- Operating life greater than 200,000 hours (L70)
- Dark Sky compliant with controlled downward light distribution
- Available in Type II, III, IV, and V light distribution
- 0-10V dimming driver (optional)
- Optional microwave sensor, motion sensor, photocell, and wireless controls
- Optional vandal-resistant base
- Wet location rated
- Operating temperature range: -30°C to 60°C
- 10-Year Limited Warranty
Construction & Finish
- Extruded aluminum body with cast aluminum base
- Heavy-gauge spun aluminum top
- Clear optical system (standard)
- Silicone gasket for weather-tight protection
- 3 Mil powder coat finish
- Available finishes: Black, White, Bronze, Silver, Graphite, Marine Grade
- Mounting kit included with (3) 10” anchor bolts
Specifications
-
General Dimensions
- Diameter: 6” OD
- Height Options: 42”, 36”, 24”
- Base Dimension: 11”
- Mounting: (3) 10” anchor bolts included
-
Electrical
- Voltage: 120–277V (standard), 480V (optional)
- Frequency: 50/60Hz
- Driver: Constant current
- Dimming: 0–10V (optional)
- Suitable for wet locations
-
Color Temperature Options
-
CRI
- Performance Data by Model
- PLSRB-15CLED
- Input Power: 20W
- Lumen Output: 2,312 lumens
- Efficacy: 154 LPW
- CCT: 5000K
- Rated Life (L70): >200,000 hours
- Input Voltage: 120–277V
- PLSRB-20CLED
- Input Power: 25W
- Lumen Output: 2,910 lumens
- Efficacy: 145 LPW
- CCT: 5000K
- Rated Life (L70): >200,000 hours
- Input Voltage: 120–277V
- PLSRB-30CLED
- Input Power: 35W
- Lumen Output: 4,201 lumens
- Efficacy: 140 LPW
- CCT: 5000K
- Rated Life (L70): >200,000 hours
- Input Voltage: 120–277V
- PLSRB-40CLED
- Input Power: 45W
- Lumen Output: 5,318 lumens
- Efficacy: 132 LPW
- CCT: 5000K
- Rated Life (L70): >200,000 hours
- Input Voltage: 120–277V
-
Available Options
- Type II, Type III, Type IV, Type V distribution
- Microwave sensor (MWS)
- Motion sensor
- Button photocell
- Wireless controls
- Vandal-resistant base
- Marine-grade finish
- 480V driver
-
Ideal Applications
- Pedestrian walkways
- Hotels and resorts
- Office buildings
- Apartment complexes
- Parks and public spaces
- Commercial exterior landscaping
