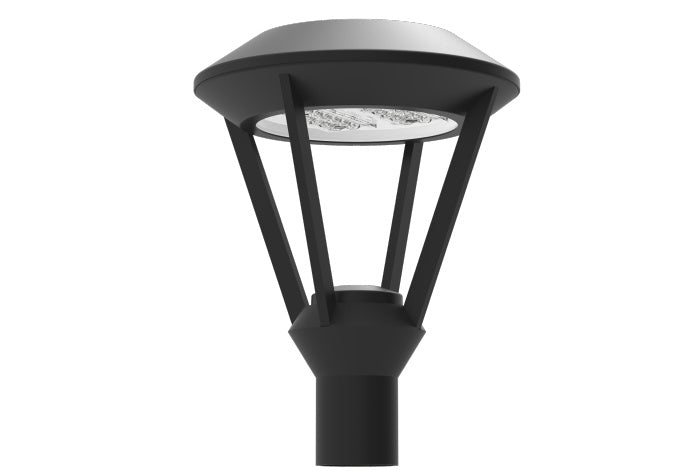

The Pulsar Series Architectural LED Luminaire is a premium post-top lighting solution designed for residential communities, walkways, campuses, commercial spaces, parking lots, parks, and perimeter security applications. Engineered for wet locations and built with heavy-duty spun aluminum construction, Pulsar delivers long-lasting performance with modern architectural appeal.
Featuring high-efficiency Lumiled LEDs and a Clear Optics System, the Pulsar Series provides exceptional light uniformity and superior lumen maintenance while achieving over 66% energy savings compared to traditional HID fixtures. With multiple wattages, light distributions, color temperatures, and control options available, this versatile LED luminaire adapts to virtually any outdoor lighting project.
Dark Sky compliant and backed by a 10-Year / 100,000-hour warranty, the Pulsar Series is built for performance, efficiency, and durability.
Key Features
- Over 66% energy savings compared to HID lighting
- High-performance Lumiled LEDs
- Dark Sky compliant design
- Rated for wet locations
- Constant current driver (120–277V standard, 480V optional)
- 10kV surge protector (standard)
- 0–10V dimming capability
- Optional motion sensors, photocell, and wireless controls
- Operating temperature range: -30°C to 60°C
- 10-Year / 100,000-hour warranty
- Excellent lumen maintenance
Construction & Durability
- Heavy-duty spun aluminum housing
- 3 mil powder coat finish for corrosion resistance
- Clear Optics System for precise light distribution
- Silicone gasket for weather-tight protection
- Standard mounting over 3” O.D. tenon or pole
- Adapter required for alternative mounting sizes

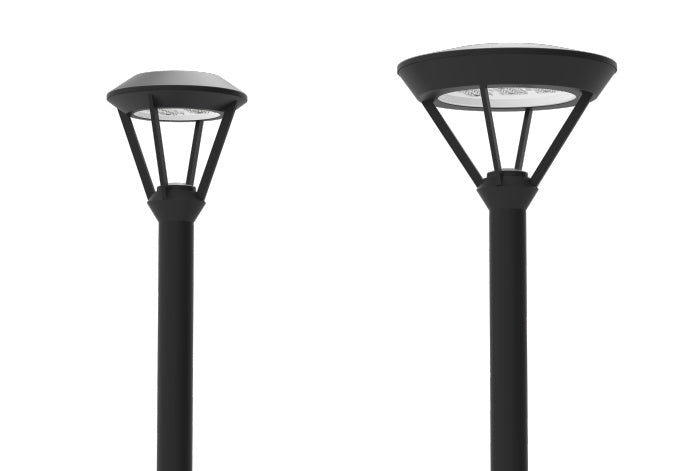

Available Models
- Pulsar S (PLSR-S)
- Pulsar I (PLSR-I)
- Pulsar II (PLSR-II)
Wattage Options
20W, 40W, 50W, 60W, 70W, 80W, 100W, 150W, 180W, 200W
Light Distribution Options
- Type 2 (T2)
- Type 3 (T3)
- Type 4 (T4)
- Type 5 (T5)
Color Temperature (CCT)
Voltage Options
- 120–277V (Multi-Voltage)
- 480V (High Voltage – Optional)
Finish Options
- Black
- White
- Silver
- Bronze
- Graphite
- Custom
Optional Accessories
- Motion Sensor (OCS)
- Button Photocell (PC)
- Wireless Controls (WC)
- House Side Shield (HSS)
Dimensions & EPA
- PLSR-S
- EPA: 0.75
- PLSR-I
- A: 20”
- B: 21”
- EPA: 0.9
- PLSR-II
- Performance Specifications by Model
- PLSR-S-20CLED
- Input Power: 25W
- Lumen Output: 3,650 lm
- Efficacy: 182 LPW
- CCT: 5000K
- CRI: 70+
- Rated Life (L70): >200,000 hours
- HID Equivalent: 70W MH
- PLSR-S-40CLED
- Input Power: 45W
- Lumen Output: 6,492 lm
- Efficacy: 162 LPW
- HID Equivalent: 150W HPS
- PLSR-S-50CLED
- Input Power: 55W
- Lumen Output: 7,780 lm
- Efficacy: 155 LPW
- HID Equivalent: 150W MH
- PLSR-S-60CLED
- Input Power: 65W
- Lumen Output: 8,539 lm
- Efficacy: 142 LPW
- HID Equivalent: 175W PSMH
- PLSR-I-70CLED
- Input Power: 75W
- Lumen Output: 9,986 lm
- Efficacy: 142 LPW
- HID Equivalent: 250W MH
- PLSR-I-80CLED
- Input Power: 85W
- Lumen Output: 12,984 lm
- Efficacy: 155 LPW
- HID Equivalent: 250W HPS
- PLSR-I-100CLED
- Input Power: 105W
- Lumen Output: 15,561 lm
- Efficacy: 155 LPW
- HID Equivalent: 400W MH
- PLSR-II-150CLED
- Input Power: 155W
- Lumen Output: 23,340 lm
- Efficacy: 145 LPW
- HID Equivalent: 400W PS
- PLSR-II-180CLED
- Input Power: 185W
- Lumen Output: 28,010 lm
- Efficacy: 155 LPW
- HID Equivalent: 500W MH
- PLSR-II-200CLED
- Input Power: 200W
- Lumen Output: 31,120 lm
- Efficacy: 155 LPW
- HID Equivalent: 750W PSMH
- Ideal Applications
- Residential exteriors
- HOA communities
- Campus lighting
- Parking lots
- Industrial & commercial facilities
- Recreational parks
- Perimeter security lighting
- Walkways and pedestrian pathways
