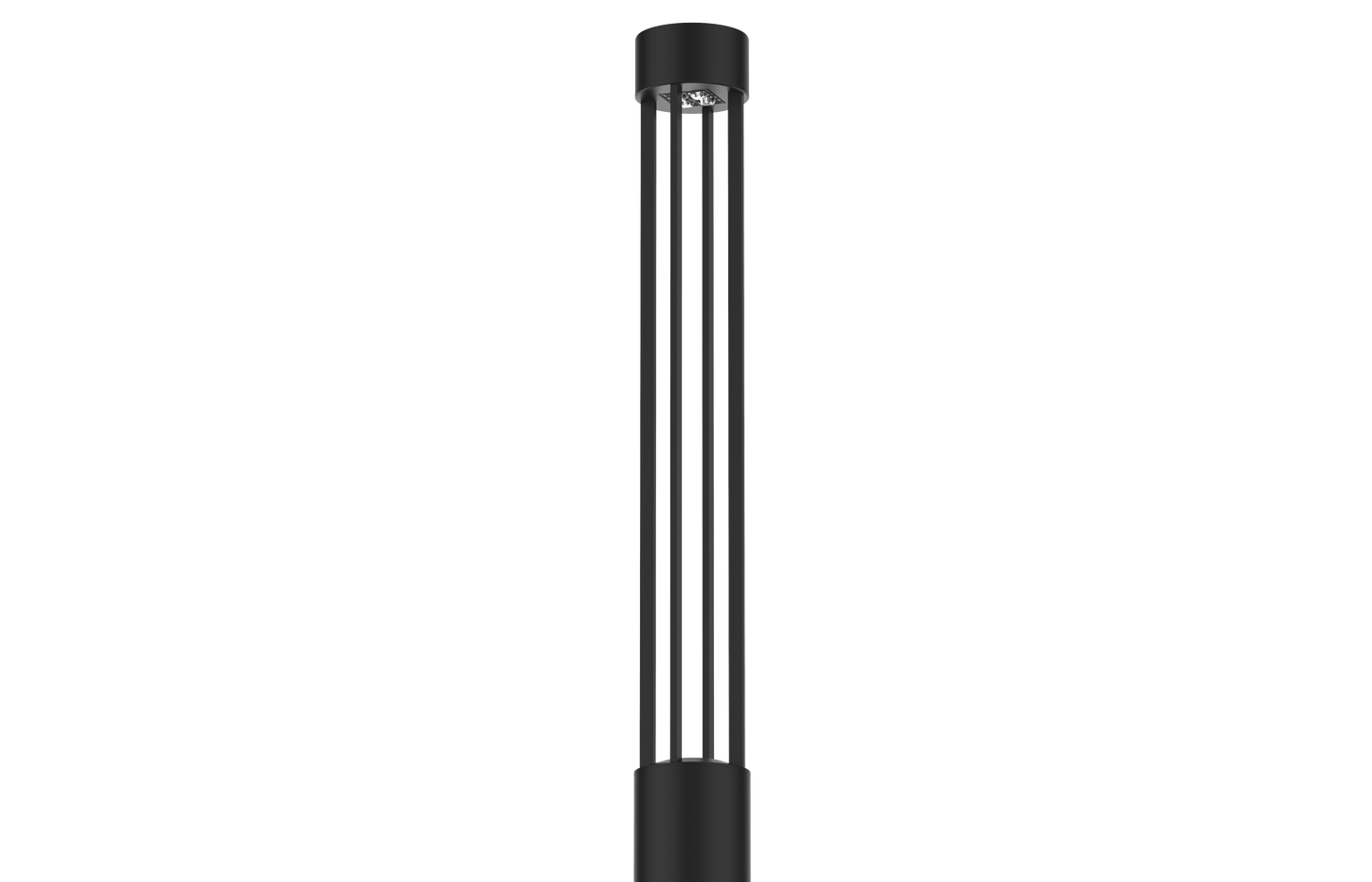

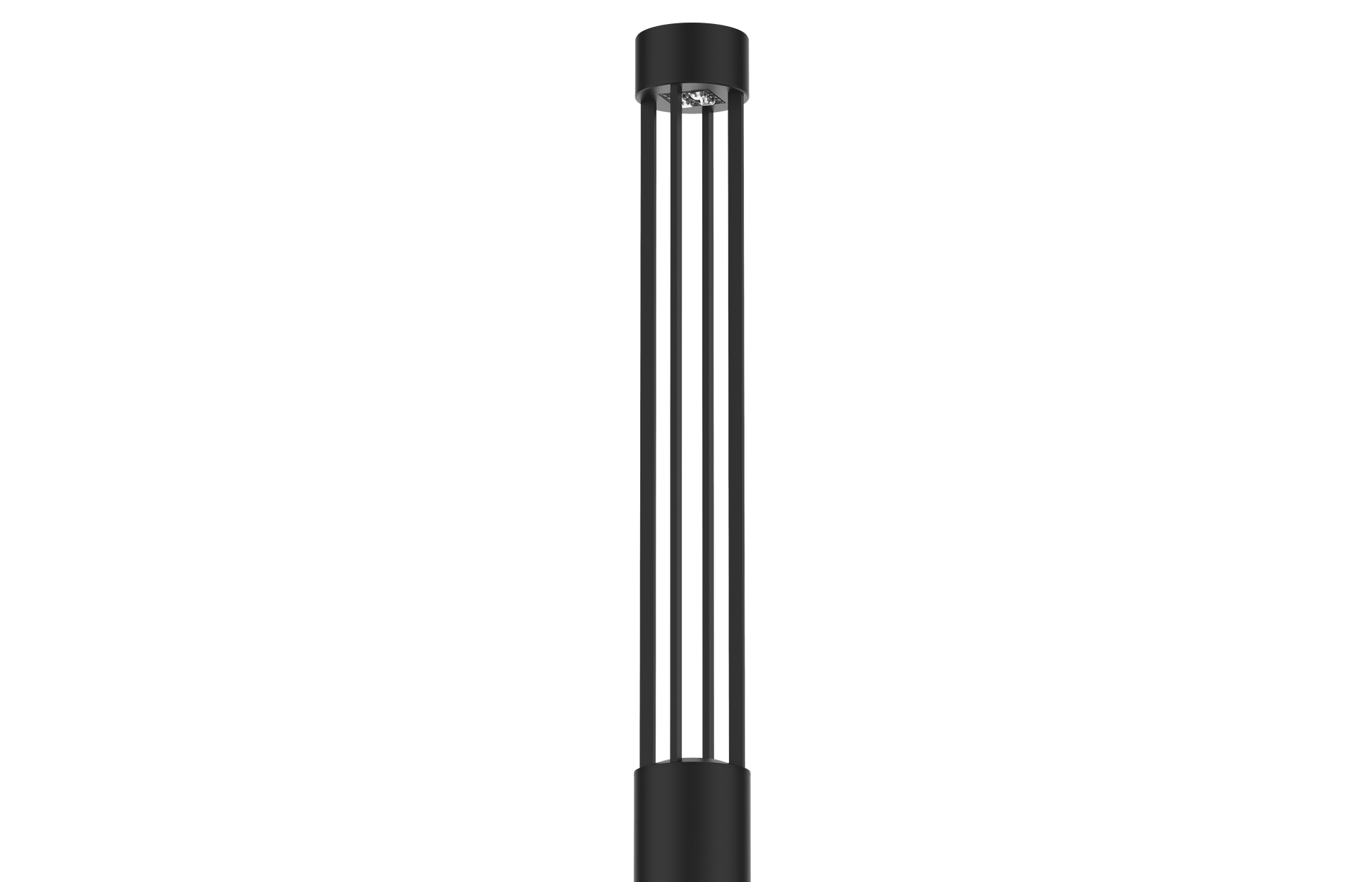

Astral Column – Architectural LED Outdoor Lighting
Astral Column – Architectural LED Outdoor Lighting
SKU:HLAC-421
Couldn't load pickup availability
Quick Answers
Is the Astral Column (HLAC-421) suitable for hotels?
Yes. Hotel Lamps supplies this product for hotel entrances, exteriors, walkways and parking areas. Full specifications are listed above.
Can I order it in bulk for a hotel project?
Yes. Add it to your quote list or request a quote with the model number (HLAC-421) and quantity. Our team will reply with project pricing and availability.
Who can help me choose the right model?
Call (800) 574-4561 (Mon–Fri, 8am–5pm PT) or contact us. We help hotels, designers and contractors match fixtures, finishes and quantities.
The Astral Column is a modern architectural LED lighting solution designed for residential, commercial, and municipal exteriors. Constructed from rugged aluminum alloy with a heavy-duty cast aluminum housing and 3 mil powder coat finish, Astral Columns deliver durable, long-lasting performance.
Equipped with a silicone gasket and IP66 protection, these columns are ideal for walkways, perimeters, school campuses, parking areas, recreational parks, and industrial spaces. Astral Columns are available in multiple diameters, heights, wattages, and color temperatures, making them a versatile solution for architectural lighting designs.
- 10-year / 100,000-hour limited warranty
- Type 2, 3, 4, and 5 clear optics for optimal light distribution
- Energy-efficient LED luminaires with long lifespan
Key Features
- Rugged aluminum alloy construction with heavy-duty cast housing
- 3 mil powder coat finish for durability and weather resistance
- IP66 rated with silicone gasket for water and dust protection
- Symmetric light distribution (Type 2, 3, 4, 5 optics)
- Wide range of wattages: 12W, 25W, 35W, 45W, 50W
- Color temperatures: 3000K, 4000K, 5000K
- Voltages: 120-277V universal input
- Optional accessories: Photo Cell (PC) and Wireless Control (WC)
- Ideal for outdoor architectural, commercial, and industrial applications
Diameter Options
- 6” O.D
- 8” O.D
Base / Bar Height Options
- 36” / 12” Bars
- 42” / 12” Bars
- 6’-5” / 24” Bars
- 7’-5” / 35” Bars
- 8’-5” / 35” Bars
- 10’-5” / 35” Bars
- 12’-5” / 48” Bars
Wattage & Light Output
| Cat# | Wattage | Lumen Output | Color Temp | CRI | Rated Life | Voltage |
|---|---|---|---|---|---|---|
| AST | 12W | 1,374 lm | 5000K | 70+ | >200,000 hrs | 120-277V |
| AST | 25W | 2,626 lm | 5000K | 70+ | >200,000 hrs | 120-277V |
| AST | 35W | 3,469 lm | 5000K | 70+ | >200,000 hrs | 120-277V |
| AST | 45W | 4,035 lm | 5000K | 70+ | >200,000 hrs | 120-277V |
| AST | 50W | 4,460 lm | 5000K | 70+ | >200,000 hrs | 120-277V |
Color & Finish Options
- Bronze (BZ)
- Gray (GRY)
- Black (BLK)
- White (WH)
- Custom (CST)
Shade Dimensions
| Height | Bar Length | Width | Depth |
|---|---|---|---|
| 36" | 12" | 19" | – |
| 42" | 12" | 25" | – |
| 6’-5" | 24" | 4' | – |
| 7’-5" | 35" | 4' | – |
| 8’-5" | 35" | 5' | – |
| 10’-5" | 35" | 7' | – |
| 12’-5" | 48" | 8' | – |
Ideal Applications
- Walkways, paths, and pedestrian zones
- Residential exteriors and perimeters
- School campuses and university grounds
- Recreational parks and parking areas
- Industrial and commercial outdoor spaces
