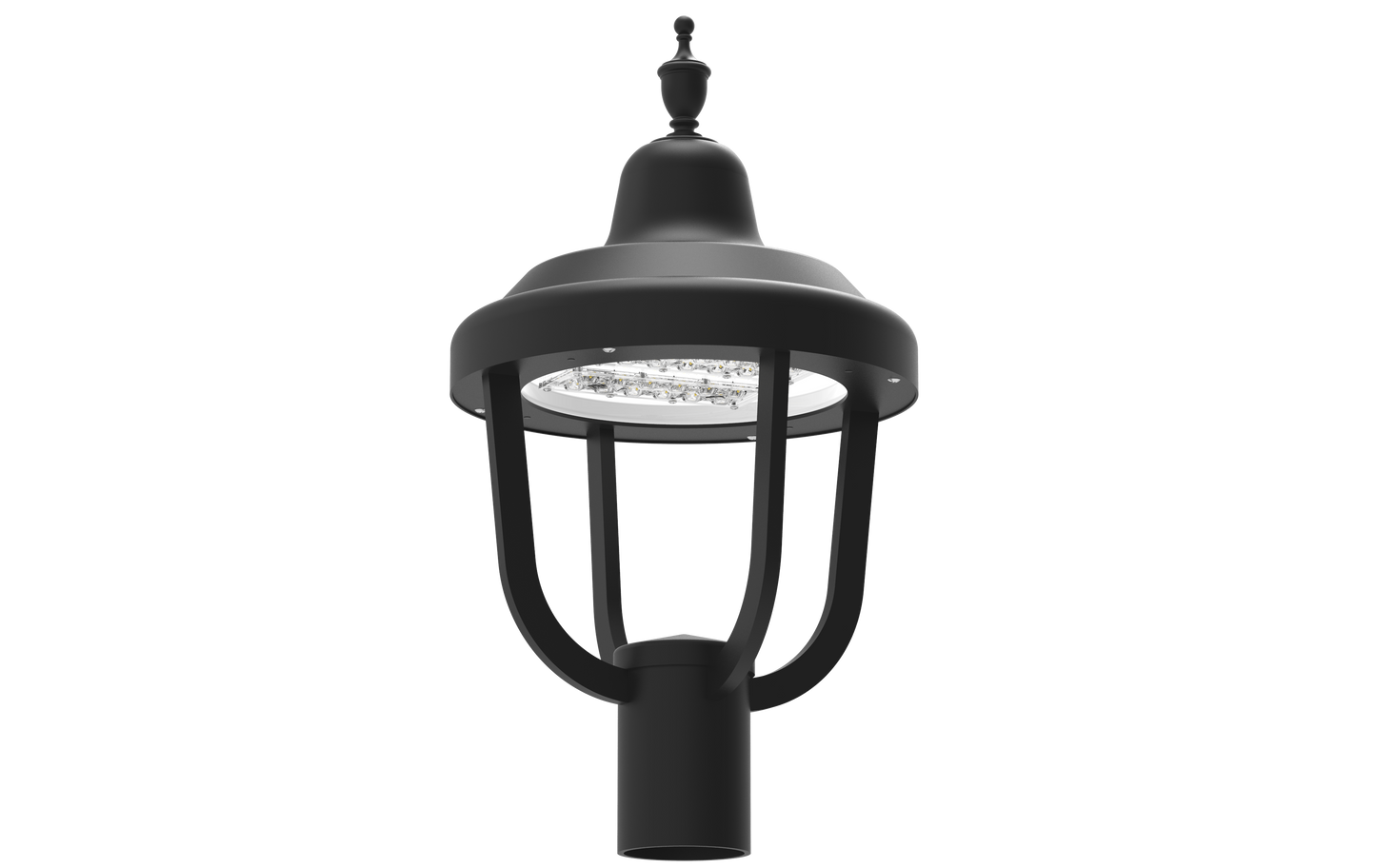

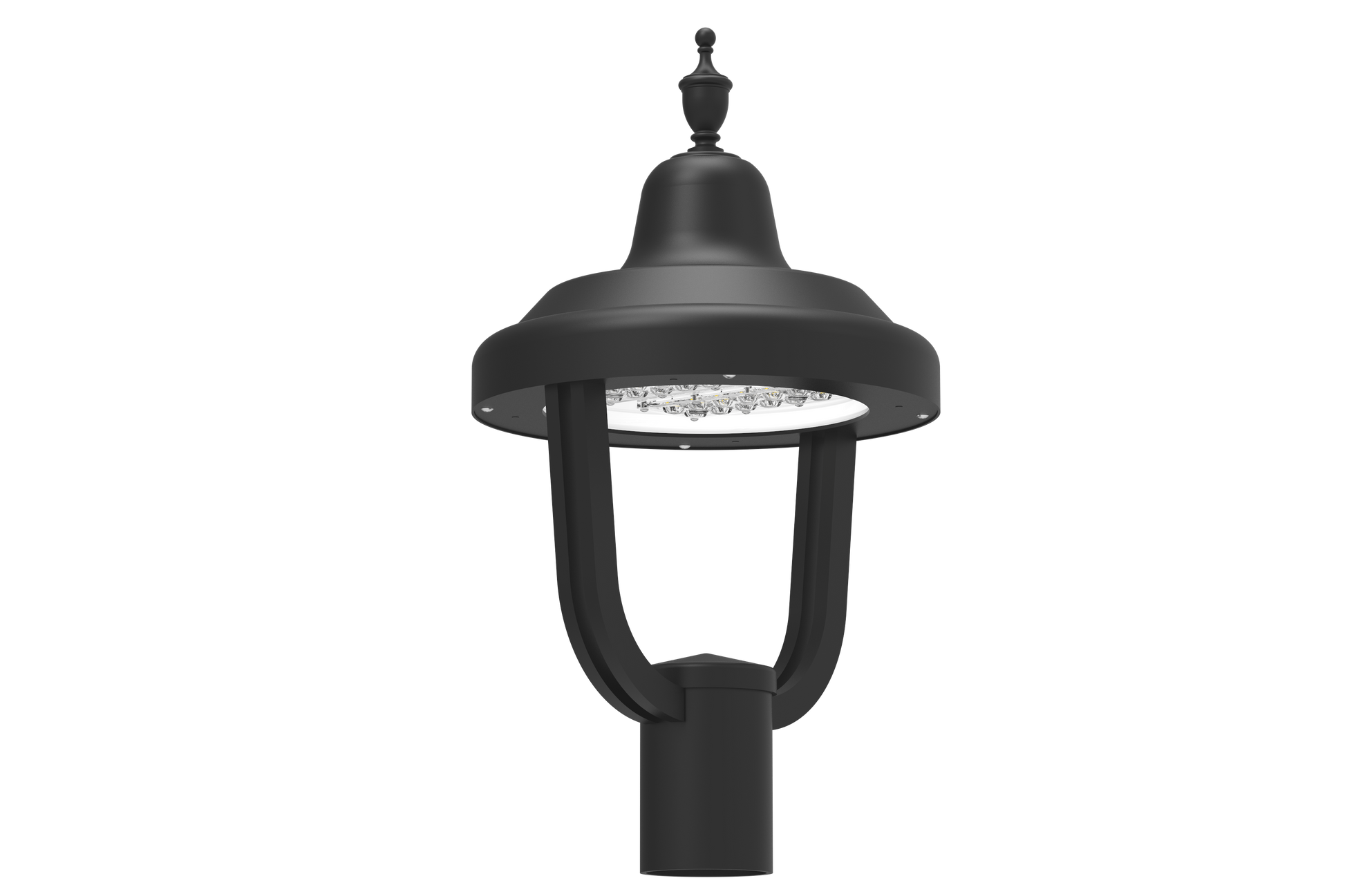

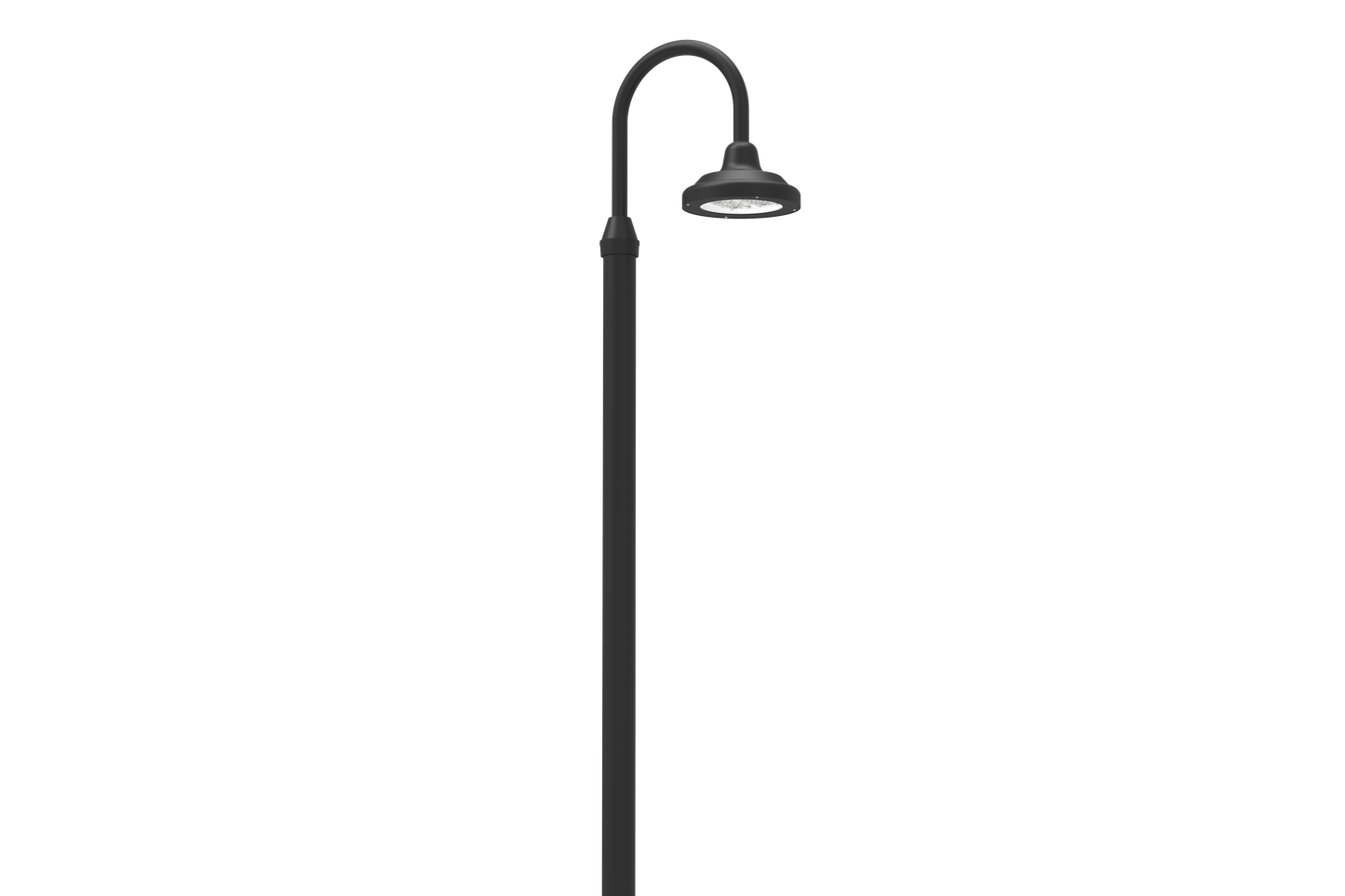

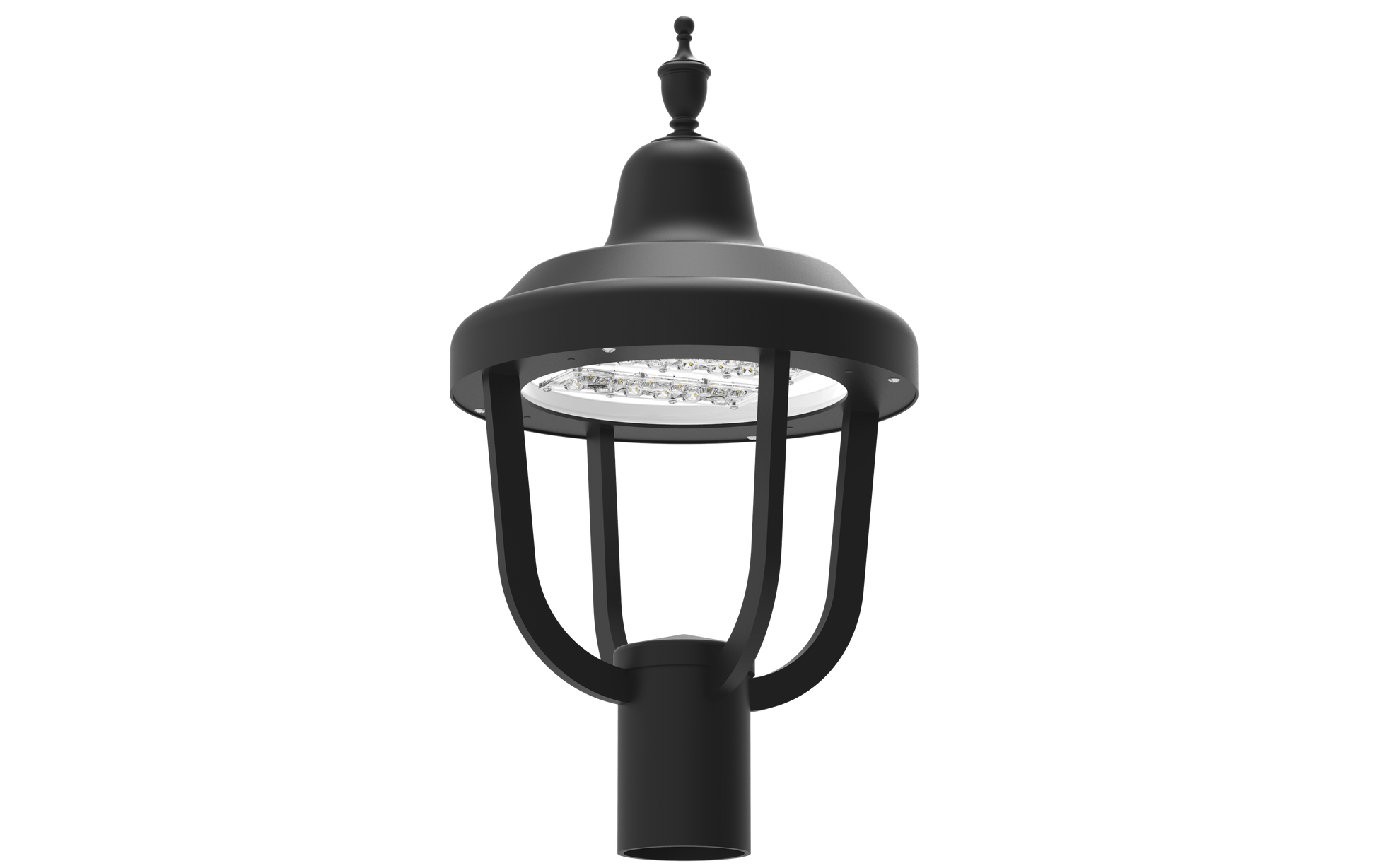

CLP-5000 – Architectural LED Post Top Luminaire
CLP-5000 – Architectural LED Post Top Luminaire
SKU:HLCLP-5000
Quantity
Couldn't load pickup availability
The CLP-5000 Architectural LED Post Top Fixture is designed for residential exteriors, walkways, perimeters, school campuses, parking lots, recreational parks, and commercial/industrial spaces. This weather-resistant fixture features wide light distribution and is suitable for wet locations, making it ideal for both functional and decorative outdoor lighting.
Built from heavy-duty spun aluminum with a 3 mil powder coat finish, the CLP-5000 comes with clear optics (Type 2, 3, 4, or 5) and a silicone gasket to ensure IP-66 protection against weather and leakage.
- 10-year / 100,000-hour limited warranty
- Wide distribution for optimal illumination
- Optional accessories for enhanced functionality
Key Features
- Heavy-duty spun aluminum housing for durability
- 3 mil powder coat finish in standard black or white (custom colors available)
- Clear optic system with Type 2, 3, 4, or 5 light distribution
- Silicone gasket provides weather-tight protection (IP-66)
- Suitable for wet locations
- Optional accessories: Motion Sensor (OCC), Button Photo Cell (PC), Wireless Controls (WC)
- Energy-efficient LED with high lumen output and long lifespan
- CRI 70+ with L70 rated life >200,000 hours
Wattage & Lumen Output
| Cat# | Input Power | Lumen Output | LPW | Color Temp | CRI | Rated Life | HID Equivalent |
|---|---|---|---|---|---|---|---|
| CLP-5000-20CLED | 25W | 3,650 lm | 182 | 5000K | 70+ | >200,000 hrs | 100W MH |
| CLP-5000-40CLED | 45W | 6,492 lm | 162 | 5000K | 70+ | >200,000 hrs | 150W HPS |
| CLP-5000-50CLED | 55W | 7,780 lm | 155 | 5000K | 70+ | >200,000 hrs | 250W MH |
| CLP-5000-60CLED | 65W | 8,539 lm | 142 | 5000K | 70+ | >200,000 hrs | 250W PSMH |
| CLP-5000-70CLED | 75W | 9,986 lm | 142 | 5000K | 70+ | >200,000 hrs | 250W HPS |
Mounting & Dimensions
- Mounting Options: Spider Mount (SM), Yoke Mount (YM)
- Dimensions (A x B): 14” 3/8 x 26”
-
EPA:
- CLP-5000-SP: 0.85
- CLP-5000-YA: 0.83
Color & Finish Options
- Black (BLK)
- White (WH)
- Bronze (BRZ)
- Silver (SIL)
- Graphite (GPH)
- Marine Grade (MG)
Ideal Applications
- Residential walkways and perimeters
- School and university campuses
- Recreational parks and plazas
- Parking lots and commercial exteriors
- Industrial outdoor spaces
