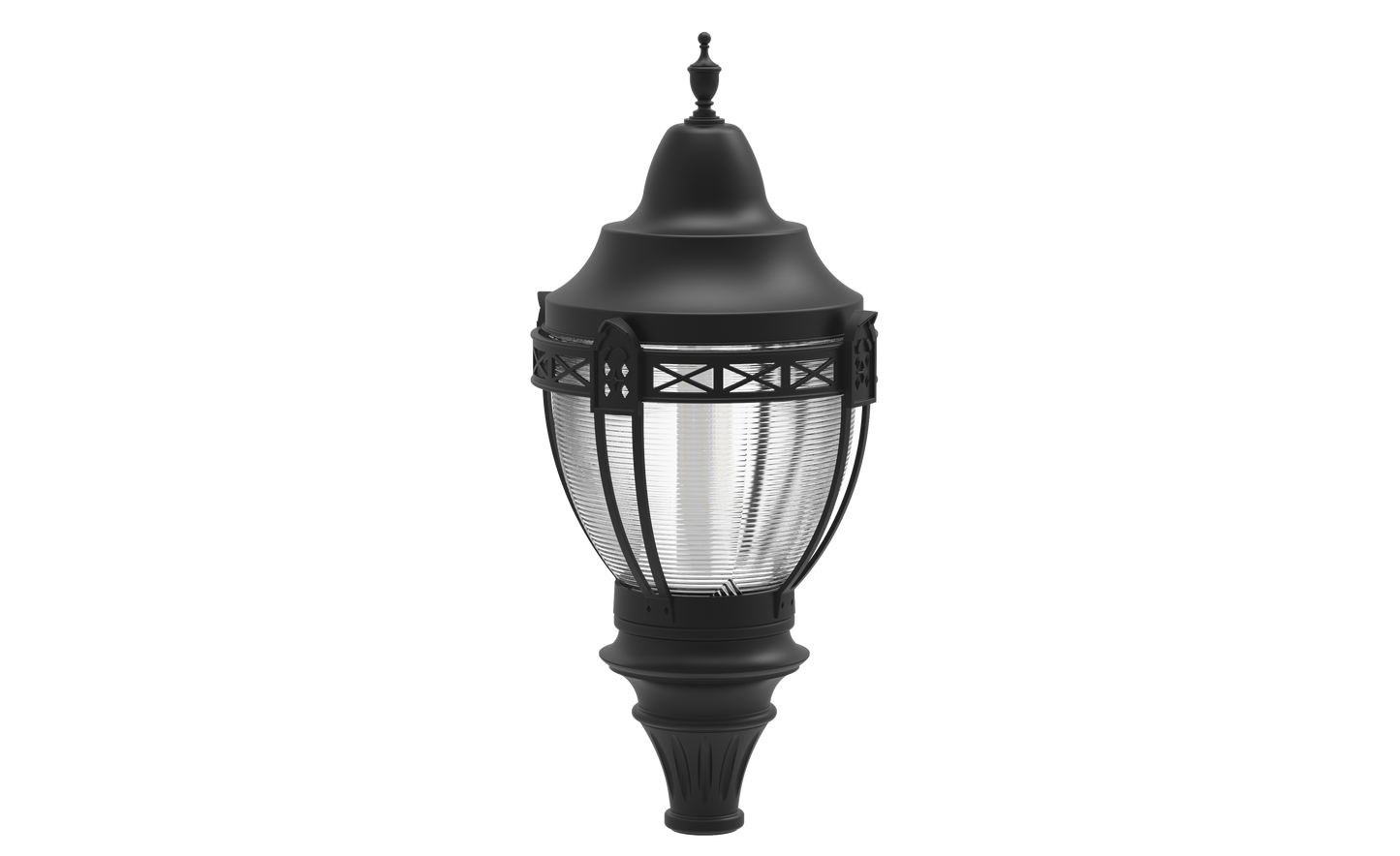

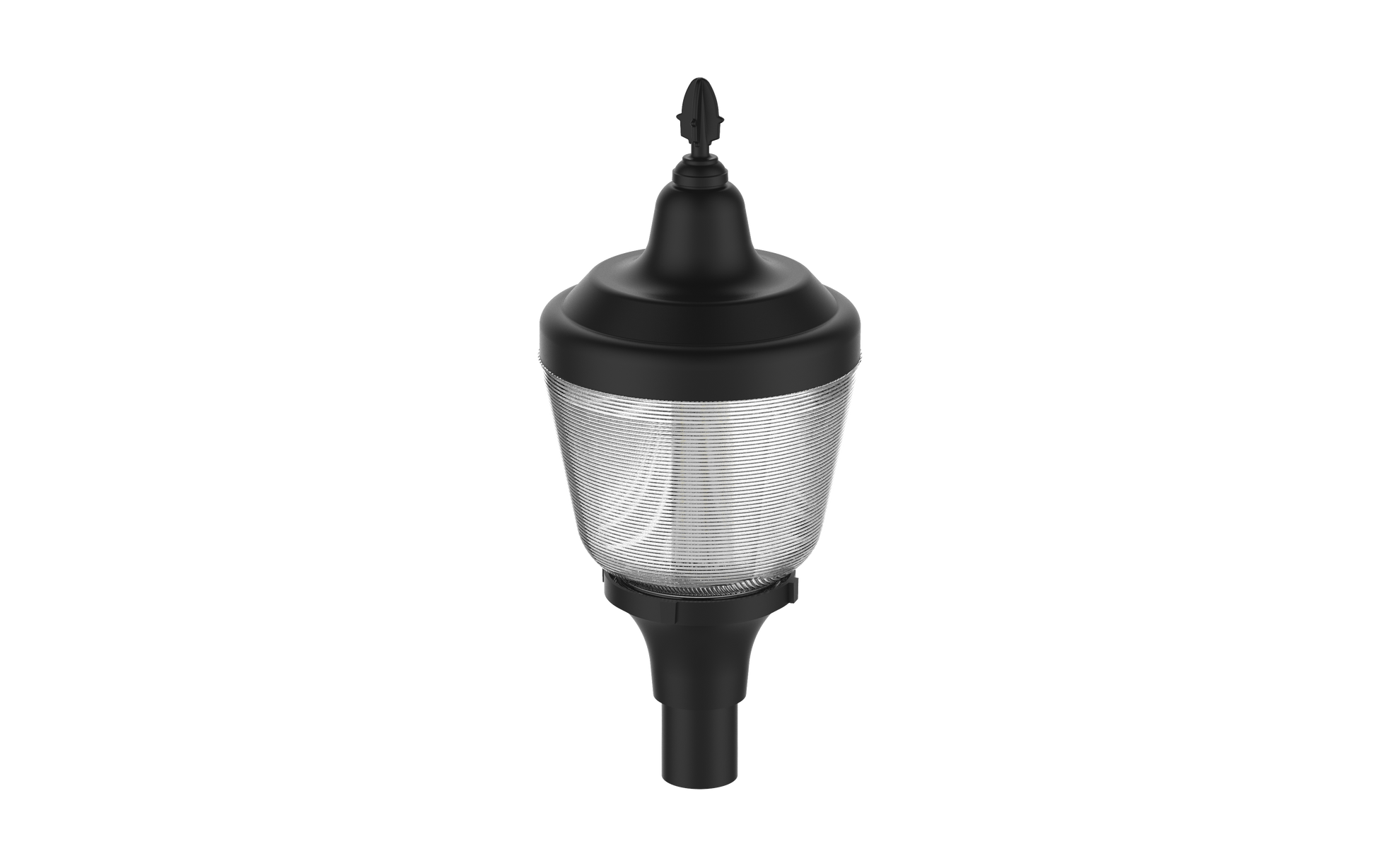

The CLP-ACRN Architectural LED Luminaire is engineered for residential exteriors, walkways, entryways, perimeters, storage areas, parking garages, school campuses, industrial/commercial spaces, and recreational parks. Featuring wide light distribution with Type 3 and Type 5 optics, this fixture delivers both functional and aesthetic illumination for outdoor environments.
Constructed from heavy-duty cast aluminum with a 3 mil powder coat finish, the CLP-ACRN is built to last while remaining weather-tight with a silicone gasket providing IP-66 protection. Its versatile design supports multiple mounting options and lens types, ensuring flexibility for various outdoor lighting applications.
10-year / 100,000-hour limited warranty
Durable, weather-resistant cast aluminum housing
Type 3 and Type 5 wide distribution optics
Energy-efficient LED with high lumen output and long lifespan
Wattage & Lumen Output
Cat#
Input Power
Lumen Output
SCOPTIC
Color Temp
CRI
Rated Life
Input Voltage
HID Equivalent
CLP-ACRN-20CLED
25W
2,750 lm
4,530
5000K
70+
>200,000 hrs
120-277V
100W MH
CLP-ACRN-40CLED
45W
5,504 lm
8,806
5000K
70+
>200,000 hrs
120-277V
150W HPS
CLP-ACRN-60CLED
65W
8,256 lm
13,622
5000K
70+
>200,000 hrs
120-277V
250W PSMH
CLP-ACRN-80CLED
80W
9,590 lm
15,344
5000K
70+
>200,000 hrs
120-277V
250W HPS
Mounting & Lens Options
Mounting Options: Multiple fitters compatible with pole or cage mounts
Lens Options: Acrylic Lens, Large Lens A, Small Lens A, Lens B, Lens C, Lens D, Lens E, Glass Lens, Polycarbonate Lens
