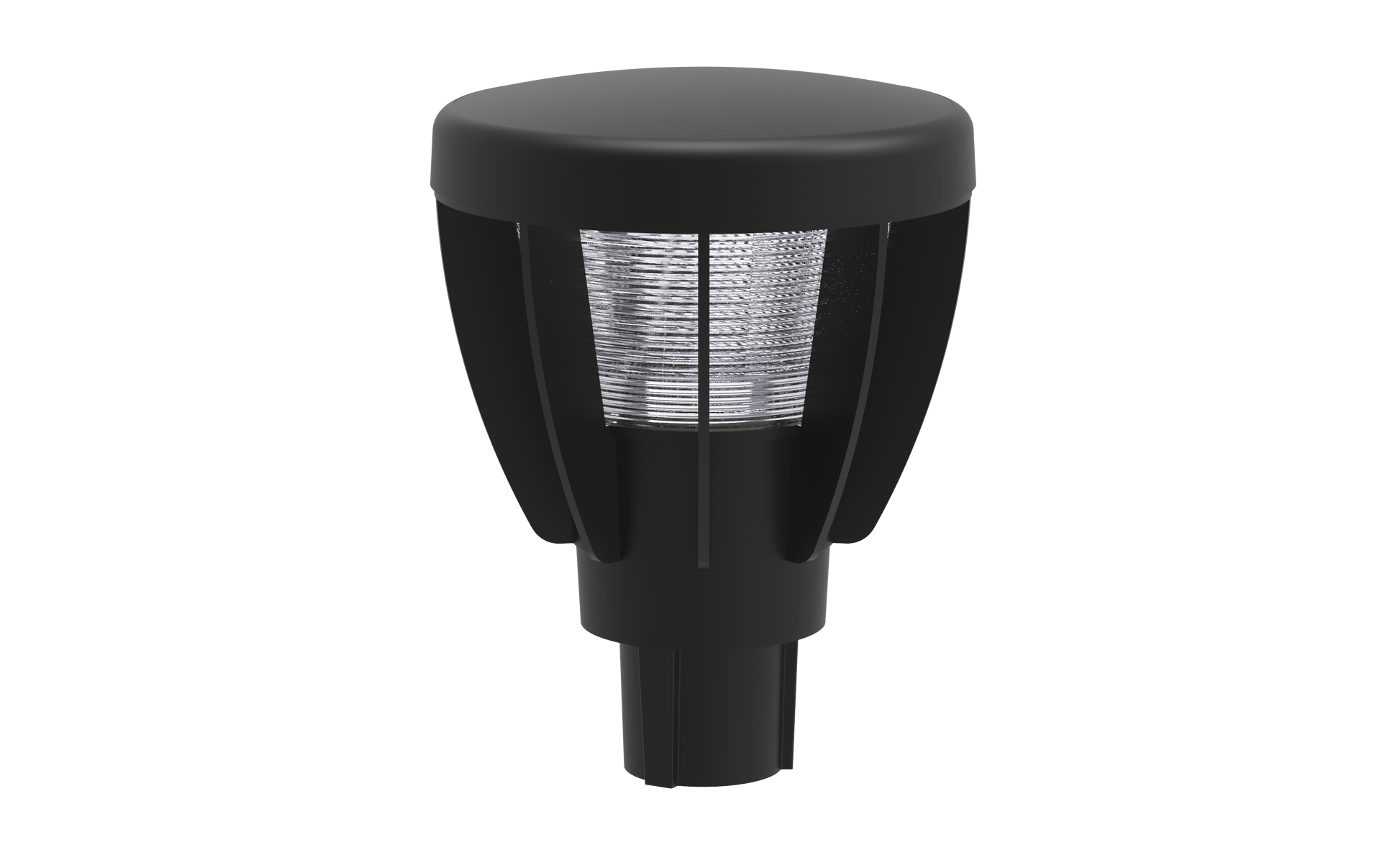

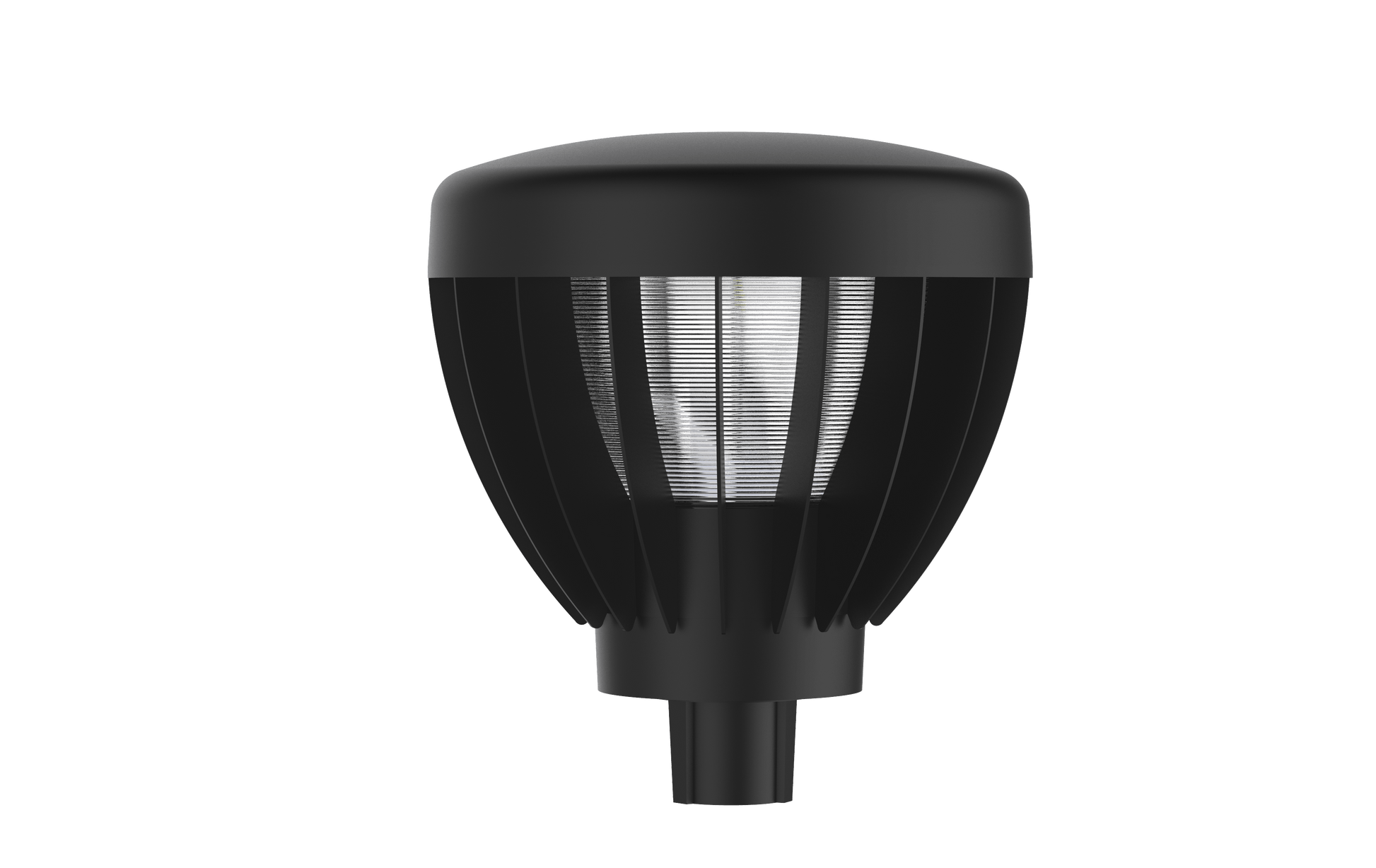

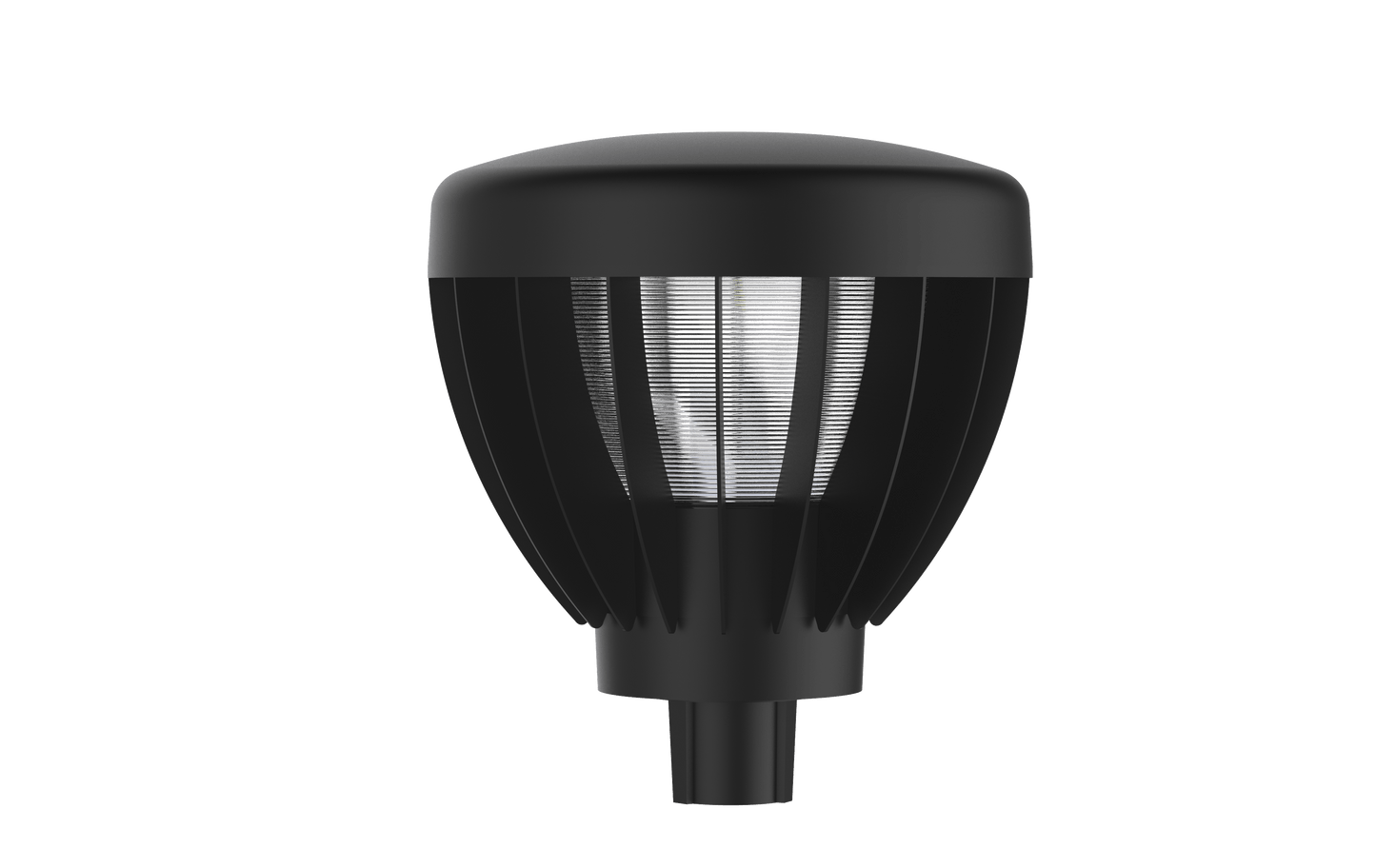

The CLP-M58 LED Luminaire is a premium architectural outdoor fixture with a sophisticated, vandal-proof design crafted from high-quality cast aluminum. Its sleek appearance and durable construction make it ideal for parking areas, entrances, shopping malls, libraries, walkways, recreational parks, and more.
Featuring Type 3, Type 4, and Type 5 prismatic optics, this luminaire provides wide, uniform light distribution while maintaining energy efficiency. The silicone gasket ensures IP-65 protection, keeping the fixture safe from water and dust ingress.
10-year / 100,000-hour limited warranty
Heavy-duty cast aluminum housing with 3-mil powder coat finish
Wide light distribution with Type 3, 4, and 5 optics
Vandal-proof design suitable for high-traffic outdoor areas
Wattage & Lumen Output
Cat#
Input Power
Lumen Output
LPW
Color Temp
CRI
Rated Life
Voltage
HID Equivalent
CLP-M58-S-20CLED
25W
3,650 lm
182
5000K
70+
>200,000 hrs
120-277V
100W MH
CLP-M58-S-40CLED
45W
6,492 lm
162
5000K
70+
>200,000 hrs
120-277V
150W HPS
CLP-M58-L-50CLED
55W
7,780 lm
155
5000K
70+
>200,000 hrs
120-277V
250W MH
CLP-M58-L-60CLED
65W
8,539 lm
142
5000K
70+
>200,000 hrs
120-277V
250W PSMH
CLP-M58-L-70CLED
75W
9,986 lm
142
5000K
70+
>200,000 hrs
120-277V
250W HPS
CLP-M58-L-80CLED
105W
15,561 lm
155
5000K
70+
>200,000 hrs
120-277V
350W HPS
Mounting & Finish Options
Mounting: 3" Fitter (3R)
Finish Options: Black (BLK), White (WH), Bronze (BRZ), Gray (GRY), Graphite (GPH), Marine Grade (MG)
