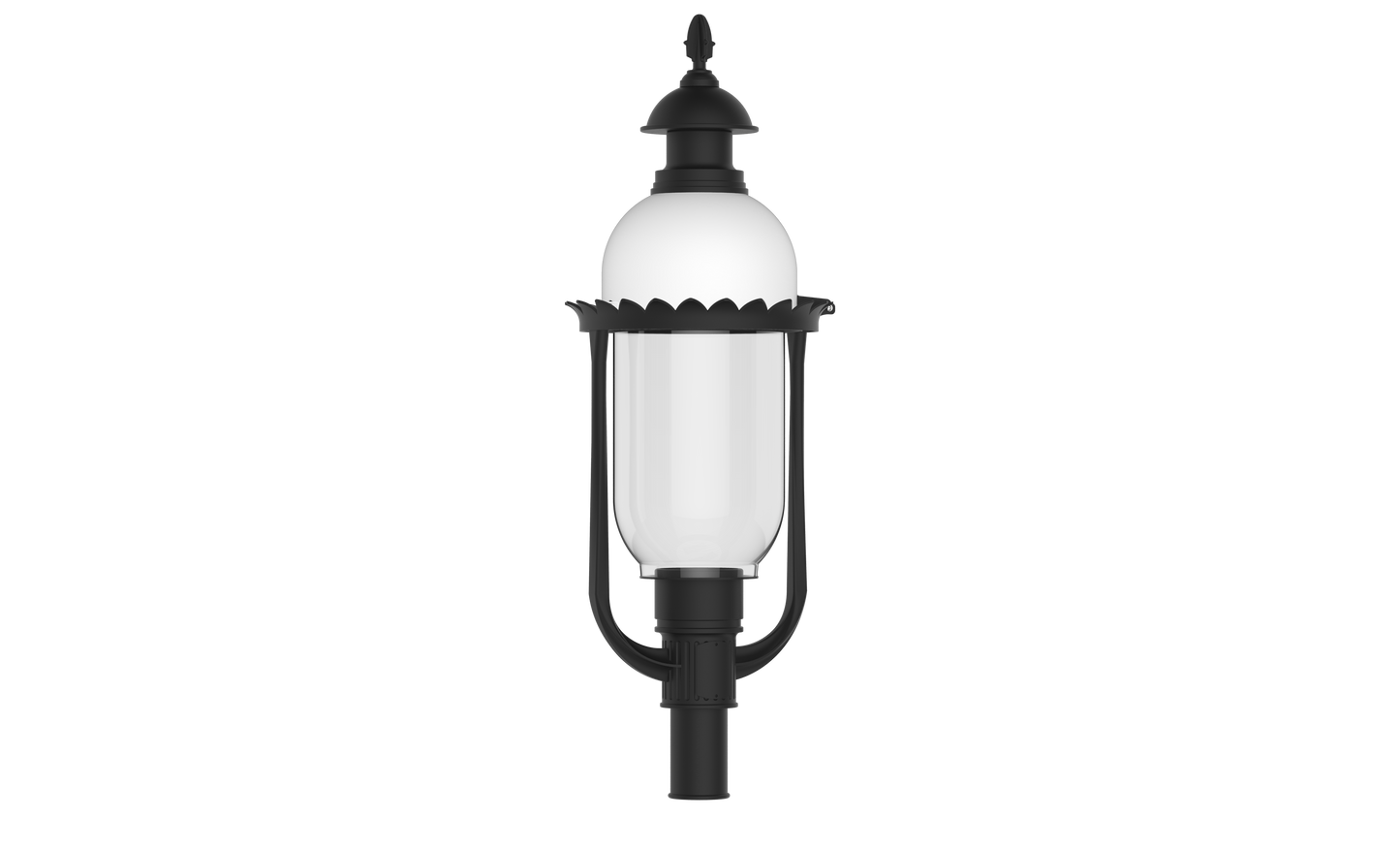

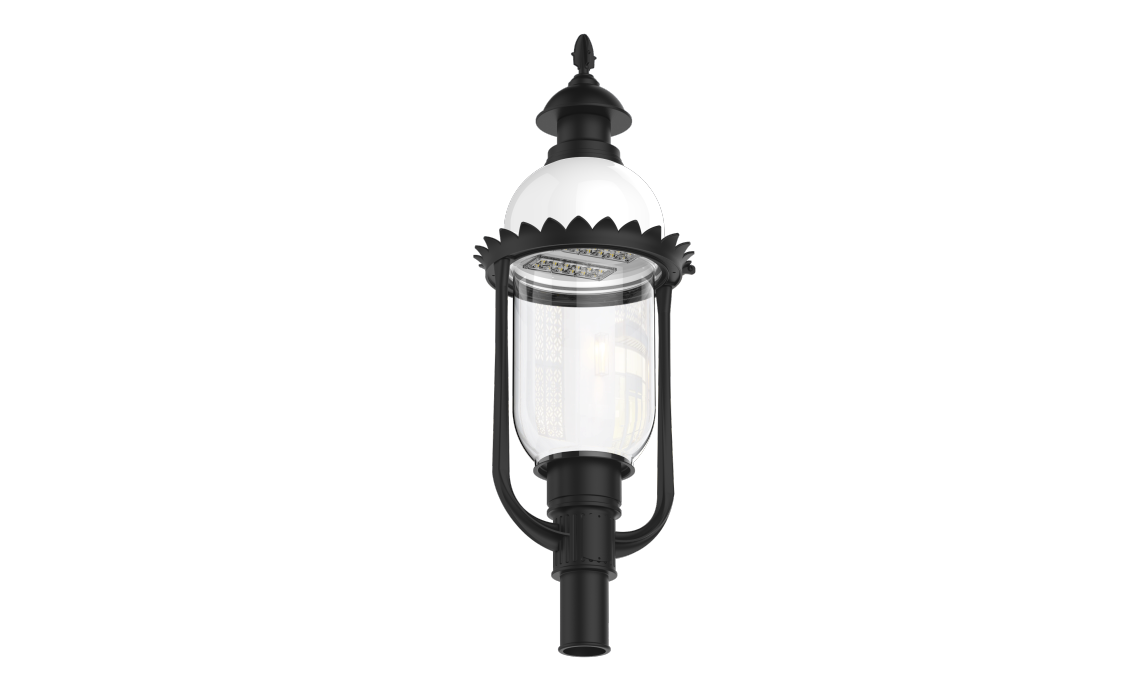

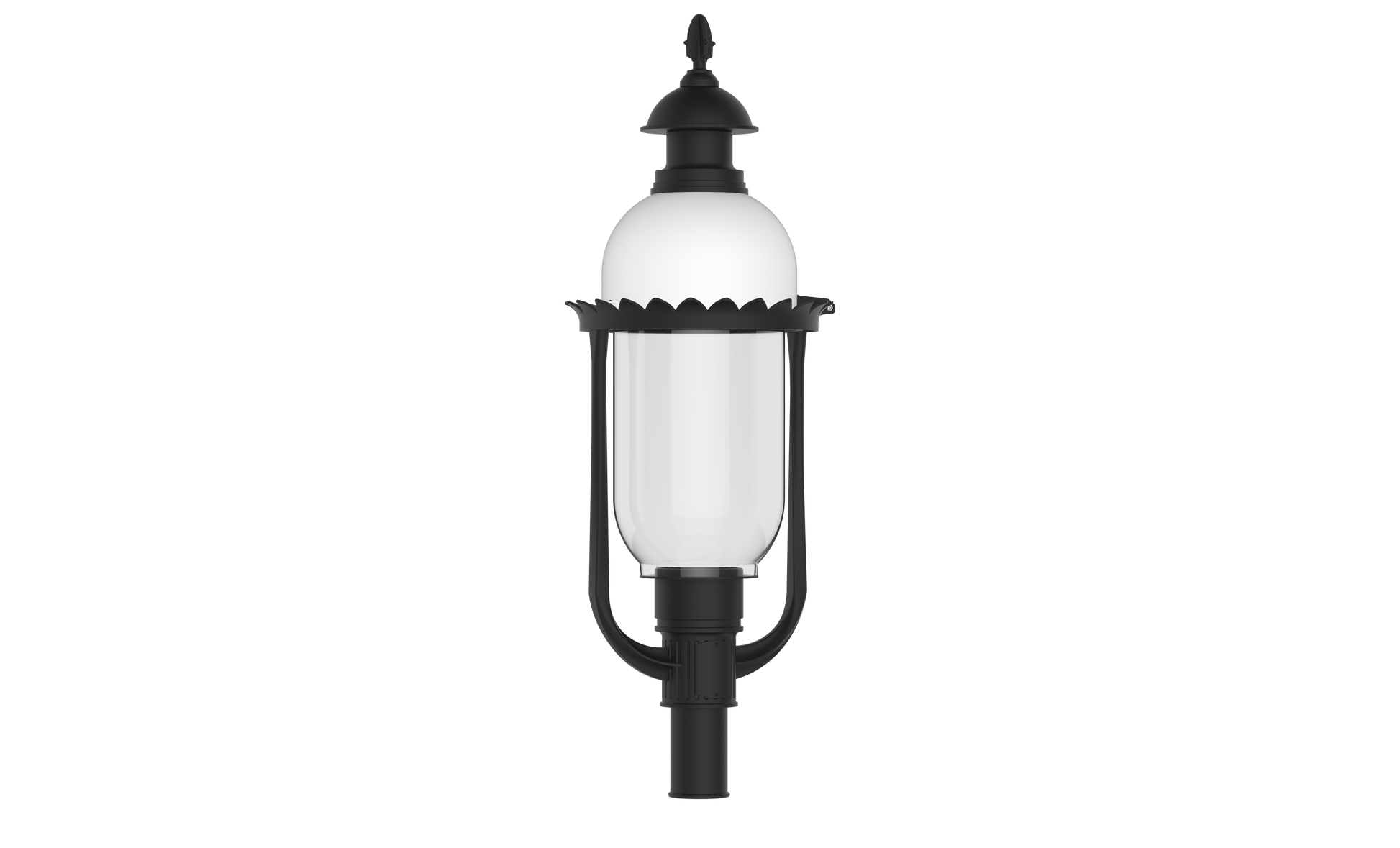

CLP-X47 Architectural LED Outdoor Light – Parking, Walkways & Parks
CLP-X47 Architectural LED Outdoor Light – Parking, Walkways & Parks
SKU:HLCLP-X47
Couldn't load pickup availability
Upgrade your outdoor spaces with the CLP-X47 Architectural LED Light, designed for both durability and elegance. Perfect for parking lots, entrances, walkways, parks, and other outdoor areas, this fixture delivers wide and uniform light distribution while being fully suitable for wet locations. Engineered for longevity, the CLP-X47 ensures superior performance with a 10-year/100,000-hour limited warranty.
Its heavy-duty cast aluminum housing with a 3-mil powder coat finish resists corrosion, while the silicone gasket provides IP66 protection against water and dust. With multiple wattages, color temperatures, light distributions, and mounting options, the CLP-X47 is a versatile choice for any commercial or residential outdoor lighting project.
Key Features:
- Heavy-duty cast aluminum housing with 3-mil powder coat finish
- IP66-rated silicone gasket for water and dust protection
- Wide light distribution options: Type 2, Type 3, Type 4, Type 5 optics
- Multiple wattage options: 20W to 70W LED with high lumen output
- Color temperatures available: 3000K, 4000K, 5000K
- Voltage compatibility: 120-277V, 347V, 480V
- Optional features: Button photocell, motion sensor, wireless control, frosted acrylic lens
- Rated life: >200,000 hours (L70)
- HID equivalent: 100W–250W depending on wattage
- Dimensions: 49.5" (A) × 17" (B), EPA 2.9
Specifications:
| Model | Wattage | Lumen Output | LPW | Color Temp | CRI | Voltage | HID Equivalent |
|---|---|---|---|---|---|---|---|
| CLP-X47-20CLED | 25W | 3,650 lm | 182 | 5000K | 70+ | 120-277V | 100W MH |
| CLP-X47-40CLED | 45W | 6,492 lm | 162 | 5000K | 70+ | 120-277V | 150W HPS |
| CLP-X47-50CLED | 55W | 7,780 lm | 155 | 5000K | 70+ | 120-277V | 250W MH |
| CLP-X47-60CLED | 65W | 8,539 lm | 142 | 5000K | 70+ | 120-277V | 250W PSMH |
| CLP-X47-70CLED | 75W | 9,986 lm | 142 | 5000K | 70+ | 120-277V | 250W HPS |
- Mounting: 3" Fitter (3R)
- Finish Options: Black, White, Bronze, Gray, Graphite, Marine Grade
- Light Distribution: Type 2, Type 3, Type 4, Type 5
- Optional Features: Button Photo Cell, Motion Sensor, Wireless Control, Frosted Acrylic Lens
