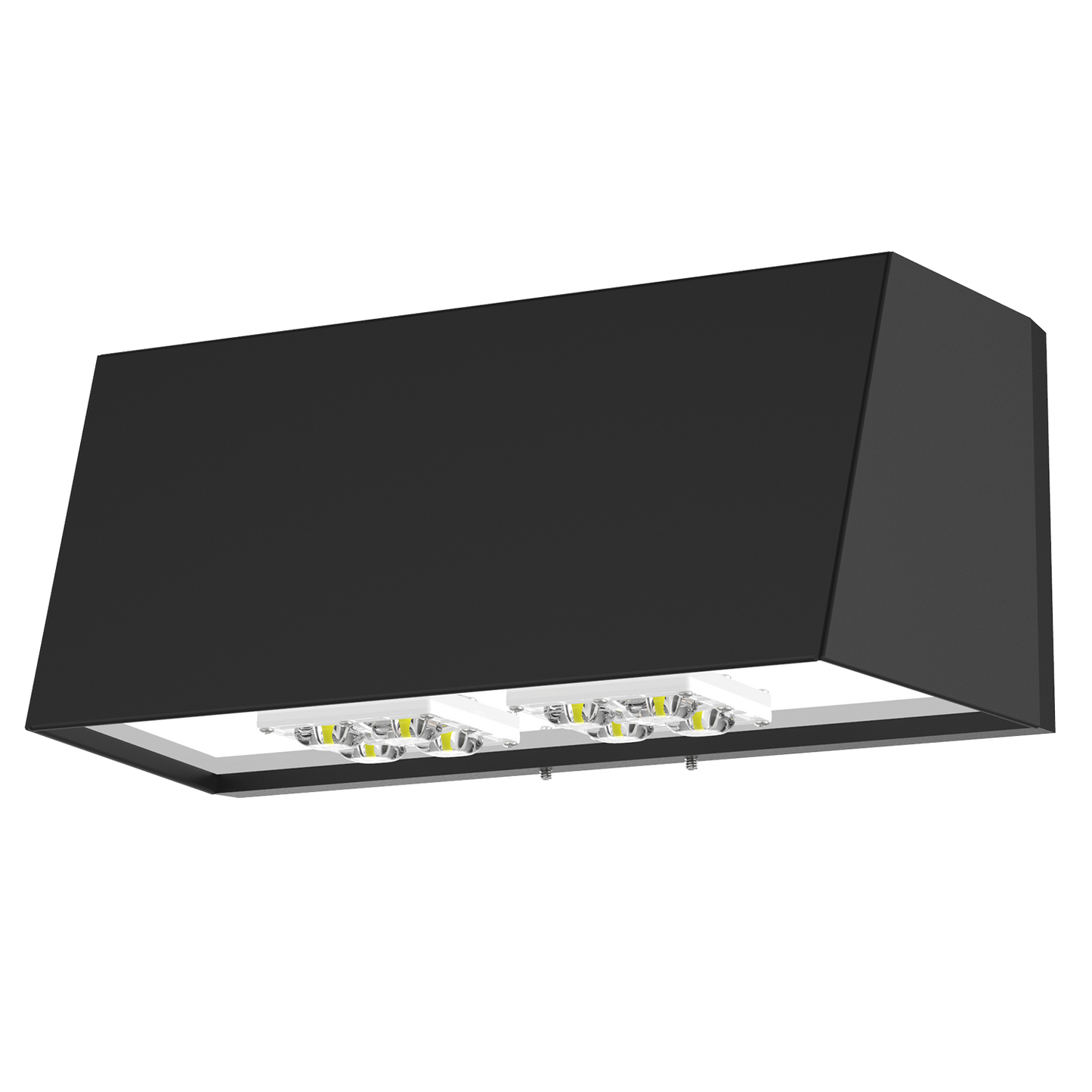

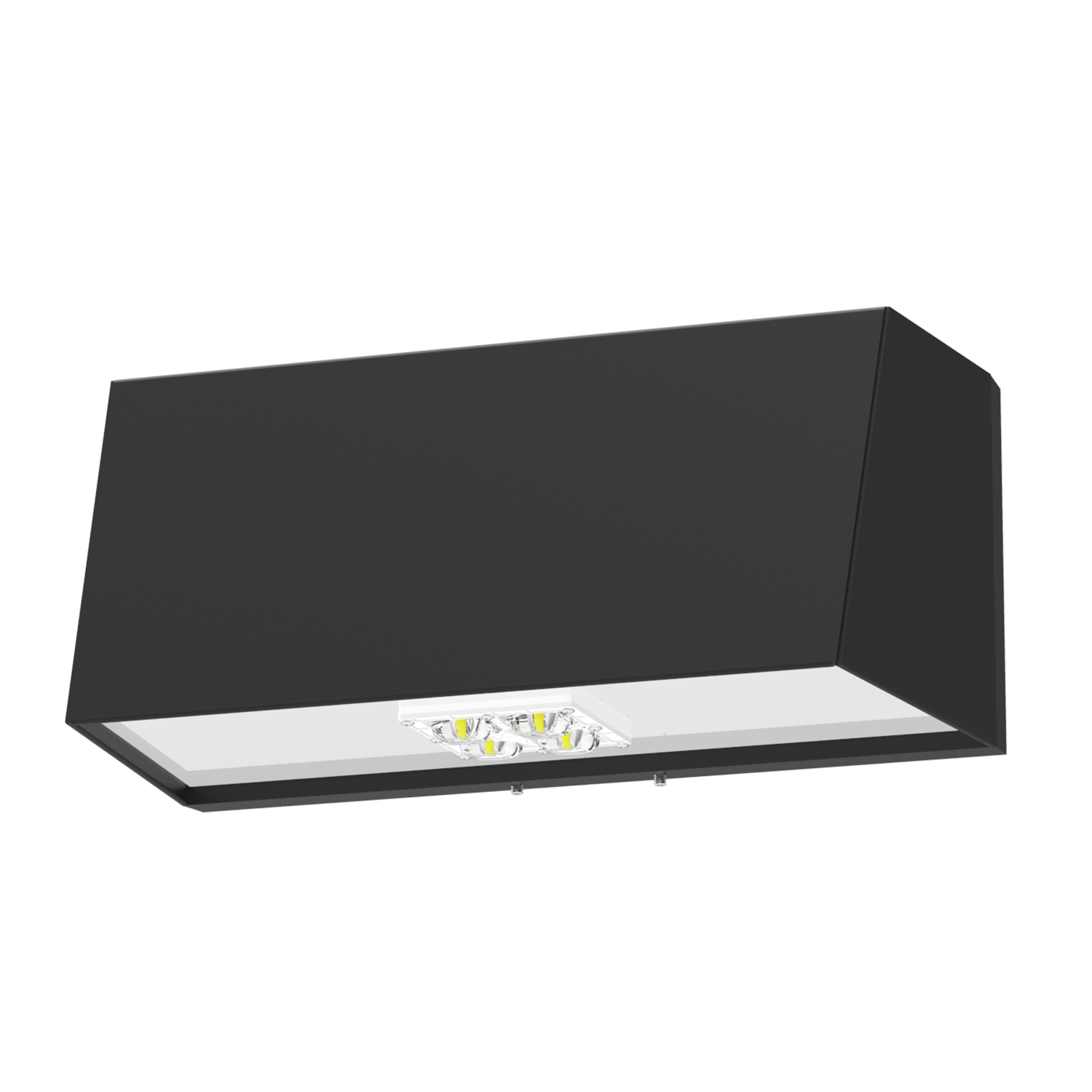

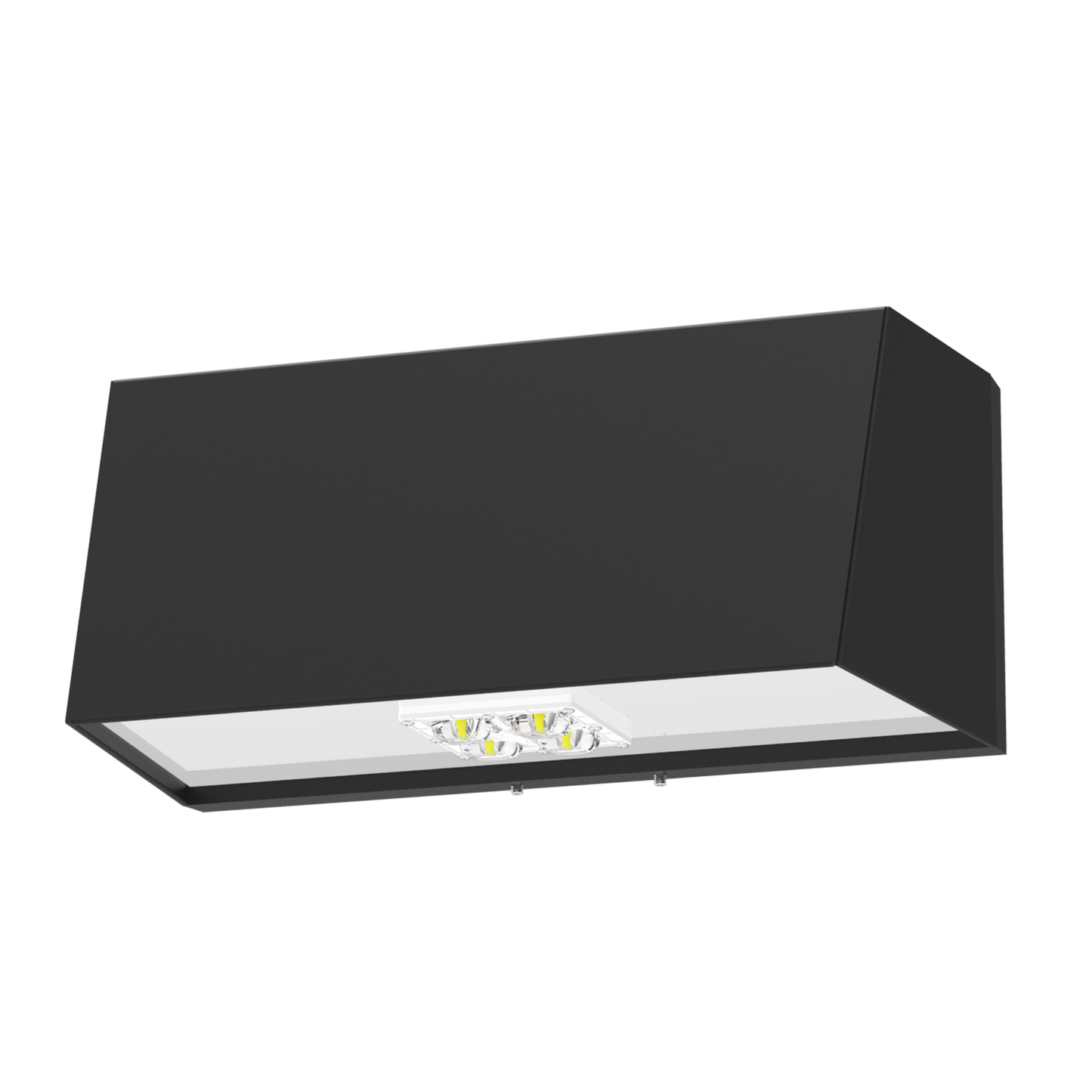

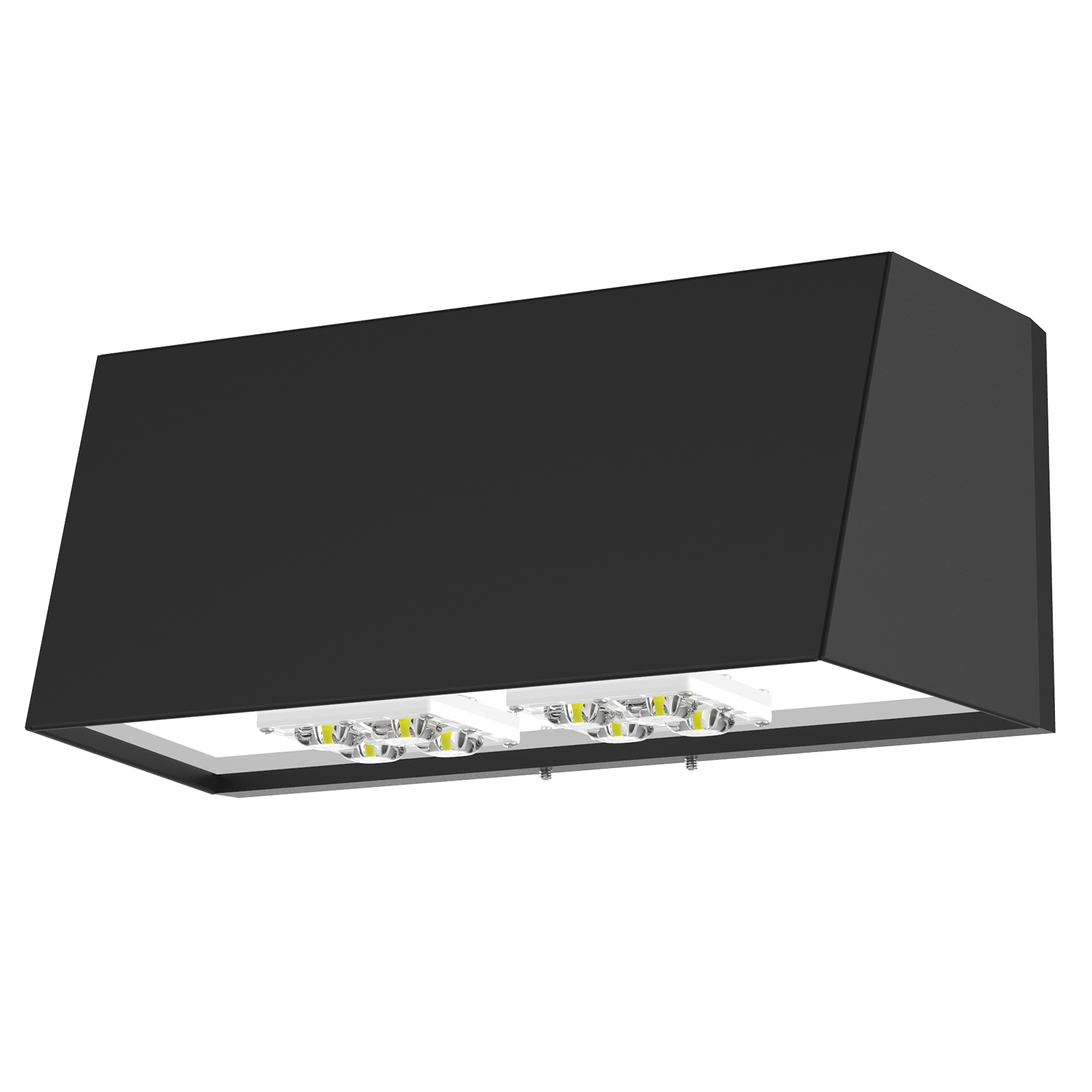

Stealth II Full Cutoff LED Wall Pack High-Efficiency Outdoor LED Wall Luminaire – Dark Sky Compliant
Stealth II Full Cutoff LED Wall Pack High-Efficiency Outdoor LED Wall Luminaire – Dark Sky Compliant
SKU:HLST-8521
Couldn't load pickup availability
The Stealth II Full Cutoff LED Wall Pack is a durable, energy-efficient outdoor lighting solution designed for residential, commercial, and industrial applications. Engineered with a heavy-duty aluminum housing and clear optical system, this fixture provides uniform illumination with minimal glare, making it ideal for residential exteriors, walkways, entryways, perimeters, parking garages, school campuses, and industrial spaces.
With Dark Sky compliance and optional uplight configuration, the Stealth II ensures safety, visibility, and minimal light pollution. Built to withstand harsh weather conditions, it features an IP65/67-rated enclosure, silicone gaskets for weather-tight protection, and is suitable for wet locations.
Backed by a 10-Year / 100,000-Hour Limited Warranty, this LED wall pack is designed for long-lasting performance and reduced maintenance.
Key Features
- Full cutoff LED wall pack with optional uplight
- Dark Sky compliant design
- Energy savings over 66% compared to traditional HID sources
- High-efficiency Lumiled LEDs
- Operating temperature: -30°C to 60°C
- Constant current driver, 120-277V standard (480V optional)
- Optional 0-10V dimming, occupancy sensors, photocells, or emergency battery pack
- Heavy-duty aluminum housing with 3-mil powder coat finish
- Clear optical system with silicone gasket for weather-tight protection
- Wall mount over standard 4” J-box
- 10-Year / 100,000-Hour limited warranty
Wattage Options
- 20W
- 40W
- 50W
- 60W
- 80W
- 100W
Light Distribution Options
- Type 2 (T2)
- Type 3 (T3)
- Type 4 (T4)
- Type 5 (T5)
Color Temperature Options
- 3000K (Warm White)
- 4000K (Neutral White)
- 5000K (Cool White)
Voltage
- 120-277V (MV)
- 480V (HV) optional
Finish Options
- Black
- White
- Bronze
- Silver
- Graphite
- Custom Finish
Optional Accessories

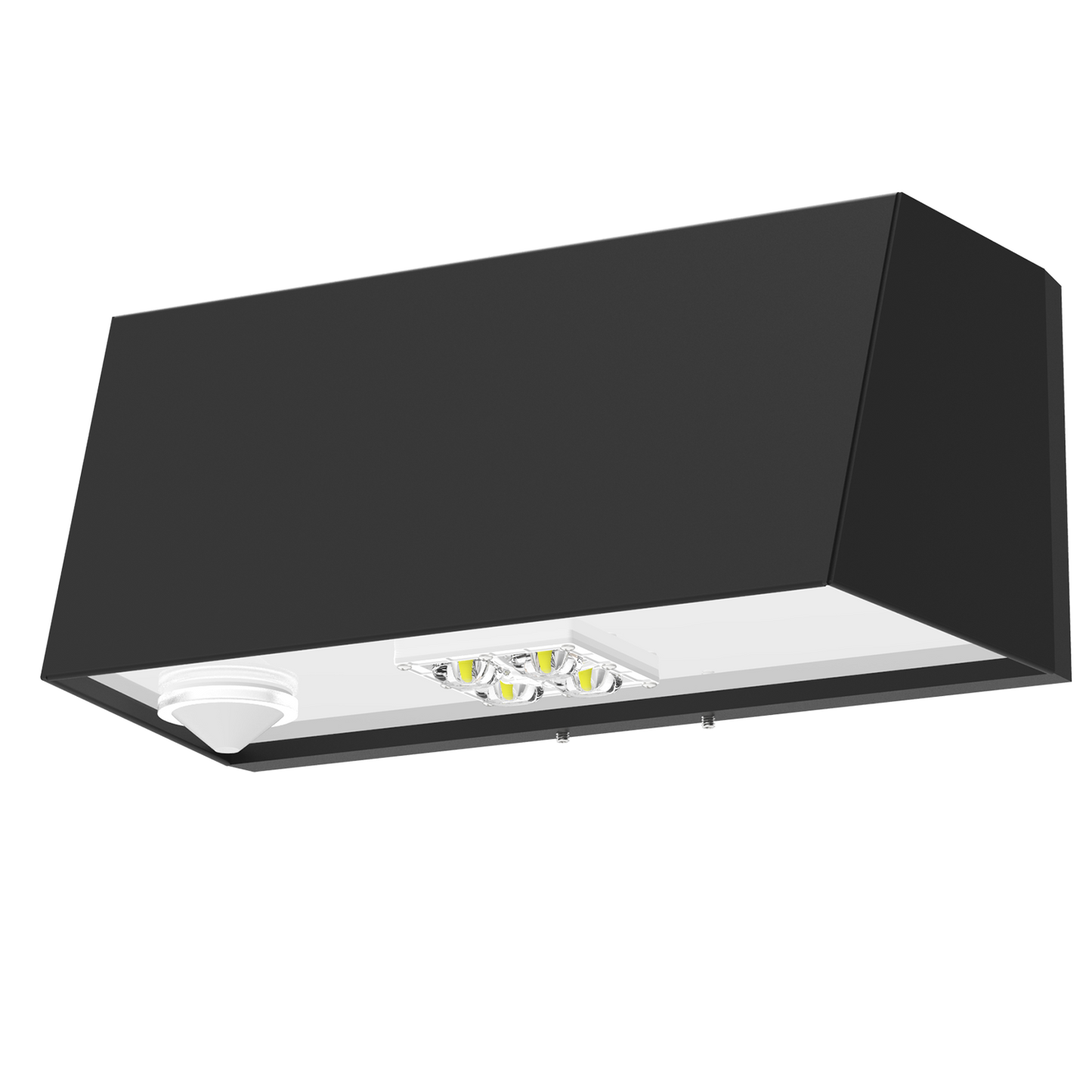

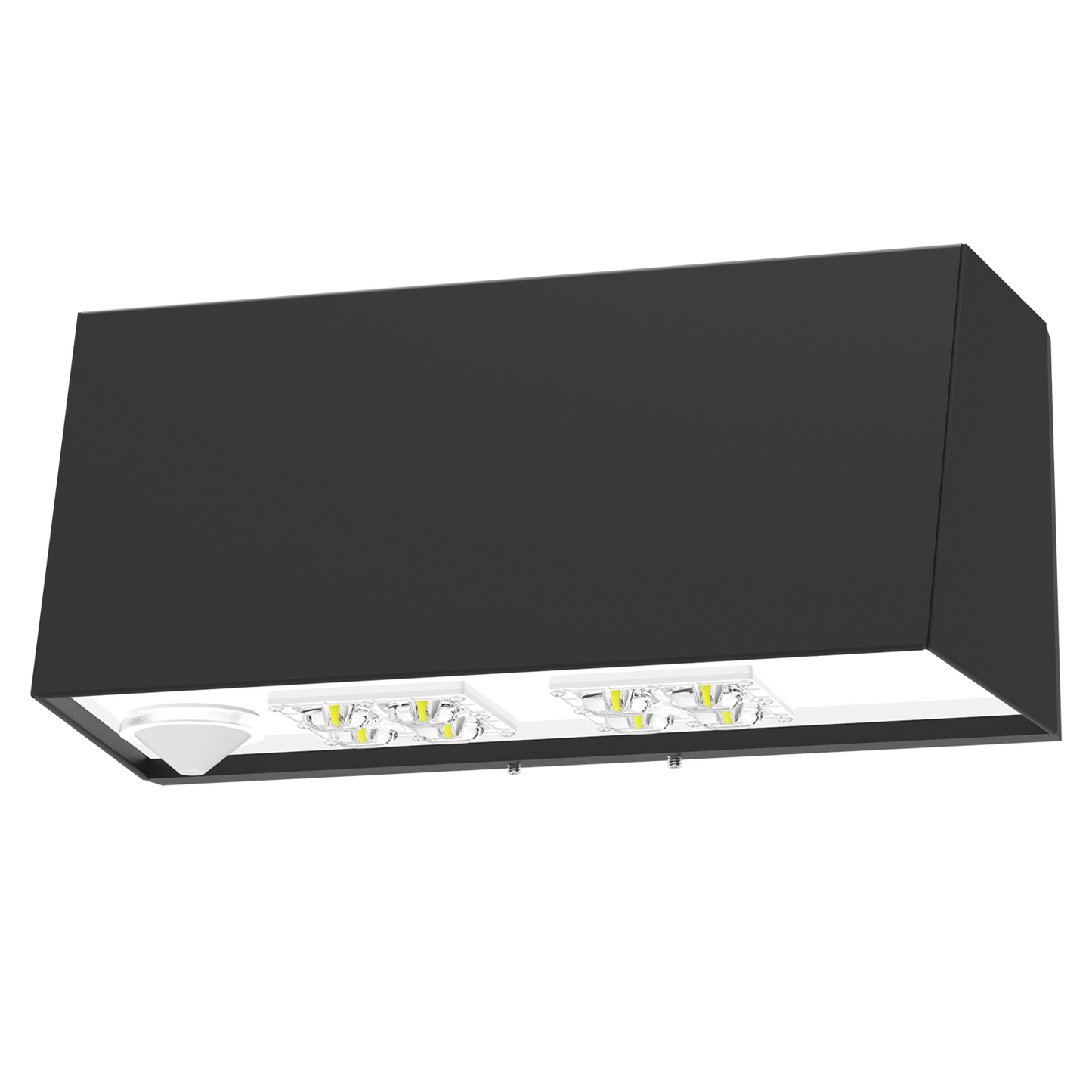

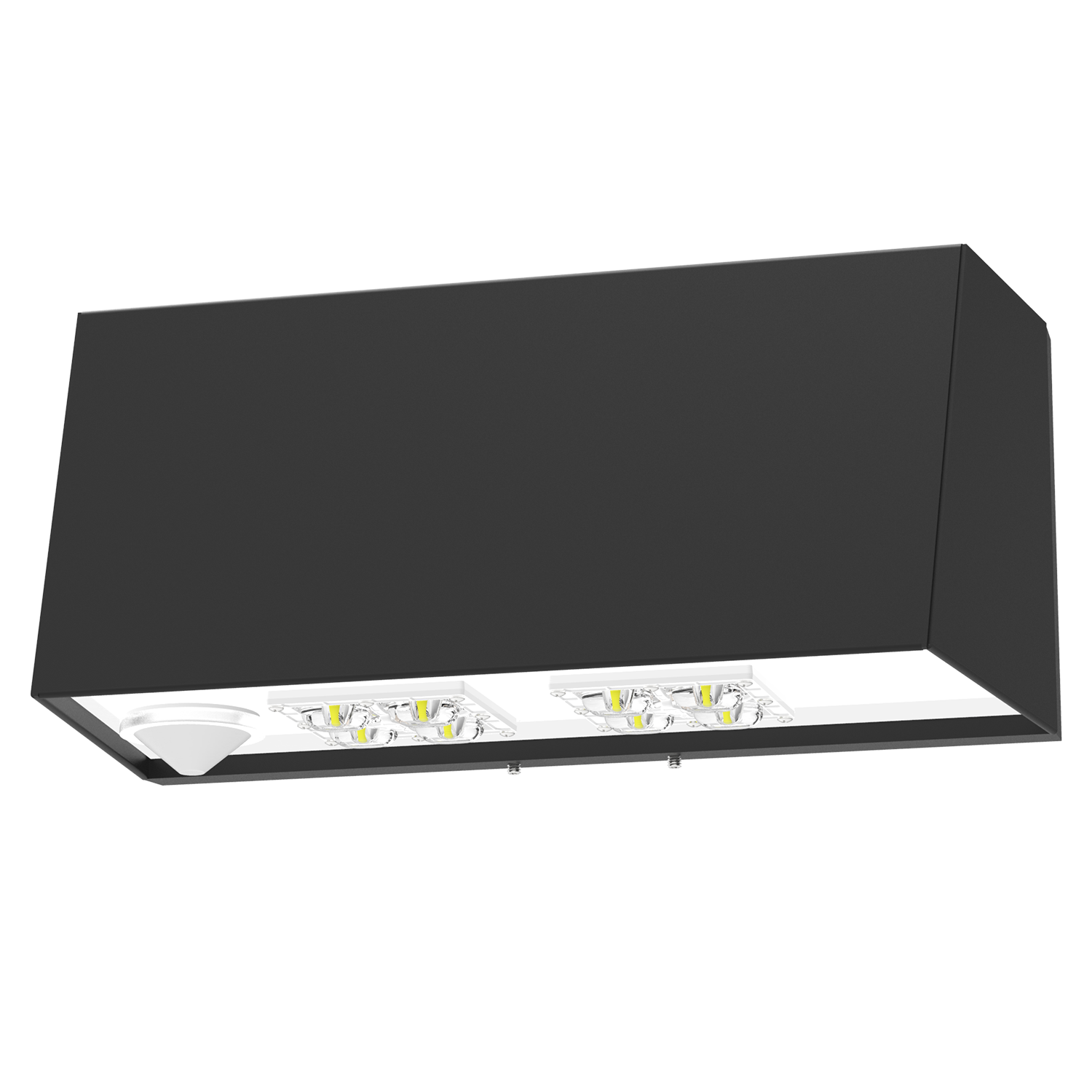

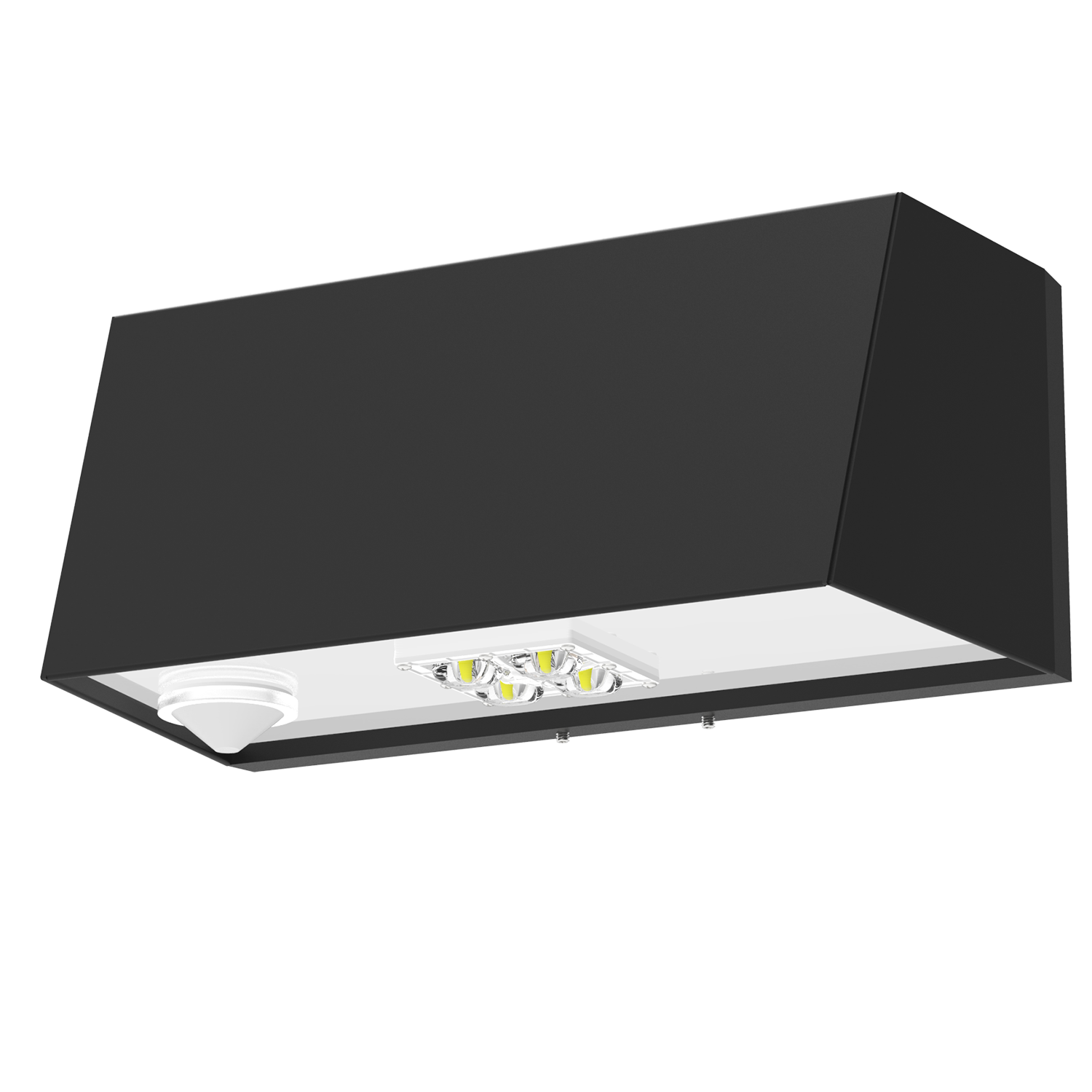

- Motion Sensor (OCC)
- Emergency Battery Pack (EMR)
- Button Photocell (PC)
- Wireless Controls (WC)
Dimensions
- Height (A): 7.5”
- Width (B): 8 7/8”
- Depth (C): 17”
- EPA: 0.88
Performance Specifications
Stealth II LED Series
| Wattage | Input Power | Lumen Output | LPW | CRI | Voltage | HID Equivalent |
|---|---|---|---|---|---|---|
| 20CLED | 25W | 2,958 lm | 147 | 70+ | 120-277V | 70W MH |
| 40CLED | 45W | 5,449 lm | 136 | 70+ | 120-277V | 150W HPS |
| 50CLED | 55W | 6,589 lm | 131 | 70+ | 120-277V | 150W MH |
| 60CLED | 65W | 9,625 lm | 160 | 70+ | 120-277V | 175W PSMH |
| 80CLED | 85W | 11,938 lm | 149 | 70+ | 120-277V | 250W MH |
| 100CLED | 105W | 14,042 lm | 140 | 70+ | 120-277V | 400W PSMH |
Ideal Applications
- Residential building exteriors
- Walkways and entryways
- Parking garages & perimeter security lighting
- School campuses and educational facilities
- Industrial and commercial facilities
